1. Rhagymadrodd
The ETCR2000A Digital Clamp Ground Resistance Tester is a specialized instrument designed for measuring grounding resistance in various electrical systems. This device offers a non-intrusive method for testing loop resistance without the need to disconnect grounding leads or use auxiliary electrodes, making it suitable for applications in power systems, meteorology, oilfields, construction, and industrial electrical equipment.
It accurately measures the combined resistance of the grounding body and lead, and is capable of detecting ground faults that traditional methods may miss. This manual provides detailed instructions for the safe and effective use of your ETCR2000A tester.
2. Gwybodaeth Diogelwch
RHYBUDD: Darllenwch yr holl rybuddion a chyfarwyddiadau diogelwch cyn defnyddio'r cynnyrch hwn. Gall methu â dilyn y rhybuddion a'r cyfarwyddiadau arwain at sioc drydanol, tân, neu anaf difrifol.
- Always observe local and national safety regulations.
- Do not use the instrument if it appears damaged or operates abnormally.
- Ensure the instrument is clean and dry before use.
- Peidiwch â rhagori ar y sgoriau mewnbwn uchaf ar gyfer unrhyw swyddogaeth.
- Always disconnect the instrument from the circuit before opening the battery compartment.
- This device is designed to measure loop resistance only, not single-point grounding. For single-point grounding, an artificial loop must be created.
3. Cynnwys Pecyn
Verify that all items listed below are present and in good condition:
- ETCR2000A Digital Clamp Ground Resistance Meter
- Test Ring
- Llawlyfr Defnyddiwr
- LR6 Battery (AA, 1.5V) x 4
- Achos Cario
Image: The ETCR2000A kit, showing the clamp meter, test ring, user manual, batteries, and protective carrying case.
4. Cynnyrch Drosview
The ETCR2000A features an intuitive design for ease of use. Familiarize yourself with the main components:
Delwedd: Blaen view of the ETCR2000A, showing the display, clamp jaws, and control buttons.
Delwedd: Ochr view of the ETCR2000A, illustrating the clamp opening mechanism and the jaw size.
Image: Close-up of the clamp jaws, highlighting the internal voltage and current coils for measurement.
Image: Key features of the ETCR2000A, including its resistance range, resolution, clamp jaw size, and data memory capacity.
5. Gosod
5.1 Gosod Batri
- Sicrhewch fod y ddyfais wedi'i phweru i ffwrdd.
- Lleolwch yr adran batri ar gefn yr uned.
- Defnyddiwch dyrnsgriw i agor y clawr batri compartment.
- Insert four LR6 (AA, 1.5V) batteries, observing the correct polarity (+/-).
- Amnewid gorchudd adran y batri a'i ddiogelu gyda'r sgriw.

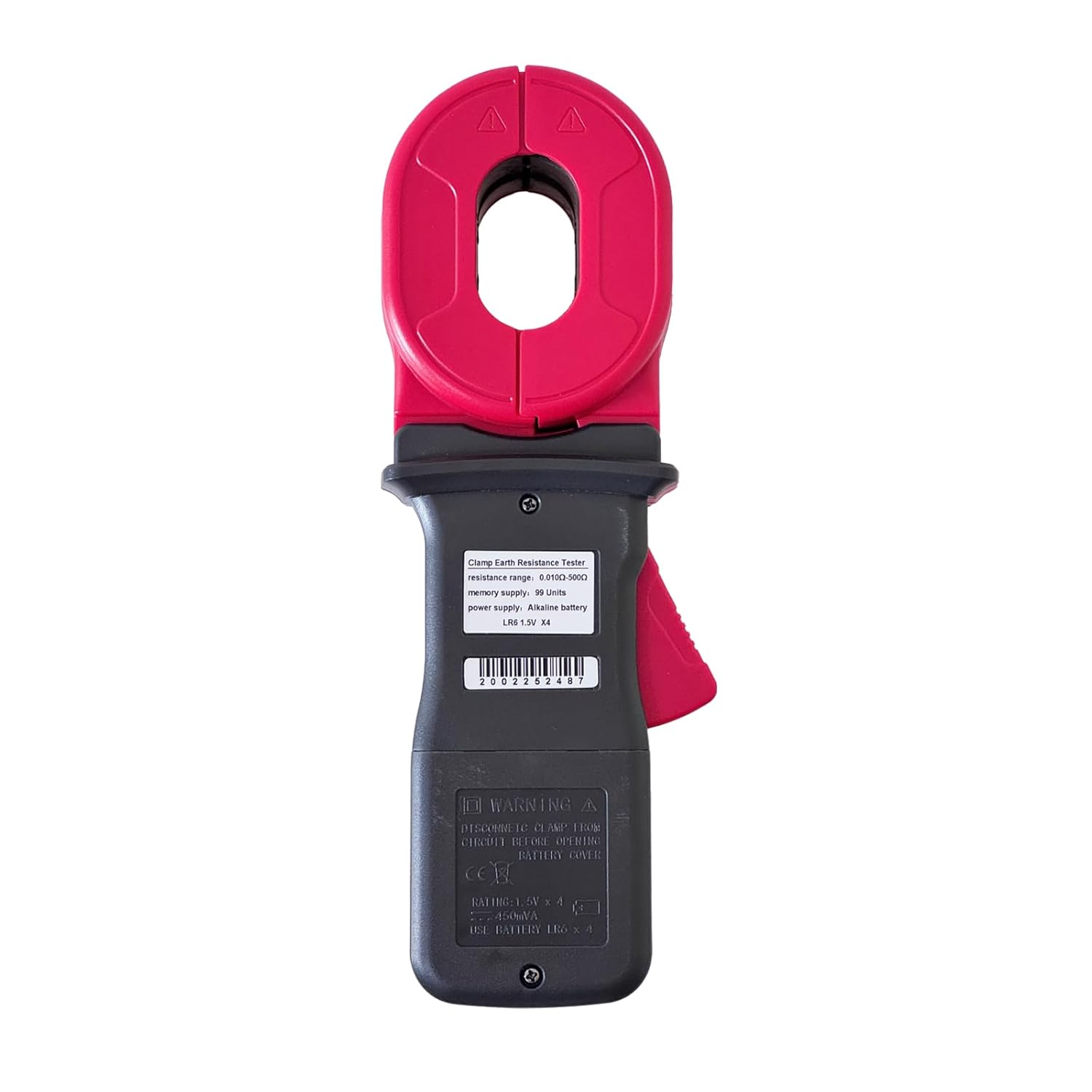

Delwedd: Cefn view of the ETCR2000A, indicating the location of the battery compartment.
6. Cyfarwyddiadau Gweithredu
6.1 Pweru Ymlaen/Diffodd
Gwasgwch y GRYM botwm i droi'r ddyfais ymlaen neu i ffwrdd.
6.2 Taking a Measurement (Loop Resistance)
The ETCR2000A is designed for loop resistance measurement. It measures induced potential and current to calculate resistance using the formula R=E/I.
- Ensure the circuit to be tested forms a closed loop. The tester cannot measure single-point grounding directly. If testing a single grounding electrode, an artificial loop must be created (e.g., by connecting a temporary conductor to another known ground point or using the provided test ring).
- Agorwch y clamp genau trwy wasgu'r lifer.
- Gosodwch y clamp around the grounding conductor or loop to be measured. Ensure the jaws are fully closed and there are no gaps.
- The resistance value will be displayed on the LCD screen.
- For stable readings, hold the clamp steady during measurement.
6.3 Swyddogaeth Dal Data
Gwasgwch y DALWCH botwm i rewi'r darlleniad cyfredol ar yr arddangosfa. Pwyswch ef eto i ryddhau'r swyddogaeth dal.
6.4 Dewis Modd
Mae'r MODD button may be used to cycle through different measurement modes or display options if available. Refer to the on-screen indicators.
Image: The ETCR2000A display showing 'OL' (Open Loop), which indicates the circuit is not closed or the resistance is out of range.
7. cynnal
7.1 Glanhau
Wipe the instrument with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure no moisture enters the device.
7.2 Batri Newydd
When the low battery indicator appears on the display, replace the batteries as described in the 'Battery Installation' section (5.1).
7.3 Storio
Store the instrument in its carrying case in a cool, dry place, away from direct sunlight and extreme temperatures. Remove batteries if the device will not be used for an extended period.
8. Datrys Problemau
| Problem | Achos Posibl | Ateb |
|---|---|---|
| No display or weak display | Batris marw neu isel | Amnewid batris. |
| "OL" (Open Loop) displayed | Circuit is not a closed loop; clamp jaws not fully closed; resistance is out of range. | Ensure the circuit forms a complete loop. Check that the clamp jaws are fully closed around the conductor. Verify the resistance is within the 0.010Ω-500Ω range. |
| Darlleniadau anghywir | Interference; dirty clamp jaws; improper contact. | Move away from strong electromagnetic fields. Clean the clamp jaws. Ensure good contact with the conductor. |
9. manylebau
| Paramedr | Gwerth |
|---|---|
| Model | ETCR2000A |
| Ystod Gwrthsefyll | 0.010Ω - 500Ω |
| Datrysiad Gwrthsafiad | 0.001Ω |
| Clamp Maint y ên | 55mm x 32mm |
| Maint Agoriadol | 32mm |
| Ffynhonnell Pwer | 4 x LR6 (AA) 1.5V Batteries |
| Isafswm Cyfrol Weithredoltage | 6 folt (DC) |
| Graddfa Tymheredd Uchaf | 55°C |
| Pwysau Eitem | 2.1 pwys (tua 0.95 kg) |
| Dimensiynau Eitem | 10.83 x 3.94 x 2.2 modfedd (tua 27.5 x 10 x 5.6 cm) |
| Math Mesur | Ohmmeter (Loop Resistance) |
| Manyleb wedi'i Chwrdd | CE |
| Data Cof | 99 Grwpiau |
9.1 Cywirdeb
The ETCR2000A provides precise measurements. For the 50.0-99.5 Ohm range, the accuracy is typically ±1.5% + 0.5 Ohms. Accuracy may vary slightly across different ranges. Always ensure proper calibration and environmental conditions for optimal performance.
10. Ceisiadau
The ETCR2000A is suitable for a wide range of professional applications:
Image: Testing in power substations.
Image: Use on construction sites.
Image: Testing telecommunication towers.
11. Gwarant a Chefnogaeth
For warranty information and technical support, please refer to the documentation provided with your purchase or contact ETCR customer service. Keep your purchase receipt as proof of purchase.
