Alonefire SV119 90W UV LED Flashlight Instruction Manual

1. Gwybodaeth Diogelwch

Please read and understand all safety instructions before using the Alonefire SV119 UV LED Flashlight. Failure to follow these instructions may result in injury or damage to the product.

• UV Radiation Exposure: This flashlight emits powerful 365nm UV light. Avoid direct exposure of UV light to eyes and skin. Prolonged exposure can be harmful.
• Gwisgwch Sbectol Amddiffynnol: Always wear the provided UV protection glasses when operating the flashlight to shield your eyes from UV radiation.
• Arwyneb Poeth: The flashlight head may become hot during extended use. Avoid touching the hot surface directly.
• Diogelwch Batri: Use only the specified Lithium-ion battery. Do not attempt to disassemble, puncture, or expose the battery to extreme temperatures or fire.
• Plant: Cadwch y flashlight allan o gyrraedd plant.

2. Cynnwys Pecyn

Gwiriwch fod yr holl eitemau yn bresennol yn y pecyn:

• Alonefire SV119 UV LED Flashlight
• Cebl Codi Tâl USB-C
• UV Protection Glasses
• Rechargeable Lithium-ion Battery (pre-installed or separate)

Image: Contents of the Alonefire SV119 package, including the flashlight, USB-C cable, and yellow UV protection glasses.

3. Cynnyrch Drosview

The Alonefire SV119 is a powerful 90W UV LED flashlight designed for various detection and curing applications. Its key features include:

• LED UV o Ansawdd Uchel: Equipped with 9 pieces of 4-core 365nm UV LEDs, providing up to 90W power consumption and 10000mW light output.
• Black Filter Lens: Features a hardened black optical filter lens to filter out ambient visible light, ensuring a purer and more powerful UV output.
• Adeiladu Gwydn: Made from high-quality aluminum alloy for enhanced heat dissipation and durability.
• USB-C y gellir ei hailwefru: Convenient USB-C charging port for easy and versatile recharging.
• Arddangosfa LCD Digidol: An innovative LCD screen displays the battery power level numerically.
• Codi Tâl Gwrthdroi: Can function as a power bank to charge other devices via its USB-A output port.

Image: The Alonefire SV119 UV LED flashlight highlighting its 9-core 365nm UV LEDs and various detection and curing applications.

Image: A visual comparison demonstrating the effectiveness of 365nm UV light compared to 395nm UV light for mineral fluorescence.

4. Gosod

4.1 Gosod Batri

1. Dadsgriwiwch gap cynffon y fflachlamp.
2. If the battery is not pre-installed, insert the provided Lithium-ion battery with the positive (+) terminal facing towards the flashlight head.
3. Pwysig: If there is a plastic insulating disc on the battery's positive or negative terminal, remove it before installation.
4. Sgriwiwch y cap cynffon yn ôl ymlaen yn ddiogel.

4.2 Codi Tâl Cychwynnol

Cyn ei ddefnyddio gyntaf, gwefrwch fatri'r fflachlamp yn llawn.

1. Lleolwch y porthladd gwefru USB-C ar gorff y flashlight.
2. Connect the provided USB-C cable to the flashlight and plug the other end into a compatible USB power adapter (not included) or a computer USB port.
3. The LCD display will show the charging progress. A full charge is indicated by '100%' on the display.
4. Mae'r amser codi tâl tua 7 awr am dâl llawn.

Image: The Alonefire SV119 flashlight being charged via its USB-C port, with the LCD screen displaying the battery charge level.

5. Cyfarwyddiadau Gweithredu

5.1 Pŵer Ymlaen/Diffodd a Dewis Modd

• Pŵer Ymlaen: Press the power button located on the side of the flashlight.
• Dewis Modd: The flashlight typically has two brightness modes (strong and medium). Press the power button repeatedly to cycle through these modes.
• Pwer i ffwrdd: Press and hold the power button for a few seconds until the light turns off.

5.2 Deall yr Arddangosfa LCD

The integrated LCD display provides real-time information about the battery status.

• When the flashlight is in use, the display shows the remaining battery percentage.
• During charging, it indicates the charging progress.

5.3 Reverse Charging Function

The SV119 can act as a portable power bank to charge other USB-powered devices.

1. Locate the USB-A output port on the flashlight.
2. Cysylltwch gebl gwefru eich dyfais â'r porthladd USB-A ar y flashlight.
3. Bydd y fflachlamp yn dechrau gwefru'ch dyfais.

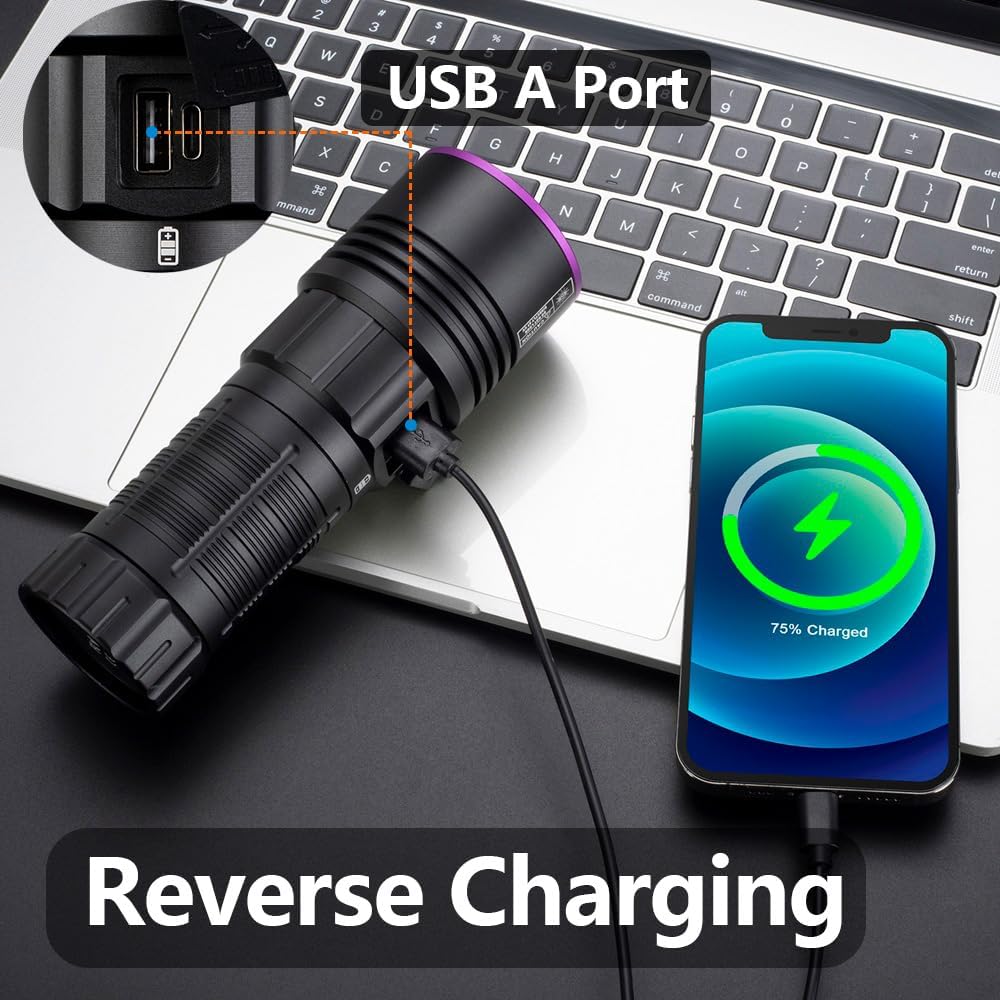

Image: The Alonefire SV119 flashlight demonstrating its reverse charging capability by powering a smartphone.

5.4 Ceisiadau

The 365nm UV light is suitable for various applications:

• Canfod staen anifeiliaid anwes: Identify hidden pet urine, ringworm, and other biological stains on carpets, furniture, and floors.
• Canfod Scorpion: Scorpions fluoresce under 365nm UV light, making them easier to spot in dark environments.
• Mineral and Amber Identification: Many minerals and amber exhibit fluorescence under UV light, aiding in identification.
• Currency and Document Authentication: Verify security features on banknotes, passports, and other official documents.
• Cywasgu Resin: Accelerate the curing process of UV-sensitive resins.
• Canfod Gollyngiadau: Detect leaks in HVAC systems or automotive fluids when used with UV-sensitive dyes.

Image: A demonstration of the UV flashlight's ability to reveal hidden pet urine stains on a carpet, showing a 'before' view under normal light and an 'after' view under UV light.

6. cynnal

6.1 Glanhau

• Sychwch gorff y fflachlamp gyda lliain meddal, damp brethyn.
• Ar gyfer y lens, defnyddiwch frethyn a thoddiant glanhau lensys i osgoi crafiadau.
• Peidiwch â defnyddio glanhawyr neu doddyddion sgraffiniol.

6.2 Gofal a Storio Batri

• Recharge the battery regularly, even if not frequently used, to maintain its lifespan.
• Storiwch y flashlight mewn lle oer, sych i ffwrdd o olau haul uniongyrchol a thymheredd eithafol.
• Os ydych chi'n ei storio am gyfnod hir, gwefrwch y batri i tua 50% o'i gapasiti.

7. Datrys Problemau

• Flashlight ddim yn troi ymlaen:
  • Sicrhewch fod y batri wedi'i osod yn gywir a'i wefru'n llawn.
  • Check if the plastic insulating disc has been removed from the battery terminals.
  • Tynhau'r cap cynffon yn ddiogel.
• Batri ddim yn codi tâl:
  • Gwiriwch fod y cebl USB-C wedi'i gysylltu'n iawn â'r flashlight a'r ffynhonnell bŵer.
  • Rhowch gynnig ar gebl USB-C gwahanol neu addasydd pŵer.
  • Sicrhewch fod y ffynhonnell bŵer yn weithredol.
• Weak light output:
  • Efallai bod y batri'n isel; ail-wefrwch ef.
  • Gwnewch yn siŵr bod y lens yn lân ac yn rhydd o rwystrau.
• LCD display not working or inaccurate:
  • Ailwefru'r batri yn llawn.
  • Os bydd y broblem yn parhau, cysylltwch â'r tîm cymorth cwsmeriaid.

8. manylebau

9. Gwarant a Chefnogaeth

9.1 Gwybodaeth Gwarant

Specific warranty details for the Alonefire SV119 are not provided in this manual. Please refer to the retailer or manufacturer's official websafle ar gyfer y polisi gwarant mwyaf cyfredol.

9.2 Cefnogaeth i Gwsmeriaid

For technical assistance, troubleshooting beyond this manual, or inquiries regarding your product, please contact Alonefire customer support through their official channels or the retailer where the product was purchased.
