Shop-Vac 5 Gallon 4.5 Peak HP Wet/Dry Vacuum and Dust Collector Instruction Manual

1. Cyfarwyddiadau Diogelwch Pwysig

Wrth ddefnyddio offer trydanol, dylid dilyn rhagofalon sylfaenol bob amser, gan gynnwys y canlynol:

• Darllenwch yr holl gyfarwyddiadau cyn defnyddio'r sugnwr llwch gwlyb/sych hwn.
• Peidiwch â gadael yr offer pan fyddwch wedi'i blygio i mewn. Tynnwch y plwg o'r allfa pan nad yw'n cael ei ddefnyddio a chyn ei wasanaethu.
• Peidiwch â defnyddio yn yr awyr agored nac ar arwynebau gwlyb.
• Peidiwch â gadael i gael ei ddefnyddio fel tegan. Mae angen sylw manwl pan gaiff ei ddefnyddio gan neu wrth ymyl plant.
• Defnyddiwch fel y disgrifir yn y llawlyfr hwn yn unig. Defnyddiwch atodiadau a argymhellir gan y gwneuthurwr yn unig.
• Peidiwch â defnyddio gyda chortyn neu blwg wedi'i ddifrodi. Os nad yw'r offer yn gweithio fel y dylai, wedi'i ollwng, ei ddifrodi, ei adael yn yr awyr agored, neu ei ollwng i mewn i ddŵr, dychwelwch ef i ganolfan wasanaeth.
• Peidiwch â thynnu na chario â chortyn, defnyddio cortyn fel handlen, cau drws ar linyn, na thynnu cortyn o amgylch ymylon miniog neu gorneli. Peidiwch â rhedeg teclyn dros y llinyn. Cadwch y llinyn i ffwrdd o arwynebau wedi'u gwresogi.
• Peidiwch â dad-blygio trwy dynnu ar y llinyn. I ddad-blygio, gafaelwch yn y plwg, nid y llinyn.
• Peidiwch â thrin y plwg neu'r teclyn â dwylo gwlyb.
• Peidiwch â rhoi unrhyw wrthrych mewn agoriadau. Peidiwch â defnyddio gydag unrhyw agoriad wedi'i rwystro; cadwch yn rhydd o lwch, lint, gwallt, ac unrhyw beth a allai leihau llif aer.
• Cadwch wallt, dillad rhydd, bysedd, a phob rhan o'r corff i ffwrdd o agoriadau a rhannau symudol.
• Peidiwch â chodi unrhyw beth sy'n llosgi neu'n ysmygu, fel sigaréts, matsys, neu lwch poeth.
• Peidiwch â defnyddio i godi hylifau fflamadwy neu hylosg, fel gasoline, na'u defnyddio mewn ardaloedd lle gallant fod yn bresennol.
• Peidiwch â defnyddio heb hidlyddion yn eu lle.
• Diffoddwch yr holl reolyddion cyn dad-blygio.
• Defnyddiwch ofal ychwanegol wrth lanhau ar y grisiau.
• Do not use to pick up toxic materials.

2. Cynnyrch Drosview a Chydrannau

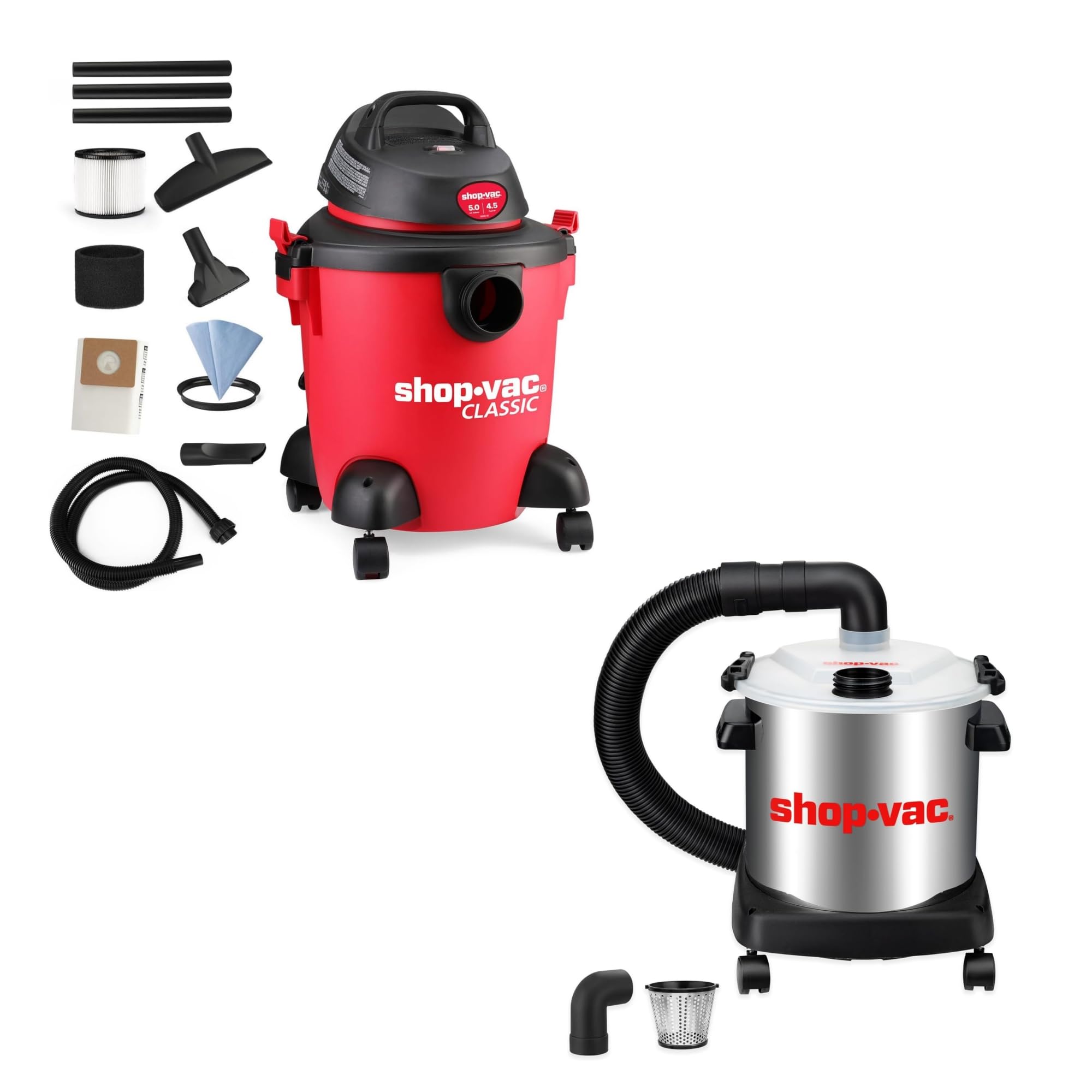

This Shop-Vac product includes a 5 Gallon 4.5 Peak HP Wet/Dry Vacuum and a separate 5 Gallon Stainless Steel Dust Collector. Familiarize yourself with the components of each package.

2.1 Wet/Dry Vacuum Components

Image: The Shop-Vac 5 Gallon 4.5 Peak HP Wet/Dry Vacuum with its standard accessories laid out, including the hose, extension wands, nozzles, and filters.

• 5 Gallon 4.5 Peak HP Wet/Dry Vacuum Unit
• 7' x 1-1/4" Secure Fit Hose
• (3) Wands Estyniad
• (1) 10 Inch Wet/Dry Nozzle
• (1) Gulper Nozzle
• (1) Offeryn Agen
• (1) Standard Cartridge Filter
• (1) Bag Hidlo
• (1) Foam Sleeve

2.2 Dust Collector Components

Image: The Shop-Vac 5 Gallon Stainless Steel Dust Collector with its components, including the bucket, lid, hose, elbows, and metal filter.

• 5 Gallon Stainless Steel Bucket
• Dust Collector Lid Assembly
• 2' x 2-1/2" Hose
• (2) 90 Degree Elbows
• (1) Metal Filter

2.3 Nodweddion Cynnyrch Drosview

Image: A detailed diagram of the Shop-Vac wet/dry vacuum, highlighting key features such as the Carry Handle, ON/OFF Switch, Motor, Latches, Blower Port, Vacuum Port, Caster, and Collection Tank.

The vacuum features a robust carry handle for portability, an easily accessible ON/OFF switch, secure latches for the collection tank, and smooth-rolling casters for mobility. It includes both a vacuum port and a blower port for versatile cleaning applications.

3. Cyfarwyddiadau Gosod

3.1 Wet/Dry Vacuum Assembly

1. Dadbacio Cydrannau: Tynnwch yr holl eitemau o'r pecynnu yn ofalus.
2. Atodwch olwynion: If not pre-assembled, insert the casters into the caster feet on the bottom of the tank.
3. Gosod Hidlydd (Sugno Sych): For dry pickup, slide the cartridge filter over the filter cage, ensuring it covers the cage completely. Secure it with the filter retainer. For fine dust, you may also install a filter bag over the inlet port inside the tank.
4. Gosod Hidlydd (Sugno Gwlyb): For wet pickup, remove the cartridge filter and filter bag. Slide the foam sleeve over the filter cage.
5. Atodwch Hose: Insert the secure fit hose into the vacuum port on the front of the vacuum head. Twist to lock it in place.
6. Atodwch Ategolion: Connect extension wands and desired nozzles (e.g., 10-inch wet/dry nozzle, gulper nozzle, crevice tool) to the end of the hose.

Image: The Shop-Vac wet/dry vacuum fully assembled with its hose and a nozzle attached, ready for use.

3.2 Dust Collector Assembly and Connection

The dust collector is designed to be used in conjunction with your wet/dry vacuum (vacuum cleaner sold separately) to capture fine dust and debris before it reaches the main vacuum filter, prolonging its service life.

Image: A step-by-step diagram illustrating the assembly of the dust collector, showing the connection of the vacuum hose, 90-degree elbow, 2-1/2 inch hose, and metal filter to the 5-gallon stainless steel tank.

1. Gosod Hidlydd Metel: Place the metal filter inside the dust collector bucket.
2. Atodwch y clawr: Secure the dust collector lid onto the 5-gallon stainless steel bucket.
3. Pibellau Cyswllt:
   • Connect one end of the 2' x 2-1/2" hose to the inlet port on the dust collector lid.
   • Attach one 90-degree elbow to the other end of the 2' x 2-1/2" hose.
   • Connect the other 90-degree elbow to the outlet port on the dust collector lid.
   • Connect your wet/dry vacuum's hose to the 90-degree elbow on the outlet port of the dust collector.
4. Offeryn Cysylltu: Attach your power tool's dust port to the 90-degree elbow connected to the inlet hose of the dust collector.

Image: The Shop-Vac dust collector shown connected to a separate wet/dry vacuum, illustrating the complete setup for dust collection.

4. Cyfarwyddiadau Gweithredu

4.1 Llogi Sych

1. Ensure the cartridge filter is properly installed and secured. A filter bag can also be used for fine dry debris.
2. Connect the hose and appropriate dry pickup nozzle (e.g., 10-inch wet/dry nozzle, gulper nozzle, crevice tool).
3. Plygiwch y llinyn pŵer i mewn i allfa drydanol addas.
4. Turn the ON/OFF switch to the 'ON' position to start the vacuum.
5. Vacuum dry debris.
6. When finished, turn the ON/OFF switch to 'OFF' and unplug the unit.

4.2 Llogi Gwlyb

1. Remove the cartridge filter and any filter bags. Install the foam sleeve over the filter cage.
2. Connect the hose and the 10-inch wet/dry nozzle.
3. Plygiwch y llinyn pŵer i mewn i allfa drydanol addas.
4. Turn the ON/OFF switch to the 'ON' position.
5. Vacuum liquids. The vacuum will automatically shut off when the tank is full.
6. When finished, turn the ON/OFF switch to 'OFF', unplug the unit, and empty the tank.

4.3 Swyddogaeth Chwythu

1. Tynnwch y bibell o'r porthladd gwactod.
2. Insert the hose into the blower port located on the back of the vacuum head.
3. Plygiwch y llinyn pŵer i mewn i allfa drydanol addas.
4. Turn the ON/OFF switch to the 'ON' position to use the blowing function.
5. When finished, turn the ON/OFF switch to 'OFF' and unplug the unit.

Image: A composite image demonstrating the versatility of the Shop-Vac for dry cleaning (e.g., sawdust), wet cleaning (e.g., spilled liquids), and blow cleaning (e.g., clearing leaves).

4.4 Using the Dust Collector

The dust collector is designed to capture larger debris and fine dust from power tools, preventing them from reaching your main vacuum's filter and extending its lifespan.

1. Ensure the dust collector is properly assembled and connected to your wet/dry vacuum as described in Section 3.2.
2. Connect the dust port of your power tool to the inlet hose of the dust collector.
3. Turn on your wet/dry vacuum, then turn on your power tool.
4. The dust collector will capture the majority of the debris, with only fine particles passing through to the main vacuum.
5. After use, turn off both the power tool and the vacuum. Empty the dust collector bucket as needed.

Image: The Shop-Vac dust collector actively collecting debris from a power tool operation, with an inset showing the internal filter of the main vacuum.

Image: A split image demonstrating the dust collector's capability for both dry collection (e.g., wood chips) and wet collection (e.g., spilled water) when paired with a wet/dry vacuum.

5. cynnal

Regular maintenance ensures optimal performance and extends the life of your Shop-Vac wet/dry vacuum and dust collector.

5.1 Emptying the Collection Tank

• Malurion Sych: Unlatch the vacuum head, lift it off the tank, and carefully empty the dry debris into a waste receptacle.
• Hylifau: Unlatch the vacuum head and lift it off. Pour the collected liquid into a drain or suitable container.

5.2 Glanhau ac Amnewid Hidlau

• Hidlo Cetris: For dry use, tap the filter gently to dislodge dust. For heavy buildup, rinse the filter under running water from the clean side until clean. Allow it to air dry completely before reinstallation. Replace if torn or damaged.
• Llawes Ewyn: For wet use, rinse the foam sleeve under running water. Squeeze out excess water and allow it to air dry completely before storage or reinstallation.
• Bag Hidlo: Filter bags are disposable and should be replaced when full or when suction decreases.
• Dust Collector Metal Filter: Periodically remove the metal filter from the dust collector bucket and clean off any accumulated debris. Rinse with water if necessary and allow to dry completely.

5.3 Glanhau Cyffredinol

• Wipe down the exterior of the vacuum and dust collector with a damp brethyn.
• Archwiliwch y bibell a'r ategolion am rwystrau neu ddifrod. Cliriwch unrhyw rwystrau.
• Store the unit and accessories in a clean, dry place.

6. Datrys Problemau

If your Shop-Vac wet/dry vacuum or dust collector is not performing as expected, consult the following common issues and solutions:

• Colli Sugno:
  • Check for blockages in the hose, nozzles, or extension wands.
  • Ensure the collection tank is not full (especially for wet pickup, where automatic shut-off may engage).
  • Verify that filters are clean and properly installed. A clogged filter will reduce suction.
  • Check that the vacuum head latches are securely fastened to the tank.
• Modur heb gychwyn:
  • Gwnewch yn siŵr bod y llinyn pŵer wedi'i blygio'n ddiogel i mewn i soced drydanol sy'n gweithio.
  • Check the ON/OFF switch position.
  • Gwiriwch nad yw'r torrwr cylched na'r ffiws ar gyfer y soced wedi baglu.
• Llwch yn dianc o'r sugnwr llwch:
  • Ensure the cartridge filter is correctly installed and not damaged.
  • If using a filter bag, ensure it is properly seated over the inlet.
  • Check for any cracks or damage to the tank or vacuum head.
• Dust Collector Not Capturing Effectively:
  • Ensure all hose connections are tight and free of leaks.
  • Check if the metal filter inside the dust collector is clogged and requires cleaning.
  • Verify that the main wet/dry vacuum is providing adequate suction.

If you continue to experience issues after attempting these troubleshooting steps, please contact Shop-Vac customer support.

7. manylebau

8. Gwarant a Chefnogaeth

For warranty information, product registration, or technical support, please refer to the warranty card included with your product or visit the official Shop-Vac websafle.

Gallwch hefyd ymweld â'r Siop Shop-Vac ar Amazon am wybodaeth ychwanegol am gynhyrchion ac adnoddau cymorth.
