Cyfarwyddiadau Diogelwch Pwysig
Please read this entire instruction manual carefully before operating the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Datgysylltwch y gwresogydd bob amser pan nad yw'n cael ei ddefnyddio neu cyn glanhau.
- Peidiwch â gweithredu'r gwresogydd gyda llinyn neu blyg wedi'i ddifrodi, neu ar ôl i'r gwresogydd gamweithio neu gael ei ollwng neu ei ddifrodi mewn unrhyw ffordd.
- Peidiwch â defnyddio yn yr awyr agored. Bwriedir y gwresogydd hwn ar gyfer defnydd dan do yn unig.
- Cadwch ddeunyddiau hylosg fel dodrefn, gobenyddion, dillad gwely, papurau, dillad a llenni o leiaf 1 metr (3 troedfedd) o flaen ac ochrau'r gwresogydd.
- Peidiwch â mewnosod na chaniatáu i wrthrychau tramor fynd i mewn i unrhyw agoriad awyru neu wacáu oherwydd gallai hyn achosi sioc drydanol neu dân, neu niweidio'r gwresogydd.
- Er mwyn atal tân posibl, peidiwch â rhwystro cymeriant aer na gwacáu mewn unrhyw fodd. Peidiwch â defnyddio ar arwynebau meddal, fel gwely, lle gall agoriadau gael eu blocio.
- This heater includes a tip-over switch and overheat protection feature for enhanced safety. If the heater tips over or overheats, it will automatically shut off.
- Do not use in bathrooms, laundry areas, or similar indoor locations where water is present.
Cynnyrch Drosview
The Midea NY2009-22M is a 2000W electric oil-filled radiator designed for efficient and quiet heating of indoor spaces. It features 9 heating elements, an adjustable thermostat, and an ECO mode for energy saving.
Delwedd: Front control panel of the Midea radiator, showing the heat setting dial, power indicator, and thermostat control. This image highlights the ECO mode feature and intelligent energy saving capabilities.
The unit is equipped with a control panel for easy operation, including a power switch, heat setting dial, and thermostat knob. It also features integrated wheels for convenient portability.
Gosod
Dilynwch y camau hyn ar gyfer gosod cychwynnol:
- Dadbacio: Tynnwch y gwresogydd o'i becynnu yn ofalus. Cadwch y pecynnu i'w storio yn y dyfodol.
- Lleoliad: Place the heater on a firm, level surface. Ensure there is at least 1 meter (3 feet) of clear space around the heater from walls, furniture, and other objects to allow for proper air circulation and prevent fire hazards.
- Cysylltiad Pwer: Plug the power cord into a grounded 230V AC electrical outlet. Do not use extension cords or power strips.

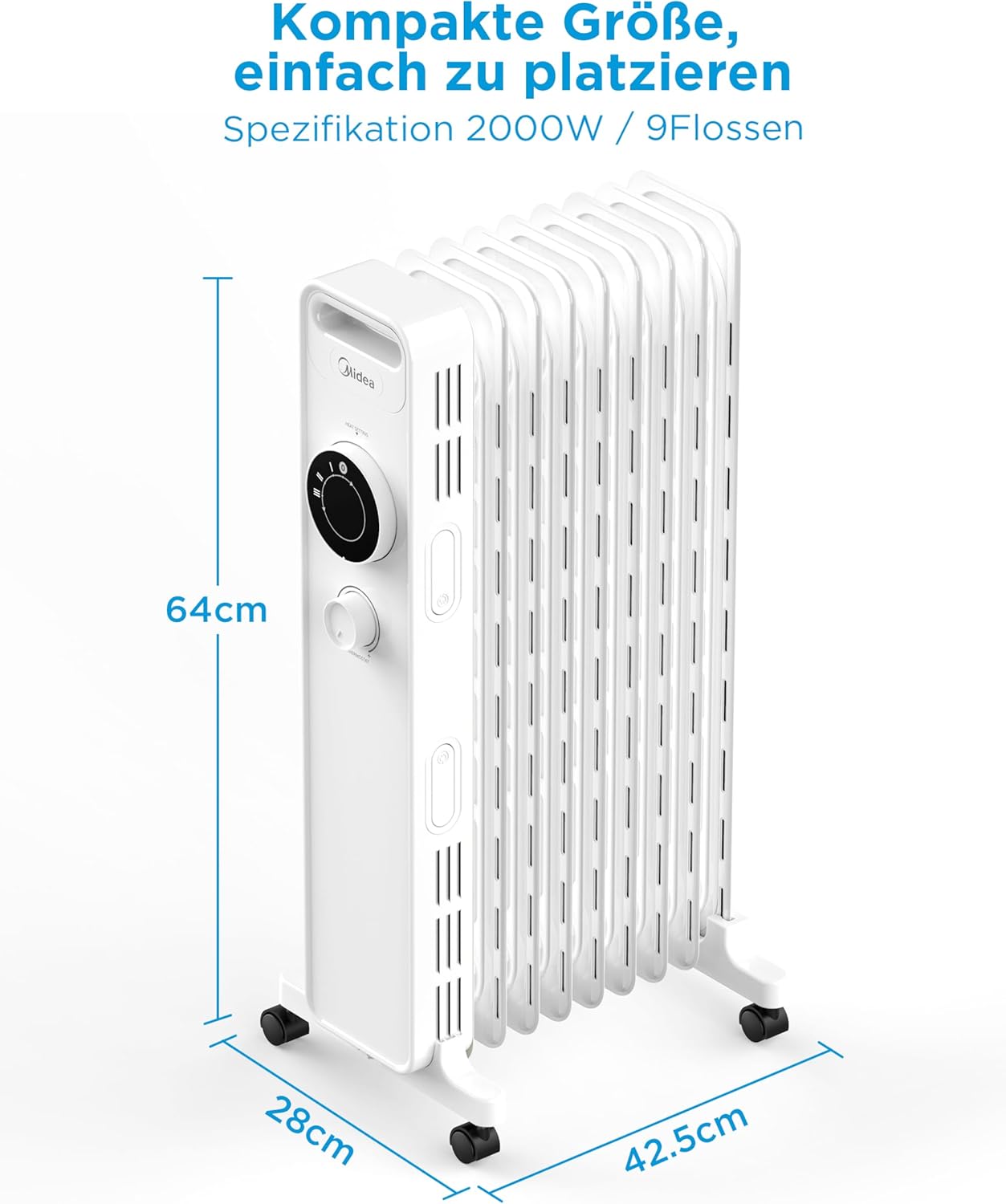

Delwedd: The Midea radiator with its dimensions (64cm height, 28cm width, 42.5cm depth) highlighted, illustrating its compact size and ease of placement. The image also shows the integrated wheels for portability.
Cyfarwyddiadau Gweithredu
To operate your Midea oil-filled radiator:
- Pŵer Ymlaen: Plug the heater into a suitable electrical outlet. Turn the heat setting dial to your desired power level (e.g., I, II, III for different wattage outputs, up to 2000W).
- Set Thermostat: Turn the thermostat knob clockwise to increase the desired temperature or counter-clockwise to decrease it. The heater will cycle on and off to maintain the set temperature.
- Modd ECO: For energy-efficient operation, select the ECO mode (if available on your model's control panel). In ECO mode, the heater automatically adjusts its power output to maintain the set temperature while minimizing energy consumption.
- Pwer i ffwrdd: To turn off the heater, turn the heat setting dial to the '0' position and unplug the unit from the wall outlet.
Delwedd: The Midea 2000W radiator effectively heating a spacious living room, demonstrating its wide heating range and powerful performance for larger areas.
Delwedd: An illustration of the Midea radiator's new, high-quality herringbone-type oil circuit, designed for fast heating and quick room temperature increase.
Delwedd: A visual representation of the Midea radiator's 3D uniform heat dissipation system, featuring a patented honeycomb-hole heat sink for efficient energy use and even heat distribution.
Delwedd: The Midea radiator operating quietly in a bedroom, illustrating its sleep-friendly, noiseless, and lightless design, contributing to a high-quality sleeping environment.
Cynnal a chadw
Mae cynnal a chadw rheolaidd yn sicrhau perfformiad a hirhoedledd gorau posibl eich gwresogydd.
- Glanhau: Datgysylltwch y gwresogydd bob amser a gadewch iddo oeri'n llwyr cyn ei lanhau. Sychwch yr arwynebau allanol gyda lliain meddal, damp cloth. Do not use abrasive cleaners or solvents. Do not immerse the heater in water.
- Storio: Pan nad yw'n cael ei ddefnyddio, storiwch y gwresogydd mewn lle oer, sych. Argymhellir ei storio yn ei becynnu gwreiddiol i'w amddiffyn rhag llwch a difrod.
Datrys problemau
If your heater is not operating correctly, please check the following:
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Nid yw'r gwresogydd yn troi ymlaen. | Dim pŵer i'r uned. | Gwnewch yn siŵr bod y llinyn pŵer wedi'i blygio'n ddiogel i mewn i soced drydan sy'n gweithio. Gwiriwch y torrwr cylched. |
| Mae'r gwresogydd ymlaen ond nid yw'n cynhesu. | Thermostat wedi'i osod yn rhy isel. | Cynyddwch osodiad y thermostat. |
| Heater automatically shuts off. | Overheat or tip-over protection activated. | Unplug the heater, allow it to cool for 30 minutes. Check for obstructions around the heater. Ensure it is on a stable, level surface. Plug back in and restart. |
Manylebau
| Nodwedd | Manyleb |
|---|---|
| Brand | Midea |
| Rhif Model | NY2009-22M |
| Grym | 2000W |
| Cyftage | 230 folt (AC) |
| Nifer y Cyflymder | 3 |
| Lliw | Gwyn |
| Dimensiynau (L x W x H) | 42.5 x 28 x 64 cm |
| Pwysau Eitem | 9.43 Cilogram |
| Nodweddion Arbennig | Electronic Thermostat, Energy Efficient |
| Dull Gwresogi | Darfudiad |
| Defnydd Dan Do / Awyr Agored | Dan do |
| Math Mowntio | Llawr Mount |
Gwarant a Chefnogaeth
For warranty information or technical support, please refer to the warranty card included with your product or contact Midea customer service directly. Keep your purchase receipt as proof of purchase.
Contact information for Midea customer support can typically be found on the manufacturer's official websafle neu ar becynnu'r cynnyrch.
