1. Rhagymadrodd
The Alfox Portable Power Bank AF-PB001 is a versatile and high-capacity power solution designed for charging various electronic devices, including laptops, smartphones, and tablets. With a 20000mAh battery and 80W AC output, it provides reliable power on the go. This manual provides essential information for safe and efficient use of your device.
2. Gwybodaeth Diogelwch
Darllenwch a deallwch yr holl gyfarwyddiadau diogelwch cyn defnyddio'r cynnyrch hwn. Gall methu â dilyn y cyfarwyddiadau hyn arwain at sioc drydanol, tân neu anaf difrifol.
- Peidiwch â dadosod, atgyweirio nac addasu'r ddyfais.
- Avoid exposure to extreme temperatures (above 45°C or below 0°C) and direct sunlight.
- Keep the device away from water, moisture, and flammable materials.
- Peidiwch â gollwng, tyllu, na rhoi gormod o rym ar y banc pŵer.
- Use only approved chargers and cables for charging the power bank and connected devices.
- Cadwch allan o gyrraedd plant.
3. Cynnyrch Drosview
Familiarize yourself with the components of your Alfox Portable Power Bank AF-PB001.
Cydrannau:
- Allfa AC: Provides up to 80W power for small appliances.
- Porth allbwn USB-A: For standard USB charging.
- Porthladd Mewnbwn/Allbwn USB-C: Supports Power Delivery (PD) up to 30W for fast charging of devices and recharging the power bank.
- Botwm Pŵer: To turn the device on/off and check battery status.
- Dangosyddion LED: Display the remaining battery level.
4. Gosod
4.1 Codi Tâl Cychwynnol
Before using your power bank for the first time, ensure it is fully charged. This optimizes battery performance and longevity.
- Connect the provided USB-C cable to the power bank's USB-C port.
- Connect the other end of the USB-C cable to a compatible USB Power Delivery (PD) wall charger (not included).
- The LED indicators will illuminate to show the charging progress. All LEDs will be solid when fully charged.
5. Cyfarwyddiadau Gweithredu
5.1 Powering On/Off and Checking Battery Level
- To turn on the power bank, press the power button once. The LED indicators will light up to show the current battery level.
- To turn off the power bank, press and hold the power button for approximately 3 seconds.
- To check the battery level at any time, press the power button once.
5.2 Using the AC Outlet
The AC outlet provides up to 80W of power for compatible devices.
- Open the protective cover of the AC outlet.
- Plug your device's power cord into the AC outlet.
- Ensure your device's power consumption does not exceed 80W.
5.3 Using USB-A and USB-C Ports
The USB-A and USB-C ports are suitable for charging smartphones, tablets, and other USB-powered devices. The USB-C port supports Power Delivery (PD) for faster charging.
- Connect your device to the USB-A or USB-C port using an appropriate charging cable.
- Bydd y banc pŵer yn dechrau gwefru'ch dyfais yn awtomatig.
5.4 Gwefru Ar yr Un Pryd

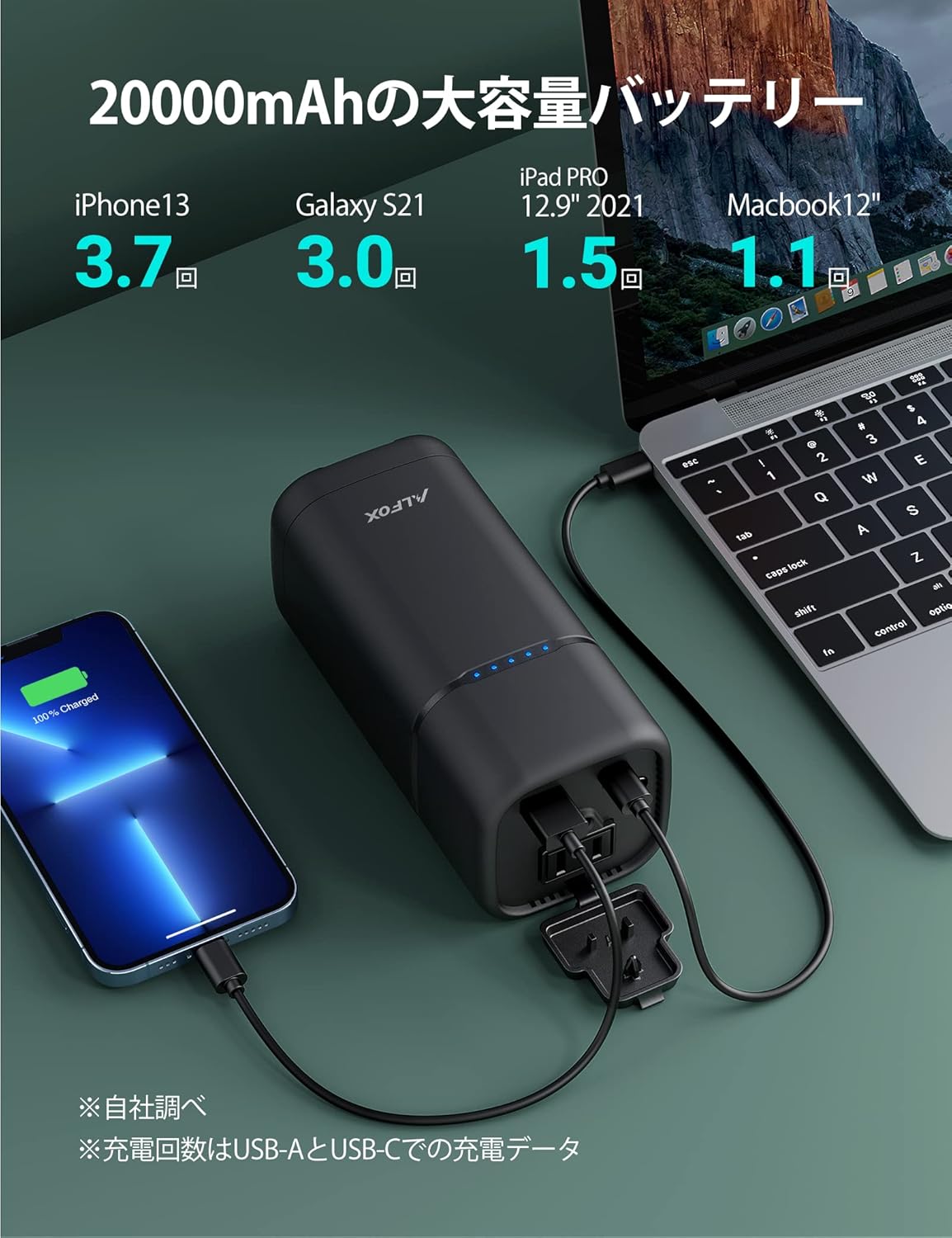

The power bank can charge multiple devices simultaneously using its various output ports.
5.5 Portability and Travel

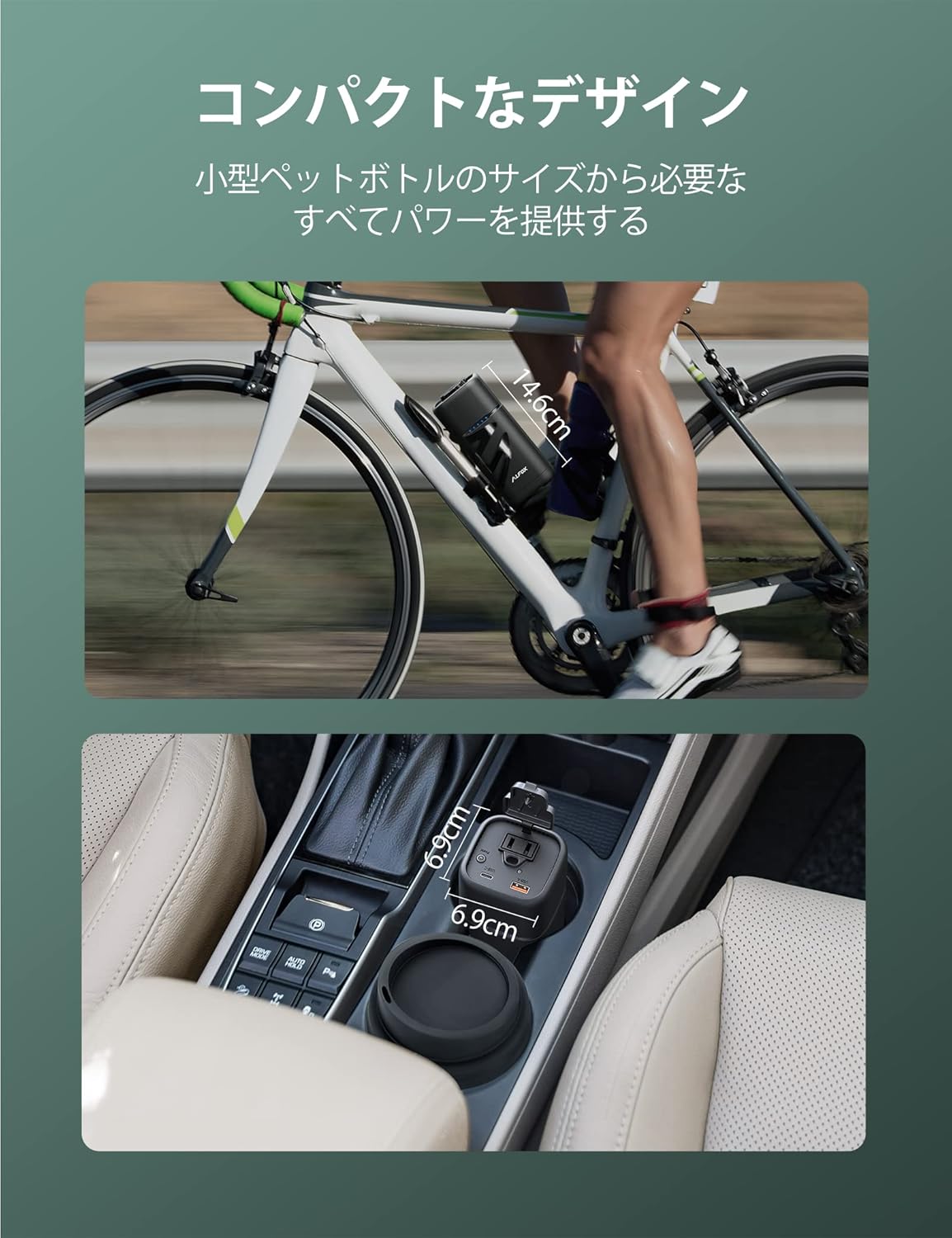

The compact design of the AF-PB001 makes it ideal for travel and outdoor activities. It is designed to be compliant with airline regulations for carry-on luggage.
6. cynnal
Proper maintenance ensures the longevity and optimal performance of your power bank.
- Storio: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge it to about 50-75% every 3-6 months to prevent deep discharge.
- Glanhau: Use a soft, dry cloth to clean the exterior of the power bank. Do not use liquid cleaners or solvents.
- Gofal Batri: Avoid completely draining the battery or leaving it fully charged for very long periods. Optimal battery health is maintained by keeping the charge between 20% and 80% when possible.
7. Datrys Problemau
If you encounter issues with your Alfox Portable Power Bank, refer to the following common problems and solutions.
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Power bank does not turn on. | Mae'r batri wedi'i ddraenio'n llwyr. | Connect the power bank to a charger and allow it to charge for at least 30 minutes before attempting to turn it on. |
| Device is not charging from the power bank. |
|
|
| Power bank charges slowly or not at all. |
|
|
| LED indicators are not functioning correctly. | Software glitch or internal issue. | Try fully discharging and then fully recharging the power bank. If the problem continues, contact customer support. |
If you experience any issues not covered here, or if the problem persists after attempting the suggested solutions, please contact Alfox customer support for further assistance.
8. manylebau
Detailed technical specifications for the Alfox Portable Power Bank AF-PB001.
| Nodwedd | Manyleb |
|---|---|
| Brand | Alfox |
| Model | AF-PB001 |
| Gallu Batri | 20000 mAh |
| Pwysau Cynnyrch | 800 g |
| Dimensiynau Pecyn | 20 x 19.5 x 9.9 cm |
| Nodweddion Arbennig | Codi Tâl Cyflym |
| Lliw | Du |
| Math o Gysylltydd | USB Math A, USB Math C |
| AC Allbwn | Hyd at 80W |
| Allbwn PD USB-C | Hyd at 30W |
| ASIN | B09PVDVTKL |
9. Gwarant a Chefnogaeth
The Alfox Portable Power Bank AF-PB001 comes with an 18-month warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
Cefnogaeth i Gwsmeriaid:
For technical assistance, warranty claims, or any questions regarding your product, please contact Alfox customer service through the retailer where you purchased the product or visit the official Alfox websafle ar gyfer gwybodaeth cyswllt.
