Casio CTK-2550 61-Key Portable Piano Keyboard User Manual

Rhagymadrodd

The Casio CTK-2550 Digital Keyboard is a versatile 61-key portable piano designed for beginners and enthusiasts. It offers a wide array of sounds, rhythms, and learning features to enhance your musical journey. This manual provides essential information for setting up, operating, and maintaining your keyboard.

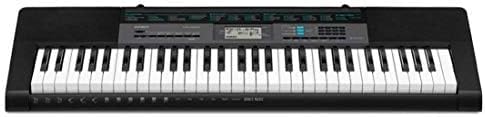

Delwedd: Blaen view of the Casio CTK-2550 61-Key Portable Piano Keyboard, showcasing its black body, white and black keys, control panel, and built-in speakers.

Nodweddion Allweddol

• 61 Standard Keys: Provides a full range for playing various musical pieces.
• 400 Tonau: A diverse selection of instrument sounds, including pianos, electric pianos, organs, guitars, basses, synths, and drum kits.
• 100 rhythm: Accompaniment patterns across various genres like 8 Beat, 16 Beat, Ballad, Dance, Pops, Rock, Jazz, European, Latin, World, and Piano Rhythms.
• 50 Dance Music Patterns: Dedicated mode for creating electronic dance music, including EDM, House, and Hip-Hop styles.
• 60 Song Bank: Built-in songs for listening and learning, categorized into World, Event, Piano/Classics, and User Songs.
• Step-Up Lesson System: An integrated learning system to help users practice and master songs.
• Ymateb Cyffwrdd: Keys respond to playing dynamics, allowing for expressive performances.
• Olwyn Pitch Bend: For adding expressive pitch variations to notes.
• Chordana Play App Integration: Connects with the Chordana Play app for expanded learning and functionality.
• Dyluniad Symudol: Lightweight and can be battery-powered for on-the-go use.

Gosod

1. Dadbacio a Chydrannau

Carefully remove all components from the packaging. Ensure you have the Casio CTK-2550 keyboard, the included power supply, and the music stand.

2. Attaching the Music Stand

Locate the wire-frame music stand. Insert its prongs into the designated slots at the top rear of the keyboard. This stand is used to hold sheet music or a tablet.

3. Powering the Keyboard

The CTK-2550 can be powered in two ways:

• Addasydd AC: Connect the included AC adapter to the DC 9.5V power input jack on the rear panel of the keyboard and then plug it into a wall outlet.
• Batris: For portable use, the keyboard can be powered by six AA-size alkaline batteries. Open the battery compartment on the underside of the keyboard and insert the batteries, ensuring correct polarity.

Image: Close-up of the rear panel of the Casio CTK-2550, showing the power input, audio in, phones/output, USB, and sustain pedal jacks.

Cyfarwyddiadau Gweithredu

1. Pŵer Ymlaen/Diffodd a Chyfaint

• Gwasgwch y GRYM botwm i droi'r bysellfwrdd ymlaen neu i ffwrdd.
• Addaswch y gyfrol meistr gan ddefnyddio'r CYFROL slider located on the left side of the control panel.

2. Selecting Tones (Sounds)

The CTK-2550 features 400 built-in tones. To select a tone:

1. Gwasgwch y Tôn botwm.
2. Defnyddiwch y pad rhifau neu'r + / - buttons to enter the desired tone number. A list of tones is printed on the keyboard's panel.

Examples of Tone Categories: Piano (001-014), Electric Piano (015-028), Organ (043-064), Guitar (065-078), Bass (079-088), Synth-Lead (166-202), Drum Set (395-400).

3. Playing Rhythms (Accompaniment)

The keyboard includes 100 rhythms for automatic accompaniment. To use rhythms:

1. Gwasgwch y RHYTHM/SONG BANK CONTROLLER botwm.
2. Use the number pad or + / - buttons to select a rhythm.
3. Gwasgwch DECHRAU/STOPIO to begin the rhythm.
4. Addaswch y tempo gan ddefnyddio'r TEMPO botymau.

Examples of Rhythm Categories: 8 Beat (001-003), Dance (011-015), Rock (021-026), Jazz (027-033), World (054-087), Piano Rhythms (091-100).

4. Dance Music Mode

Engage the Dance Music Mode to create and play along with 50 electronic dance music patterns.

• Gwasgwch y DANCE MUSIC botwm.
• Select a pattern (e.g., EDM 01-35, House 36-45, Hip-Hop 46-50).
• Use the keys to trigger different phrases and build your track.

5. Song Bank and Lesson System

The 60-song bank allows you to listen to pre-recorded songs or use the Step-Up Lesson System to learn them.

1. Gwasgwch y BANC Cân botwm.
2. Select a song using the number pad or + / - botymau.
3. Defnyddiwch y GWRANDO, DILYNWCH, neu PHRASE functions to engage with the lesson system.

6. Touch Response and Pitch Bend

• The keys are touch-sensitive, meaning the volume and tone will change based on how hard or soft you press them.
• Defnyddiwch y BEND PITCH wheel on the left side of the keyboard to smoothly raise or lower the pitch of notes while playing.

Cysylltedd

The rear panel of the CTK-2550 offers several connection options:

• PHONES/OUTPUT (Standard Stereo Jack): Connect headphones for private practice or connect to an external PA system/amplifiwr ar gyfer ampsain goleuo.
• AUDIO IN (3.5mm Stereo Mini Jack): Connect an external audio player (like a smartphone or tablet) to play along with your favorite music through the keyboard's speakers.
• SUSTAIN Jack: Connect an optional sustain pedal for extended note decay, similar to a traditional piano.
• USB (Math B): Connect the keyboard to a computer or smart device (Android/Apple) for MIDI data transfer, allowing use with digital audio workstation (DAW) software or educational apps like Chordana Play.

Manylebau

Cynnal a chadw

• Glanhau: Sychwch y bysellfwrdd gyda lliain meddal, sych. Ar gyfer baw ystyfnig, defnyddiwch lliain sych sydd ychydig yn ddamp brethyn ac yna sychwch yn drylwyr. Osgowch lanhawyr sgraffiniol neu doddyddion.
• Storio: Storiwch y bysellfwrdd mewn lle oer, sych i ffwrdd o olau haul uniongyrchol, tymereddau eithafol, a lleithder uchel.
• Trin: Avoid dropping the keyboard or subjecting it to strong impacts. Do not place heavy objects on the keys.
• Gofal Batri: Os ydych chi'n defnyddio batris, tynnwch nhw os na fydd y bysellfwrdd yn cael ei ddefnyddio am gyfnod estynedig i atal gollyngiadau.

Datrys problemau

• Dim Sain:
  • Gwiriwch a yw'r pŵer ymlaen a bod y gyfrol wedi'i throi i fyny.
  • Ensure headphones are not plugged in if you intend to use the speakers.
  • Gwiriwch fod y tôn gywir wedi'i dewis.
• Allweddi Ddim yn Ymateb:
  • Gwiriwch y cyflenwad pŵer.
  • Os ydych chi'n defnyddio batris, gwnewch yn siŵr eu bod nhw'n ffres ac wedi'u mewnosod yn gywir.
• Sain ystumiedig:
  • Gostwng y gyfrol.
  • Ensure external audio devices connected to AUDIO IN are not set too high.
• Materion Cysylltedd Ap:
  • Sicrhewch fod y cebl USB wedi'i gysylltu'n ddiogel.
  • Check app settings and device compatibility.

Gwarant a Chefnogaeth

The Casio CTK-2550 comes with a Rhannau 1 blynedd a gwarant llafur. For technical support, service, or warranty claims, please refer to the contact information provided in your product's warranty card or visit the official Casio websafle.
