1. Rhagymadrodd
The Energizer Recharge Pro Battery Charger is designed to efficiently charge NiMH rechargeable AA and AAA batteries. This manual provides essential information for the safe and effective use of your charger, including setup, operation, maintenance, and troubleshooting.
Image 1.1: The Energizer Recharge Pro Battery Charger, shown with four AA batteries in its charging slots.
2. Gwybodaeth Diogelwch
Please read all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Use only with NiMH rechargeable AA and AAA batteries. Do not attempt to charge alkaline or other battery types.
- Peidiwch â dadosod nac addasu'r gwefrydd.
- Keep the charger away from water and excessive moisture.
- Peidiwch â gweithredu'r charger os yw wedi'i ddifrodi mewn unrhyw ffordd.
- Datgysylltwch y gwefrydd o'r soced pŵer pan nad yw'n cael ei ddefnyddio neu cyn glanhau.
- RHYBUDD: Mae'r cynnyrch hwn yn cynnwys cemegau sy'n hysbys i Dalaith California i achosi canser a namau geni neu niwed atgenhedlu arall.
For detailed safety guidelines, refer to the "Safety Information (PDF)" document available for this product.
3. Gosod
Setting up your Energizer Recharge Pro charger is straightforward:
- Dadbacio: Remove the charger and included batteries from the packaging.
- Mewnosod Batris: Insert two or four AA or AAA NiMH rechargeable batteries into the charging slots. Ensure correct polarity (+ and -) as indicated on the charger.
- Plygiwch i mewn: Plug the charger directly into a standard wall outlet.
Image 3.1: The charger is capable of charging two or four AA or AAA batteries simultaneously.
4. Cyfarwyddiadau Gweithredu
The Energizer Recharge Pro charger features intelligent charging and clear indicators:
- Proses Codi Tâl: Once plugged in with batteries inserted, the charger will begin charging. A full charge for two or four batteries typically takes approximately 3 hours.
- LED Indicator Lights & Audible Alerts:
- Golau Coch: Indicates charging has started. An audible beep will sound when charging begins.
- Golau Melyn: Indicates charging is approximately 50% complete and continues.
- Golau Gwyrdd: Indicates charging is complete, and batteries are 100% full. An audible beep will sound upon completion.
- Canfod Batri Drwg: If a non-rechargeable or damaged battery is detected, a red 'X' will illuminate, accompanied by repetitive audible beeps. Remove the faulty battery immediately.
- Auto Shutoff and Overcharge Protection: The charger is equipped with an auto shutoff feature to prevent overcharging and potential battery damage, ensuring optimal battery life.
Image 4.1: The LED indicators provide clear visual feedback on the charging status of the batteries.
Image 4.2: A red 'X' light indicates a bad or non-rechargeable battery has been detected.

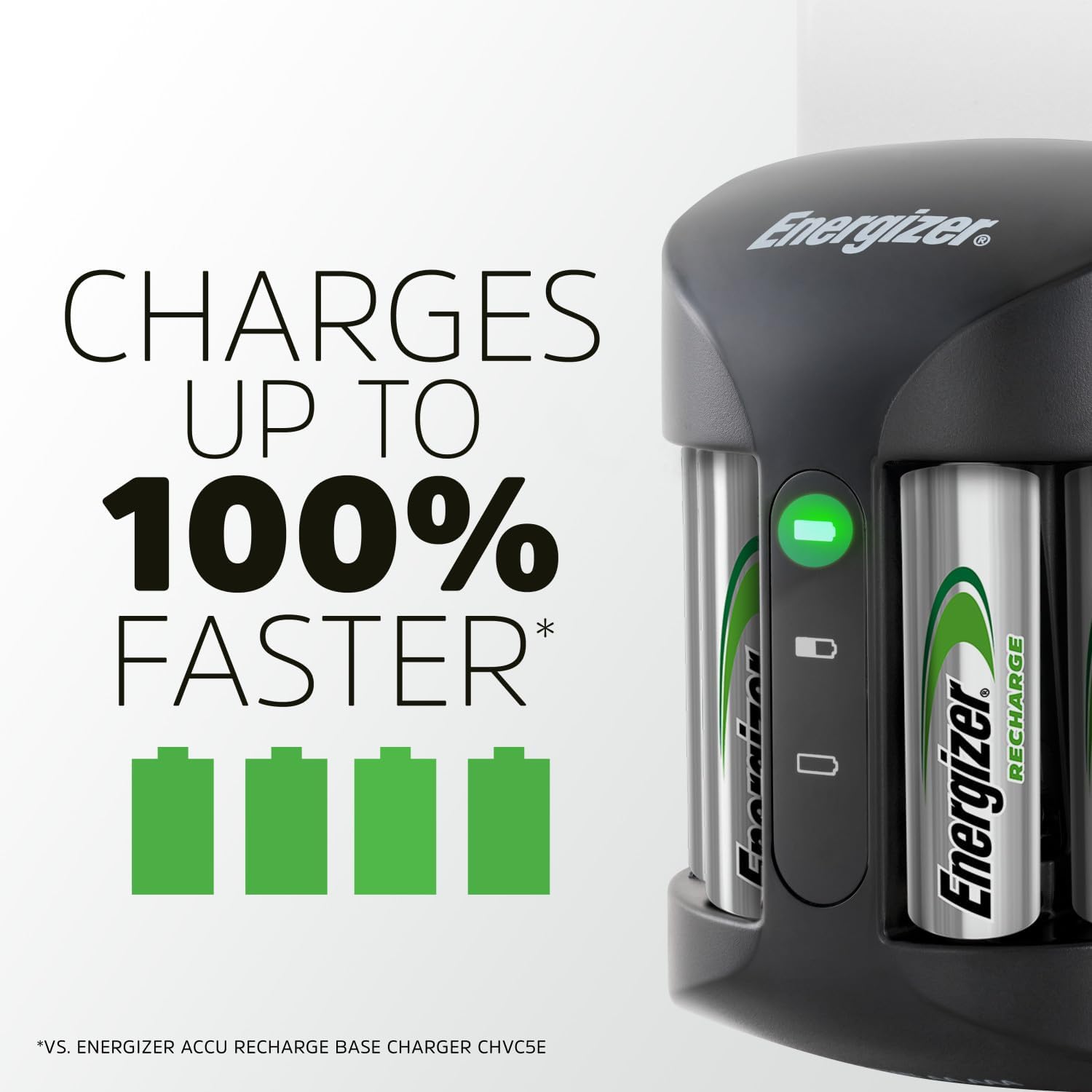

Image 4.3: The charger automatically shuts off once batteries are fully charged to prevent overcharging.
5. cynnal
To ensure the longevity and optimal performance of your Energizer Recharge Pro charger:
- Glanhau: Disconnect the charger from the power outlet before cleaning. Use a dry, soft cloth to wipe the exterior. Do not use abrasive cleaners or immerse the charger in water.
- Storio: Storiwch y charger mewn lle oer, sych pan nad yw'n cael ei ddefnyddio.
- Gofal Batri: For best results, use Energizer NiMH rechargeable batteries. Store rechargeable batteries in a cool, dry place when not in use.
6. Datrys Problemau
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Charger not working / No lights | Not plugged in correctly; Power outlet issue; Damaged charger. | Ensure charger is securely plugged into a working outlet. Try a different outlet. If still no power, the charger may be damaged and require replacement. |
| Red 'X' light and repetitive beeps | Bad or non-rechargeable battery inserted; Incorrect battery polarity. | Remove the battery. Ensure you are using only NiMH rechargeable batteries and that they are inserted with correct polarity. If the issue persists with known good batteries, the battery may be at the end of its life. |
| Batris heb wefru'n llawn | Batteries are old/worn out; Charger malfunction. | Try charging newer batteries. Ensure the charger is not obstructed or overheating. If the problem persists, the charger or batteries may need replacement. |
7. manylebau
| Nodwedd | Manylyn |
|---|---|
| Rhif Model | CHRPROWB4 |
| Mathau Batri Cydnaws | NiMH AA, NiMH AAA |
| Amser Codi Tâl | Approximately 3 hours (for 2 or 4 batteries) |
| Mewnbwn Voltage | Standard AC wall outlet |
| Allbwn Voltage | 2.8 folt |
| Dimensiynau Cynnyrch | 4.33 x 2.68 x 9.65 modfedd (11 x 6.8 x 24.5 cm) |
| Pwysau Eitem | 10.2 owns (289.17 gram) |
| Gwlad Tarddiad | Japan |
8. Gwarant a Chefnogaeth
Energizer products are manufactured to high quality standards. For warranty information, product support, or to contact customer service, please visit the official Energizer websafle neu cyfeiriwch at y wybodaeth gyswllt a ddarperir ar becynnu'r cynnyrch.
You can also find additional resources and frequently asked questions on the Energizer brand store: Energizer Store on Amazon.
