Rhagymadrodd
The DOD Overdrive Preamp 250 is a legendary analog overdrive pedal designed for guitar and bass instruments. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your DOD Overdrive 250 to ensure optimal performance and longevity.
Gosod
Pweru'r Pedal
The DOD Overdrive 250 can be powered by a single 9V alkaline dry battery or an optional 9V DC power supply (PS0913DC). Ensure the power source is correctly connected before use.
Ffigur 1: Power Supply Connector. Connect a 9V DC power adapter here.
Connecting Your Pedal
Cysylltwch eich offeryn i'r IN jack on the right side of the pedal using a standard 1/4-inch instrument cable. Connect the ALLAN jac ar ochr chwith y pedal i'ch amplifier or the next pedal in your signal chain using another 1/4-inch instrument cable.
Ffigur 2: Input and Output Jacks. The input jack is on the right, and the output jack is on the left.
Gweithredu'r Pedal
The DOD Overdrive 250 features two primary control knobs: ENNILL a LEFEL, along with a footswitch and an LED indicator.

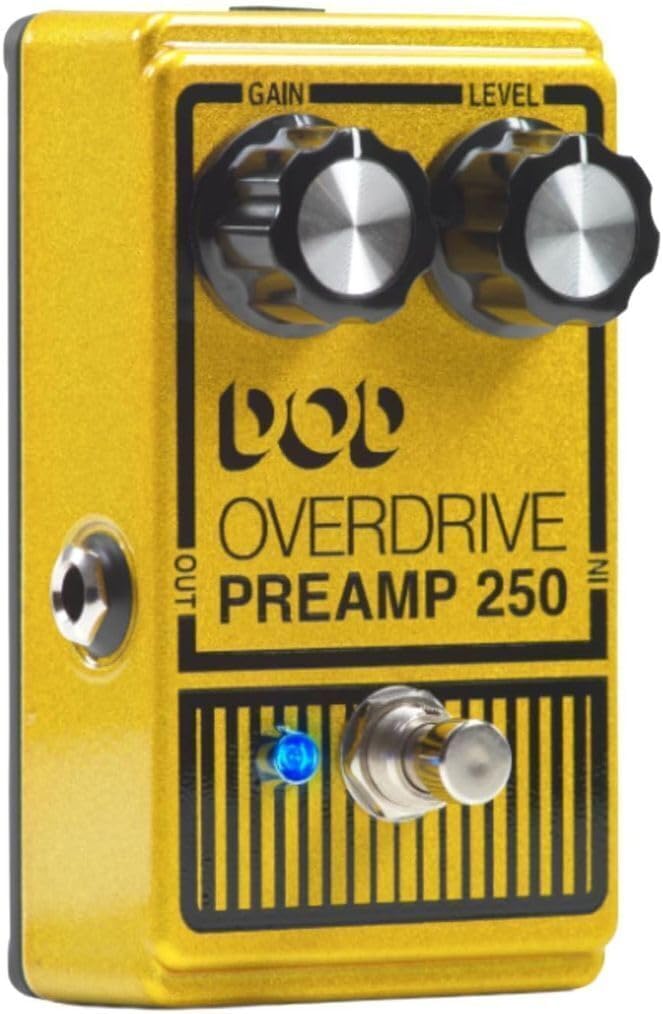

Ffigur 3: Front Panel Controls. The Gain and Level knobs are at the top, with the footswitch and LED below.
Rheolaethau
- ENILL: This knob controls the amount of overdrive or distortion applied to your signal. Turning it clockwise increases the saturation, ranging from a subtle grit to a full, aggressive grind.
- LEFEL: This knob adjusts the overall output volume of the pedal. It can be used to match the bypassed signal volume, or to provide a significant boost for solos or to push your amplifier harder. With the Gain set low, increasing the Level can provide a clean boost.
Footswitch a Dangosydd LED
The large footswitch activates or bypasses the effect. When the effect is active, the crisp blue LED indicator will illuminate, providing clear visual feedback of the pedal's status.
Ffigur 4: Crisp Blue LED Indication. The LED illuminates when the effect is active.
Gwir Ffordd Osgoi
The DOD Overdrive 250 features true bypass circuitry. This means that when the pedal is disengaged (effect off), your guitar's signal passes directly through the pedal without any electronic interference, preserving your original tone. This is a significant improvement over older designs that could color the bypassed signal.
Cynnal a chadw
Amnewid Batri
If using a 9V battery, replace it when the LED indicator dims or the pedal's performance degrades. To replace the battery, carefully remove the bottom plate of the pedal. Disconnect the old battery and connect a new 9V alkaline battery, ensuring correct polarity. Securely reattach the bottom plate.
Glanhau
Wipe the pedal's exterior with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish and internal components.
Storio
When not in use for extended periods, disconnect the power supply or remove the battery to prevent leakage and preserve battery life. Store the pedal in a cool, dry place away from direct sunlight and extreme temperatures.
Datrys problemau
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Dim sain neu signal gwan | Incorrect cable connections, dead battery, faulty power supply, pedal not engaged. | Check all cable connections. Replace 9V battery or verify power supply connection. Ensure the pedal is engaged (blue LED on). Test with different cables. |
| Sŵn neu fwmian digroeso | Ground loop, faulty cables, interference from other electronics, power supply issues. | Ensure all equipment is properly grounded. Try different cables. Move pedal away from power transformers or fluorescent lights. Use a regulated power supply. |
| LED ddim yn goleuo | No power, dead battery, faulty LED. | Check power supply or replace battery. If problem persists, contact support. |
Manylebau
| Nodwedd | Manylyn |
|---|---|
| Model | DOD250-13 |
| Dimensiynau (L x W x H) | 4.88 x 2.61 x 3.25 modfedd |
| Pwysau | 9.92 ounces (~0.62 lbs) |
| Mewnbwn (au) | 1/4-inch Instrument |
| Allbwn(ion) | 1/4-inch Instrument |
| Deunydd siasi | All Metal (Aluminum) |
| Cyflenwad Pŵer | 9V Alkaline Dry Battery or 9V DC (PS0913DC) |
| Fformat Arwydd | Analog |
| Lliw | Yellow Metallic Flake |
Gwarant a Chefnogaeth
Am wybodaeth fanwl am y warant, cyfeiriwch at y ddogfennaeth sydd wedi'i chynnwys gyda'ch pryniant neu ewch i wefan swyddogol DigiTech website. DigiTech provides support for their products through their authorized service centers and online resources.
You can find more information and contact support via the official DigiTech store: Siop DigiTech ar Amazon.
