1. Rhagymadrodd
The AJA Ki Pro Rack is a professional digital file recorder designed to facilitate the transition from traditional tape-based video workflows to modern file-based systems for both recording and playback. It provides high-quality, 'edit-ready' file capture, enabling efficient acquisition of material from source to final edit. With its comprehensive professional connectivity, the Ki Pro Rack integrates seamlessly into existing cabling and routing infrastructures. It records 10-bit Apple ProRes and Avid DNxHD files directly to removable hard disk or SSD storage modules, thereby eliminating the need for time-consuming logging and capture processes. The recorded files are compatible with most editing systems without requiring additional transcoding or import steps.
2. Nodweddion Allweddol
- 10-bit, Full Raster Recording: The Ki Pro Rack records 10-bit full raster files, delivering high-quality images that meet the rigorous demands of post-production and client review, without excessive file meintiau.
- Rheolaeth RS-422: Equipped with RS-422 control, the unit allows for straightforward integration with editing systems, external controllers, and other tape decks, replicating all the functionalities of traditional VTRs.
- Familiar Operation: Designed for users accustomed to tape deck operations, the Ki Pro Rack offers intuitive controls including dedicated buttons for record, play, rewind, and fast-forward, ensuring a comfortable user experience.

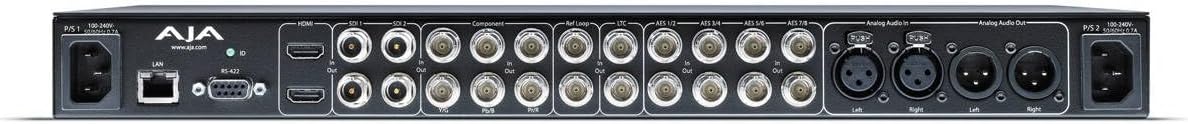

- Professional Connectivity: The video and audio connections located on the rear panel of the Ki Pro Rack are designed to be consistent with those found on traditional tape decks, ensuring proper fit and compatibility with existing cable infrastructures and routing systems.
- Dual Media Drives: Featuring twin media drive bays, the Ki Pro Rack enables extremely fast media exchange. Users can swap drives and initiate new recordings immediately without any delay for the first drive to be ejected.
3. Gosod
This section outlines the steps for setting up your AJA Ki Pro Rack for initial use.
- Dadbacio: Carefully remove the Ki Pro Rack from its packaging. Ensure all components, including power cables and any included accessories, are present.
- Mowntio (Dewisol): If rack-mounting, secure the unit into a standard 19-inch equipment rack using appropriate rack screws.
- Cysylltiad Pwer: Connect the provided power cable(s) to the power input(s) on the rear panel of the Ki Pro Rack and then to a suitable power outlet. The unit supports dual power supplies for redundancy.
- Mewnbwn/Allbwn Fideo: Connect your video sources (e.g., cameras, switchers) to the appropriate video input ports (SDI, HDMI, Component) on the rear panel. Connect your display or downstream equipment to the video output ports.
- Mewnbwn/Allbwn Sain: Connect your audio sources to the analog audio inputs (XLR) or embed audio via SDI/HDMI. Connect audio outputs to your monitoring or mixing equipment.
- Cysylltiad Rhwydwaith: For network control and file transfer, connect an Ethernet cable from the LAN port on the rear panel to your network switch or router.
- Rheolaeth RS-422: If using external control, connect an RS-422 cable from your controller to the RS-422 port.
- Gosod Cyfryngau: Insert a compatible removable hard disk or SSD storage module into one of the front-panel drive bays. Ensure it is securely latched.
- Pŵer Ymlaen: Press the power button on the front panel to turn on the unit. The display will illuminate, indicating the unit is booting up.
4. Cyfarwyddiadau Gweithredu
This section provides basic instructions for operating your AJA Ki Pro Rack.
4.1. Recordio
- Dewiswch Mewnbwn: Use the menu and navigation buttons on the front panel to select the desired video and audio input source.
- Format Settings: Configure recording format settings (e.g., Apple ProRes 422, Avid DNxHD) and resolution via the on-screen menu.
- Paratoi Cyfryngau: Ensure a formatted storage module is inserted into one of the drive bays. If necessary, format the drive using the unit's menu options.
- Dechrau Recordio: Gwasgwch y COFNOD button. The button will typically illuminate red, and the display will show recording status and timecode.
- Stopio Recordio: Gwasgwch y AROS botwm i ddod â'r recordiad i ben.
4.2. Chwarae
- Select Clip: Use the navigation buttons to browse and select the desired clip from the storage module.
- Dechrau Chwarae: Gwasgwch y CHWARAE button. The clip will begin playing through the configured video and audio outputs.
- Chwarae Rheoli: Defnyddiwch y AILWIN a YMLAEN GYFLYM buttons for navigation within the clip.
- Stopiwch Chwarae: Gwasgwch y AROS botwm i atal chwarae.
4.3. Media Management
- Ejecting Drives: Safely eject a storage module using the menu option before physically removing it.
- Swapping Drives: Utilize the dual drive bays for continuous recording by swapping full drives with empty ones without interrupting the workflow.
- Trosglwyddo Files: Files can be transferred from the storage modules to a computer via the network connection or by physically connecting the drive module to a compatible docking station.
5. cynnal
Proper maintenance ensures the longevity and optimal performance of your Ki Pro Rack.
- Glanhau: Regularly clean the exterior of the unit with a soft, dry cloth. Avoid using liquid cleaners directly on the device. Ensure ventilation grilles are free from dust and obstructions.
- Diweddariadau Cadarnwedd: Periodically check the AJA website for firmware updates. Keeping your unit's firmware up-to-date ensures access to the latest features, bug fixes, and performance improvements. Follow the instructions provided by AJA for safe firmware installation.
- Media Care: Handle storage modules with care. Store them in protective cases when not in use to prevent damage and data loss.
- Amodau Amgylcheddol: Operate the Ki Pro Rack within recommended temperature and humidity ranges to prevent overheating or moisture damage.
6. Datrys Problemau
This section addresses common issues you might encounter with your Ki Pro Rack.
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Nid yw'r uned yn pweru ymlaen. | Cebl pŵer wedi'i ddatgysylltu; problem gyda'r allfa bŵer. | Ensure power cables are securely connected. Test the power outlet with another device. |
| No video input signal detected. | Incorrect cable connection; source device off; incorrect input selected. | Verify all video cables are correctly connected. Ensure the source device is powered on and outputting video. Select the correct input on the Ki Pro Rack. |
| Mae'r recordiad yn methu neu'n stopio'n annisgwyl. | Full storage module; unformatted drive; incompatible recording settings. | Check available space on the storage module. Ensure the drive is properly formatted. Verify recording settings match the input signal and drive capabilities. Try a different storage module. |
| Dim allbwn sain. | Audio cables disconnected; audio levels too low; incorrect audio output selected. | Check audio cable connections. Adjust audio levels on the Ki Pro Rack and connected devices. Ensure the correct audio output is selected. |
| Network connection issues. | Ethernet cable disconnected; incorrect network settings. | Verify the Ethernet cable is securely connected. Check network settings (IP address, subnet mask) on the Ki Pro Rack and your network. |
If you continue to experience issues, consult the comprehensive user manual available on the AJA website or contact AJA technical support.
7. manylebau
| Nodwedd | Manylyn |
|---|---|
| Brand | AJA |
| Enw Model | KIPRO RACK |
| Rhyngwyneb Caledwedd | Fideo Cydran |
| Datrysiad Dal Fideo | 1080p |
| Cydweddoldeb System Weithredu | Windows 10, macOS |
| Picseli Fideo | 1080p |
| Recommended Video Output Type | MPEG-2, MPEG-4 |
| Dyfeisiau Cydnaws | PC |
| Pwysau Eitem | 7.28 pwys |
| Dimensiynau Cynnyrch | 48.3 x 37.7 x 4.4 cm |
| UPC | 640024605128 |
| ASIN | B0083P1TMM |
| GTIN | 640024605128 |
8. Gwarant a Chefnogaeth
For detailed warranty information, please refer to the warranty card included with your product or visit the official AJA website. AJA provides technical support and resources to assist with product operation and troubleshooting.
Adnoddau Ar-lein: Ymwelwch www.aja.com/support for drivers, software, manuals, and FAQs.
Cymorth Cyswllt: For direct assistance, please contact AJA technical support through the channels provided on their websafle.
