1. Rhagymadrodd
The DigiTech RP255 is a versatile guitar multi-effect processor designed for musicians who gig, practice, and compose. It offers a wide array of tonal possibilities with 94 amps, cabinets, stompboxes, and effects. This unit also features USB streaming audio, allowing for direct recording to a computer. Key functionalities include a built-in 20-second looper, an integrated wah, whammy, and volume pedal, and 60 high-quality drum patterns for practice and songwriting.
2. Gosod a Chysylltiadau
Proper connection of your RP255 is essential for optimal performance. Follow these steps to set up your device:
- Cysylltiad Pwer: Connect the included 9V AC adapter to the 9VAC 1.3A power input jack on the rear panel of the RP255. Plug the adapter into a suitable power outlet.
- Mewnbwn gitâr: Cysylltwch eich gitâr â'r MEWNBWN jack on the rear panel using a standard 1/4-inch instrument cable.
- Allbwn i AmpCymysgydd/lifier: Use 1/4-inch cables to connect the LEFT (Mono) OUTPUT a ALLBWN DDE jacks to your guitar amplifier, mixer, or audio interface. For mono operation, use only the LEFT (Mono) OUTPUT.
- Mewnbwn Ategol: To play along with external audio sources (e.g., MP3 player), connect the device to the AUX YN jack using a 1/8-inch stereo cable.
- Clustffonau: For silent practice, connect stereo headphones to the Clustffonau jac.
- Cysylltiad USB: Connect the RP255 to your computer using a USB cable for audio streaming and editing presets via software.

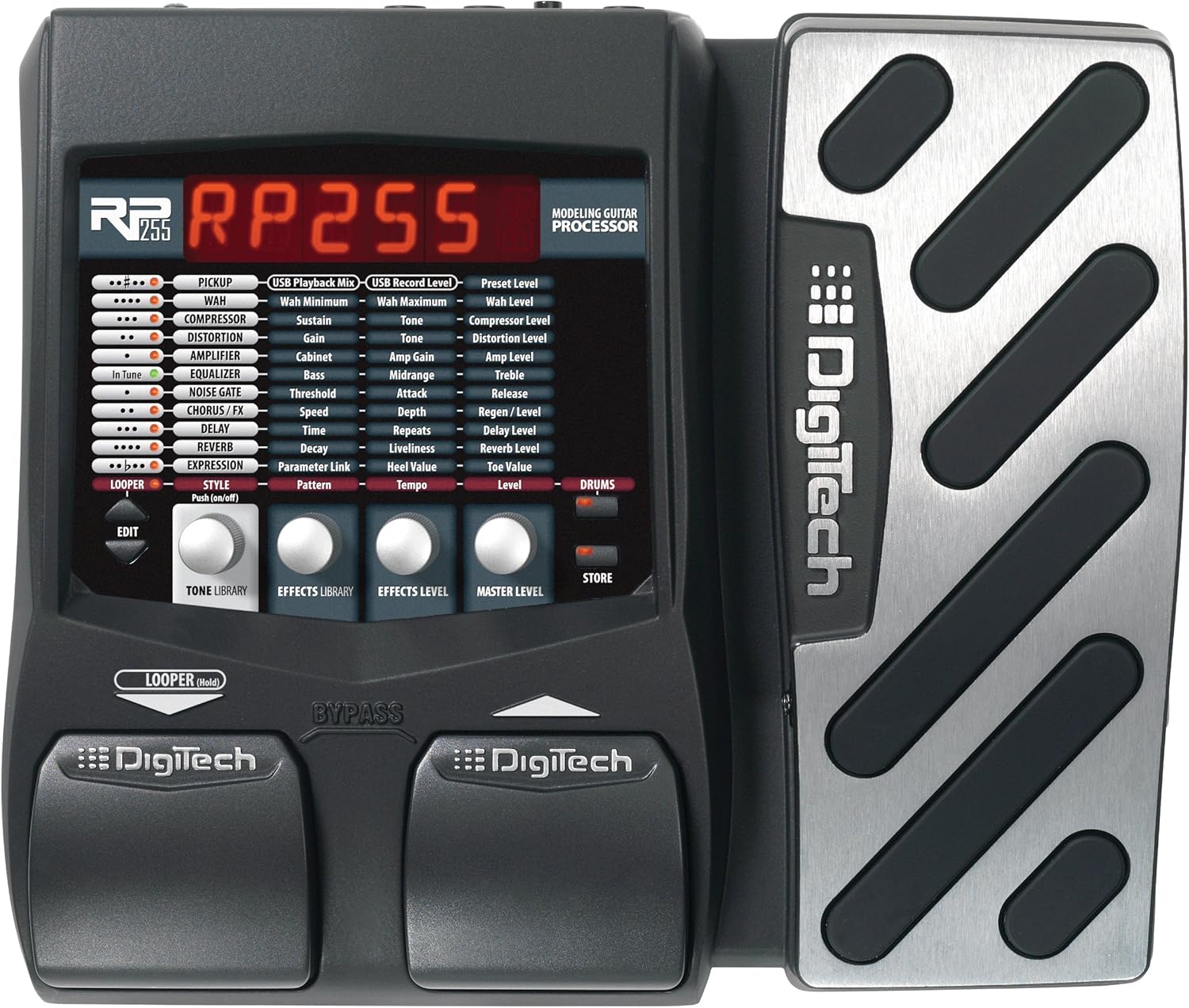

Ffigur 1: Blaen view of the DigiTech RP255, showing the display and control pedals.
Figure 2: Rear panel of the DigiTech RP255, illustrating input, output, USB, and power connections.
3. Cyfarwyddiadau Gweithredu
3.1 Navigating Presets
The RP255 comes with numerous factory presets. Use the footswitches to scroll through them. The display will show the preset number and name.
3.2 Effects and Amp Modelu
The RP255 features 94 amps, cabinets, stompboxes, and effects. These can be combined and customized to create unique tones. Refer to the detailed manual for specific parameter adjustments for each effect type.
- Stompboxes: Access various overdrive, distortion, and fuzz effects.
- Amps & Cabinets: Emulate a wide range of classic and modern guitar amplifiers and speaker cabinets.
- Modulation Effects: Includes chorus, flanger, phaser, and tremolo for adding movement to your sound.
- Delay & Reverb: Essential time-based effects for depth and atmosphere.
3.3 Looper Functionality
The built-in 20-second looper allows you to record and layer guitar phrases. This is ideal for practice, songwriting, or creating complex arrangements. Consult the full manual for detailed instructions on recording, overdubbing, and playback.
3.4 Drum Patterns
The RP255 includes 60 high-quality drum patterns. These can be used as a rhythmic backing for practice sessions or as a foundation for new song ideas. Adjust tempo and volume to suit your needs.
3.5 USB Audio Streaming
Connect the RP255 to your computer via USB to use it as an audio interface. This allows you to record your guitar directly into a Digital Audio Workstation (DAW) with the RP255's effects and amp models. It also enables editing and managing presets using dedicated software.
4. cynnal
To ensure the longevity and optimal performance of your DigiTech RP255, follow these maintenance guidelines:
- Glanhau: Defnyddiwch frethyn meddal, sych i lanhau tu allan yr uned. Osgowch ddefnyddio glanhawyr sgraffiniol, toddyddion, neu gwyrau, gan y gall y rhain niweidio'r gorffeniad.
- Storio: Store the RP255 in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
- Trin: Avoid dropping the unit or subjecting it to strong impacts. Always disconnect power and cables when moving the device.
- Cyflenwad Pŵer: Use only the specified 9V AC power adapter. Using an incorrect power supply can damage the unit and void the warranty.
5. Datrys Problemau
If you encounter issues with your DigiTech RP255, try the following troubleshooting steps:
- Dim pŵer: Ensure the power adapter is securely connected to both the RP255 and a working power outlet. Verify the power adapter is the correct type (9V AC).
- Dim Sain: Check all cable connections (guitar, output to amp/mixer, headphones). Ensure your guitar's volume is up and your amplifier is turned on and set to an audible volume. Verify that the RP255 is not in Tuner/Bypass mode if you expect an effect.
- Unexpected Sound/Noise: Check for loose cable connections. Ensure proper grounding. Try resetting the unit to factory defaults (refer to the full manual for instructions).
- Problemau Cysylltiad USB: Ensure the USB cable is securely connected. Try a different USB port or cable. Reinstall any necessary drivers or software on your computer.
For more complex issues, consult the complete DigiTech RP255 user manual or contact DigiTech customer support.
6. manylebau
- Pwysau Eitem: 4.75 pwys
- Dimensiynau Cynnyrch: 14.25 x 2.75 x 8.75 modfedd
- Rhif Model yr Eitem: RP255
- Rhyngwyneb Caledwedd: USB
- Fformat Arwyddion: Analog
- Ffynhonnell Pwer: Trydan Corded
- Cyftage: 9 folt
- Lliw: Du
- Effeithiau: 94 Amps, cabinets, stompboxes, and effects
- Looper: Built-in 20-second looper
- Pedal: Built-in wah, whammy, and volume pedal
- Patrymau Drymiau: 60 high-quality drum patterns
7. Gwarant a Chefnogaeth
The DigiTech RP255 comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, service, or additional information, please visit the official DigiTech websafle neu cysylltwch â'u hadran gwasanaeth cwsmeriaid. Cadwch eich derbynneb prynu fel prawf o brynu ar gyfer hawliadau gwarant.
