Voltas 1 Ton 5 Star Inverter Split AC

1. Cyfarwyddiadau Diogelwch Pwysig

Please read this manual thoroughly before installing and operating your air conditioner. Keep this manual for future reference.

• Sicrhau sylfaen gywir ar gyfer diogelwch trydanol.
• Do not block air inlets or outlets of the indoor or outdoor units.
• Peidiwch â rhoi bysedd na gwrthrychau i mewn i'r fewnfa/allfa aer.
• Peidiwch â cheisio atgyweirio'r uned eich hun. Cysylltwch â phersonél gwasanaeth cymwys.
• Diffoddwch y cyflenwad pŵer cyn glanhau neu gynnal a chadw.
• Defnyddiwch yr oergell benodedig (R32) yn unig.

2. Cynnyrch Drosview

The Voltas 1 Ton 5 Star Inverter Split AC (Model 125INV VECTRA ZEN SILVER) is designed for efficient and comfortable cooling. It features an inverter compressor, convertible 5-in-1 cooling modes, 2-way air swing, and advanced air purification technologies.

Nodweddion Allweddol:

• Cywasgydd gwrthdröydd: Variable speed compressor adjusts power based on heat load, saving energy.
• Convertible 5-in-1 Cooling Modes: Adjust cooling capacity via remote for different needs.
• Graddfa Ynni 5 Seren: High energy efficiency with an ISEER value of 5.70.
• 100% Copper Condenser: Ensures superior heat transfer and durability.
• Anti-Dust Filter with Anti-Microbial Coating: Filters dust and prevents microbial growth.
• Anti-Freeze Thermostat: Protects internal components from freezing.
• Modd Cwsg: Automatically adjusts temperature for comfortable sleep.
• Memory Restart: Restores previous settings after a power cut.
• Canfod Gollyngiad Nwy: Alerts users to potential refrigerant leaks.
• Arddangosfa Gudd: Integrated digital display for a sleek look.

Delwedd Cynnyrch:

Image: Voltas 1 Ton 5 Star Inverter Split AC Indoor Unit.

Cynnyrch Drosview Fideo:

Fideo: Cyffredinol drosoddview of Voltas AC features and brand legacy. This video covers various aspects of Voltas ACs, including brand history, product range, cooling technology, and key features like 5-in-1 cooling, high ambient cooling, copper condenser, anti-freeze thermostat, hydrophilic gold fin, anti-dust filter, memory restart, sleep mode, gas leak detection, piping flexibility, FR grade material, and warranty information.

3. Gosod & Setup

Proper installation is crucial for optimal performance and safety. It is recommended to have the unit installed by a qualified technician.

Dimensiynau Cynnyrch:

Image: Diagram showing the dimensions of the indoor and outdoor units. Indoor Unit (W x H x D): 89 x 31 x 23 cm. Outdoor Unit (W x H x D): 83.5 x 55.5 x 29.5 cm.

Beth sydd yn y blwch:

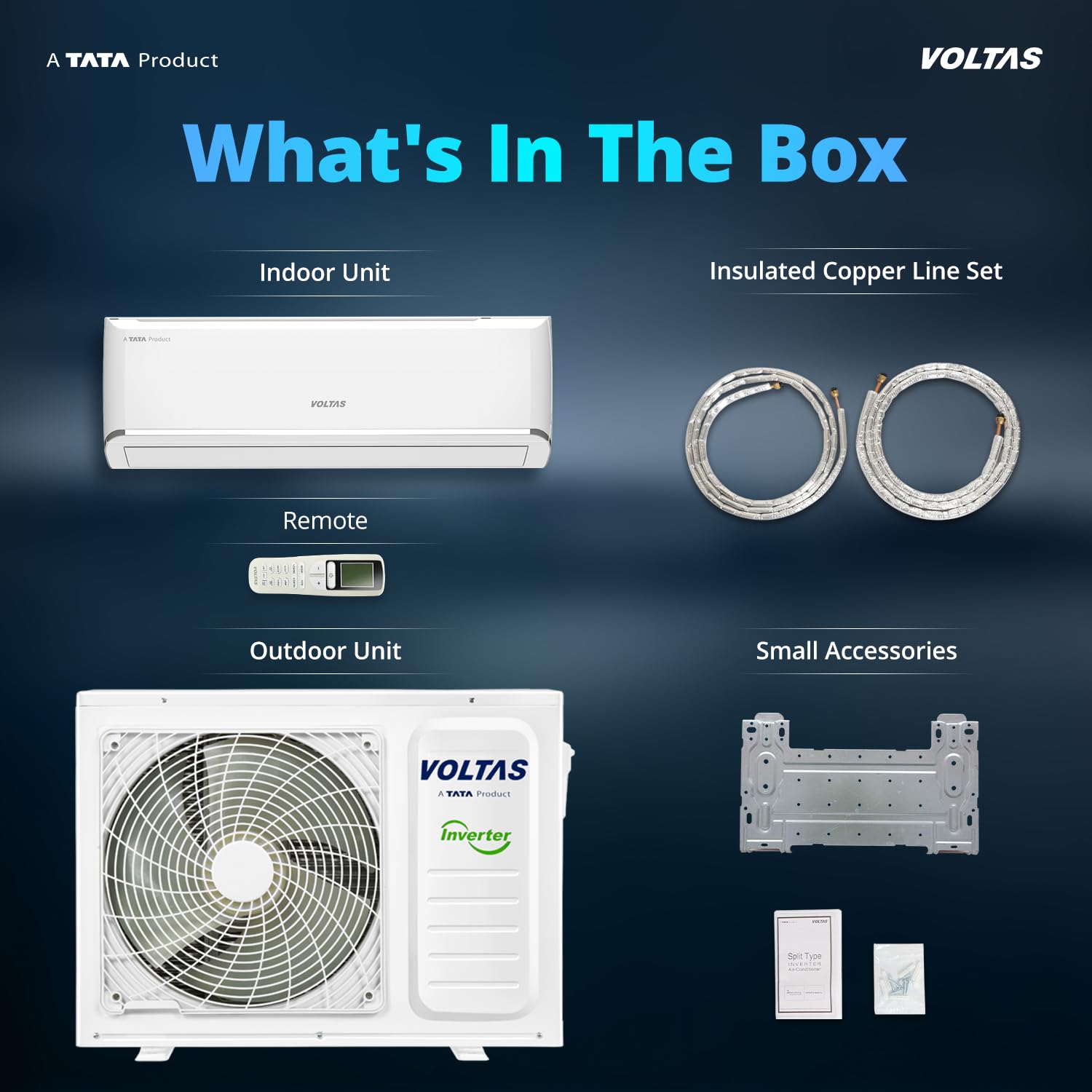

Image: Visual representation of the items included in the product box, such as the indoor unit, outdoor unit, remote, insulated copper line set, and small accessories.

• 1 Uned Dan Do.
• 1 Uned Awyr Agored
• 1 Interconnecting Cable (9.84 ft)
• 1 Set (2 nos) Interconnecting Pipe (Copper, 9.84 ft)
• 4 Outdoor Vibration Pads
• 1 Rheoli o Bell
• 2 Batri Anghysbell AAA
• 1 Indoor Mounting Plate
• Plastic Sleeves + Screws for Indoor Mounting Plate

Piping Flexibility:

Video: Demonstrates the maximum piping flexibility of up to 15 meters, allowing for versatile installation options for the indoor and outdoor units.

The unit offers up to 15 meters of piping flexibility, providing greater freedom in choosing the installation location for both the indoor and outdoor units. Ensure at least 2 feet of space around the AC for better cooling and proper placement.

4. Cyfarwyddiadau Gweithredu

Familiarize yourself with the remote control and various operating modes to maximize your comfort.

Rheolaeth Anghysbell:

Delwedd: Manwl view of the remote control, highlighting buttons for power, temperature, mode selection (Auto, Cool, Dry, Fan), fan speed, V-swing/H-swing, sleep, timer, and anti-freeze. Note: Remote design may vary slightly.

Convertible 5-in-1 Cooling Modes:

Video: Explains the 5-in-1 adjustable cooling modes, allowing you to optimize performance and save energy by running the AC at five different tonnage levels:

• Mode 1 (Mid Cooling): Saves energy when less cooling is needed.
• Mode 2 (Gentle Cooling): Ideal for up to 2 people.
• Mode 3 (Moderate Cooling): Suitable for up to 3 people.
• Mode 4 (Accelerated Cooling): Great for a group of up to 5 people.
• Mode 5 (Turbo Fast Cooling): For maximum cooling when the room is crowded or very hot.

High Ambient Cooling:

Video: Illustrates the AC's ability to provide effective cooling even when outside temperatures reach extreme levels, such as 52°C.

This AC is engineered to maintain a cool and comfortable indoor environment even when ambient temperatures outside are as high as 52°C.

Memory Restart:

Video: Shows how the Memory Restart feature automatically restores the previous operating settings after a power cut, ensuring uninterrupted comfort without manual intervention.

Mewn achos o bŵer outage, the Memory Restart feature automatically restores the air conditioner to its last operating settings once power is restored, ensuring continuous comfort.

Modd Cwsg:

Video: Demonstrates the Sleep Mode feature, which adjusts the cooling temperature throughout the night to maintain optimal comfort for restful sleep, while also reducing noise levels.

Activate Sleep Mode for a comfortable night's rest. The AC will automatically adjust the temperature to prevent overcooling and ensure a peaceful sleeping environment. The acoustic jacket on the compressor also helps in reducing noise.

5. Cynnal a Chadw a Gofal

Regular maintenance ensures the longevity and efficient operation of your Voltas AC.

100% Copper Condenser:

Video: Highlights the pure copper condenser, emphasizing its durability and consistent cooling performance even under fluctuating outside temperatures.

The AC features a 100% copper condenser, known for its excellent heat transfer properties and durability. This ensures efficient cooling and a longer lifespan for the unit.

Anti-Corrosive Gold Fin Evaporator:

Video: Explains how the Hydrophilic Gold Fin Evaporator, with its anti-corrosive coating, protects the indoor unit coil from corrosion and enhances heat exchange for reliable cooling.

The hydrophilic gold fin evaporator has an anti-corrosive coating that protects the indoor unit coil from rust and corrosion, enhancing its durability and heat exchange efficiency.

Anti-Freeze Thermostat:

Video: Details the Anti-Freeze Thermostat, a crucial safeguard inside the indoor unit that triggers a heating system to protect components like coils and pipes from freezing when temperatures drop to critical levels.

The built-in anti-freeze thermostat prevents the indoor unit's coils from freezing, ensuring consistent performance and protecting the system from damage.

Anti-Dust Filter with Anti-Microbial Coating:

Video: Showcases the removable anti-dust filter with anti-microbial coating, explaining how it traps dust particles and actively prevents the growth of microbes, ensuring clean and fresh air without bad odors.

The removable anti-dust filter, combined with an anti-microbial coating, traps up to 99% of dust particles and actively prevents the growth of microbes, ensuring clean, fresh, and odor-free air in your room. Regularly clean the filter for optimal air quality.

6. Datrys Problemau

This section provides guidance on common issues. For complex problems, contact customer support.

Canfod Gollyngiad Nwy:

Video: Explains the Gas Leak Detection feature, where the AC displays an 'EC' warning and automatically alerts the service system if a gas leak is detected, prompting customer support to arrange assistance.

The AC is equipped with a gas leak detection system. If a refrigerant leak is detected, the unit will display an 'EC' error code and automatically alert the service system, which will then contact you to arrange support.

Materion Cyffredin:

• AC not turning on: Check power supply, remote batteries, and circuit breaker.
• Oeri annigonol: Ensure filters are clean, doors/windows are closed, and the outdoor unit is not obstructed.
• Sŵn anarferol: Minor noises are normal during operation. If loud or persistent, contact service.
• Gollyngiad dŵr: Check if the drain pipe is clogged or improperly installed.

7. manylebau

8. Gwarant a Chefnogaeth

Voltas provides comprehensive warranty and dedicated customer support.

Manylion Gwarant:

Video: Outlines the warranty coverage provided by Voltas, including 10 years on the compressor and 24/7 service support, highlighting the brand's commitment to customer satisfaction.

• Gwarant Cynhwysfawr 1 Flwyddyn on the Product.
• Gwarant 10 Flynedd on Inverter Compressor.
• Gwarant 5 Flynedd ar PCB.
• Warranty to be claimed with Amazon Invoice.

Cefnogaeth i Gwsmeriaid:

For any queries, service requests, or support, please contact Voltas customer care:

• E-bost: vcare@voltas.com
• Ffôn: +919650694555 / 1860-599-4555
• Voltas offers 24/7 service support across 18000+ pin codes and 100% of Tier 1 cities.
