Aecooly Mini Portable Neck Fan - Model Click 01 Instruction Manual

Cynnyrch Drosview

The Aecooly Mini Portable Neck Fan, Model Click 01, is a compact and lightweight personal cooling device designed for convenience and portability. It features a magnetic attachment system, three adjustable speed settings, and a rechargeable battery providing up to 10 hours of cooling.

Nodweddion Allweddol:

• Maint Bach: Weighs only 3.35 oz and measures 2.9 × 2.3 × 1.4 inches, designed to be unobtrusive.
• Llif Awyr Cryf: Delivers wind speeds up to 23 ft/s to effectively move heat away.
• Magnetic Fit: Securely attaches to clothing for stable cooling during light activities.
• Oes batri estynedig: Yn darparu hyd at 10 awr o oeri ar un gwefr.
• Llif Aer Addasadwy 3-Cyflymder: Easily switch between three fan speeds for varied cooling needs.

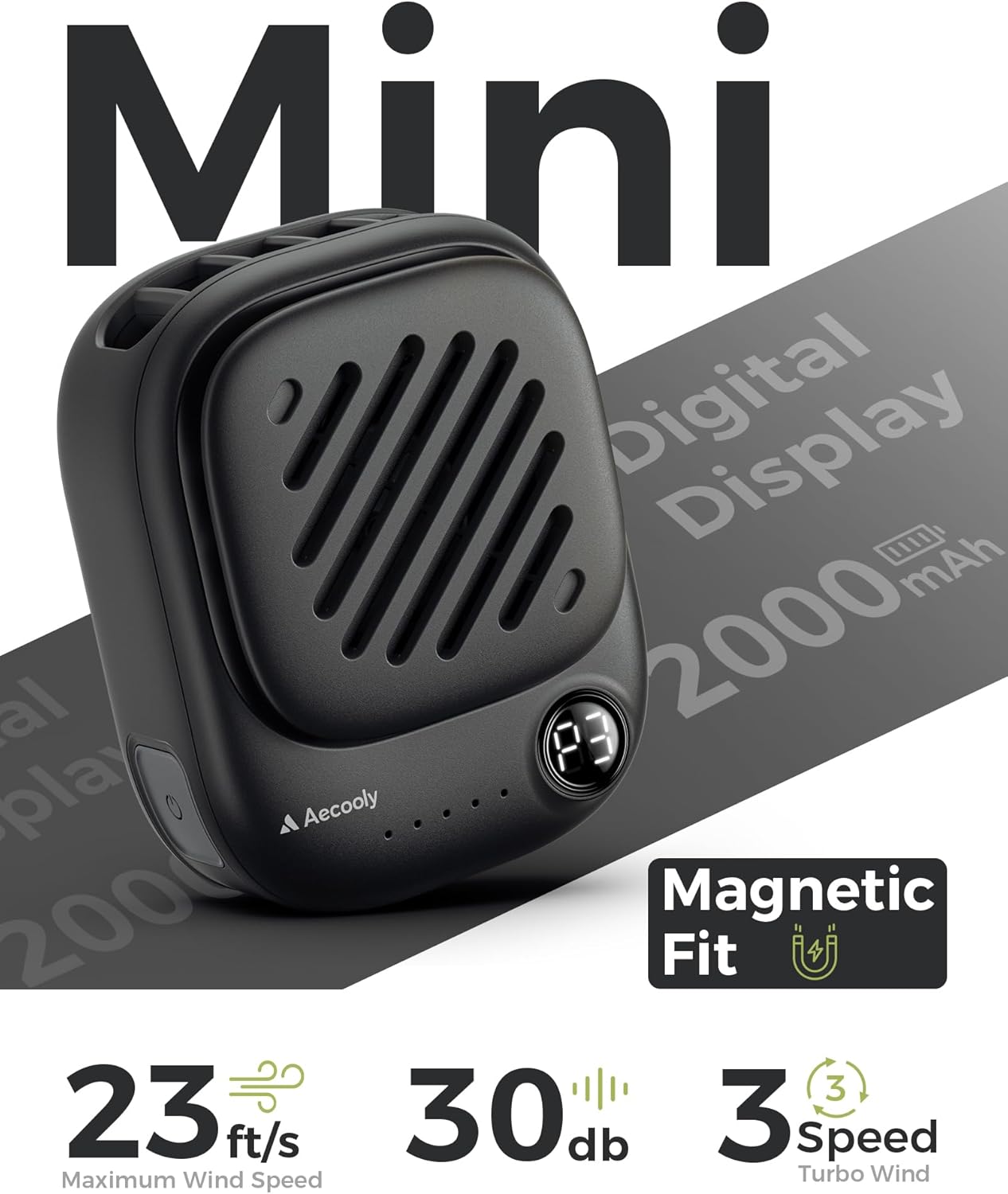

Image: The Aecooly Mini Portable Neck Fan, highlighting its compact size, digital display, 2000mAh battery, 23 ft/s wind speed, 30dB noise level, and 3-speed turbo wind.

Cynnwys Pecyn

Gwiriwch fod yr holl eitemau yn bresennol yn eich pecyn:

• 1 x Aecooly Mini Neck Fan
• 1 x Cebl Gwefru (USB Math-C)
• 1 x Cortyn
• 1 x Llawlyfr Defnyddiwr (y ddogfen hon)

Image: A visual representation of the package contents, including the mini neck fan, charging cable, lanyard, and user manual.

Gosod

Cysylltu'r Llinyn:

1. Locate the small loop on the top edge of the fan.
2. Thread the thin end of the lanyard through this loop.
3. Pass the larger end of the lanyard through the loop you just created with the thin end, then pull gently to secure.
4. Ensure the lanyard is firmly attached before wearing.

Image: A step-by-step guide demonstrating how to attach the lanyard to the fan, labeled "Snap On, Pull Off".

Wearing the Fan:

• Neck Wear: Place the lanyard around your neck. The fan can hang freely or be magnetically attached to your clothing.
• Ymlyniad magnetig: The fan features a magnetic back. Position the fan on the outside of your clothing, then place the included magnetic plate on the inside of your clothing, directly behind the fan. The magnets will secure the fan in place. This allows for hands-free operation and directs airflow towards your upper body.

Image: A person wearing the mini neck fan, demonstrating its magnetic attachment and hands-free use.

Cyfarwyddiadau Gweithredu

Addasiad Pŵer Ymlaen / i ffwrdd ac Addasiad Cyflymder:

1. Pŵer Ymlaen: Press and hold the power button (usually located on the side or front of the fan) for 2-3 seconds. The fan will start at Speed 1.
2. Addasu Cyflymder: Briefly press the power button to cycle through the fan speeds:
   • Press once for Speed 1 (Low)
   • Press twice for Speed 2 (Medium)
   • Press three times for Speed 3 (High)
3. Pwer i ffwrdd: Press and hold the power button again for 2-3 seconds, or cycle through all speeds until the fan turns off.

The digital display on the fan will indicate the current speed setting (P1, P2, P3) and battery level.

Image: Visualizing the three adjustable fan speeds and their respective wind outputs, demonstrating the fan's cooling capability.

Codi tâl

Codi'r Batri:

1. Connect the provided USB Type-C charging cable to the charging port on the fan.
2. Cysylltwch ben arall y cebl USB â ffynhonnell bŵer USB gydnaws (e.e., cyfrifiadur, addasydd wal, banc pŵer).
3. The battery indicator lights or digital display will show the charging status. Once fully charged, the indicator will change or turn off.
4. A full charge provides up to 10 hours of operation, depending on the speed setting used.

Nodyn: For optimal battery life, avoid completely draining the battery before recharging. Use a standard 5V/1A or 5V/2A USB charger.

Cynnal a chadw

Glanhau:

• Ensure the fan is turned off and disconnected from any power source before cleaning.
• Sychwch du allan y ffan gyda lliain meddal, sych.
• Do not use harsh chemicals, abrasive cleaners, or immerse the fan in water.
• Periodically check the fan grille for dust accumulation and gently clean with a soft brush if necessary to maintain optimal airflow.

Storio:

• Store the fan in a cool, dry place away from direct sunlight and extreme temperatures.
• Os ydych chi'n ei storio am gyfnod hir, gwefrwch y batri i tua 50% i gynnal iechyd y batri.

Datrys problemau

Manylebau

Gwybodaeth Ddiogelwch Bwysig

• Cadwch allan o gyrraedd plant.
• Peidiwch â rhoi bysedd na gwrthrychau tramor i mewn i gril y ffan.
• Osgowch ddod i gysylltiad â dŵr neu leithder gormodol.
• Do not disassemble or attempt to repair the fan yourself.
• Defnyddiwch y cebl gwefru a ddarperir neu gyfwerth ardystiedig yn unig.
• Do not expose the battery to high temperatures or dispose of it in fire.

Gwarant a Chefnogaeth

For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official Aecooly websafle. Cadwch eich derbynneb prynu ar gyfer hawliadau gwarant.
