1. Rhagymadrodd
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the GENERIC DWP15-50-F Gas Boiler Water Circulation Pump Motor. This pump is designed for use in gas boiler systems, ensuring proper water circulation. It is compatible with various systems, including those from Ferroli and Fortuna, and operates at 220V.
Darllenwch y llawlyfr hwn yn drylwyr cyn ceisio unrhyw osod neu weithredu. Cadwch y llawlyfr hwn i gyfeirio ato yn y dyfodol.
2. Gwybodaeth Diogelwch
WARNING: Electrical shock hazard. Installation and servicing must be performed by qualified personnel only.
- Always disconnect power to the boiler system before installing, servicing, or performing any maintenance on the pump.
- Sicrhewch fod yr holl gysylltiadau trydanol yn cydymffurfio â chodau a rheoliadau lleol.
- Gwisgwch offer amddiffynnol personol (PPE) priodol, gan gynnwys sbectol ddiogelwch a menig, yn ystod y gosodiad a'r gwaith cynnal a chadw.
- Do not operate the pump if it is damaged or if any electrical wiring is exposed.
- This pump is designed for circulating water in gas boiler systems. Do not use it for other liquids or applications.
- Cadwch blant a phersonél anawdurdodedig i ffwrdd o'r ardal osod.
3. Cynnwys Pecyn
Upon opening the package, verify that all components are present and undamaged. If any items are missing or damaged, contact your supplier immediately.
- 1 x DWP15-50-F Gas Boiler Water Circulation Pump Motor
4. manylebau
| Nodwedd | Manyleb |
|---|---|
| Rhif Model | DWP15-50-F |
| Cyftage | 220V |
| Math | Gas Water Heater Parts (Water Circulation Pump Motor) |
| Brand | GENERIG |
| Gwneuthurwr | GENERIG |
| ASIN | B0GC4FWD1B |
5. Gosod a Gosod
IMPORTANT: Installation should only be carried out by a qualified and certified technician to ensure safety and proper operation.
- Paratoi: Ensure the main power supply to the boiler system is completely disconnected. Close all relevant water valves and drain the boiler system to prevent water spillage.
- Remove Old Pump (if applicable): Carefully disconnect the electrical wiring and plumbing connections from the existing circulation pump. Be prepared for residual water.
- Mounting the New Pump: Position the DWP15-50-F pump in the designated location, ensuring the flow direction arrow on the pump body matches the system's water flow. Secure the pump firmly using appropriate mounting hardware.
- Cysylltiadau Plymio: Connect the pump to the boiler's plumbing system. Use appropriate seals and ensure all connections are tight to prevent leaks.

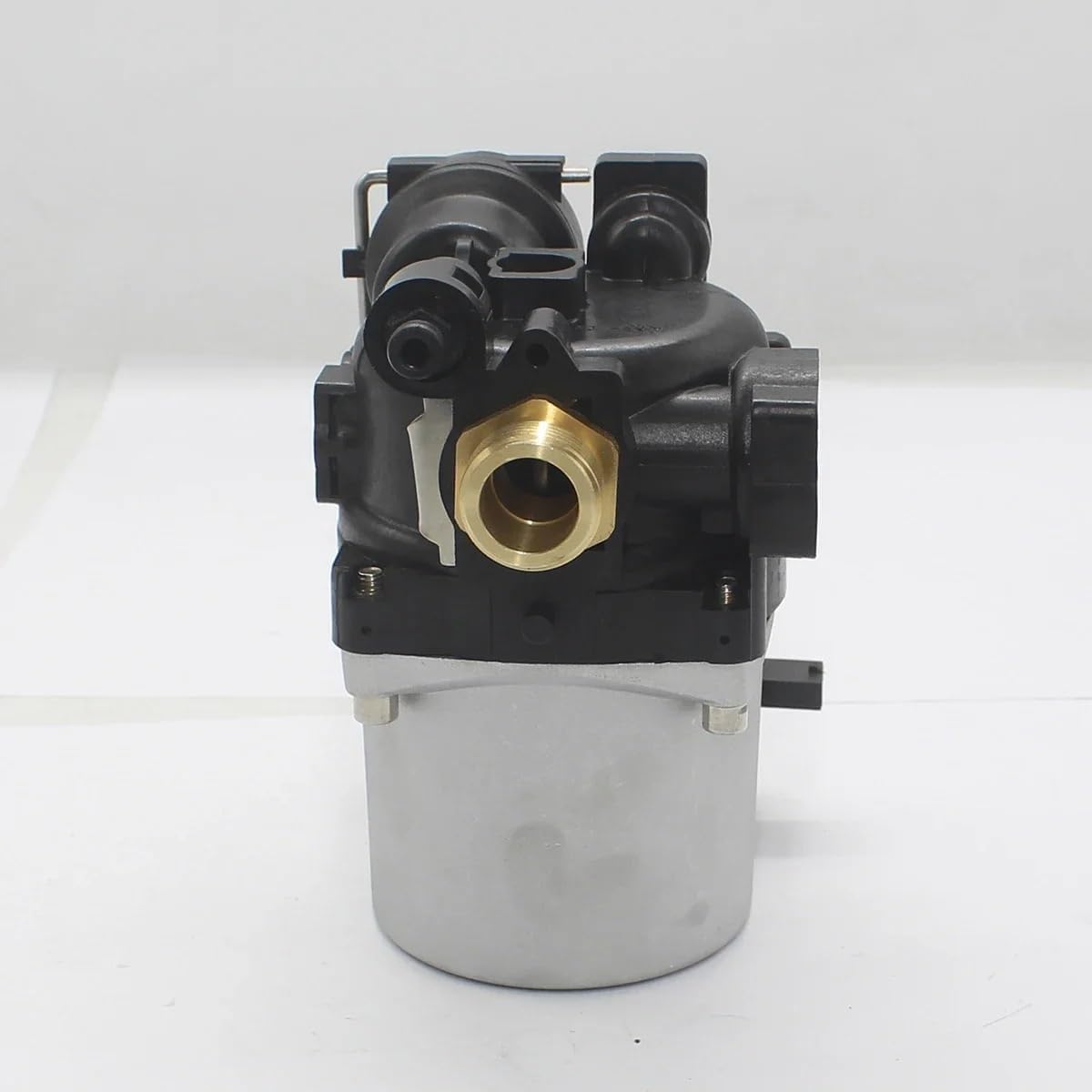

Ffigur 5.1: Blaen view of the DWP15-50-F pump, highlighting the brass connection for plumbing.
- Gwifrau Trydanol: Connect the 220V electrical supply to the pump's terminal block according to the wiring diagram provided with your boiler system or by a qualified electrician. Ensure proper grounding.
- Refill and Bleed System: Slowly refill the boiler system with water, carefully bleeding any air from the system through the designated air vents. This is crucial for proper pump operation and to prevent airlocks.
- Gwiriad Gollyngiadau: Inspect all plumbing connections for any signs of leaks. Tighten connections as necessary.
- Adfer Pwer: Once all connections are secure and checked, and the system is filled and bled, restore the main power supply to the boiler system.
6. Cyfarwyddiadau Gweithredu
The DWP15-50-F circulation pump is designed for automatic operation in conjunction with your gas boiler system.
- Once properly installed and the boiler system is powered on, the pump will activate automatically when there is a demand for heat or hot water, circulating water through the system.
- Monitor the boiler system and pump for any unusual noises, vibrations, or leaks during initial operation.
- Ensure the boiler's control settings are correctly configured for optimal system performance.
Ffigur 6.1: Ochr view of the DWP15-50-F pump.
7. cynnal
Regular maintenance helps ensure the longevity and efficient operation of your circulation pump.
- Archwiliad gweledol: Periodically inspect the pump for any signs of leaks, corrosion, or physical damage. Check electrical connections for tightness and integrity.
- Cadwch yr Ardal yn Glir: Ensure the area around the pump is free from debris, dust, and obstructions to allow for proper ventilation and access.
- System Bleeding: If you notice unusual noises (e.g., gurgling) or reduced circulation, the system may have air. Bleed the system as per your boiler manufacturer's instructions.
- Gwasanaeth Proffesiynol: It is recommended to have the entire boiler system, including the circulation pump, inspected and serviced annually by a qualified HVAC technician.
Ffigur 7.1: Ongl view of the DWP15-50-F pump, showing the motor and control box.
8. Datrys Problemau
Before attempting any troubleshooting, ensure the power supply to the boiler system is disconnected. For complex issues, contact a qualified technician.
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Pwmp ddim yn rhedeg | Dim cyflenwad pŵer Gwifrau diffygiol Torrwr cylched baglu | Check power connection and ensure boiler system is on. Inspect wiring for damage (by qualified technician). Ailosod torrwr cylched. |
| Noisy operation (e.g., gurgling, grinding) | Aer yn y system Mowntio rhydd Foreign object in impeller | Bleed air from the boiler system. Gwiriwch a thynhau'r bolltau gosod. Contact a qualified technician to inspect the impeller. |
| No water circulation or poor flow | Airlock in pump or system Falfiau caeedig impeller wedi'i rwystro | Bleed air from the system and pump. Ensure all necessary valves are open. Contact a qualified technician to inspect for blockages. |
| Mae dŵr yn gollwng o'r pwmp | Cysylltiadau plymio rhydd Morloi neu gasgedi wedi'u difrodi | Tighten plumbing connections. Contact a qualified technician for seal replacement. |
9. Gwarant a Chefnogaeth
For warranty information, technical support, or service inquiries, please contact your original point of purchase or the manufacturer directly. Ensure you have your product model number (DWP15-50-F) and purchase details available when contacting support.
