WinZo Smart Toilet (Model SM8005-3-250) User Manual

Rhagymadrodd

This manual provides essential information for the safe and efficient use of your WinZo Smart Toilet, Model SM8005-3-250. Please read all instructions carefully before installation and operation. Keep this manual for future reference.

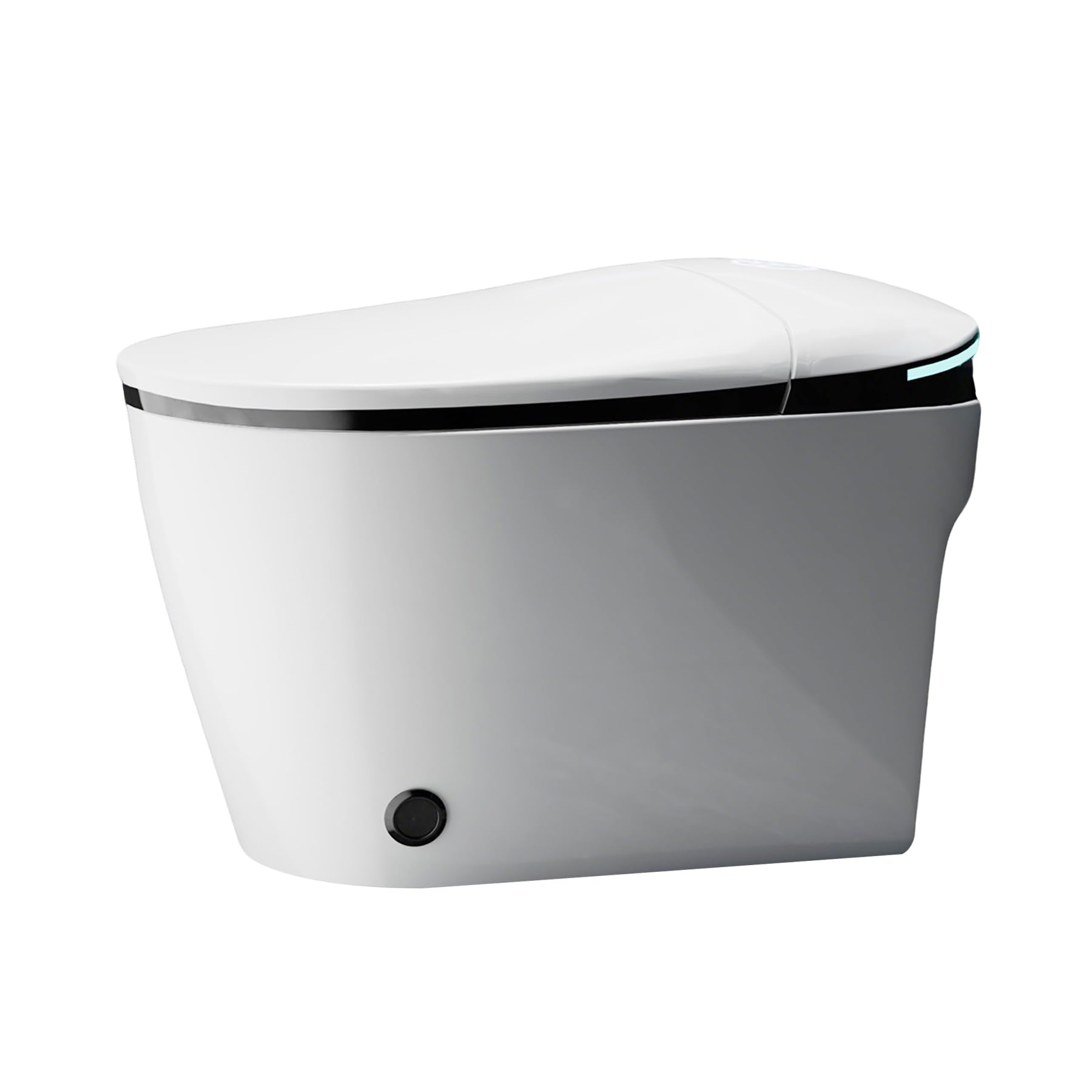

Delwedd: Blaen view of the WinZo Smart Toilet, showcasing its sleek, modern design.

Gwybodaeth Diogelwch

Observe all safety warnings and precautions to prevent injury or damage to the product. This appliance is designed for indoor use only.

• Sicrhewch sylfaen drydanol gywir yn ystod y gosodiad.
• Do not expose the unit to excessive moisture or direct water spray.
• Datgysylltwch y pŵer cyn gwneud unrhyw waith cynnal a chadw neu lanhau.
• Cadwch blant ac anifeiliaid anwes i ffwrdd o'r uned yn ystod y llawdriniaeth.

Image: Diagram showing the 8 layers of safety protection, including power-on self-check, leakage protection, water temperature protection, wind temperature protection, water and electricity separation, IPX4 waterproof rating, dry burning protection, and high/low voltage amddiffyn.

Gosod a Gosod

The WinZo Smart Toilet is designed for floor-mounted installation with a 10-inch rough-in, making it suitable for various bathroom configurations, especially older homes. Professional installation is recommended.

Gwiriadau Cyn Gosod:

• Verify rough-in measurement: This model requires a 10-inch rough-in from the wall to the center of the drain pipe.
• Confirm product dimensions: 26.75"D x 16.5"W x 20"H. Ensure adequate space for installation and operation.
• Ensure a dedicated electrical outlet (120V AC) is available near the installation site.
• Confirm water supply line is accessible and compatible.

Image: Diagram illustrating the product dimensions: 26.75 inches deep, 16.5 inches wide, and 20 inches high, with a 10-inch rough-in measurement highlighted.

Delwedd: Llun agos view emphasizing the 10-inch rough-in requirement for installation.

Camau Gosod (Crynodeb):

1. Turn off the main water supply and flush the existing toilet.
2. Remove the old toilet and clean the flange area.
3. Install the new wax ring and secure the mounting bolts.
4. Carefully place the WinZo Smart Toilet onto the bolts and secure it.
5. Connect the water supply line and electrical power.
6. Trowch y cyflenwad dŵr ymlaen a gwiriwch am ollyngiadau.
7. Perform initial function tests.

Refer to the detailed installation guide provided in the product packaging for complete step-by-step instructions.

Cyfarwyddiadau Gweithredu

Your WinZo Smart Toilet offers a range of automated and customizable features for enhanced comfort and hygiene.

Swyddogaethau Awtomatig:

• Agor/Cau Caead yn Awtomatig: The lid automatically opens when approached and closes after departure.
• Fflysio Awtomatig Oddi ar y Sedd: The toilet flushes automatically after you leave the seat, requiring no manual interaction.
• Sedd Agos Meddal: The seat and lid close gently and quietly, preventing slamming.
• Soft Night Light Illumination: An integrated night light provides subtle illumination for nighttime use.

Image: A person approaching the WinZo Smart Toilet, demonstrating the automatic lid opening feature and the soft-close mechanism.

Image: A visual representation of the heated seat and warm air dryer functions, showing heat emanating from the seat and warm air flow.

Delwedd: Tryloyw view of the toilet bowl demonstrating the powerful 1.28 GPF siphonic jet flushing system in action.

Bidet and Cleaning Functions:

The integrated bidet offers multiple washing modes and features:

• Female Washing: Gentle wash for feminine hygiene.
• Hips Washing: Golchfa gefn safonol.
• Move Washing: Oscillating nozzle for broader cleaning.
• Hydrotherapy Flush: A specialized wash mode.
• Tymheredd Dŵr Addasadwy: Customize water temperature for comfort.
• Sychwr Aer Cynnes: Adjustable temperature and airflow for hands-free drying.
• UV Light Deep Cleaning: After 10 seconds of leaving the seat, a 3-minute UV sterilization cycle activates to clean the toilet bowl.

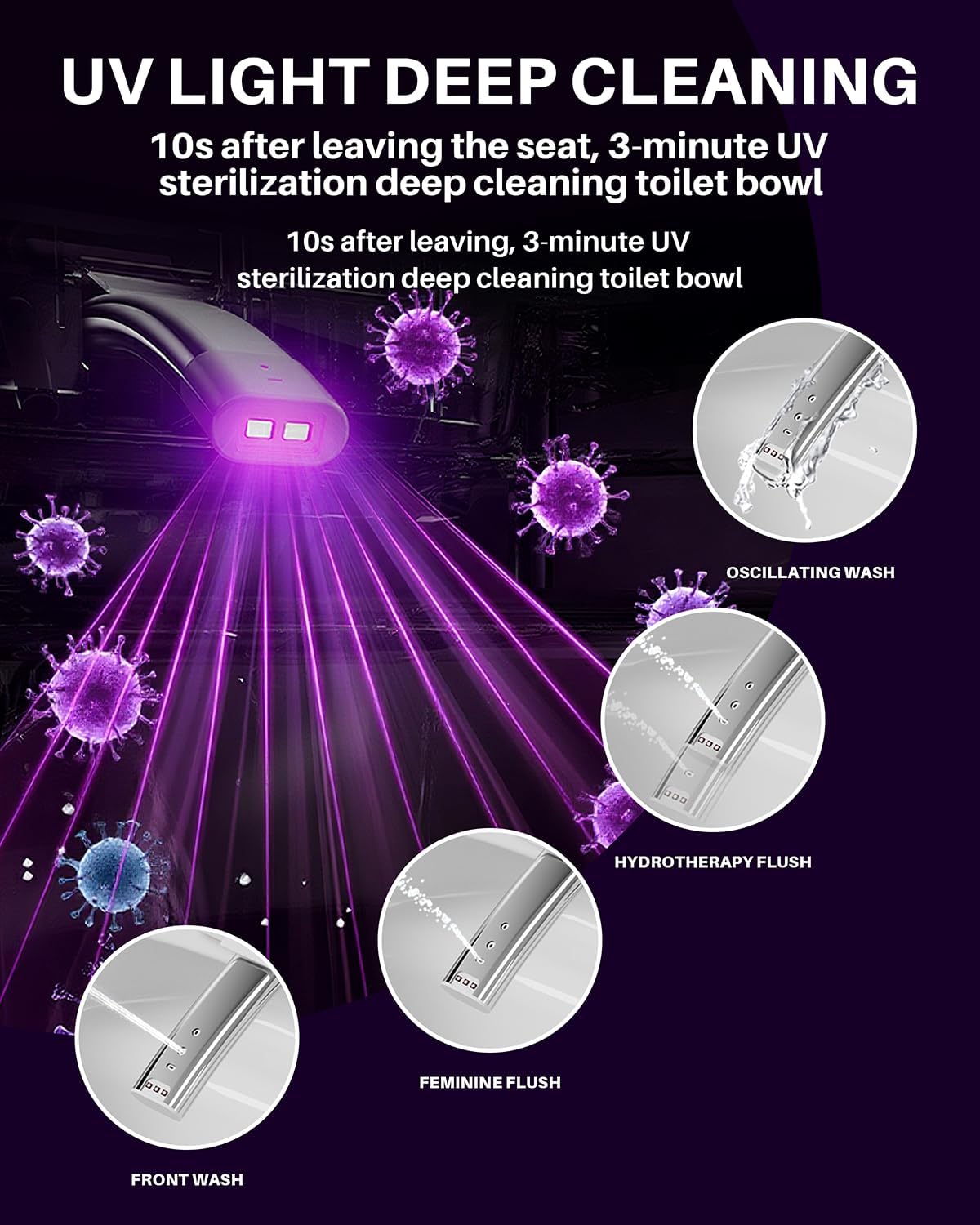

Image: Diagram illustrating various bidet wash modes (front, feminine, oscillating, hydrotherapy) and the UV light deep cleaning process within the toilet bowl.

Nodweddion Cysur:

• Sedd wedi'i Gwresogi: The elongated seat provides instant warmth with adjustable temperature settings.
• Sychwr Aer Cynnes: Features 4-speed air temperature adjustment for personalized comfort.

Cynnal a chadw

Regular maintenance ensures the longevity and optimal performance of your WinZo Smart Toilet.

• Glanhau Allanol: Sychwch yr arwynebau allanol gyda meddal, damp cloth and mild, non-abrasive cleaner. Avoid harsh chemicals.
• Glanhau ffroenellau: The bidet nozzle performs a self-cleaning function before and after each use. Periodically inspect the nozzle for any buildup and gently clean with a soft brush if necessary.
• Sterileiddio UV: The automatic 3-minute UV sterilization cycle helps maintain bowl hygiene.
• System fflysio: The powerful siphonic jet and jet flushing system are designed to prevent waste buildup. Ensure regular flushing to maintain cleanliness.
• Pwer Outage: The toilet includes a built-in battery design for uninterrupted flushing during power outages (battery not included, requires installation).

Always disconnect power before performing any manual cleaning or maintenance.

Datrys problemau

If you encounter any issues with your WinZo Smart Toilet, please refer to the following general guidance. For specific problems, consult the full troubleshooting guide in your product packaging or contact customer support.

Materion Cyffredin:

• Dim pŵer: Check the power cord connection and the circuit breaker. Ensure the outlet is functional.
• Dim llif dŵr: Verify the water supply valve is fully open. Check for kinks in the water supply hose.
• Caead Ddim yn Agor/Cau'n Awtomatig: Ensure the sensor is clean and unobstructed. Check for any objects interfering with the lid's movement.
• Bidet Ddim yn Gweithio: Confirm water supply is on. Check control panel settings.
• Materion fflysio: Ensure sufficient water pressure. Check for any blockages.

Cysylltwch â Chefnogaeth:

If troubleshooting steps do not resolve the issue, please contact WinZo customer support. To expedite the process, have your model number (SM8005-3-250) and a description of the problem ready.

Image: Steps for contacting customer support: Find "Your Orders", select "Problem with order", choose topic, click "Contact seller", attach problem pictures, and describe the issue in detail. Expect a response within 24 hours.

Manylebau

Gwarant a Chefnogaeth

For warranty information and customer support, please refer to the documentation included with your product or contact WinZo directly. When contacting support, please provide your model number (SM8005-3-250) and a detailed description of your issue.

WinZo is committed to providing solutions and assistance for any product-related concerns.
