CC KITS Universal Twin and Full-Size Conversion Kit Bed Rails Instruction Manual

Rhagymadrodd

This manual provides comprehensive instructions for the installation, usage, and maintenance of your CC KITS Universal Twin and Full-Size Conversion Kit Bed Rails. This kit is designed to transform compatible DaVinci Baby Convertible Cribs into a twin or full-size bed, providing a safe and familiar sleeping environment for your growing child. Please read all instructions carefully before beginning assembly.

Gwybodaeth Diogelwch

• Ensure all hardware is securely tightened during assembly to prevent instability.
• This conversion kit features water-based, non-toxic finishes, free from lead and phthalates, ensuring a safe sleep environment.
• Always use the crib's original headboard and footboard with this conversion kit for structural integrity.
• The converted bed supports up to 600 pounds when paired with additional slats (sold separately). Ensure adequate slat support for the mattress.
• Regularly inspect the bed for loose hardware or signs of wear and tear.

Cynnwys Pecyn

Gwiriwch fod yr holl gydrannau yn bresennol cyn dechrau'r cydosod. Os oes unrhyw rannau ar goll neu wedi'u difrodi, peidiwch â pharhau â'r cydosod a chysylltwch â chymorth cwsmeriaid.

• Two (2) Wooden Bed Rails
• Required Hardware (bolts, washers, nuts)
• Llawlyfr Cyfarwyddiadau (y ddogfen hon)

Figure 1: Included wooden bed rails and hardware.

Cydweddoldeb

This conversion kit is designed for use with specific DaVinci Baby Convertible Crib models. Please ensure your crib model is listed below for proper fit and function:

• Anders (M22601), Annabelle (M5931), Annabelle Mini (M5998), Ashbury (M8201), Aspen (M18901), Autumn (M4301), Autumn Crib & Changer (M4391), Autumn Mini Crib (M4398), Bella (M3101), Brook (M4401), Cameron (M5971), Charlie (M12801), Charlie Folding Mini Crib (M12898), Chloe Regency (M11441), Clover (M1201), Carter's Colby Crib & Changer (F11991), Carter's Colby Crib w/ Trundle (F11951), Carter's Colby Low Profile (F11901)
• Carter's Colby Mini w/ Trundle (F11981), Carter's Dakota (F14901), Carters Marisol (M12599), Carter's Morgan (F11501), Carter's Nolan (F16901), Carter's Radley (F23201), Carter's Taylor (F12101), Chloe Regency (M11441), Clover (M1201), Colby Bassinet (F11980NX), Connor (F11301), Dylan Mini Folding (M18198), Elizabeth II Toddler Bed (M0810), Emily (M4791), Emily Mini (M4798), Emmett (M20101), Fairway (M13541), Fiona (M20801), Flora (M1401)
• Foothill (M3901), Frem (M27301), Glenn (M1601), Grove (M9301), Hayley (F14701), Highland (M3601), Jayden (M5981), Kalani (M5501), Kalani Crib & Changer (M5582), Kalani Mini (M5598), Kenzie (F11701), Laurel (M2001), Liam (M13401), Margot (M24941), Meadow (M4501W), Nathan (M12501), Parker (M5101), Perse (M9701), Piedmont (M1921), Reagan (M2801), Richmond (M2401), Sammy (M27801), Sawyer (M24701), Shea (M27201), Sherwood (M10101) & Thompson (M3201) Cribs by DaVinci.

Cyfarwyddiadau Gosod

The conversion process typically takes 20-30 minutes. You will utilize the headboard and footboard from your existing DaVinci crib.

1. Disassemble Crib: Carefully remove the side rails from your DaVinci convertible crib, retaining the headboard and footboard. Refer to your original crib's instruction manual for specific disassembly steps.
2. Adnabod Cydrannau: Lay out the two wooden bed rails from the conversion kit and the provided hardware.
3. Attach Bed Rails: Align the attachment points on the new bed rails with the corresponding holes on the crib's headboard and footboard. Secure them using the provided hardware (bolts, washers, nuts). Ensure all connections are snug but do not overtighten.
4. Install Slats (Sold Separately): If converting to a twin or full-size bed, install appropriate bed slats (not included with this kit) to support the mattress. Ensure the slats are evenly spaced and securely fastened to the bed rails.
5. Matres Lle: Once the frame is stable and slats are installed, place the mattress onto the bed frame.
6. Gwiriad Terfynol: Gently shake the assembled bed to ensure stability. Verify all hardware is tight and there are no loose components.

Figure 2: A single wooden bed rail, part of the conversion kit.

Figure 3: Illustrative image of bed rail attachment to a bed frame.

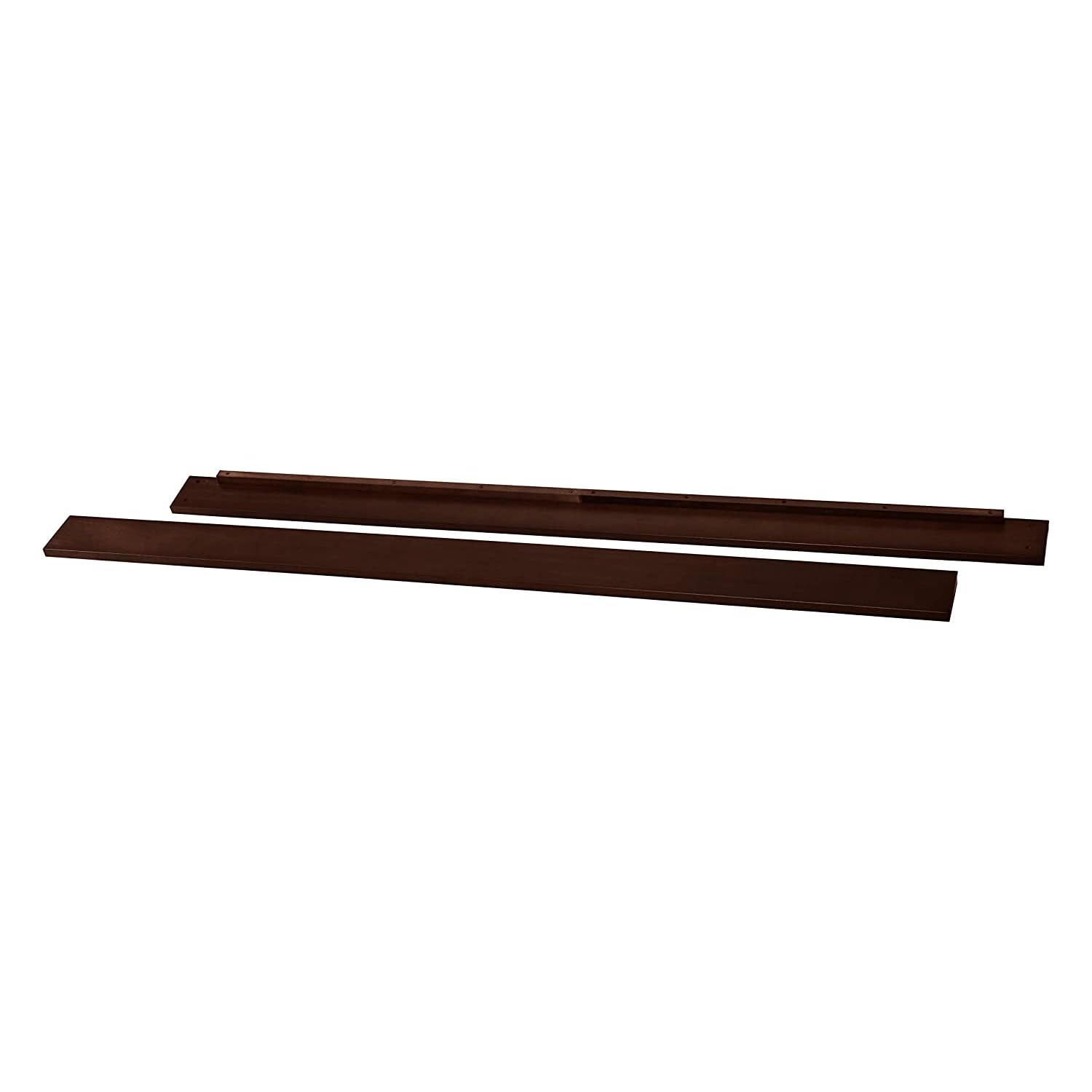

Figure 4: The Dark Java conversion kit bed rails.

Ffigur 5: Example of a DaVinci Autumn crib converted to a full-size bed using the kit.

Ffigur 6: Example of a DaVinci Kalani crib converted to a full-size bed using the kit.

Ffigur 7: Example of a DaVinci Rowan crib converted to a full-size bed using the kit.

Canllawiau Defnydd

Once assembled, the conversion kit allows your DaVinci crib's headboard and footboard to function as a sturdy bed frame for a twin or full-size mattress. Ensure the mattress is properly sized for the converted bed. The bed is designed to support up to 600 pounds, provided adequate mattress slats are used (sold separately).

Gofal a Chynnal a Chadw

• Glanhau: Sychwch arwynebau gyda meddal, damp cloth. Avoid abrasive cleaners or strong chemicals, which can damage the finish.
• Arolygiad: Gwiriwch yr holl folltau a sgriwiau o bryd i'w gilydd i sicrhau eu bod yn dal yn dynn. Ail-dynhau os oes angen.
• Storio: If disassembling for storage, keep all hardware in a sealed bag and store components in a dry, temperate environment.

Datrys problemau

• Rails Not Lining Up: If the bed rails do not align perfectly with the headboard/footboard, double-check that you are using the correct crib model as listed in the compatibility section. Ensure no debris is obstructing the connection points and that all hardware is correctly oriented. Loosen and re-tighten bolts if necessary to adjust alignment.
• Bed Feels Unstable: Verify that all hardware is fully tightened. Ensure that appropriate and sufficient mattress slats are installed and securely attached to the bed rails.

Manylebau Cynnyrch

Gwarant a Chymorth i Gwsmeriaid

This CC KITS conversion kit is backed by a Gwarant Oes, ensuring long-lasting durability and peace of mind. This warranty covers manufacturing defects under normal use.

For warranty claims, missing parts, or any questions regarding your product, please contact CC KITS customer support. Refer to the packaging or the retailer's websafle am y wybodaeth gyswllt ddiweddaraf.
