PATON ProMIG-350-15-4-400V SF (WAM) Welding Machine User Manual

Rhagymadrodd

The PATON ProMIG-350 is an industrial-grade 3-in-1 welding machine designed for professional use. It supports MIG/MAG, MMA, and TIG DC welding processes, offering versatility for various applications. This unit delivers a powerful 350A output at a 70% duty cycle, suitable for continuous welding on thick materials. Key features include a 4-roller wire feeder for stable wire movement, gasless welding capability, pulse mode for enhanced arc control, and adjustable inductance for optimal arc characteristics across different materials such as stainless, acid-resistant, and mild steel.

This manual provides essential information for the safe and effective operation, setup, maintenance, and troubleshooting of your PATON ProMIG-350 welding machine. Please read it thoroughly before using the equipment.

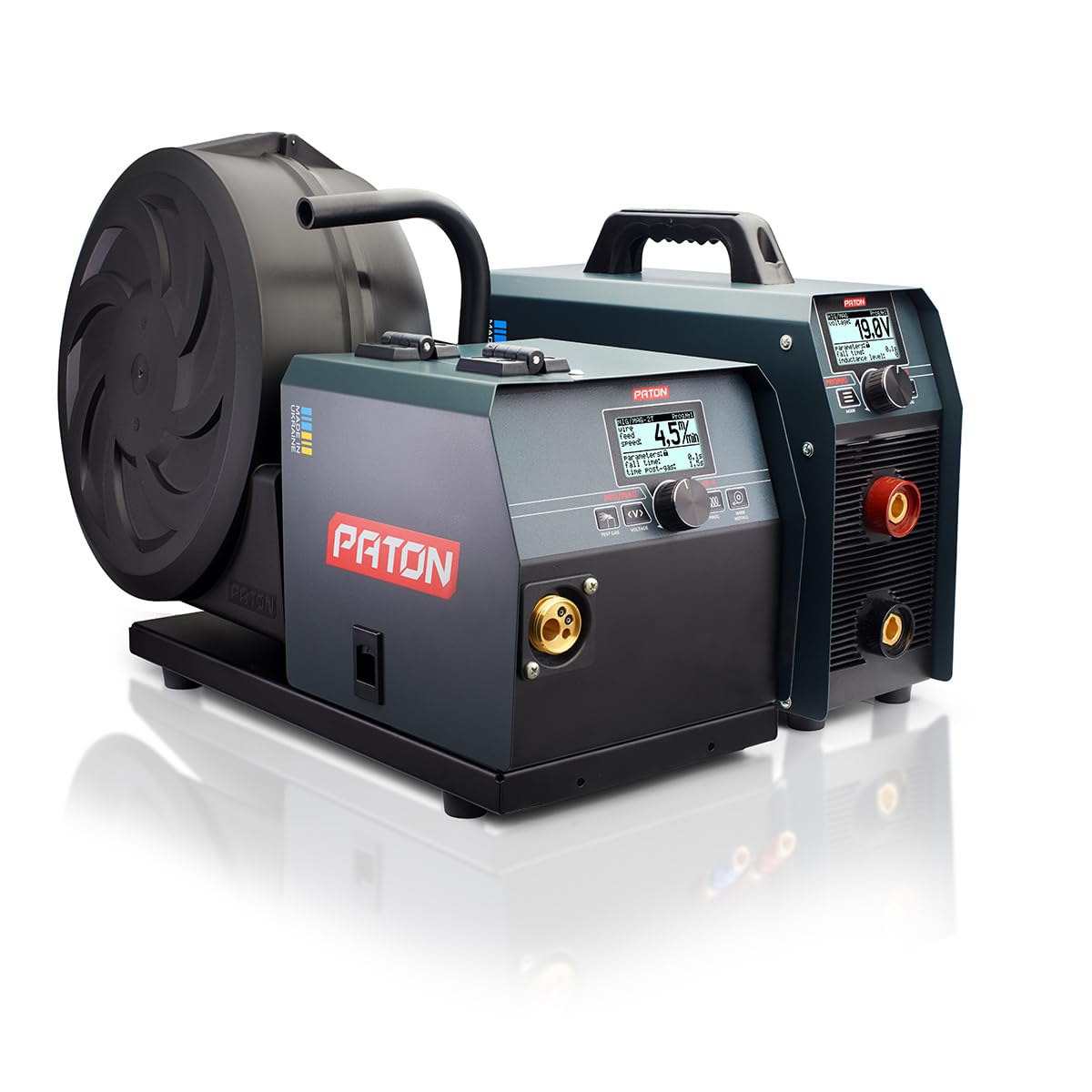

Ffigur 1: Blaen view of the PATON ProMIG-350-15-4-400V SF (WAM) welding machine, showcasing its compact design and control panels.

Gwybodaeth Diogelwch

Always prioritize safety when operating welding equipment. Failure to follow safety guidelines can result in serious injury or damage to equipment. Ensure you wear appropriate personal protective equipment (PPE), including welding helmet, gloves, and protective clothing. Work in a well-ventilated area to avoid inhaling fumes. Disconnect power before performing any maintenance or adjustments.

Cydrannau wedi'u Cynnwys

The PATON ProMIG-350-15-4-400V SF (WAM) welding machine kit typically includes the following items:

• Semi-Automatic Inverter PATON™ ProMIG-350 with 4-roller wire feeder on wheels
• 35 mm² welding cable, 3 meters long, equipped with an ABICOR BINZEL™ earth clamp
• Llawlyfr gweithredu (y ddogfen hon)
• Quick release gas connector
• Roller set for 4 diameters of solid wire and 2 diameters of aluminum wire

Gosod

Proper setup is crucial for safe and efficient operation. Follow these steps to prepare your welding machine:

1. Lleoliad: Position the welding machine on a stable, level surface in a well-ventilated area, away from flammable materials.
2. Cysylltiad Pwer: Connect the machine to a 400V AC power supply. Ensure the power source meets the machine's requirements.
3. Cysylltiad Porthiant Gwifren: Connect the external 4-roller wire feeder unit to the main inverter unit.
4. Tir Clamp Cysylltiad: Atodwch y ddaear clamp yn ddiogel i'r darn gwaith neu'r bwrdd weldio, gan sicrhau cyswllt trydanol da.
5. Gosod Sbŵl Gwifren:
   • Open the wire feeder compartment.
   • Mount the appropriate wire spool (5kg, 15kg, or 18kg) onto the spindle.
   • Thread the welding wire through the feeder rollers and into the torch liner. Ensure the correct roller set is installed for your wire diameter (0.6-1.2 mm).
6. Gas Connection (for MIG/MAG): If using shielding gas, connect the gas hose from your gas cylinder (with regulator) to the quick-release gas connector on the machine. Ensure all connections are tight to prevent leaks. For gasless welding, this step is not required.
7. Cysylltiad y Fflachlamp: Connect your welding torch to the EURO connector on the front panel of the machine.

Ffigur 2: Ongl view of the PATON ProMIG-350-15-4-400V SF (WAM) showing the main inverter and the separate wire feeder unit.

Ffigur 3: Cefn view of the PATON ProMIG-350-15-4-400V SF (WAM) showing power input and gas connections.

Cyfarwyddiadau Gweithredu

The ProMIG-350 offers multiple welding modes. Familiarize yourself with the control panel and settings before beginning any welding task.

Figure 4: Close-up of the control panels on the PATON ProMIG-350-15-4-400V SF (WAM) showing mode selection and parameter adjustment knobs and displays.

Camau Gweithredu Cyffredinol:

1. Pŵer Ymlaen: Turn on the main power switch. The display will illuminate.
2. Dewiswch Modd Weldio: Use the mode selection button or knob to choose between MIG/MAG, MMA (Stick), or TIG DC welding.
3. Addasu Paramedrau:
   • MIG/MAG: Set welding current (Amps), voltage (Volts), and wire feed speed (m/min). Adjust inductance for arc stability and bead shape. Consider using pulse mode for better control on thin materials or specific alloys.
   • MMA: Select electrode type and set welding current (Amps).
   • TIG DC: Set welding current (Amps). If available, adjust pulse frequency and balance for TIG welding.
4. Test Gas (MIG/MAG): If using shielding gas, use the "Test Gas" function to purge the gas line and ensure proper flow.
5. Wire Feed Test (MIG/MAG): Use the "Wire Feed" button to advance the wire through the torch without striking an arc.
6. Dechrau Weldio: Once all parameters are set and safety precautions are observed, you can begin your welding task.

Cyfarwyddiadau Defnyddiol Penodol:

• Gasless Welding: For gasless MIG welding, ensure you are using self-shielded flux-cored wire and select the appropriate polarity on the machine (if adjustable). No shielding gas connection is required.
• Welding Steel: The machine is optimized for welding various types of steel, including mild steel, stainless steel, and acid-resistant steel. Adjust parameters according to the material thickness and type.

Cynnal a chadw

Regular maintenance ensures the longevity and optimal performance of your welding machine. Always disconnect the machine from the power supply before performing any maintenance.

• Glanhau: Periodically clean the exterior of the machine with a dry, soft cloth. Use compressed air to blow out dust and debris from inside the machine, especially from cooling vents, to prevent overheating.
• Porthwr Gwifren: Inspect the wire feeder rollers for wear and cleanliness. Clean any wire residue or dust from the wire guide and liner. Replace worn rollers as needed.
• Fflachlamp a Cheblau: Gwiriwch geblau weldio, ffagl, a chlic daearamp for damage, cuts, or loose connections. Replace any damaged components immediately. Ensure the torch liner is clean and free of obstructions.
• Cysylltiadau Nwy: If using gas, check gas hoses and connections for leaks regularly.

Datrys problemau

If you encounter issues with your PATON ProMIG-350, refer to the following common troubleshooting steps:

• Dim pŵer:
  • Check the main power switch and ensure it is in the "ON" position.
  • Gwiriwch fod y llinyn pŵer wedi'i blygio'n ddiogel i mewn i soced 400V.
  • Check the circuit breaker or fuse for the power supply.
• Dim Arc:
  • Sicrhewch fod y ddaear clamp wedi'i gysylltu'n ddiogel â'r darn gwaith ac mae ganddo gyswllt trydanol da.
  • Gwiriwch yr holl gysylltiadau cebl weldio.
  • Verify the welding mode and parameters are correctly set.
  • For MIG/MAG, ensure wire is feeding correctly and the contact tip is not clogged.
• Ansawdd Weldio Gwael:
  • Adjust welding current, voltage, and wire feed speed according to the material and wire type.
  • For MIG/MAG, check gas flow (if applicable) and ensure the correct shielding gas is used.
  • Ensure the workpiece is clean and free of rust, paint, or contaminants.
  • Check for proper torch angle and travel speed.
• Wire Feeding Issues (MIG/MAG):
  • Check for tangled wire spool.
  • Ensure the wire feeder rollers are clean and correctly tensioned.
  • Inspect the torch liner for blockages or damage.
  • Verify the correct roller set is installed for the wire diameter.

If the problem persists after following these steps, contact PATON customer support for assistance.

Manylebau

The following table outlines the technical specifications for the PATON ProMIG-350-15-4-400V SF (WAM) welding machine:

Gwarant a Chefnogaeth

The PATON ProMIG-350-15-4-400V SF (WAM) welding machine comes with a Gwarant Gwneuthurwr 3 Flwyddyn. Mae'r warant hon yn cwmpasu diffygion mewn deunyddiau a chrefftwaith o dan ddefnydd arferol.

For warranty claims, technical assistance, or any questions regarding the operation or maintenance of your welding machine, please contact PATON customer support. Refer to the contact information provided with your purchase documentation or visit the official PATON websafle am fanylion cymorth.
