Trijicon RM01 RMR 3.25 MOA LED Red Dot Sight Type 1 User Manual

1. Rhagymadrodd

The Trijicon RMR (Ruggedized Miniature Reflex) sight is engineered for extreme durability and performance. Constructed from 7075-T6 aircraft-grade aluminum, its patented housing design is built to withstand significant impacts by diverting stress away from the lens. This versatile red dot sight features an LED illuminated reticle that automatically adjusts to ambient light conditions, ensuring optimal visibility in various environments. It is suitable for a wide range of weapon platforms, including pistols, rifles, shotguns, and carbines, and can also serve as a secondary sight with magnified optics.

Ffigur 1: Blaen view of the Trijicon RM01 RMR 3.25 MOA LED Red Dot Sight, showcasing its robust housing and multi-coated lens.

2. Nodweddion Allweddol

• 3.25 MOA LED Reticle: Automatically adjusts illumination based on ambient light. The CR2032 battery provides approximately 2 years of typical use and up to 5 years in dark storage.
• Patented Housing Shape: Forged 7075-T6 aircraft aluminum-alloy housing designed to absorb and divert impact forces, enhancing durability.
• True-Color Multi-Coated Lens: Ensures wide-band light transmission for minimal color distortion in the target area.
• Adjustable Windage/Elevation: Easy adjustments without specialized tools, with 1 MOA per click.
• Cais Amlbwrpas: Suitable for primary use on rifles, pistols, shotguns, and carbines, or as a secondary optic.

3. Gosod a Gosod

Proper installation is crucial for optimal performance and durability of your Trijicon RMR sight. Always ensure your firearm is unloaded and safe before beginning any installation procedures.

3.1 Mounting the RMR

The Trijicon RMR is designed for versatile mounting on various platforms, including Picatinny rails and pistol slides with appropriate adapter plates (sold separately). Refer to your firearm's manual and the specific mount's instructions for detailed installation steps.

1. Sicrhewch fod yr arwyneb mowntio yn lân ac yn rhydd o falurion.
2. Place the RMR sight onto the chosen mount or slide adapter.
3. Secure the RMR using the provided screws. Apply a small amount of blue Loctite (threadlocker) to the screw threads to prevent loosening from recoil.
4. Tighten screws to the manufacturer's specified torque settings. Overtightening can damage the sight or mount.

Ffigur 2: Uchaf view of the Trijicon RM01 RMR, illustrating the mounting holes for secure attachment to various platforms.

3.2 Gosod Batri

The Trijicon RM01 uses a CR2032 battery. The battery compartment is located on the underside of the sight. To install or replace the battery, the sight must be removed from its mount.

1. Carefully remove the RMR from its mounting platform.
2. Locate the battery compartment cover on the bottom of the sight.
3. Remove the cover and insert a new CR2032 battery with the positive (+) side facing up.
4. Replace the battery cover and re-mount the sight, ensuring proper torque.

4. Cyfarwyddiadau Gweithredu

4.1 Red Dot Illumination

The 3.25 MOA LED reticle automatically adjusts its brightness based on the ambient light conditions. There are no manual brightness controls on this model. This ensures the dot is always visible and appropriately bright for the environment.

Ffigur 3: View through the Trijicon RM01 RMR, showing the 3.25 MOA red dot reticle.

4.2 Zeroing the Sight

Zeroing your RMR sight is essential for accurate shooting. This process involves adjusting the windage and elevation to align the point of aim with the point of impact at a specific distance.

1. Mount the RMR securely to your firearm.
2. Set up a target at your desired zeroing distance (e.g., 25 yards, 50 yards).
3. Fire a group of shots (e.g., 3-5 rounds) to determine the point of impact relative to your point of aim.
4. Use a small flat-head screwdriver to adjust the windage (R for Right, L for Left) and elevation (UP for Up, DN for Down) screws. Each click typically represents 1 MOA (Minute of Angle) of adjustment.
5. Adjust the sight in the direction you want the bullet impact to move. For example, if shots are hitting low and left, adjust elevation UP and windage R.
6. Repeat firing groups and adjusting until your point of aim matches your point of impact.

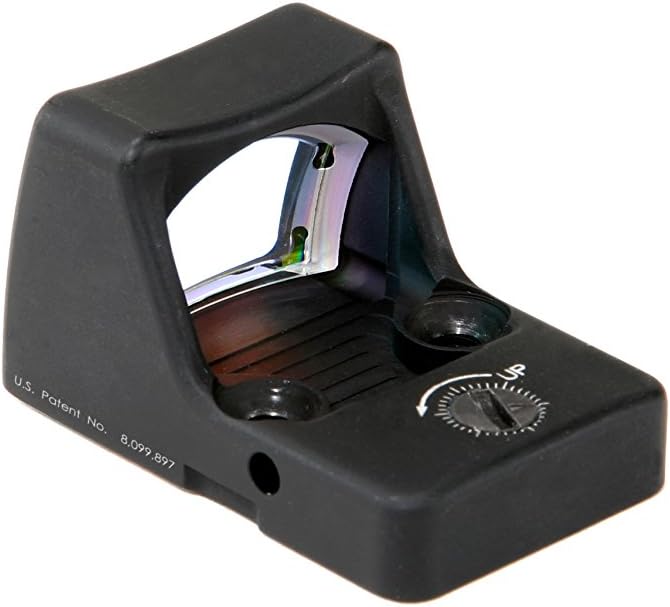

Ffigur 4: Cefn view of the Trijicon RM01 RMR, highlighting the windage and elevation adjustment screws.

Ffigur 5: Ochr view of the Trijicon RM01 RMR, displaying the U.S. Patent No. 8,099,897.

5. Cynnal a Chadw a Gofal

Regular maintenance will ensure the longevity and reliable performance of your Trijicon RMR sight.

• Glanhau: Use a soft, clean cloth to wipe the exterior of the sight. For the lens, use a lens cleaning solution and a microfiber cloth specifically designed for optics. Avoid abrasive materials or harsh chemicals.
• Amnewid Batri: Replace the CR2032 battery as needed. While the battery life is extensive, it's recommended to replace it annually or before critical use to prevent unexpected power loss.
• Arolygiad: Periodically check all screws for tightness, especially after heavy use or significant recoil. Re-torque if necessary. Inspect the housing for any signs of damage.
• Storio: Store the RMR in a cool, dry place when not in use. For extended storage, removing the battery can help preserve its life.

6. Datrys Problemau

7. manylebau

• Model: RM01
• Reticle: 3.25 MOA LED Red Dot
• Chwyddiad: 1x
• Addasiad: 1 MOA fesul clic
• Deunydd Tai: 7075-T6 Aircraft Aluminum
• Pwysau: 3.2 owns
• Batri: CR2032 (Lithium)
• Dimensiynau (LxWxH): Approximately 5.5 x 5 x 4 inches (Item Package Dimensions)
• Dyfeisiau Cydnaws: Gwn llaw, dryll, reiffl
• Math Mowntio: Picatinny Mount (requires specific mount/adapter)

8. Fideo Cynnyrch Swyddogol

Watch the official Trijicon RMR product video for an overview of its features and applications.

9. Gwarant a Chefnogaeth

For warranty information and customer support, please refer to the official Trijicon website or contact their customer service directly. The product is backed by Trijicon's commitment to quality and durability.

Gwneuthurwr: Trijicon

Disgrifiad o'r warant: See Manufacturer

Am gymorth pellach, ewch i'r Trijicon Store on Amazon.
