1. Gwybodaeth Bwysig am Ddiogelwch
Please read this manual carefully before operating your ZAFRO Portable Air Conditioner. Keep this manual for future reference.
- Cysylltwch yr uned â soced pŵer wedi'i seilio bob amser.
- Peidiwch â gweithredu'r uned gyda chortyn neu blwg wedi'i ddifrodi.
- Peidiwch â rhwystro mewnfeydd na hallfeydd aer. Cadwch o leiaf 12 modfedd (30 cm) o le o amgylch yr uned.
- Peidiwch â gosod bysedd neu wrthrychau yn yr allfa awyr.
- Gwnewch yn siŵr bod yr uned wedi'i gosod ar arwyneb gwastad, sefydlog i atal tipio.
- Datgysylltwch y plwg o'r uned cyn glanhau neu wneud unrhyw waith cynnal a chadw.
- Mae'r offer hwn yn defnyddio oergell R32. Dim ond personél cymwys ddylai wneud y gwaith cynnal a chadw.
2. Cynnyrch Drosview
The ZAFRO Portable Air Conditioner is designed to provide efficient cooling, dehumidification, and air circulation for your living spaces. It features a compact design, quiet operation, and smart control options.
Figure 2.1: ZAFRO Portable Air Conditioner unit, remote control, and mobile app interface.
Nodweddion Allweddol:
- Gweithrediad Sibrwd-Distaw: Operates at noise levels as low as 44dB, ideal for bedrooms and offices.
- Eco-Friendly Cooling: Utilizes energy-efficient R32 refrigerant, which is ozone-safe and environmentally friendly.
- Smart WiFi & App Control: Control settings, schedules, and temperatures remotely via the ZAFRO mobile app.
- Easy-Clean Filter + Clog Detection: Features a removable, washable filter with smart alerts for cleaning.
- Self-Draining Technology: Advanced splashing technology distributes condensate on the condenser, reducing the need for manual drainage.
- Ymarferoldeb 4-mewn-1: Offers Cooling, Fan, Dehumidifier, and Sleep modes for versatile use.

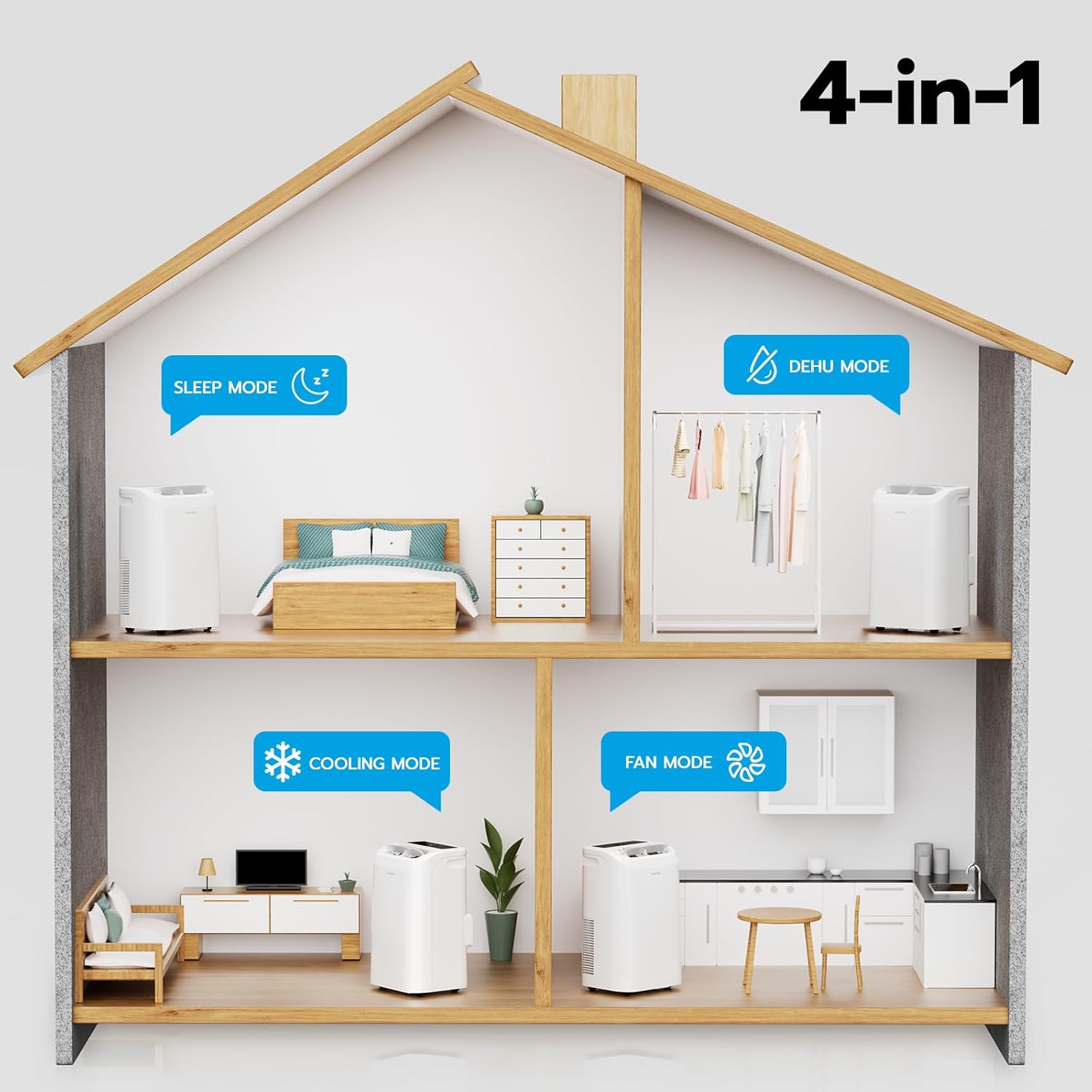

Figure 2.2: The 4-in-1 operational modes of the ZAFRO Portable Air Conditioner.
The unit provides 12,000 BTU (ASHRAE 128) / 8,000 BTU (SACC) cooling capacity with an airflow of 235 CFM, capable of cooling rooms within a temperature range of 61-86°F.
3. Gosod a Gosod
The ZAFRO Portable Air Conditioner comes with a complete window kit for easy installation in most standard windows.
Cydrannau wedi'u Cynnwys:
- Uned Aerdymheru Cludadwy
- Hose gwacáu
- Window Seal Plate Kit (various panels)
- Addasydd Pibell
- Rheolaeth Anghysbell
- Drain Hose (for continuous drainage in dehumidifier mode, if needed)
Figure 3.1: Window Kit components and panel selection guide.
Camau Gosod:
- Lleoli'r Uned: Rhowch y cyflyrydd aer ar arwyneb gwastad, sefydlog ger ffenestr a soced drydan wedi'i seilio. Gwnewch yn siŵr bod o leiaf 12 modfedd (30 cm) o le o amgylch yr uned ar gyfer llif aer priodol.
- Assemble the Exhaust Hose: Attach the hose adapter to one end of the exhaust hose and the window kit adapter to the other end.
- Install the Window Seal Plate Kit:
- Open the window and adjust the window seal plate panels (A, B, C, D) to fit the window opening. Secure them in place.
- Insert the window kit adapter of the exhaust hose into the opening of the window seal plate.
- Connect the Exhaust Hose: Connect the exhaust hose to the exhaust port on the back of the air conditioner unit. Ensure a secure fit to prevent air leakage.
- Cysylltiad Pwer: Plygiwch y llinyn pŵer i mewn i soced drydanol 115V/60Hz wedi'i seilio.
4. Cyfarwyddiadau Gweithredu
Your ZAFRO Portable Air Conditioner can be controlled via the digital control panel, the included remote control, or the ZAFRO mobile app.
Figure 4.1: Control options: Mobile App, Digital Panel, and Remote Control.
Swyddogaethau Panel Rheoli a Rheoli o Bell:
- Botwm Pŵer: Yn troi'r uned ON / OFF.
- Botwm Modd: Cycles through Cooling, Fan, Dehumidifier, and Sleep modes.
- Botymau Tymheredd i Fyny/Gostwng: Yn addasu'r tymheredd a ddymunir yn y modd Oeri.
- Botwm Cyflymder Fan: Selects fan speed (Low, Mid, High, Auto).
- Botwm Amserydd: Yn gosod yr amserydd YMLAEN/DIFFODD 24 awr.
- Botwm Modd Cwsg: Activates or deactivates Sleep mode for quiet, energy-efficient operation during sleep.
- Clo Plant: (If available on model) Locks the control panel to prevent accidental changes.
ZAFRO Mobile App Control:
Download the ZAFRO app from your smartphone's app store. Follow the in-app instructions to connect your portable air conditioner to your home WiFi network. The app allows you to:
- Turn the unit ON/OFF remotely.
- Newid dulliau gweithredu a chyflymderau'r ffan.
- Set and adjust the 24-hour timer.
- Monitor room temperature and humidity.
- Receive filter cleaning reminders.
Dulliau Gweithredu:
- Modd Oeri: Yn darparu oeri pwerus. Gosodwch eich tymheredd dymunol rhwng 61°F a 86°F.
- Modd Fan: Circulates air without cooling. Choose from Low, Mid, High, or Auto fan speeds.
- Modd dadleithydd: Removes excess moisture from the air. The adjustable humidity setting range is 30-70%. The self-draining technology minimizes the need for manual water disposal.
- Modd Cwsg: Optimizes cooling and fan speed for quiet operation during sleep, gradually increasing the temperature slightly to save energy and ensure comfort.
5. cynnal
Mae cynnal a chadw rheolaidd yn sicrhau perfformiad gorau posibl ac yn ymestyn oes eich cyflyrydd aer.
Glanhau hidlydd aer:
The unit features an easy-to-remove and washable air filter. A smart alert will notify you when it's time to clean the filter (typically after 600 hours of use).
- Datgysylltwch y cyflyrydd aer o'r soced pŵer.
- Lleolwch a thynnwch yr hidlydd aer o gefn neu ochr yr uned.
- Golchwch yr hidlydd o dan ddŵr rhedegog gyda glanedydd ysgafn.
- Gadewch i'r hidlydd sychu'n llwyr yn yr awyr cyn ei ail-osod yn yr uned.
- Plygiwch yr uned yn ôl i mewn.
Glanhau Uned:
- Sychwch y tu allan i'r uned gyda meddal, damp brethyn. Peidiwch â defnyddio cemegau llym na glanhawyr sgraffiniol.
- Gwnewch yn siŵr bod yr uned yn hollol sych cyn ei phlygio yn ôl i mewn.
Storio:
If storing the unit for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging.
6. Datrys Problemau
Cyn cysylltu â chymorth cwsmeriaid, cyfeiriwch at y problemau a'r atebion cyffredin canlynol:
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Nid yw'r uned yn troi ymlaen. | Dim pŵer, torrwr cylched wedi baglu, llinyn pŵer heb ei blygio i mewn yn llawn. | Check power outlet, reset circuit breaker, ensure power cord is securely plugged in. |
| Nid yw'r uned yn oeri'n effeithiol. | Dirty air filter, blocked air intake/outlet, room too large, windows/doors open, exhaust hose not properly installed. | Clean air filter, ensure clear airflow, check room size suitability, close windows/doors, verify exhaust hose installation. |
| Mae'r uned yn swnllyd. | Unit not on a flat surface, fan speed too high, internal component issue. | Ensure unit is on a flat surface, try a lower fan speed. If noise persists, contact support. |
| Gollyngiad dŵr. | Drain plug not secured, unit not level, continuous drainage hose (if used) is blocked. | Check drain plug, ensure unit is level, clear any blockages in the drain hose. |
7. manylebau
| Nodwedd | Manylyn |
|---|---|
| Enw Brand | ZARO |
| Gwybodaeth Model | A9046D-8K |
| Rhif Model yr Eitem | A9046D-8KNEW |
| Cooling Power (ASHRAE 128) | 12,000 BTU |
| Pŵer Oeri (SACC) | 8,000 BTU |
| Pwysau Eitem | 69.1 pwys |
| Dimensiynau Cynnyrch | 14.09"D x 16.5"W x 27.07"H |
| Lefel Sŵn | 44 dB |
| Cyftage | 115 folt |
| Wattage | 1500 wat |
| Oergell | R-32 |
| Math Gosod | Window (with included kit) |
| Nodweddion Arbennig | Dehumidifier, Fast Cooling, Sleep Mode, WiFi Enabled |
| Lliw | Gwyn |
8. Gwarant a Chefnogaeth
ZAFRO stands behind the quality of its products. This product comes with a limited manufacturer's warranty. Please refer to the official ZAFRO websafle neu'ch dogfennaeth prynu am delerau ac amodau gwarant penodol.
For customer support, technical assistance, or warranty claims, please contact ZAFRO customer service through the contact information provided on the official ZAFRO website or your retailer's support channels. You may also refer to the ZAFRO Store on Amazon am adnoddau ychwanegol.
Mae'r cynnyrch hwn yn gymwys ar gyfer ffurflenni dychwelyd hawdd o fewn 30 diwrnod drwy'r manwerthwr.
