VHBW 42V Electric Scooter Charger User Manual

1. Rhagymadrodd

Thank you for choosing the VHBW 42V Electric Scooter Charger. This manual provides essential information for the safe and efficient use of your charger. Please read it thoroughly before operation and retain it for future reference.

2. Gwybodaeth Diogelwch

Er mwyn sicrhau gweithrediad diogel ac atal difrod, dilynwch y canllawiau diogelwch canlynol:

• Use the charger only for its intended purpose: charging compatible Volpam electric scooter lithium batteries.
• Do not expose the charger to water, moisture, or extreme temperatures. Use indoors only.
• Sicrhau bod y mewnbwn cyftage (240V AC) matches your power supply.
• Avoid dropping or physically damaging the charger. If damaged, discontinue use immediately.
• Cadwch allan o gyrraedd plant ac anifeiliaid anwes.
• Datgysylltwch y gwefrydd o'r soced pŵer pan nad yw'n cael ei ddefnyddio neu yn ystod stormydd trydanol.
• Do not attempt to disassemble or modify the charger. This will void the warranty and may cause hazards.

3. Cynnwys Pecyn

Gwiriwch fod yr holl eitemau yn bresennol yn eich pecyn:

• 1 x VHBW 42V Electric Scooter Charger (Model: CT-1250)

4. Nodweddion Cynnyrch

The VHBW 42V Electric Scooter Charger offers the following key features:

• Cydnawsedd: Specifically designed for Volpam electric scooter models SP06, SPT7, SP03, and SP06 GS.
• Dangosydd Codi Tâl LED: A built-in LED displays red during charging and turns green when the battery is fully charged.
• Fast 42V Charging: Delivers a stable 42V output, optimized for quick and safe charging of lithium batteries.
• Smart Safety Protections: Incorporates overvoltage, short-circuit, and overcurrent protection to safeguard your battery and scooter.
• Dyluniad Symudol: Compact and lightweight for convenient transport and storage, suitable for home, office, or travel.

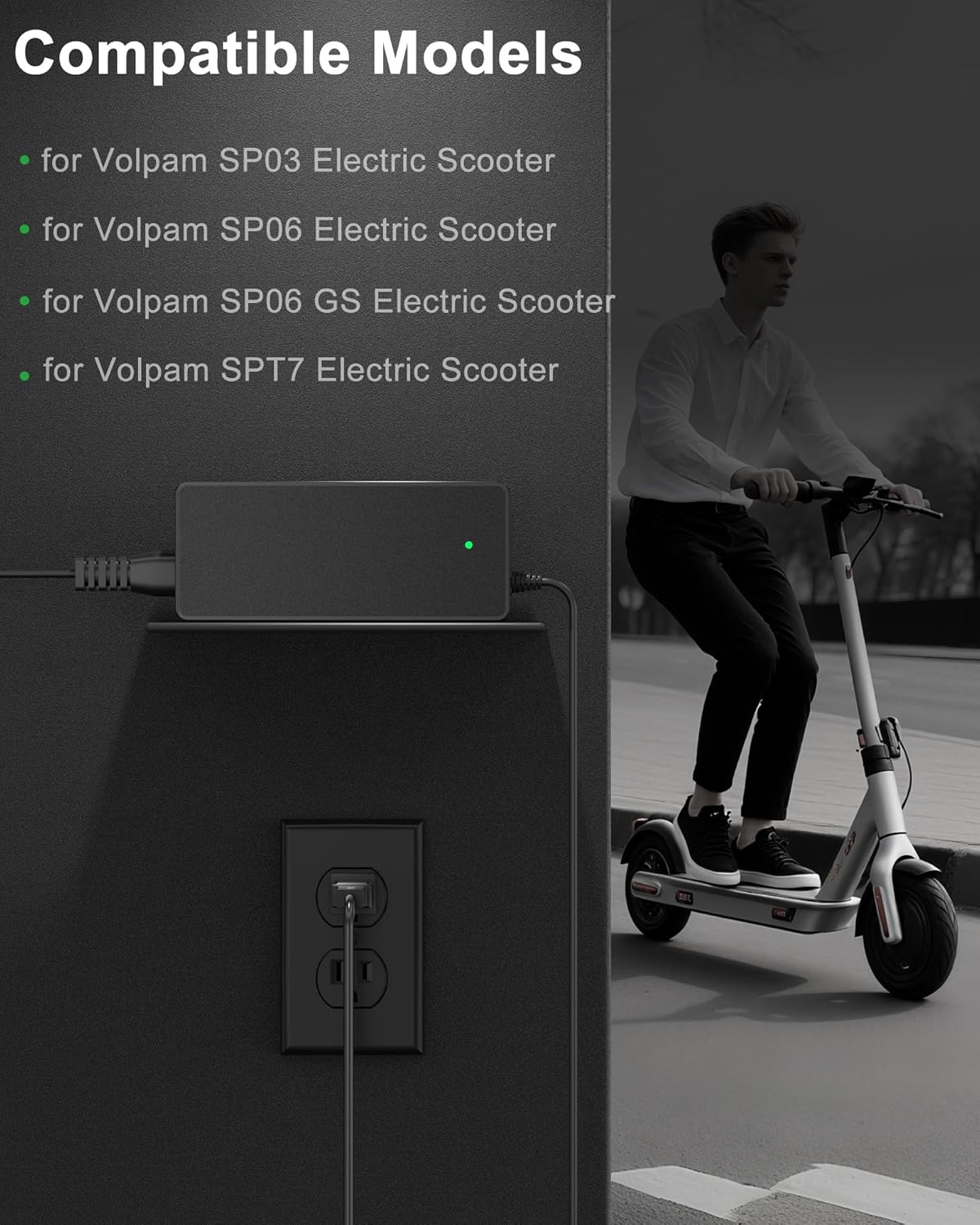

5. Cydweddoldeb

This charger is compatible with the following Volpam electric scooter models:

• Volpam SP03 Electric Scooter
• Volpam SP06 Electric Scooter
• Volpam SP06 GS Electric Scooter
• Volpam SPT7 Electric Scooter

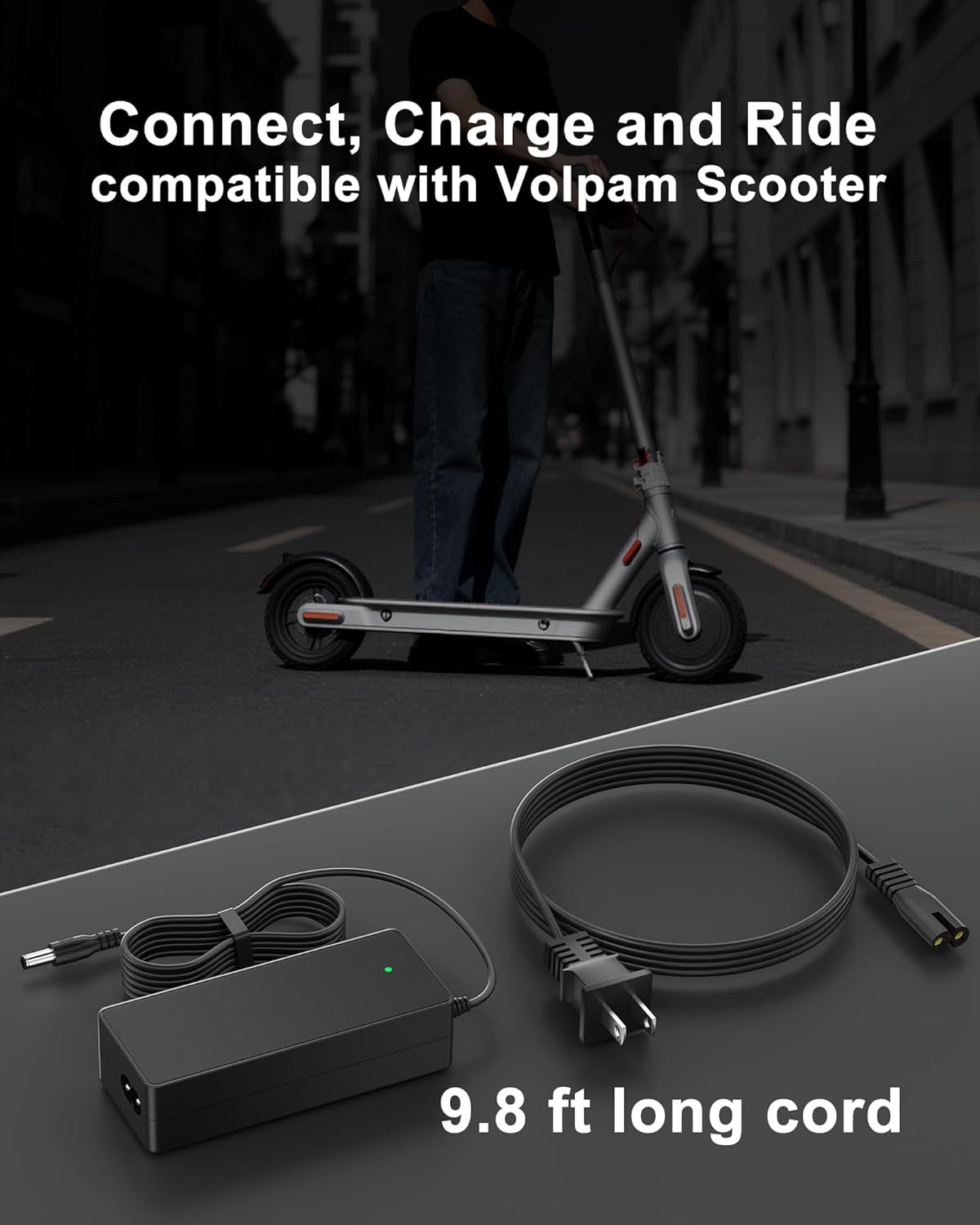

6. Setup and Operating Instructions: Charging Your Scooter

Follow these steps to charge your Volpam electric scooter:

1. Cysylltu â Power: Plug the AC power cord into the charger unit, then plug the other end into a standard wall outlet (240V AC).
2. Connect to Scooter: Locate the charging port on your Volpam electric scooter. Carefully insert the round DC output connector of the charger into the scooter's charging port.
3. Monitro Tâl: The LED indicator on the charger will illuminate red, signifying that charging is in progress.
4. Codi tâl wedi'i gwblhau: Once the scooter's battery is fully charged, the LED indicator will turn green.
5. Datgysylltu: First, unplug the DC connector from the scooter's charging port. Then, unplug the AC power cord from the wall outlet.

7. Canllaw Dangosydd LED

The LED indicator on the charger provides visual feedback on the charging status:

• Golau Coch: Indicates that the scooter's battery is currently charging.
• Golau Gwyrdd: Indicates that the scooter's battery is fully charged and ready for use.

8. cynnal

Proper maintenance ensures the longevity and performance of your charger:

• Glanhau: Use a dry, soft cloth to clean the charger. Do not use liquid cleaners or solvents.
• Storio: Storiwch y charger mewn lle oer, sych i ffwrdd o olau haul uniongyrchol a thymheredd eithafol.
• Gofal Cebl: Avoid bending or crimping the cables excessively. Store cables neatly to prevent damage.

9. Datrys Problemau

If you encounter issues with your charger, refer to the table below:

10. manylebau

11. Gwarant a Chefnogaeth

VHBW products are designed for reliability and performance. For warranty information or technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your purchase receipt as proof of purchase.
