VEVOR 48V 105Ah Golf Cart Lithium Battery User Manual

1. Rhagymadrodd

Thank you for choosing the VEVOR 48V 105Ah Golf Cart Lithium Battery. This LiFePO4 battery is designed to provide exceptional power and longevity for your golf cart, offering a superior alternative to traditional lead-acid batteries. This manual provides essential information for the safe installation, operation, and maintenance of your new battery to ensure optimal performance and extended lifespan.

2. Gwybodaeth Diogelwch

Please read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in serious injury, property damage, or voiding of the warranty.

• Diogelwch Trydanol: Always disconnect the golf cart's main power before working on the battery system. Use insulated tools.
• Trin: The battery is heavy (approximately 105.6 lbs / 47.9 kg). Use appropriate lifting techniques or assistance to prevent injury.
• Awyru: Sicrhewch awyru digonol yn ystod gwefru a gweithredu.
• Codi tâl: Only use the provided 58.4VDC 20A charger. Do not use chargers designed for lead-acid batteries.
• Tymheredd: Operate and store the battery within the recommended temperature ranges. Avoid extreme heat or cold. Charging cut-off is below 23°F (-5°C), recovery of charging is above 32°F (0°C), and discharge cut-off is below -4°F (-20°C).
• Cylchedau Byr: Prevent short circuits by ensuring terminals are properly covered and connections are secure.
• Gwaredu: Gwaredu'r batri yn unol â rheoliadau lleol. Peidiwch â'i losgi.

3. Cynnyrch Drosview & Cydrannau

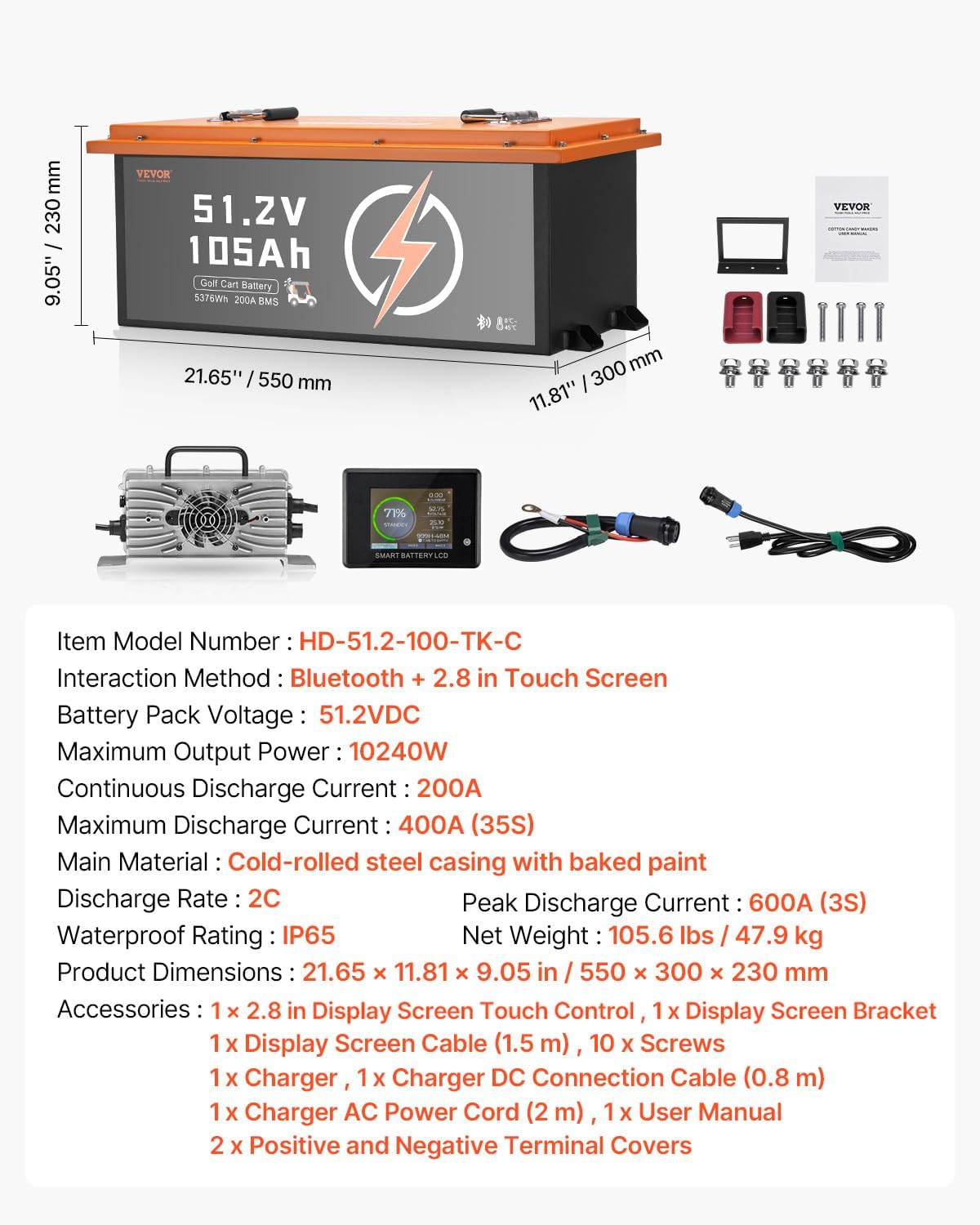

The VEVOR 48V 105Ah Golf Cart Lithium Battery system includes the following components:

The complete VEVOR 48V 105Ah Golf Cart Lithium Battery system, including the battery unit, charger, 2.8-inch touchscreen display, and connection accessories.

Manwl view of the battery unit and its accompanying accessories, including the display, charger, and various cables and covers.

Beth sydd yn y blwch:

• 1 x Golf Cart Battery (51.2VDC 105Ah LiFePO4)
• 1 x 2.8 in Display Screen Touch Control
• 1 x Display Screen Bracket
• 1 x Display Screen Cable (1.5 m)
• 10 x Sgriwiau
• 1 x Charger (58.4VDC 20A)
• 1 x Charger DC Connection Cable (0.8 m)
• 1 x Charger AC Power Cord (2 m)
• 1 x Llawlyfr Defnyddiwr
• 2 x Positive and Negative Terminal Covers

4. Gosod

The VEVOR LiFePO4 battery is designed for easy installation as a direct replacement for lead-acid batteries in 48V golf carts. Its compact and integrated design saves space and simplifies wiring.

The battery's dimensions are 21.65 x 11.81 x 9.05 inches (550 x 300 x 230 mm), and it weighs 105.6 lbs (47.9 kg), making it significantly lighter than typical lead-acid setups.

The integrated design of the VEVOR lithium battery offers a space-saving solution and simpler wiring compared to multiple series-connected lead-acid batteries.

Camau Gosod Cyffredinol:

1. Paratoi: Ensure the golf cart is turned off and the main power is disconnected. Wear appropriate safety gear.
2. Dileu Hen Batris: Carefully remove existing lead-acid batteries. Note the wiring configuration before removal.
3. Gosod Batri Newydd: Place the VEVOR lithium battery in the battery compartment. Secure it to prevent movement during operation.
4. Gwifrau: Connect the battery terminals to the golf cart's electrical system. Ensure correct polarity (positive to positive, negative to negative). The aviation-grade connector simplifies charger wiring.
5. Gosodiad Arddangos: Install the 2.8-inch touchscreen display in a convenient location on your golf cart's dashboard using the provided bracket and screws. Connect the display cable to the battery.
6. OBC Bypass (for Club Car models): For Club Car golf carts, it is essential to disable and bypass the On-Board Computer (OBC) system. Consult specific guides or videos for your Club Car model on how to perform an OBC bypass to ensure proper battery function and accurate capacity readings.
7. Gwiriad Terfynol: Double-check all connections for tightness and correct polarity before reconnecting the main power.

5. Gweithrediad

Nodweddion Perfformiad:

The VEVOR 48V 105Ah LiFePO4 battery is engineered for high performance, providing consistent power throughout its discharge cycle.

Enjoy an estimated 50-mile range on a single charge, thanks to the 105Ah large capacity and EV-grade LiFePO4 cells.

The battery features a 2C discharge rate, with continuous discharge at 200A, maximum discharge at 400A (35 seconds), and peak discharge at 600A (3 seconds), enabling easy hill climbing and enhanced performance.

Monitro batri:

Monitor your battery's status in real-time using the integrated 2.8-inch touchscreen display or the dedicated mobile application via Bluetooth.

The 2.8-inch touchscreen and mobile app provide instant access to battery information, including charge/discharge status, voltage, current, and remaining capacity.

The display offers multiple pages of data, allowing comprehensive real-time monitoring of battery parameters.

Codi tâl:

Use the included 58.4VDC 20A charger for efficient and safe charging.

The battery can be fully charged in approximately 5 hours using the provided 58.4VDC 20A charger.

The aviation-grade connector ensures flexible and easy connection for charging.

Gweithdrefn Codi Tâl:

1. Connect the charger's DC output cable to the battery's charging port.
2. Plug the charger's AC power cord into a suitable power outlet.
3. The charger will indicate charging status. Once fully charged, disconnect the charger.

6. Cynnal a Chadw a Gofal

The VEVOR LiFePO4 battery is designed for minimal maintenance and a long lifespan of over 4000 cycles.

• Glanhau: Keep the battery and terminals clean and free of dirt or corrosion. Use a dry cloth for cleaning.
• Cysylltiadau: Periodically check all electrical connections to ensure they are tight and secure.
• Storio: If storing the battery for an extended period, ensure it is charged to approximately 50-80% capacity and stored in a cool, dry place within the recommended temperature range.
• Rheoli Tymheredd: The battery features a metal casing for efficient heat dissipation, contributing to its durability. It is designed to handle various temperatures, with specific cut-off and recovery points for charging and discharging to protect the battery.

The robust metal casing enhances durability and improves heat dissipation for prolonged battery life.

The battery is designed to operate across a range of temperatures, with built-in protections for extreme cold: charging cuts off below 23°F (-5°C), charging recovers above 32°F (0°C), and discharging cuts off below -4°F (-20°C).

7. Datrys Problemau

This section addresses common issues you might encounter with your VEVOR golf cart battery.

Os byddwch chi'n dod ar draws problemau nad ydynt wedi'u rhestru yma neu os nad yw'r atebion a awgrymir yn datrys y broblem, cysylltwch â chymorth cwsmeriaid VEVOR.

8. manylebau

Mae cynhwysfawr drosoddview of the battery's technical specifications and included accessories.

9. Gwarant a Chefnogaeth

The VEVOR 48V 105Ah Golf Cart Lithium Battery typically comes with a 12-month warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical assistance, troubleshooting, or warranty inquiries, please contact VEVOR customer support through their official channels. Refer to the contact information provided with your product packaging or on the VEVOR official websafle.
