Rhagymadrodd
Thank you for choosing the HOMCOM Portable Air Conditioner. This 3-in-1 unit provides efficient cooling, dehumidification, and fan functions to enhance your indoor comfort. Designed for ease of use and portability, this manual will guide you through the setup, operation, and maintenance to ensure optimal performance and longevity of your appliance.
Figure 1: HOMCOM Portable Air Conditioner and included accessories.
Gwybodaeth Diogelwch
Darllenwch yr holl rybuddion a chyfarwyddiadau diogelwch yn ofalus cyn defnyddio'r offer hwn er mwyn atal anaf neu ddifrod. Cadwch y llawlyfr hwn i gyfeirio ato yn y dyfodol.
- Sicrhewch fod y cyflenwad pŵer yn cyfateb i'r cyftagfel y nodir ar label graddio'r uned.
- Peidiwch â gweithredu'r uned gyda chortyn neu blwg wedi'i ddifrodi.
- Datgysylltwch yr uned bob amser cyn glanhau neu wneud unrhyw waith cynnal a chadw.
- Peidiwch â rhwystro mewnfeydd na hallfeydd aer. Cadwch ddigon o le o amgylch yr uned ar gyfer llif aer priodol.
- Keep the unit upright during transport and operation. If laid down, allow it to stand upright for at least 24 hours before use.
- Nid yw'r teclyn hwn wedi'i fwriadu i'w ddefnyddio gan bersonau (gan gynnwys plant) sydd â galluoedd corfforol, synhwyraidd neu feddyliol llai, neu ddiffyg profiad a gwybodaeth, oni bai eu bod wedi cael goruchwyliaeth neu gyfarwyddyd ynghylch defnyddio'r offer gan berson sy'n gyfrifol am eu diogelwch.
Cynnyrch Drosview
Cydrannau
The HOMCOM Portable Air Conditioner comes with the following main components:
- Portable AC Unit
- Hose gwacáu
- Window Slider Kit (adjustable for various window sizes)
- Rheolydd o Bell (angen 2 fatri AAA, heb eu cynnwys)
- Pibell Draenio
Nodweddion Allweddol
- Powerful 14,000 BTU Cooling: Efficiently cools spaces up to 700 sq. ft. with auto-swing air blades for even distribution.
- Three-in-One Versatility: Offers Cooling (59-88 °F), Dehumidifying (75 pint/day), and Fan functions with three adjustable speeds.
- Smart Performance: Features a 24-hour timer for automatic on/off scheduling, Sleep mode for quiet operation (51 dB), and Auto mode for energy savings.
- Rheolaethau sy'n Gyfeillgar i Ddefnyddwyr: Equipped with a dual LED display, touch control panel, and a remote control. Includes a child lock function.
- Hawdd i'w Symud: Designed with wheels, a handle, and a cable organizer for convenient relocation and storage.
- Cynnal a Chadw Hawdd: Removable and washable filter for efficient cleaning.

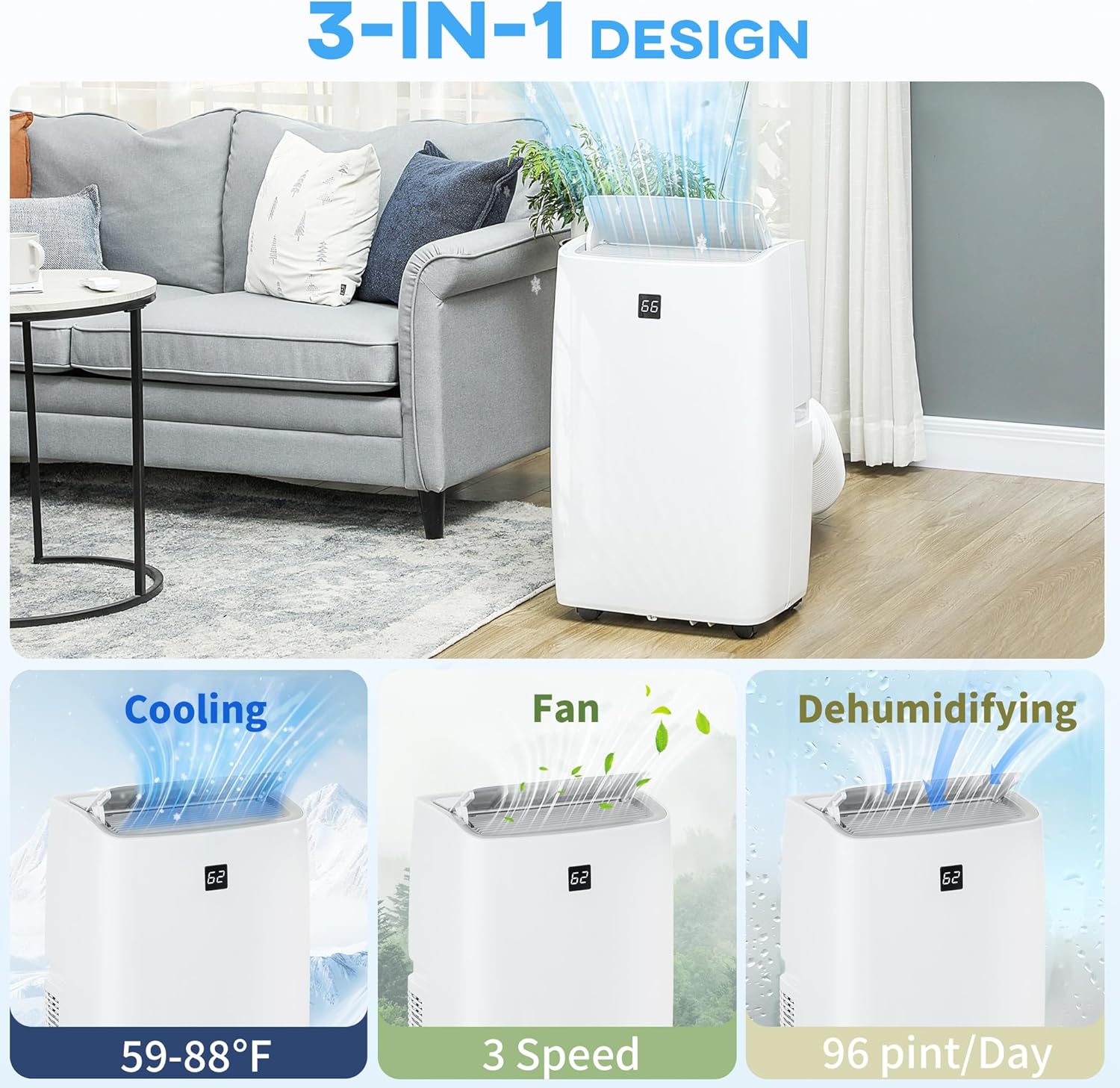

Figure 2: The unit's 3-in-1 functionality: Cooling, Fan, and Dehumidifying.
Figure 3: Recommended room area coverage for the 14000 BTU model (485-700 sq. ft.).
Manylebau
| Priodoledd | Gwerth |
|---|---|
| Enw Brand | HOMCOM |
| Rhif Model | 823-069V81WT |
| Pŵer Oeri | 14000 Uned Thermol Prydain (BTU) |
| Maes Cwmpas | Up to 700 Sq. ft. |
| Cynhwysedd dadleithydd | 75 pint/day |
| Lefel Sŵn | 51 dB (Modd Cysgu) |
| Dimensiynau Cynnyrch | 13.2"D x 16.1"W x 31.5"H |
| Pwysau Eitem | 64 pwys |
| Cyftage | 115 folt |
| Wattage | 1495 wat |
| Math o Ddeunydd | Plastig ABS |
| Cydrannau wedi'u Cynnwys | Remote, Window Kit |

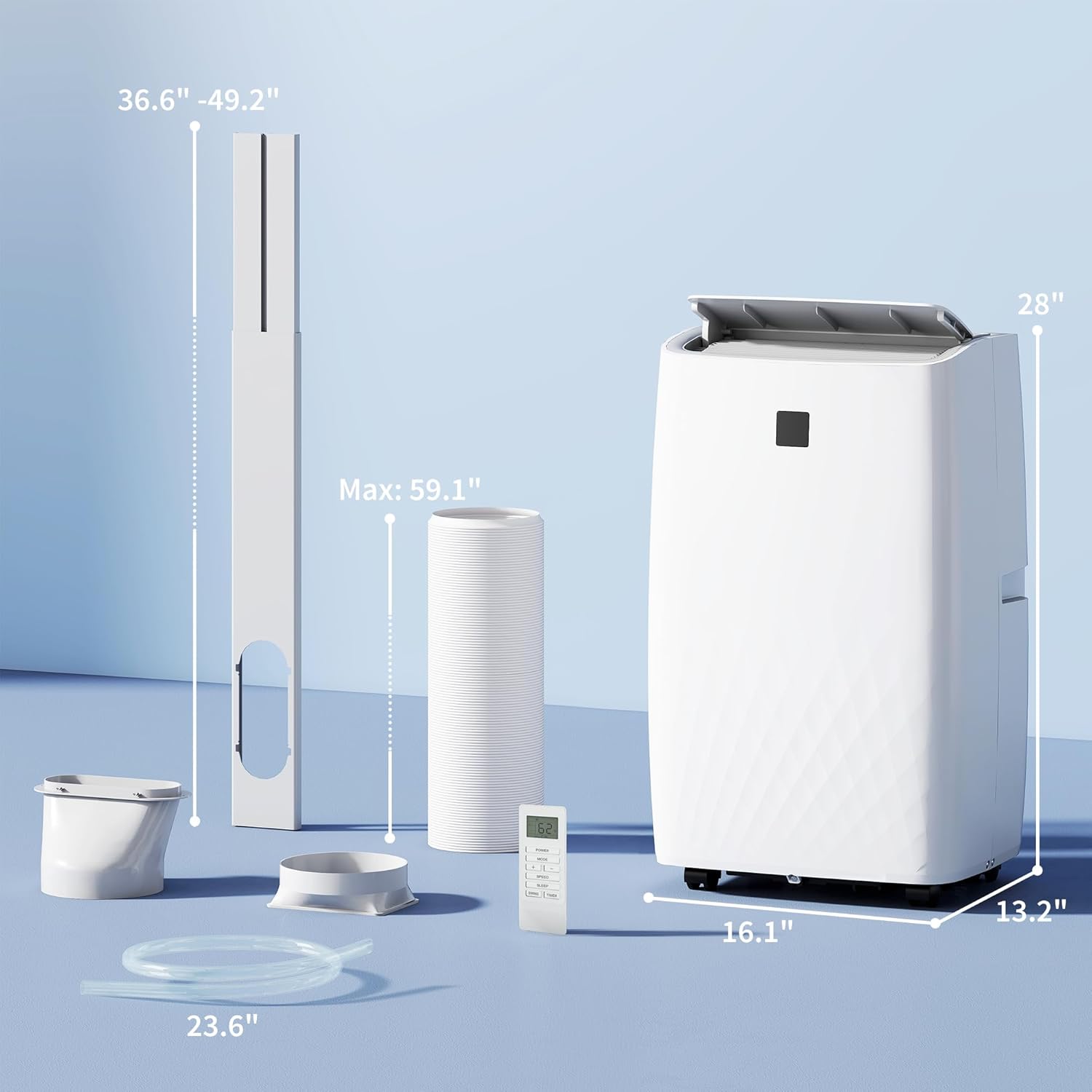

Figure 4: Detailed dimensions of the unit and its components.
Gosod a Gosod
Follow these steps to properly set up your portable air conditioner.
- Dadbacio: Carefully remove the unit and all accessories from the packaging. Ensure all components listed in the "Components" section are present.
- Lleoliad: Place the unit on a flat, stable surface near a window. Ensure there is at least 20 inches of clearance around the unit for proper airflow.
- Gosod Pecyn Ffenestr:
- Assemble the window slider kit to fit your window opening. The kit is designed for sliding windows.
- Atodwch y bibell wacáu i borthladd gwacáu'r uned.
- Insert the other end of the exhaust hose into the opening of the window slider kit. Ensure a secure fit to prevent air leakage.

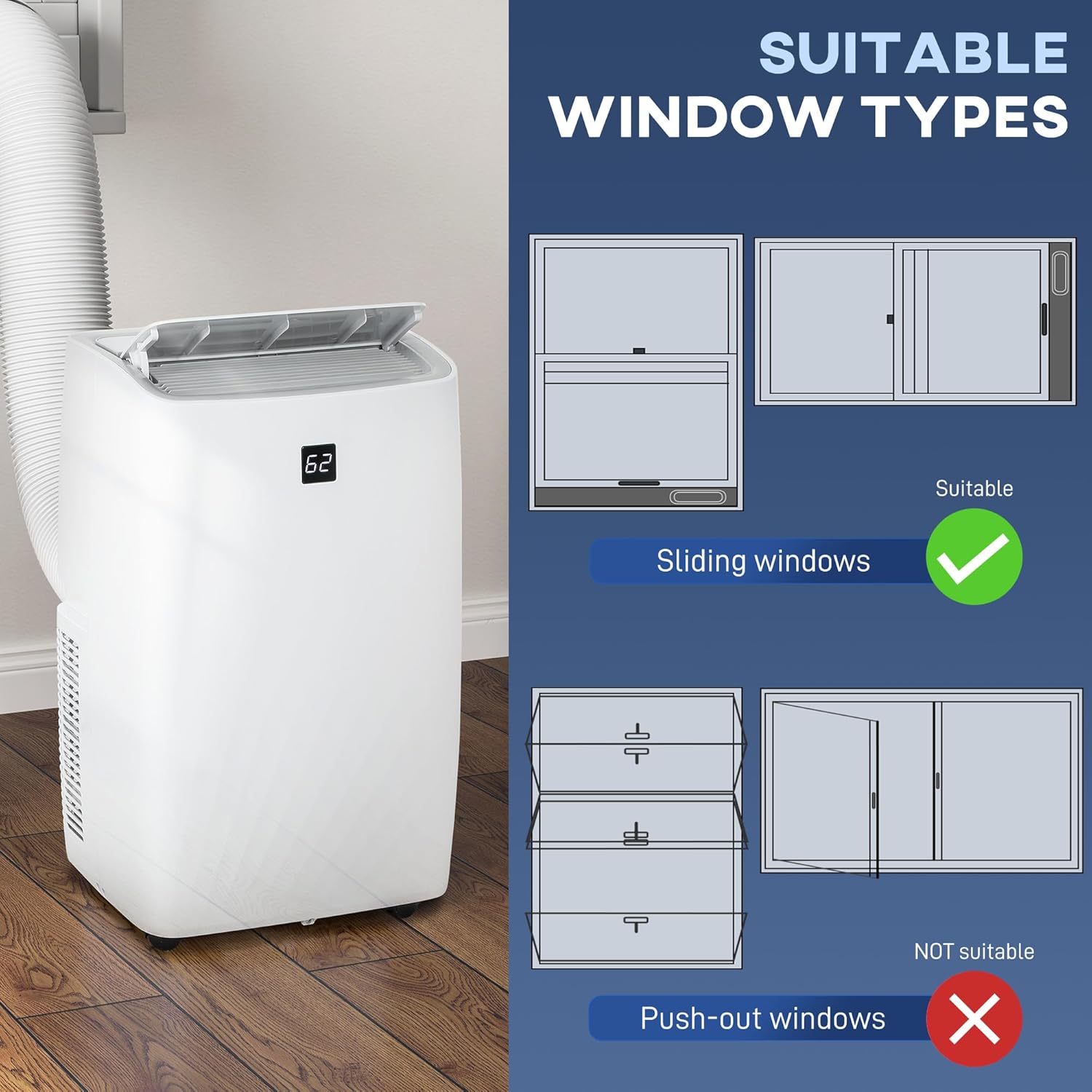

Figure 5: The window kit is suitable for sliding windows. Not suitable for push-out windows.
- Drainage Hose Connection (Dehumidifier Mode): For continuous dehumidification, connect the drainage hose to the unit's drainage port and route it to a suitable drain or container.
- Cysylltiad Pwer: Plygiwch y llinyn pŵer i mewn i allfa drydan wedi'i seilio.
Cyfarwyddiadau Gweithredu
Your HOMCOM Portable Air Conditioner can be operated via the touch control panel on the unit or the included remote control.
Panel Rheoli ac Anghysbell
Figure 6: The unit features a clear digital display and intuitive touch controls, complemented by a remote control for convenience.
- Botwm Pŵer: Yn troi'r uned ymlaen neu i ffwrdd.
- Botwm Modd: Cycles through Cooling, Dehumidifier, Fan, and Auto modes.
- Botwm Cyflymder Fan: Yn addasu cyflymder y ffan (Isel, Canolig, Uchel) yn y moddau Ffan ac Oeri.
- Temperature Adjustment Buttons (∧/∨): Increases or decreases the desired temperature.
- Botwm Amserydd: Sets the 24-hour timer for automatic operation.
- Botwm Modd Cwsg: Activates sleep mode for quieter operation and energy efficiency during the night.
- Clo Plant: Yn atal newidiadau damweiniol i osodiadau.
Dulliau Gweithredu
- Modd Oeri: Provides powerful cooling to lower room temperature. Set your desired temperature between 59-88 °F.
- Modd dadleithydd: Removes excess moisture from the air, ideal for humid conditions. The unit can remove up to 75 pints per day.
- Modd Fan: Circulates air without cooling, offering a refreshing breeze. Choose from three fan speeds.
- Modd Auto: The unit automatically selects the appropriate operating mode (Cooling, Fan) based on the ambient room temperature to maintain comfort and energy efficiency.
- Modd Cwsg: Optimizes cooling and fan speed for quiet operation during sleep, gradually increasing the temperature slightly over time for comfort and energy saving.
Figure 7: Sleep mode ensures quiet operation, comparable to a quiet library environment.
Cynnal a chadw
Regular maintenance ensures the efficiency and longevity of your air conditioner.
- Glanhau hidlydd: Dylid glanhau'r hidlydd aer bob pythefnos neu'n amlach yn dibynnu ar y defnydd.
- Tynnwch y plwg o'r uned.
- Tynnwch yr hidlydd o gefn yr uned.
- Golchwch yr hidlydd gyda dŵr cynnes, sebonllyd. Rinsiwch yn drylwyr.
- Gadewch i'r hidlydd sychu'n llwyr yn yr awyr cyn ei ailosod.
- Draenio: In high humidity conditions or prolonged use in cooling/dehumidifier modes, the internal water tank may fill. The unit will stop operating and display an error code when full.
- Tynnwch y plwg o'r uned.
- Place a shallow pan or tray under the drainage port at the bottom rear of the unit.
- Tynnwch y plwg draenio i ganiatáu i'r dŵr lifo allan.
- Replace the drain plug once all water has drained.
- Storio: Before storing the unit for an extended period, ensure the water tank is completely drained. Clean the air filter and allow the unit to run in fan-only mode for a few hours to dry the internal components. Store in a dry, upright position.
Datrys problemau
Os byddwch chi'n dod ar draws problemau gyda'ch cyflyrydd aer, cyfeiriwch at y problemau a'r atebion cyffredin canlynol:
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Nid yw'r uned yn troi ymlaen. | Dim pŵer, llinyn pŵer wedi'i ddatgysylltu, torrwr cylched wedi'i dripio. | Gwiriwch y cysylltiad pŵer, ailosodwch y torrwr cylched. |
| Nid yw'r uned yn oeri'n effeithiol. | Dirty air filter, blocked air vents, room too large, window kit not sealed properly, doors/windows open. | Clean filter, clear vents, ensure proper room size, seal window kit, close doors/windows. |
| Mae'r uned yn swnllyd. | Nid yw'r uned ar arwyneb gwastad, mae cyflymder y ffan yn rhy uchel. | Rhowch ar arwyneb gwastad, lleihau cyflymder y ffan. |
| Gollyngiad dŵr. | Drain plug loose, drainage hose not connected properly or blocked. | Check drain plug, ensure hose is securely connected and clear. |
| Rheoli o bell ddim yn gweithio. | Batteries dead or incorrectly inserted, remote not pointed at receiver. | Replace batteries, ensure correct polarity, point remote directly at the unit's receiver. |
Gwarant a Chefnogaeth
HOMCOM products are designed for quality and reliability. For warranty information, please refer to the warranty card included with your purchase or visit the official HOMCOM website. If you require technical assistance or customer support, please contact our service team:
Gwasanaeth Cwsmer: support@dura-comfort-life.com
Websafle: www.dura-comfort-life.com
(Contact information sourced from the product's quick guide image.)
