SKMEI Sports Watch 2223AG User Manual

1. Cynnyrch Drosview

The SKMEI Sports Watch Model 2223AG is a versatile timepiece designed for active individuals. It features an analog-digital display, offering both traditional timekeeping and advanced digital functions. Key features include a 3-time display, chronograph, countdown timer, and an EL backlight for visibility in low light conditions. The watch is also water-resistant up to 50 meters.

Delwedd 1.1: Blaen view of the SKMEI Sports Watch 2223AG, highlighting its analog-digital display and various functions.

2. Gosodiad Cychwynnol

2.1 Swyddogaethau Botwm

• Botwm GOLEUNI (Chwith Uchaf): Yn actifadu'r golau cefn EL.
• Botwm MODD (Chwith Gwaelod): Cycles through different modes (Time, Alarm, Chronograph, Countdown Timer, Second Time Zone).
• Botwm DECHRAU (Dde Uchaf): Starts/stops the chronograph, adjusts settings in setting mode.
• Botwm AILOSOD (Gwaelod ar y Dde): Resets the chronograph, cycles through setting options.

2.2 Pennu Amser a Dyddiad

1. Yn y Modd Cadw Amser, pwyswch y MODD button until the digital time display starts flashing, indicating setting mode.
2. Gwasgwch y AILOSOD botwm i gylchu trwy'r gosodiadau: eiliadau, awr, munud, mis, dyddiad, diwrnod yr wythnos.
3. Defnyddiwch y DECHRAU botwm i addasu'r gwerth sy'n fflachio.
4. Unwaith y bydd yr holl osodiadau'n gywir, pwyswch y MODD botwm i adael y modd gosod.
5. To set the analog hands, pull out the crown (middle right button) and rotate it to adjust the hands. Push the crown back in to finalize.

2.3 Setting 12/24 Hour Format

In Timekeeping Mode, with the digital time displayed, press the DECHRAU button to toggle between 12-hour (A/P indicator) and 24-hour formats.

3. Cyfarwyddiadau Gweithredu

3.1 Defnyddio'r Goleuadau Cefn EL

Gwasgwch y GOLAU button (top left) to illuminate the digital display for a few seconds. This feature enhances visibility in dark environments.

3.2 Swyddogaeth Cronograff (Stopwats)

1. Gwasgwch y MODD button repeatedly until 'CHRONO' or 'STW' appears on the digital display.
2. Gwasgwch y DECHRAU botwm i ddechrau amseru.
3. Gwasgwch y DECHRAU botwm eto i oedi'r amseru.
4. Gwasgwch y AILOSOD button to reset the chronograph to zero.
5. I ailddechrau amseru ar ôl oedi, pwyswch DECHRAU.

3.3 Swyddogaeth Larwm

1. Gwasgwch y MODD button repeatedly until 'ALARM' or 'AL' appears on the digital display.
2. Gwasgwch y AILOSOD botwm i ddewis yr awr neu'r funud i'w gosod. Bydd y gwerth a ddewiswyd yn fflachio.
3. Defnyddiwch y DECHRAU botwm i addasu'r gwerth sy'n fflachio.
4. Gwasgwch y MODD botwm i gadarnhau ac ymadael â gosodiad larwm.
5. I droi’r larwm YMLAEN/DIFFODD, yn y Modd Larwm, pwyswch y DECHRAU button. An alarm icon will appear/disappear.

3.4 Swyddogaeth Amserydd Cyfrif i Lawr

1. Gwasgwch y MODD button repeatedly until 'TIMER' or 'TMR' appears on the digital display.
2. Gwasgwch y AILOSOD botwm i ddewis yr awr neu'r funud i'w gosod. Bydd y gwerth a ddewiswyd yn fflachio.
3. Defnyddiwch y DECHRAU botwm i addasu'r gwerth sy'n fflachio.
4. Gwasgwch y MODD button to confirm and exit timer setting.
5. I ddechrau'r cyfrif i lawr, pwyswch y DECHRAU botwm. Gwasg DECHRAU eto i oedi. Pwyswch AILOSOD i ailosod.

3.5 3-Time Display (Dual Time / World Time)

This watch supports displaying up to three different time zones. In Timekeeping Mode, you can cycle through the different time displays by pressing the DECHRAU button after setting the primary time. To set additional time zones, navigate to the 'Dual Time' or 'World Time' mode (if available, typically accessed via the MODE button) and follow similar setting procedures as the main time.

Delwedd 3.1: Manwl view of the watch face, illustrating the analog and digital time displays, and various indicators.

4. cynnal

4.1 Water Resistance (50m)

The SKMEI 2223AG watch is water-resistant up to 50 meters (5 ATM). This means it is suitable for daily use, showering, and shallow swimming. Peidiwch â phwyso unrhyw fotymau tra bod yr oriawr wedi'i boddi mewn dŵr. Avoid exposing the watch to hot water or steam, as this can compromise the water seals.

4.2 Gofal Cyffredinol

• Clean the watch regularly with a soft, dry cloth. For stubborn dirt, use a slightly damp brethyn a sebon ysgafn, yna sychwch yn sych.
• Osgowch amlygu'r oriawr i dymheredd eithafol, golau haul uniongyrchol am gyfnodau hir, neu feysydd magnetig cryf.
• The watch uses a C battery. When the display dims or functions become erratic, it may be time for a battery replacement. It is recommended to have battery replacement performed by a qualified technician to ensure water resistance is maintained.
• Avoid contact with chemicals such as solvents, detergents, perfumes, and cosmetics, as they may damage the watch case, band, or seals.

Delwedd 4.1: Cefn view of the watch, displaying the stainless steel case back and water resistance information.

5. Datrys Problemau

6. manylebau

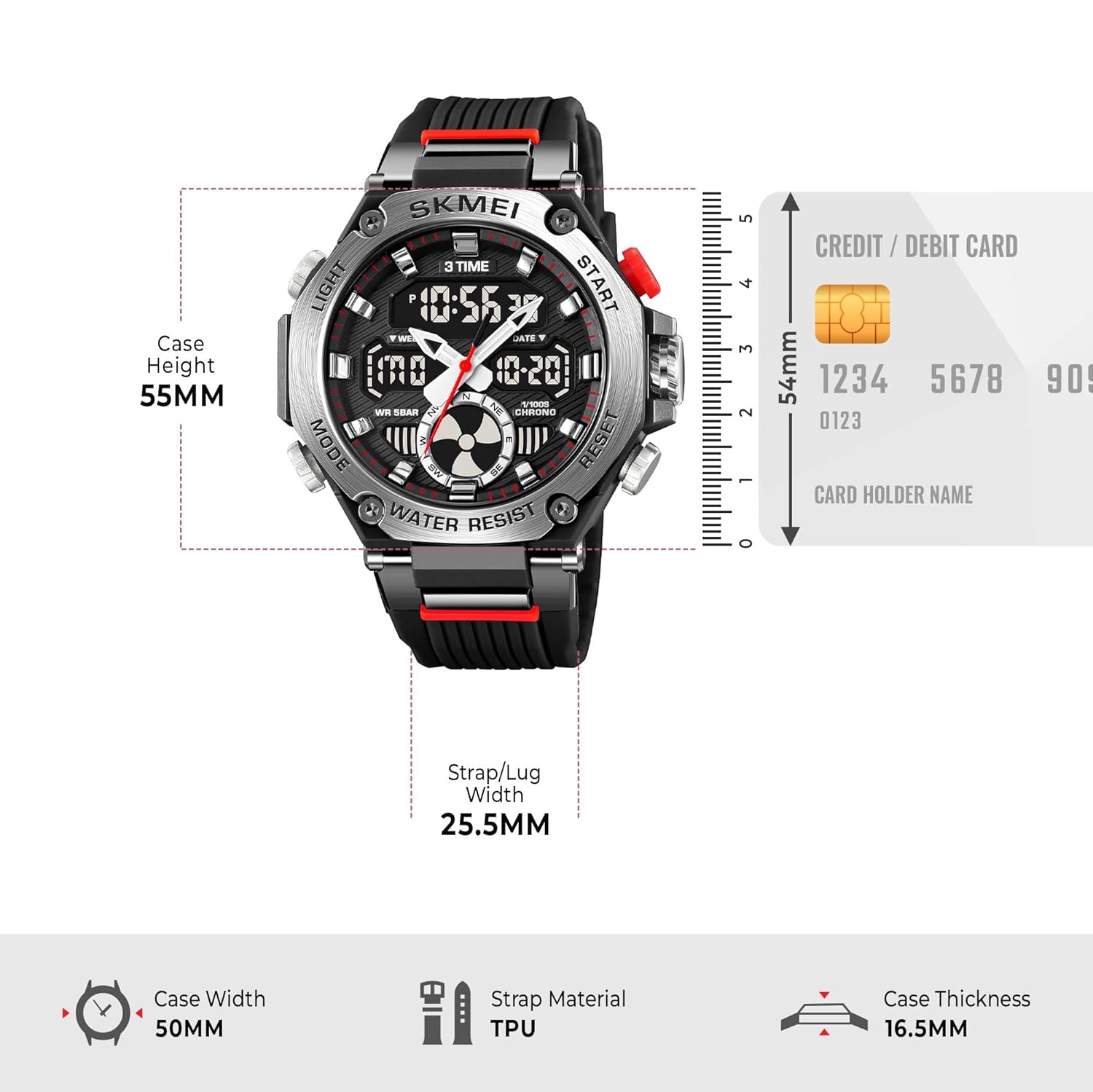

Image 6.1: Dimensional diagram of the watch, detailing case width, strap width, and case thickness.

7. Gwarant a Chefnogaeth

7.1 Gwybodaeth Gwarant

This SKMEI watch comes with a Gwarant Gwneuthurwr 9 mis o ddyddiad y pryniant. Mae'r warant hon yn cwmpasu diffygion gweithgynhyrchu o dan ddefnydd arferol. Cadwch eich prawf prynu ar gyfer hawliadau gwarant.

7.2 Cefnogaeth i Gwsmeriaid

For any service-related inquiries, feedback, or warranty claims, please contact the SKMEI India Helpline:

• Rhif Llinell Gymorth: 1800-889-6251
• Oriau Gweithredu: Monday to Saturday, 9:00 AM to 6:00 PM (IST)
