eXtremeRate RISE V3 Remap Kit for PS5 Controller (BDM-030, BDM-040, BDM-050) Instruction Manual

1. Cynnyrch Drosview

The eXtremeRate RISE V3 Remap Kit is designed to upgrade your existing PlayStation 5 (PS5) controller into a professional eSport elite controller. This kit adds two ergonomic, programmable back buttons to your controller, enhancing gameplay by allowing you to remap up to 15 different controller functions to these new buttons.

Image: PS5 controller with the RISE V3 Remap Kit installed, highlighting the back buttons and LED indicator.

2. Cydweddoldeb

This RISE V3 Remap Kit is exclusively compatible with PS5 controllers featuring the BDM-030, BDM-040, or BDM-050 motherboard models. It is NOT compatible with BDM-010, BDM-020, or BDM-060 models.

2.1 How to Check Your Controller's BDM Model

To ensure compatibility, verify your PS5 controller's BDM model. You can do this by checking the shape of the side and the spring of the R2 trigger, or by disassembling your controller to inspect the mainboard model.

Image: Visual guide for identifying PS5 controller BDM models by examining the R2 trigger and internal components.

For a detailed visual guide on checking your controller's BDM model, please refer to the following video:

Alternatively, you can use the eXtremeRate online tool to check your controller's BDM model by connecting it to a PC. Chwiliwch am "extremerate check bdm for ps5 controller" or "fiE4BWSlBRI" on YouTube for instructions on using this tool.

3. Cynnwys Pecyn

The eXtremeRate RISE V3 Remap Kit includes the following components:

• RISE V3 Remap Board
• Redesigned Bottom Shell with Rubberized Grip
• 2 Ergonomic Back Buttons (K1, K2)
• Flex Cables and Connectors
• Screwdrivers and Prying Tools
• Various Screws and Adhesives

Image: Contents of the eXtremeRate RISE V3 Remap Kit, including the back shell, remap board, back buttons, tools, and fasteners.

4. Gosod

Installation of the eXtremeRate RISE V3 Remap Kit requires high hands-on skills. Soldering is optional depending on the desired functionality. It is recommended to watch the official installation video before attempting the process.

4.1 Nodiadau Cyn-Gosod

• Ensure your controller is powered off and disconnected from all devices.
• Work in a clean, well-lit area to prevent loss of small components.
• Refer to the compatibility section to confirm your controller model.

4.2 Canllaw Gosod

For a comprehensive step-by-step installation guide, search for "eXtremeRate RISE Remap Kit V3 for PS5" or "oV_xGgwkf4A" on YouTube. The video will walk you through the disassembly of your PS5 controller, installation of the remap board and back buttons, and reassembly.

5. Cyfarwyddiadau Gweithredu

5.1 Button Remapping

The RISE V3 Remap Kit allows you to assign up to 15 different buttons to the two back buttons (K1 and K2). These include X, O, Triangle, Square, Up, Down, Left, Right, L1, L2, R1, R2, L3, R3, and the Touchpad Button.

Image: The 15 buttons on a PS5 controller that can be remapped to the back buttons of the RISE V3 kit.

How to Remap Buttons:

1. Press and hold the Setting Button (located on the back of the kit) for 3 seconds until the LED Indicator (also on the back) blinks slowly.
2. Press the back button (K1 or K2) you wish to remap, then press the desired face button (e.g., X, O, Triangle, Square) or other controller button you want to assign.
3. Press the Setting Button again to save the mapping. The LED Indicator will turn off, confirming the new mapping is saved.

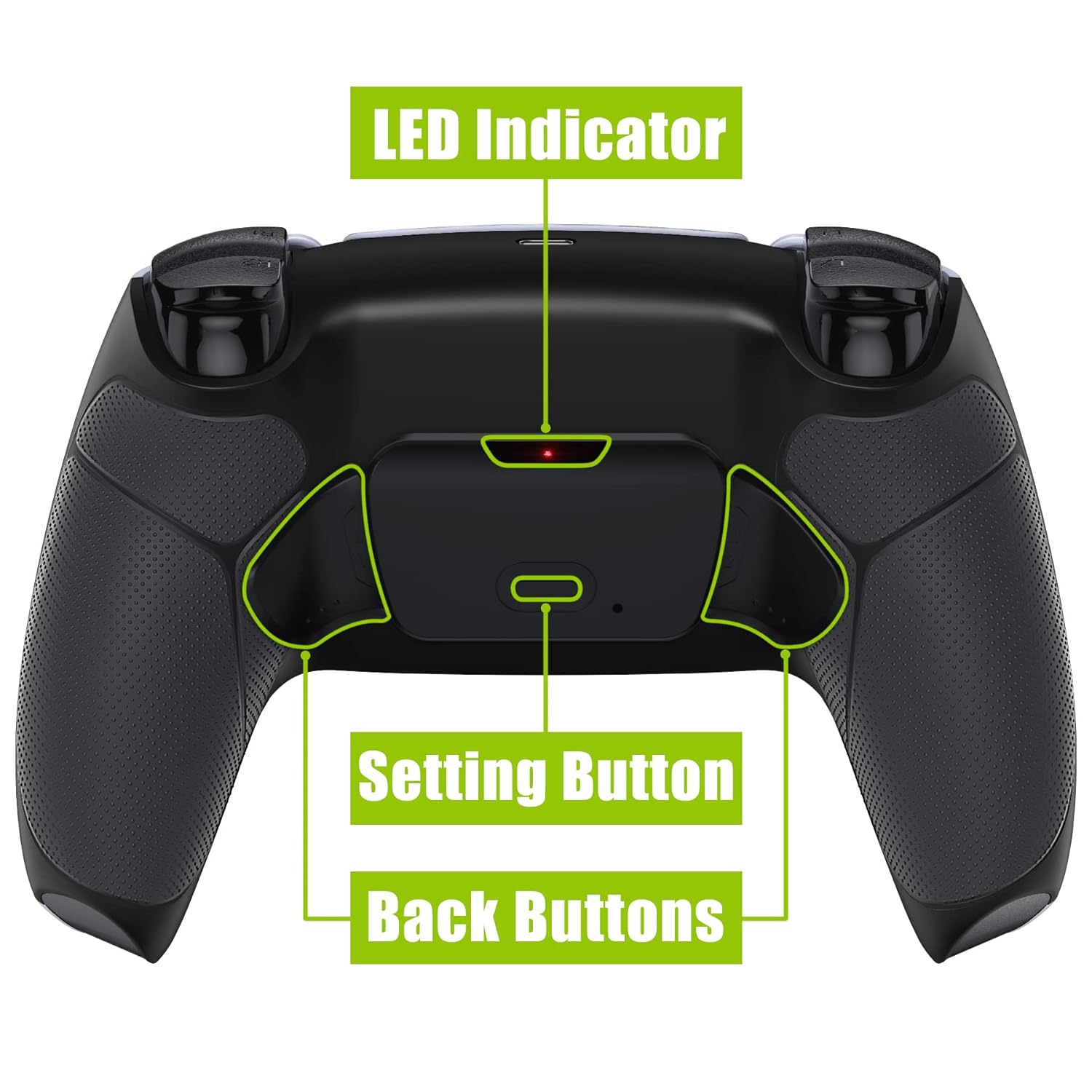

Delwedd: Manwl view of the back of the PS5 controller with the RISE V3 Remap Kit, showing the LED indicator, setting button, and K1/K2 back buttons.

5.2 Charging the Modified Controller

After installing the RISE V3 Remap Kit, the controller's charging port may be affected, making it incompatible with the official PS5 controller charging dock. You can still charge the controller using a standard USB-C data cable. Alternatively, eXtremeRate offers a compatible charging base bracket for the official PS5 controller charging dock (CFI-ZDS1 model).

6. cynnal

6.1 Cyfarwyddiadau Glanhau

It is recommended to clean the plastic components of the kit with a wipe dampened with water. If alcohol is used, ensure it is less than 70% alcohol and allow the product to dry in a ventilated area. Do not spray water or alcohol directly onto the product surface. Avoid using any other organic solvents for cleaning.

Image: Cleaning guidelines for plastic products, advising against direct spraying and use of strong solvents.

7. manylebau

8. Datrys Problemau

• Botymau Ddim yn Ymateb: Double-check all flex cable connections during installation. Ensure they are securely seated.
• Remapping Issues: Ensure you are following the remapping procedure correctly (press and hold setting button, remap, then press setting button again to save).
• Rheolydd Ddim yn Gwefru: If using an official charging dock, ensure you have the compatible eXtremeRate charging base bracket or use a standard USB-C cable.
• Difrod Corfforol: If any components appear damaged during installation, cease assembly and contact customer support.

9. Gwarant a Chefnogaeth

For warranty information, technical support, or further assistance, please visit the official eXtremeRate websafle neu cysylltwch â'u gwasanaeth cwsmeriaid yn uniongyrchol. Cadwch eich prawf prynu ar gyfer unrhyw hawliadau gwarant.

You can find more information and products from eXtremeRate at their Amazon store: eXtremeRate Amazon Store.
