1. Rhagymadrodd
Thank you for choosing the DWVO Queen Size Storage Bed Frame. This manual provides essential information for the proper assembly, operation, maintenance, and troubleshooting of your new bed frame. Please read it thoroughly before beginning assembly and keep it for future reference.
Image 1.1: The DWVO Queen Size Storage Bed Frame, showcasing its upholstered design, bookcase headboard, and under-bed storage drawers.
Nodweddion Allweddol:
- Generous Storage Drawers: Four under-bed drawers and a dual-tiered headboard shelf for versatile storage.
- Smart Headboard Charging: Integrated with 2 AC outlets and 2 USB charging ports for convenient device charging.
- Rugged & Quiet Construction: Durable linen alloy steel frame with noise-reducing cotton material for stability and a tranquil sleep environment.
- Trendy Platform Design: Padded bed frame designed to support various mattress thicknesses without a box spring.
- Cynulliad diymdrech: Foldable side rails facilitate quick and straightforward installation.
2. Product Information & Dimensions
Understand the physical characteristics and dimensions of your bed frame to ensure it fits your space and meets your requirements.

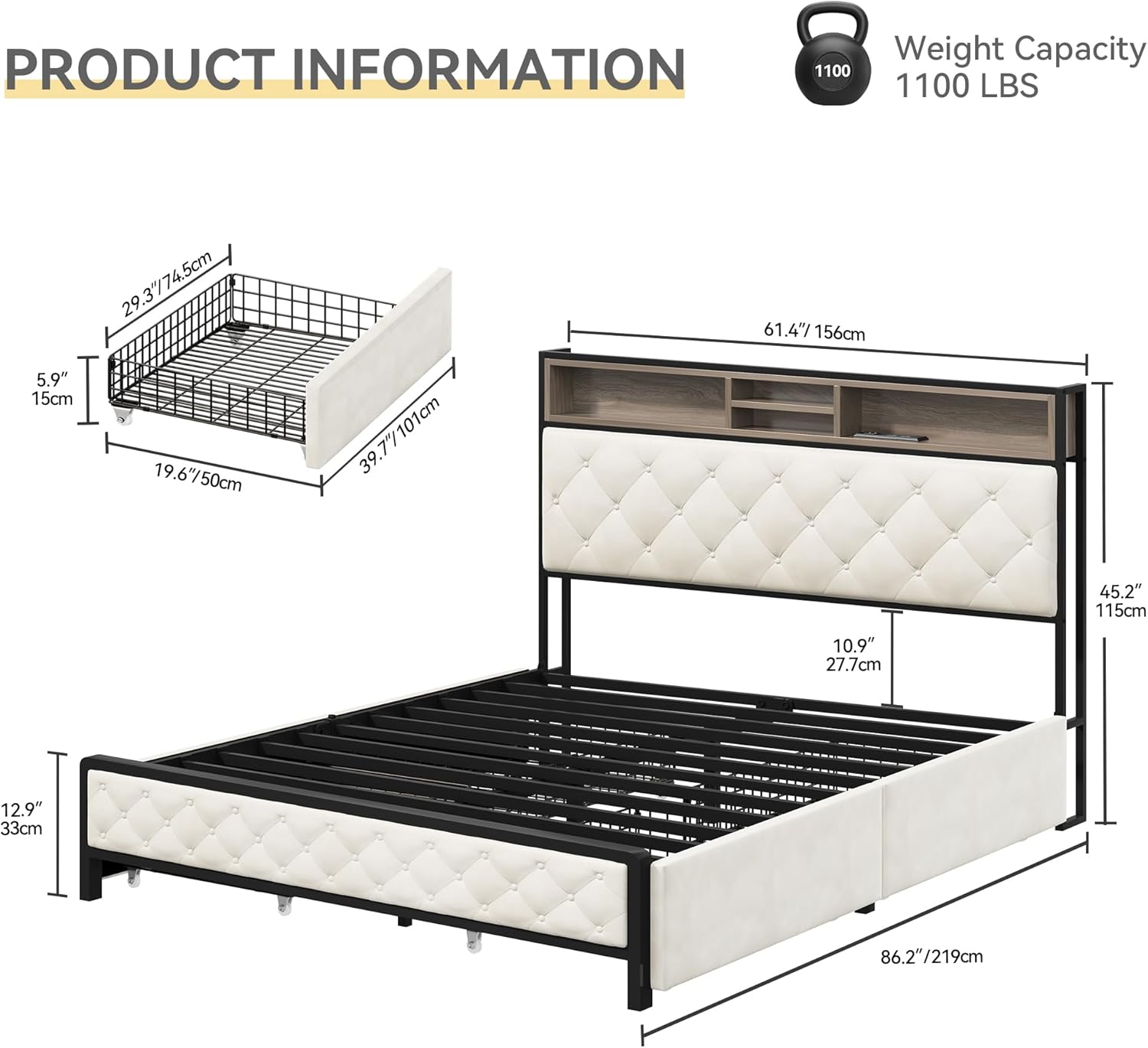

Image 2.1: Detailed diagram showing the dimensions of the bed frame and the 1100 lbs weight capacity.
Dimensiynau:
- Dimensiynau Cyffredinol (L x W x H): 87.01" x 60.04" x 47.64"
- Cynhwysedd Pwysau: Hyd at 1100 pwys
- Pwysau Eitem: 102.2 pwys
3. Canllaw Gosod
Follow these steps for a smooth and efficient assembly process. It is recommended to have two people for assembly.
Cyn i Chi Ddechrau:
- Unpack all components and verify against the parts list (usually included in the packaging).
- Ensure you have the necessary tools (typically an Allen wrench is provided, but a screwdriver may be needed).
- Cliriwch ardal eang ar gyfer ymgynnull.
Camau Cynulliad:
- Cydosod y Penbwrdd: Attach the bookcase headboard components to the main headboard frame. Ensure all connections are secure.
- Cysylltu Rheiliau Ochr: Unfold the side rails and attach them to the headboard and footboard. The foldable design simplifies this step.
- Cymorth Canolfan Gosod: Place and secure the center support beam and legs for mattress stability.
- Llety Lle: Lay out the bed slats evenly across the frame and secure them according to the instructions.
- Cydosod Droriau: Construct the four under-bed storage drawers and install their wheels.
- Mewnosod Droriau: Slide the assembled drawers into their designated positions under the bed frame.
- Gwiriad Terfynol: Tighten all screws and bolts. Ensure the bed frame is stable and level before placing your mattress.
Delwedd 3.1: Llun agos view highlighting the noise-reducing EVA bars on the frame and the sturdy metal legs, contributing to a quiet and stable setup.
4. Cyfarwyddiadau Gweithredu
Learn how to effectively use the features of your DWVO bed frame.
Using the Built-in Charging Station:
- Locate the power cord extending from the headboard.
- Plug the power cord into a standard 120V AC wall outlet.
- Use the 2 AC outlets (125V/12A) to power lamps or other small appliances.
- Use the 2 USB ports (5V/2A) to charge your mobile devices, tablets, or other USB-powered electronics.
Image 4.1: The integrated charging station on the headboard, featuring two AC outlets and two USB ports for convenient device charging.
Defnyddio Nodweddion Storio:
- Headboard Storage: The dual-tiered shelf on the headboard provides accessible space for books, alarm clocks, glasses, and other bedside essentials.
- Under-bed Drawers: The four spacious under-bed drawers are equipped with wheels for easy pulling out and pushing in. Use them to store bedding, clothing, or other items, optimizing your bedroom space.

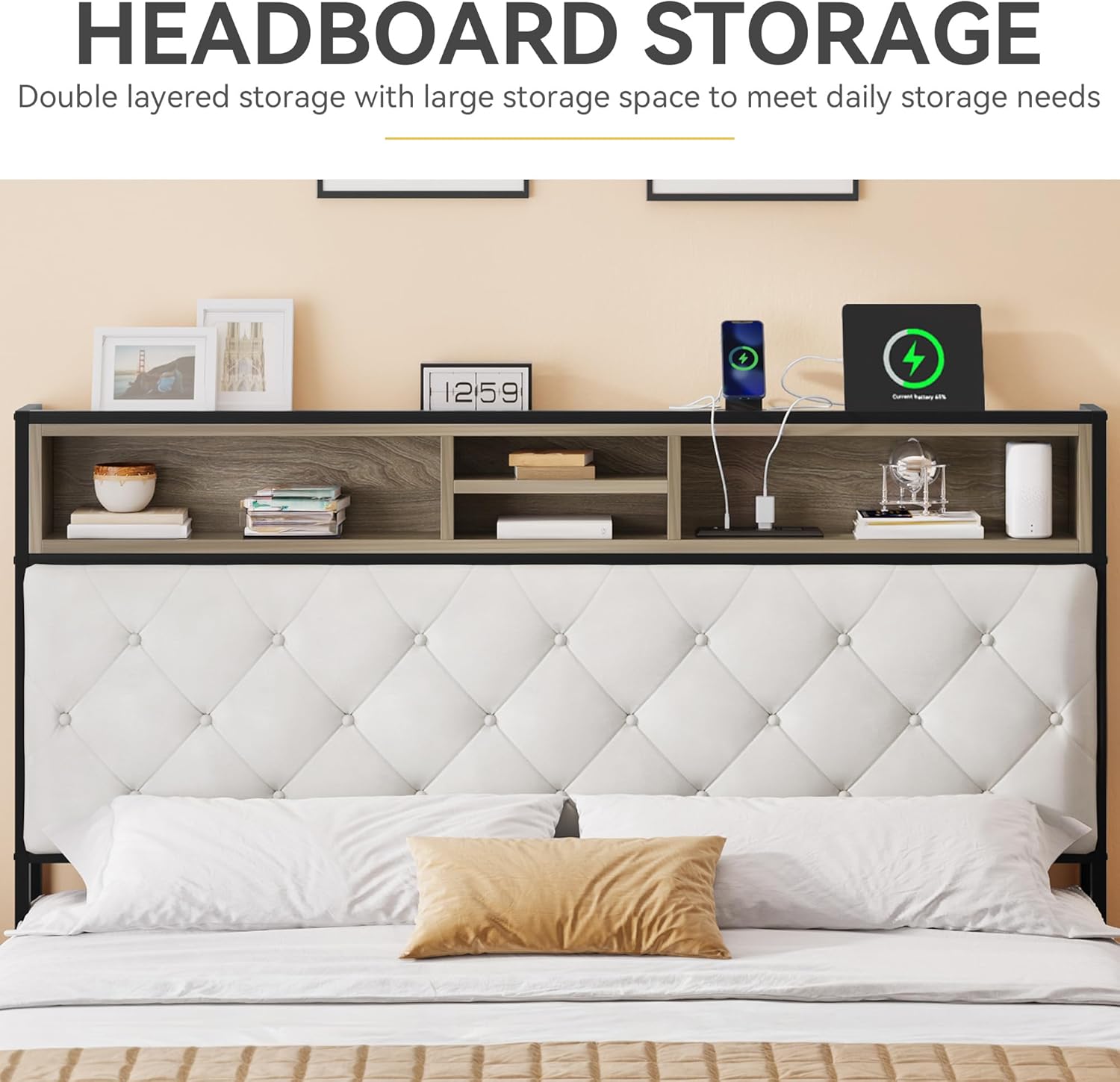

Image 4.2: The double-layered headboard storage, offering ample space for daily necessities and decorative items.
Image 4.3: A close-up of the under-bed storage drawer, highlighting the wheels for smooth and easy access.
5. cynnal
Proper care and maintenance will extend the life and appearance of your bed frame.
- Glanhau: Ar gyfer y rhannau clustogog, glanhewch yn ysgafn gyda hysbyseb.amp cloth and mild detergent if necessary. For metal parts, wipe with a soft, dry cloth. Avoid harsh chemicals or abrasive cleaners.
- Gwiriadau Rheolaidd: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if any looseness is detected to maintain stability and prevent noise.
- Dosbarthiad pwysau: Distribute weight evenly on the bed frame. Avoid concentrating heavy loads on specific areas.
- Gofal Drôr: Keep the drawer tracks clean and free of debris to ensure smooth operation.
6. Datrys Problemau
Cyfeiriwch at yr adran hon am atebion i broblemau cyffredin.
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Mae ffrâm y gwely yn sigledig neu'n swnllyd. | Loose bolts/screws; uneven floor; improper assembly. | Ensure all bolts are securely tightened. Check if the bed is on a level surface. Review cyfarwyddiadau cynulliad. |
| Charging ports not working. | Power cord not plugged in; faulty outlet; overloaded circuit. | Verify the headboard power cord is securely plugged into a working wall outlet. Try a different outlet. Avoid overloading the ports. |
| Mae droriau'n anodd eu hagor/cau. | Debris in tracks; misaligned drawers; overloaded drawers. | Clean any debris from the drawer wheels and tracks. Ensure drawers are properly aligned. Do not overload drawers beyond their capacity. |
7. manylebau
| Priodoledd | Manylyn |
|---|---|
| Brand | DWVO |
| Rhif Model | MADWVy3RBt |
| Maint | Frenhines |
| Dimensiynau Cynnyrch | 87.01"H x 60.04"L x 47.64"U |
| Lliw | llwydfelyn |
| Deunydd | Linen, Alloy Steel |
| Gallu Pwysau | 1100 pwys |
| Porthladdoedd Codi Tâl | 2 Allfa AC (125V/12A), 2 Borthladd USB (5V/2A) |
| Cynulliad Angenrheidiol | Oes |
| Angenrheidiol ar gyfer y Sbring Bocs | Nac ydw |
8. Gwarant a Chefnogaeth
DWVO is committed to providing quality products and customer satisfaction. For specific warranty details and support inquiries, please refer to the documentation included with your purchase or visit the official DWVO brand store.
Cymorth Ar-lein: For further assistance, FAQs, or to contact customer service, please visit the DWVO Brand Store on Amazon.
Gwybodaeth Ddiogelwch Bwysig: Ensure bed frame stability after assembly, check weight capacity, and avoid misuse. Always adhere to the maximum weight capacity of 1100 pounds to prevent damage or injury.
