Rip C.url Digital Automatic Watch

1. Rhagymadrodd

Thank you for choosing the Rip Curl Digital Automatic Watch, Model 00EWTI. This watch is designed for durability and functionality, featuring a pre-programmed tide module, a robust ABS injection-molded fiber reinforced case, and a durable polyurethane strap. It is water-resistant up to 100 meters (330 feet), making it suitable for various water activities.

This manual provides detailed instructions on how to set up, operate, and maintain your watch to ensure optimal performance and longevity.

2. Cydrannau'r Oriawr

Familiarize yourself with the main components and buttons of your Rip Curl gwylio:

• Botwm GOLAU: Yn actifadu'r golau cefn ar gyfer gwelededd mewn amodau golau isel.
• Botwm MODE: Cycles through different watch functions (Time, Date, Tide, Stopwatch, Timer, Alarm).
• Botwm UP: Used for adjusting settings upwards or navigating menus.
• Botwm I LAWR: Used for adjusting settings downwards or navigating menus.

Delwedd 1: Blaen view of the Rip Curl Digital Automatic Watch 00EWTI. The digital display shows the current time, date, and a tide graph. The watch features four buttons: LIGHT (top left), MODE (bottom left), UP (top right), and DOWN (bottom right). The watch face also indicates "100M/330FT" for water resistance.

Delwedd 2: Blaen onglog view of the Rip Curl Digital Automatic Watch 00EWTI. This perspective emphasizes the watch's profile and the placement of the control buttons on the sides of the case.

3. Gosod

3.1 Gosod Amser a Dyddiad Cychwynnol

1. Gwasgwch y MODD botwm dro ar ôl tro nes bod y modd gosod amser yn cael ei arddangos (a nodir yn aml gan ddigidau sy'n fflachio).
2. Defnyddiwch y UP a I LAWR botymau i addasu'r oriau.
3. Gwasgwch y MODD button again to move to minutes, then adjust with UP a I LAWR.
4. Parhewch i bwyso MODD to set the year, month, and day, adjusting each with UP a I LAWR.
5. Unwaith y bydd yr holl osodiadau'n gywir, pwyswch y MODD botwm i adael y modd gosod.

3.2 Tide Module Configuration

Your watch features a pre-programmed tide module. For accurate tide data, you may need to select your nearest surf spot or geographical region.

1. Yn y modd amser, pwyswch y MODD button until the tide display appears.
2. Pwyswch a dal y MODD button (or a combination of buttons, refer to specific model instructions if available) to enter tide setting mode.
3. Defnyddiwch y UP a I LAWR buttons to scroll through available locations or adjust tide offset if applicable.
4. Cadarnhewch eich dewis trwy wasgu'r MODD botwm.

Note: The accuracy of the tide data depends on the correct geographical setting and may vary based on local conditions.

4. Cyfarwyddiadau Gweithredu

4.1 Basic Time Display

In the default time mode, the watch displays the current time (hours, minutes, seconds), day of the week, and date. A 'P' indicator may signify PM for 12-hour format.

4.2 Defnyddio'r Backlight

Gwasgwch y GOLAU button (top left) to illuminate the display. The backlight will typically stay on for a few seconds before automatically turning off.

4.3 Cycling Through Modes

Gwasgwch y MODD button (bottom left) to cycle through the various functions of your watch. The typical sequence includes:

• Arddangosfa Amser / Dyddiad
• Tide Display
• Stopwats
• Amserydd
• Larwm

Refer to the display indicators for the current mode.

4.4 Swyddogaeth Stopwats

1. Llywiwch i'r modd Stopwatch gan ddefnyddio'r MODD botwm.
2. Gwasgwch y UP botwm i gychwyn y stopwats.
3. Gwasgwch y UP button again to pause/resume.
4. Gwasgwch y I LAWR botwm i ailosod y stopwats i sero.

5. cynnal

5.1 Glanhau Eich Oriawr

I lanhau eich oriawr, sychwch hi'n ysgafn gyda lliain meddal,amp cloth. For stubborn dirt, use a mild soap solution and rinse thoroughly with fresh water. Avoid using harsh chemicals or abrasive materials, as these can damage the watch case, lens, or strap.

5.2 Gwrthsefyll Dŵr

Your watch is water-resistant to 100 meters (330 feet). This rating means it is suitable for swimming, snorkeling, and surfing. However, it is not recommended for scuba diving. Always ensure the buttons are not pressed while the watch is submerged in water to prevent water ingress.

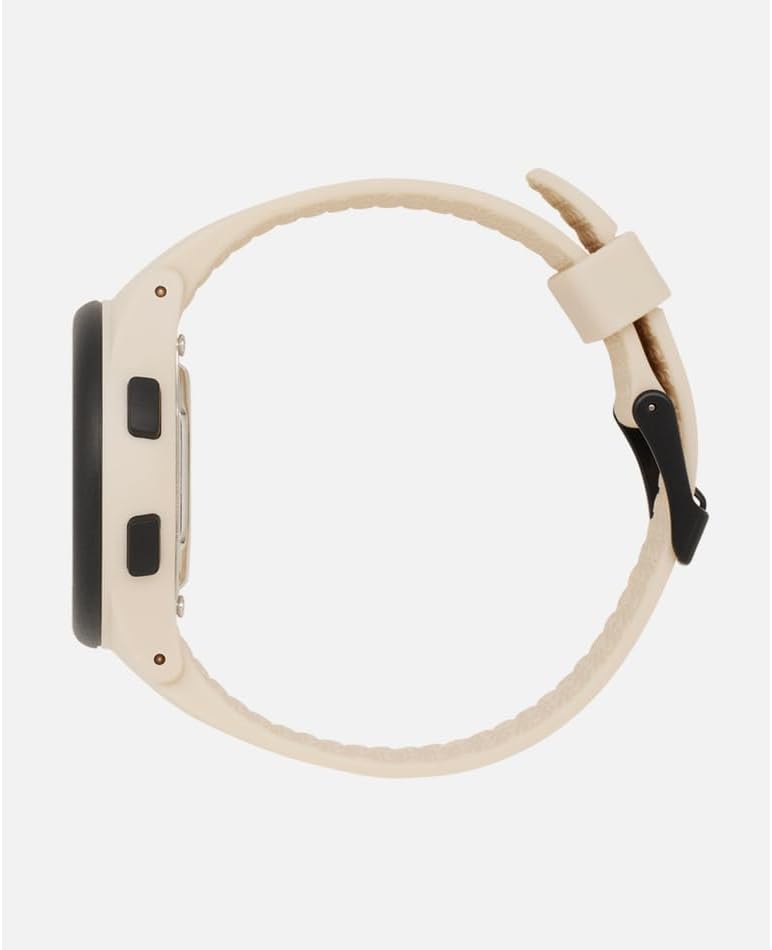

Delwedd 3: Ochr view of the Rip Curl Digital Automatic Watch 00EWTI. This image illustrates the watch's profile, the robust case construction, and the durable polyurethane strap.

5.3 Batri Newydd

When the display becomes dim or the watch stops functioning, it may be time to replace the battery. It is highly recommended to have the battery replaced by a qualified watch technician to ensure the water resistance seal is properly maintained.

5.4 Gofal Strap

The polyurethane strap is designed for durability. To prolong its life, avoid prolonged exposure to direct sunlight, extreme temperatures, and harsh chemicals. Clean the strap regularly with mild soap and water.

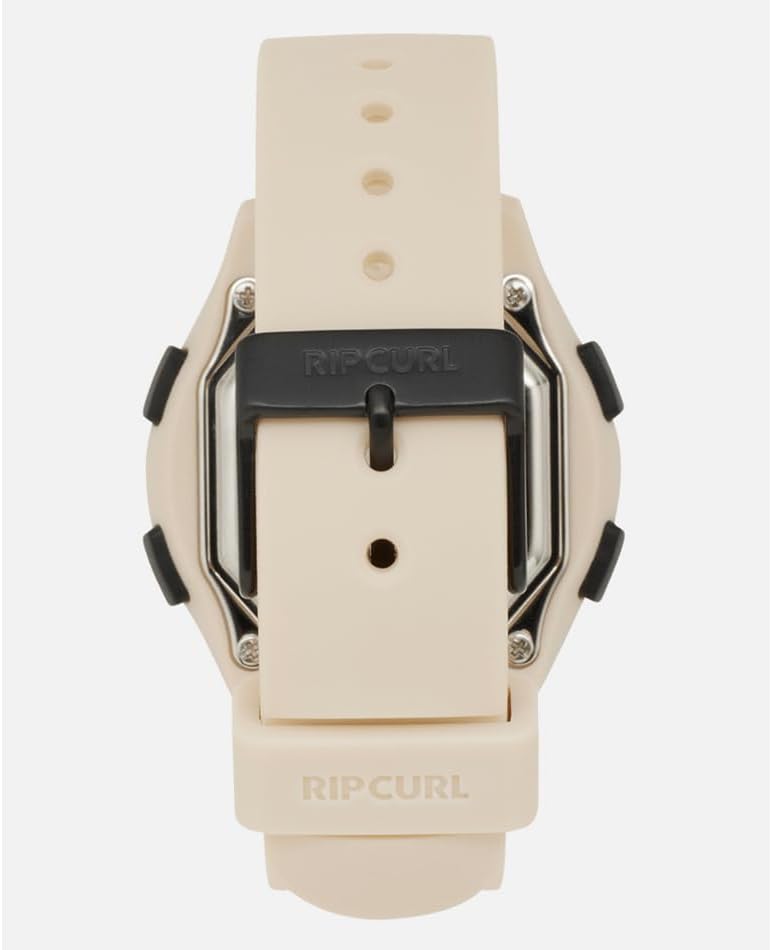

Delwedd 4: Cefn view of the Rip Curl Digital Automatic Watch 00EWTI. This image highlights the marine-grade 316L stainless steel forged buckle and the attachment points of the polyurethane strap to the watch case.

6. Datrys Problemau

6.1 Display is Blank or Dim

• Achos: Batri isel.
• Ateb: Amnewidiwch y batri (cyfeiriwch at Adran 5.3).

6.2 Amser/Dyddiad Anghywir

• Achos: Time/date not set correctly or watch was reset.
• Ateb: Ailosodwch yr amser a'r dyddiad (cyfeiriwch at Adran 3.1).

6.3 Tide Data Appears Incorrect

• Achos: Incorrect location selected for the tide module.
• Ateb: Verify and adjust the tide module configuration (refer to Section 3.2). Ensure your selected location is accurate.

6.4 Botymau Ddim yn Ymateb

• Achos: Watch may be in a locked mode, or internal issue.
• Ateb: Ceisiwch wasgu'r MODD button for a few seconds to see if it unlocks. If the issue persists, a battery replacement or professional inspection may be required.

7. manylebau

8. Gwarant a Chefnogaeth

Rip C.url watches are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Rip Curl website. For technical support or service inquiries, please contact Rip Curl gwasanaeth cwsmeriaid yn uniongyrchol.

Cadwch eich prawf prynu ar gyfer unrhyw hawliadau gwarant.
