Rhagymadrodd
This user manual provides essential information for the safe operation, maintenance, and troubleshooting of your Caroma Peak Foldable Electric Scooter. Designed for adults, this scooter offers a convenient and efficient mode of transport with its powerful motor, comfortable seating, and foldable design.
Gwybodaeth Diogelwch
WARNING: Always wear a helmet and appropriate safety gear when operating the scooter. Adhere to all local traffic laws and regulations. Do not operate in unsafe conditions.
- Always check brakes, tires, and battery level before each ride.
- Peidiwch â bod yn fwy na'r capasiti llwyth uchaf o 300 lbs.
- Avoid riding in heavy rain or through deep puddles.
- Ensure all locking mechanisms are securely fastened before riding.
- Cadwch ddwylo a thraed yn glir o rannau symudol.
Cydrannau Drosview
Familiarize yourself with the main components of your Caroma Peak Electric Scooter.

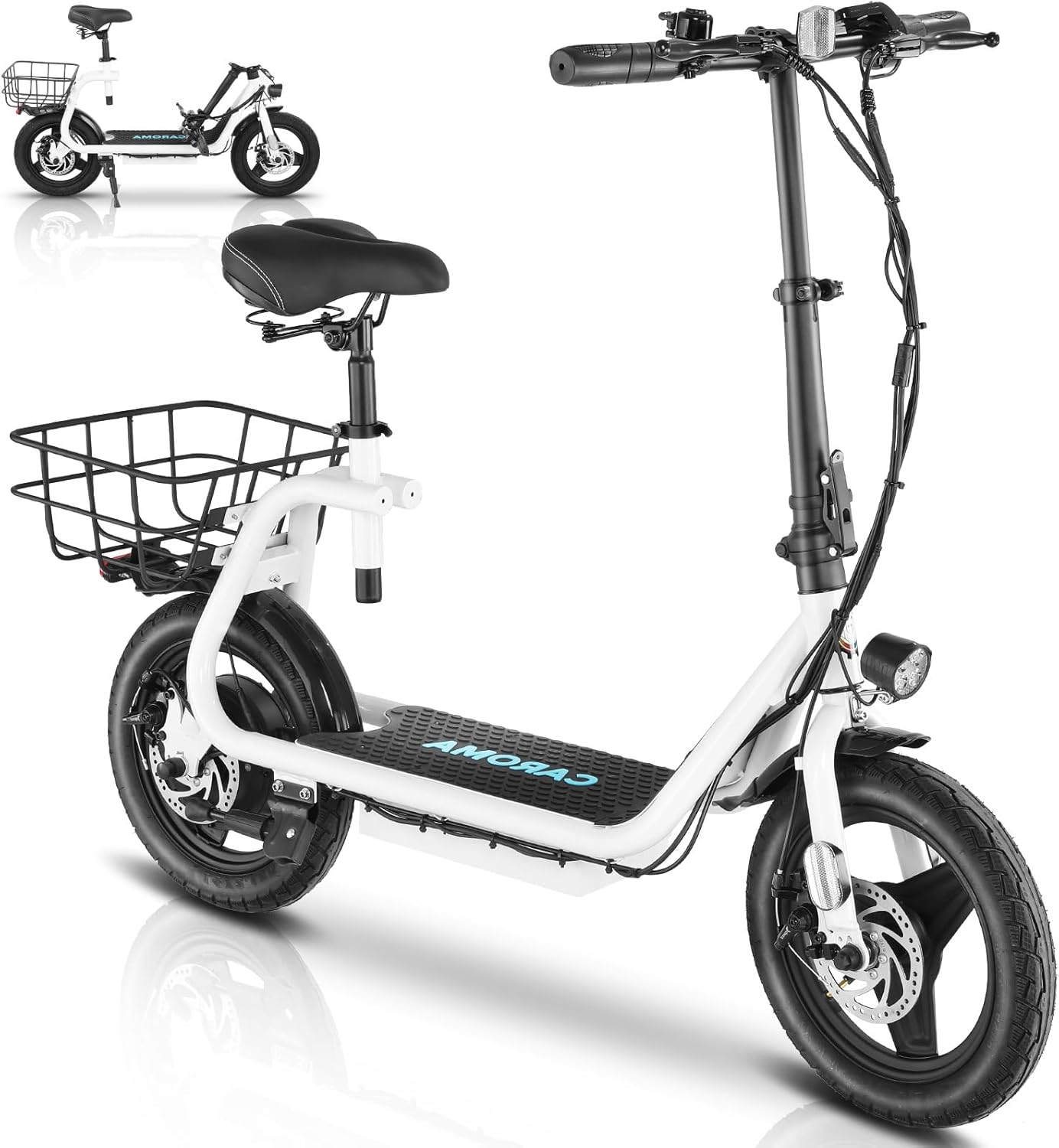

Main Scooter Body
The complete Caroma Peak Electric Scooter, featuring its foldable design, integrated seat, and rear basket.
Handlebar a Rheolaethau
The handlebar assembly includes the throttle, brake levers, bell, and LCD display for battery level and speed.

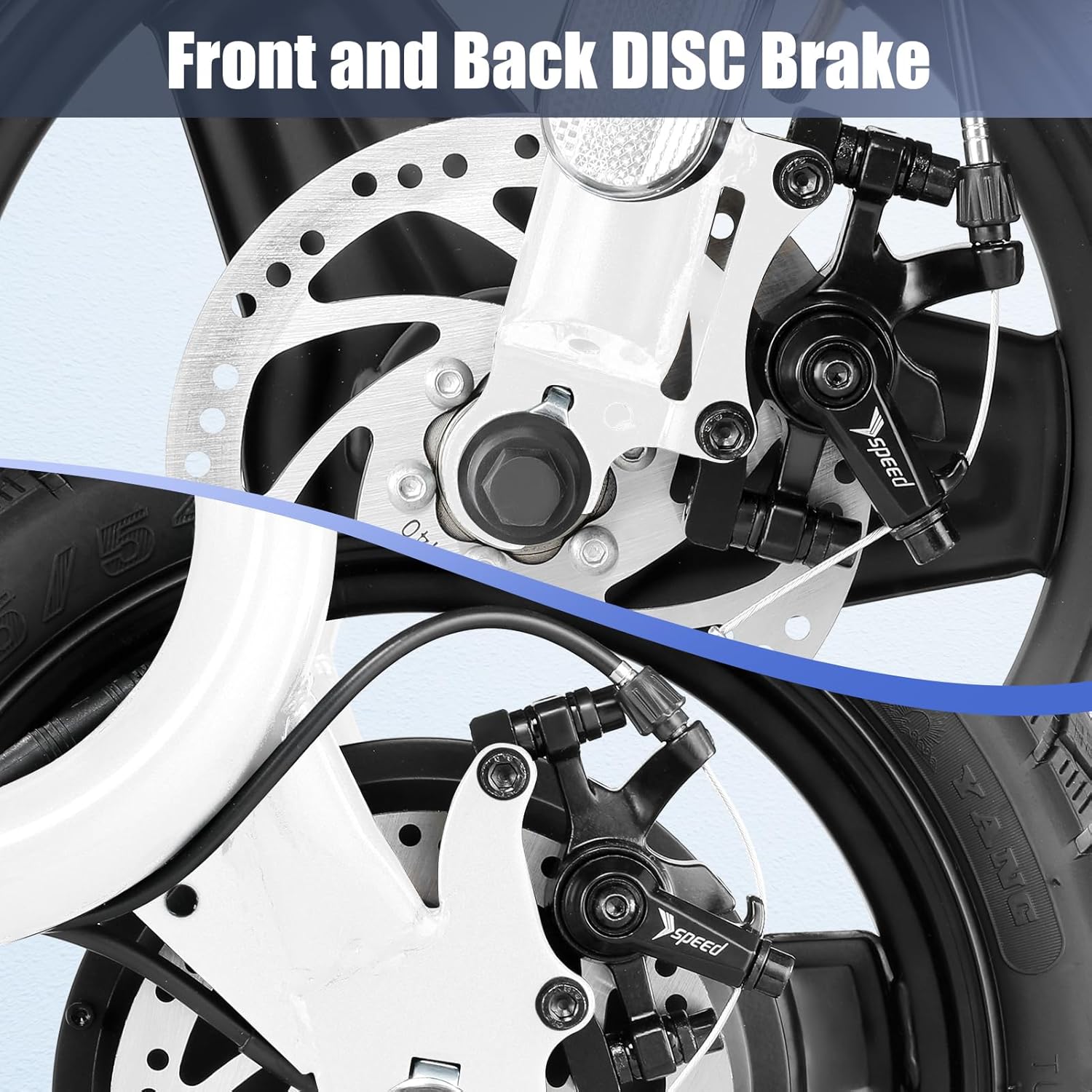

Brakes Disc Blaen ac Ar ôl
The scooter is equipped with responsive front and rear disc brakes for reliable stopping power.

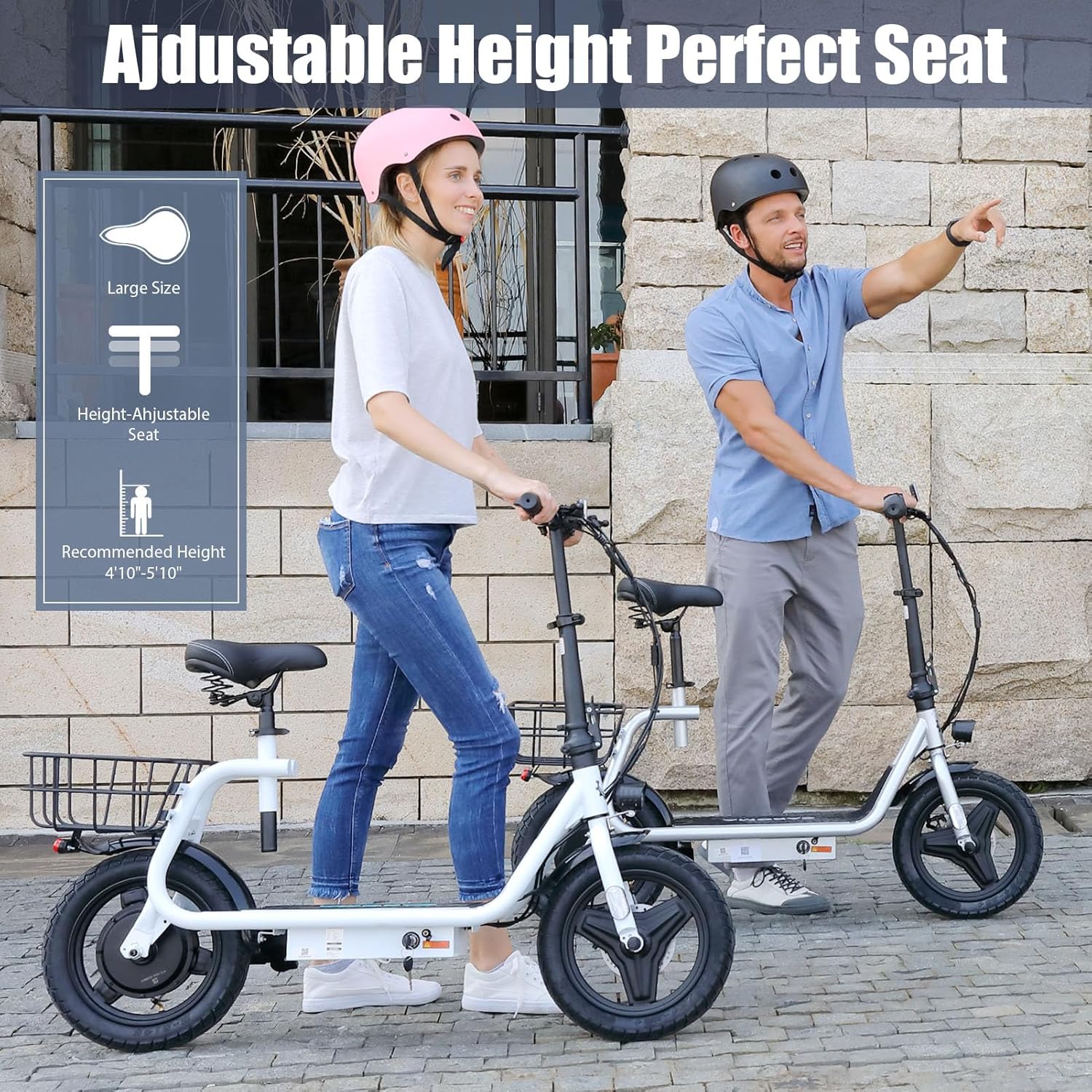

Adjustable Seat and Rear Basket
The comfortable seat is adjustable for various rider heights, and the rear basket provides convenient storage.
Gosod
The Caroma Peak Electric Scooter comes mostly assembled. Follow these steps to complete the setup:
- Install the Handlebar: Secure the handlebar to the main frame using the provided tools. Ensure it is firmly locked in place.
Video: Caroma P1 Electric Scooter Unboxing (Seller: Caroma US Pro) - Demonstrates handlebar installation.
- Gosod y Sedd: Attach the seat to the designated post on the scooter frame. Tighten the bolts securely.
Video: Caroma P1 Electric Scooter Unboxing (Seller: Caroma US Pro) - Demonstrates seat installation.
- Install the Basket: Secure the rear cargo basket to the frame using the provided screws and nuts. Ensure all connections are tight.
Video: Caroma P1 Electric Scooter Unboxing (Seller: Caroma US Pro) - Demonstrates basket installation.
- Tâl Cychwynnol: Fully charge the scooter's battery before its first use. The charging port is located on the underside of the scooter.
The charging port is typically located near the battery compartment on the underside of the scooter.
For a visual guide on assembly, refer to the "Caroma P1 Electric Scooter Unboxing" video provided by the seller.
Cyfarwyddiadau Gweithredu
- Pŵer ymlaen / i ffwrdd: Insert the key into the ignition located on the underside of the scooter and turn it to the 'ON' position. Long press the power button on the handlebar display to turn on the scooter. Repeat to turn off.
Video: Caroma Adult Electric Scooter Riding Experience (Seller: Caroma US Pro) - Shows power on and riding.
- Rheoli Cyflymder: Use the throttle on the right handlebar to control your speed. The scooter features multiple speed modes (e.g., Low 9.3 MPH, Middle 12.4 MPH, High 20 MPH) which can be selected via the display controls.
Video: Caroma P1 Electric Scooter Details (Seller: Caroma US Pro) - Explains speed modes and controls.
- Brecio: Apply the brake levers on the handlebars to engage the front and rear disc brakes. Apply both brakes simultaneously for optimal stopping power.
The scooter features dual disc brakes for effective stopping.
- Plygu: To fold the scooter for storage or transport, locate the folding mechanism on the handlebar stem. Release the latch and fold the handlebar down towards the deck.
The handlebar folds down for compact storage, making it easy to transport in car trunks.
Cynnal a chadw
- Gofal Batri:
Charge the battery fully after each use, especially if storing for extended periods. Avoid completely draining the battery.
Mae'r amser codi tâl tua 4 awr.
Illustration of the scooter's battery cells, emphasizing proper charging for longevity.
- Pwysedd teiars:
Regularly check and maintain the recommended tire pressure for optimal performance and safety. The 14-inch fat tires provide excellent shock absorption.
The 14-inch fat tires contribute to a comfortable ride by absorbing shocks.
- Addasiad Brake:
Ensure brake levers are responsive and provide adequate stopping power. Adjust if necessary according to the detailed instructions in the full manual.
Visual representation of the disc brake system, highlighting its importance for safety.
- Glanhau cyffredinol:
Glanhewch y sgwter yn rheolaidd gydag hysbysebamp brethyn. Osgowch ddefnyddio jetiau dŵr pwysedd uchel yn uniongyrchol ar gydrannau trydanol.
Datrys problemau
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Sgwter ddim yn troi ymlaen | Battery low/dead; Key not in ON position; Loose connection | Charge battery; Ensure key is ON; Check all visible connections |
| Ystod/cyflymder llai | Low tire pressure; Overload; Battery degradation | Inflate tires to recommended pressure; Reduce load; Contact support for battery check |
| Breciau ddim yn effeithiol | Cebl brêc yn rhydd; Padiau brêc wedi treulio | Adjust brake cable tension; Replace brake pads (professional service recommended) |
Manylebau
| Nodwedd | Manylyn |
|---|---|
| Enw Model | P2 |
| Pŵer Modur | 350W (Uchafbwynt 560W) |
| Batri | 36V Lithium (500Wh) |
| Ystod Max | Hyd at 15 milltir |
| Cyflymder Uchaf | Hyd at 20 MYA |
| Llwyth Uchaf | 300 Bunt |
| Maint Teiars | 14 Modfedd (Teiars Tew) |
| System frecio | Dual Disc Brakes (Front & Rear) |
| Ataliad | Atal Deuol |
| Pwysau Eitem | 65 Bunt |
| Amser Codi Tâl | 4 Awr |
Gwarant a Chefnogaeth
Caroma provides a 12 Months Warranty for this electric scooter.
For customer support, please refer to the contact information provided with your purchase or visit the official Caroma websafle.
The scooter has passed UL2272 certification, ensuring it meets stringent safety standards.
For additional information and product details, you may visit the official Caroma Store on Amazon: Caroma Store.
