Garvee 4-Tier 72-inch Stainless Steel Heavy Duty Storage Shelf

Rhagymadrodd

Thank you for choosing the Garvee 4-Tier 72-inch Stainless Steel Heavy Duty Storage Shelf. This adjustable shelving unit is designed for robust storage solutions in various environments, including kitchens, garages, offices, restaurants, and warehouses. Its durable stainless steel construction ensures longevity and ease of maintenance. This manual provides essential information for safe assembly, operation, and care of your new storage shelf.

Image: The Garvee 4-Tier Stainless Steel Storage Shelf, showcasing its capacity with various items.

Gwybodaeth Diogelwch

Please read all safety instructions carefully before assembly and use.

• Terfyn pwysau: Do not exceed the maximum weight limit of 330 pounds (approximately 150 kg) per shelf. Overloading can lead to structural failure and injury.
• Cynulliad: Always follow the assembly instructions precisely for safe installation and use. Ensure all connections are secure before placing items on the shelves.
• Lleoliad: Place the shelving unit on a flat, stable, and level surface to prevent tipping.
• Plant: Keep children away from the shelving unit during assembly. Do not allow children to climb on the shelves.
• Ymylon Sharp: While edges are polished for safety, exercise caution during handling and assembly.

Cynnwys Pecyn

Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact Garvee customer support.

• 4 x Stainless Steel Shelf Panels
• 8 x Vertical Support Posts (Upper and Lower sections)
• 8 x Post Connectors
• 4 x Adjustable Leveling Feet
• Caledwedd Cydosod (sgriwiau, cnau, ac ati)
• Llawlyfr Cyfarwyddiadau

Cyfarwyddiadau Cymanfa

Assembly of the Garvee Stainless Steel Storage Shelf is designed to be straightforward. It is recommended to have two people for easier and safer assembly.

1. Paratoi'r Ardal: Clear a spacious, flat area for assembly. Ensure all components are unpacked and accessible.
2. Assemble Posts: Connect the upper and lower sections of the vertical support posts using the provided connectors. Ensure they are securely fastened.
3. Attach Leveling Feet: Screw the adjustable leveling feet into the bottom of each assembled vertical support post.
4. Install End Tiers: Attach the first and last shelf panels to the vertical posts. Ensure the shelves are oriented correctly and all fasteners are tightened.
5. Install Remaining Tiers: Insert the remaining shelf panels between the vertical posts at your desired heights. The shelves are adjustable in 2-inch increments. Secure each shelf firmly.
6. Gwiriad Terfynol: Once all shelves are installed, double-check all connections to ensure they are tight and secure. Adjust the leveling feet to ensure the unit is stable and does not wobble.

Image: Visual guide for the assembly process of the shelving unit.

Gweithrediad

Adjustable Height Shelving

The Garvee storage shelf offers flexible storage options. Each tier's height can be adjusted up or down in 2-inch increments. This allows you to customize the spacing between shelves to accommodate items of various sizes. You can also remove a middle tier entirely to create larger vertical storage space if needed.

Image: Detail of the rotatable height adjustment and non-slip base design.

Weight-Bearing Capacity

Each individual shelf is designed to support over 330 pounds (approximately 150 kg). For optimal stability and to maximize the weight capacity, ensure items are distributed evenly across the shelf surface. The overall structure is reinforced with support beams underneath the shelves and extra reinforcement at each shelf-to-leg connection, contributing to reliable stability.

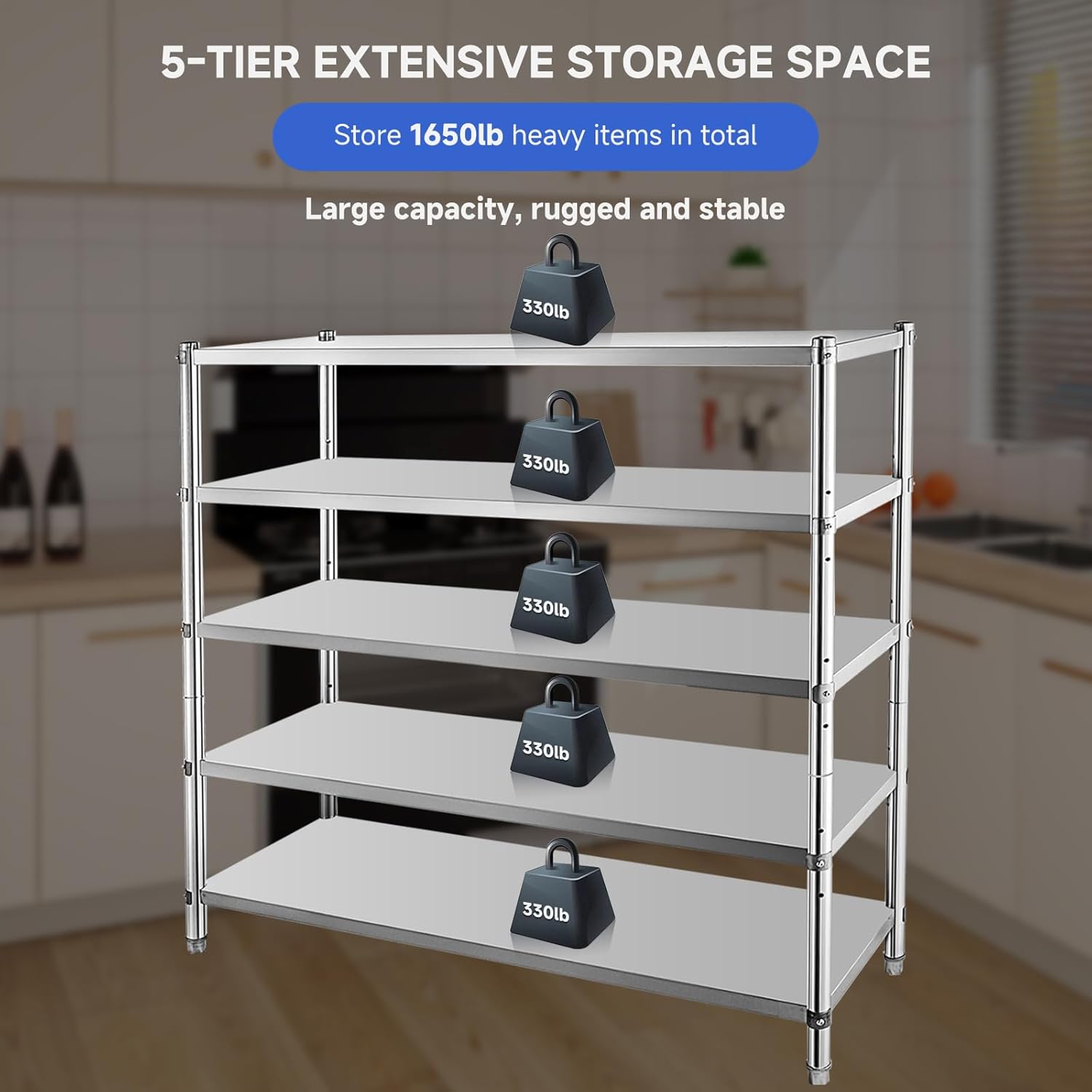

Image: Illustration of the 330lb weight capacity per shelf.

Cynnal a chadw

The Garvee Stainless Steel Storage Shelf is designed for durability and easy care.

• Glanhau: Wipe the polished stainless steel surfaces with a dry cloth. For stubborn marks, a damp cloth with mild soap can be used, followed by drying thoroughly to prevent water spots. Avoid abrasive cleaners or scouring pads, which can scratch the finish.
• Arolygiad: Periodically check all fasteners and connections to ensure they remain tight. Retighten if necessary to maintain stability.
• Atal Rwd: While stainless steel is rust-resistant, prolonged exposure to harsh chemicals or standing water can affect its finish. Clean spills promptly.

Image: Key features of the durable stainless steel construction.

Datrys problemau

This section addresses common issues you might encounter with your Garvee storage shelf.

• Uned Sigledig: If the shelf wobbles, ensure it is placed on a level surface. Adjust the leveling feet at the bottom of each post until the unit is stable. Also, check that all shelf connections to the posts are securely tightened.
• Difficulty Adjusting Shelf Height: Ensure that the shelf is not under load when attempting to adjust its height. Loosen the fasteners slightly, adjust the shelf to the desired position, and then retighten securely.
• Crafiadau ar yr wyneb: While the stainless steel is scratch-resistant, heavy impact or abrasive materials can cause scratches. Use appropriate care during handling and cleaning.

Manylebau

Delwedd: Dros dimensiwnview of the Garvee 4-Tier Storage Shelf.

Gwarant a Chefnogaeth

Garvee is committed to providing quality products. While specific warranty details are not provided in this manual, please retain your proof of purchase. For any questions, concerns, or to report missing/damaged parts, please contact Garvee customer support through the retailer where the product was purchased or visit the official Garvee websafle ar gyfer gwybodaeth cyswllt.
