1. Rhagymadrodd
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Novorik 400W Macerator Pump. This pump is designed to handle wastewater from toilets, sinks, showers, and bathtubs, making it suitable for basement installations or areas below the main sewer line. Please read these instructions thoroughly before installation and use.

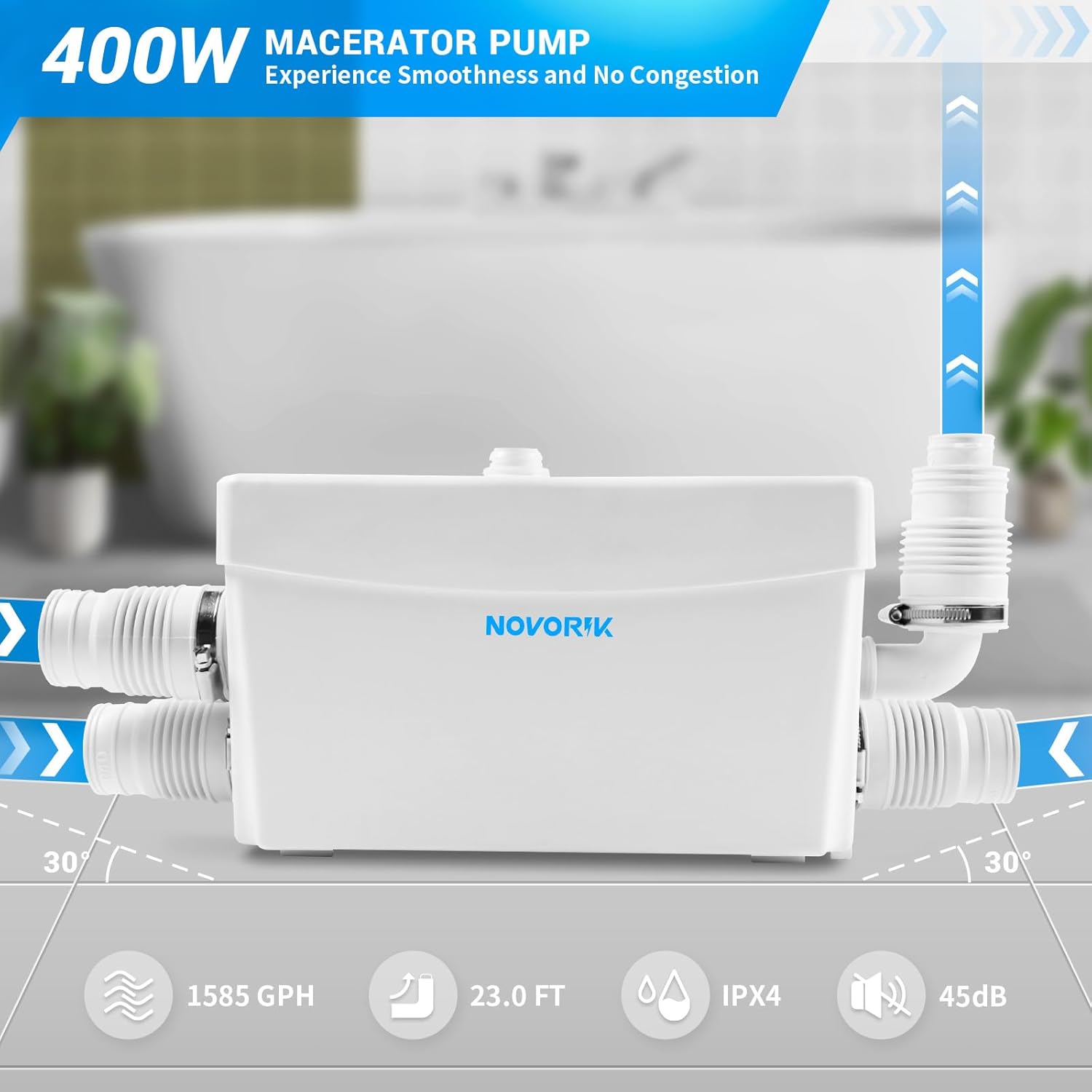

Image 1.1: Novorik 400W Macerator Pump showing key performance indicators like 1585 GPH flow rate, 23.0 FT lift, IPX4 waterproof rating, and 45dB noise level.
2. Gwybodaeth Diogelwch
- Datgysylltwch y cyflenwad pŵer bob amser cyn gwneud unrhyw osod, cynnal a chadw neu ddatrys problemau.
- Sicrhewch fod yr holl gysylltiadau trydanol yn cydymffurfio â chodau a rheoliadau lleol.
- Peidiwch â gweithredu'r pwmp os yw'r llinyn pŵer neu'r plwg wedi'i ddifrodi.
- Mae'r pwmp hwn wedi'i gynllunio ar gyfer dŵr gwastraff domestig yn unig. Peidiwch â phwmpio hylifau fflamadwy, cemegau cyrydol, na gwrthrychau solet sy'n fwy na'r hyn a bennir.
- Sicrhewch awyru digonol o amgylch y pwmp i atal gorboethi.
- The pump is rated IPX4 for water resistance; however, direct rinsing with water is not recommended.
3. Cynnyrch Drosview a Chydrannau
The Novorik 400W Macerator Pump features a compact design with multiple inlets for flexible installation. It includes a pure copper motor for efficient operation and stainless steel blades for waste maceration.
Nodweddion Allweddol:
- Gosodiad Hyblyg: Equipped with 3 water inlets, allowing connections to various fixtures such as washing machines, sinks, showers, and bathtubs. The side outlet design optimizes lift and reduces the need for excessive elbows.
- Perfformiad pwerus: The 400W pure copper motor efficiently transports wastewater at approximately 27 gallons per minute (1585 GPH), capable of lifting water up to 23 feet vertically.
- Automatic and Manual Drainage: Features both automatic drainage, activating when water reaches a set level, and a manual test button for controlled drainage.
- Gwydnwch a Diogelwch: The pure copper motor withstands temperatures up to 194°F (90°C) and is equipped with stainless steel blades to prevent pipe clogs. The unit has an IPX4 waterproof rating and operates below 45dB.
- Dyluniad Compact: Suitable for shallow spaces, with a built-in check valve to prevent liquid backflow and an enclosed design to trap odors.
Image 3.1: Packing list showing the macerator pump, check valve, rubber tubes, and snap hoops. Dimensions are approximately 13.8 inches (L) x 7.9 inches (W) x 10.6 inches (H).
4. Gosod a Gosod
Proper installation is crucial for the pump's performance and longevity. It is recommended that installation be performed by a qualified professional.
Camau Gosod:
- Lleoliad: Position the macerator pump in a location that allows for easy access for maintenance and connection to the wastewater fixtures. Ensure it is on a stable, level surface.
- Cysylltiadau Mewnfa: Connect the wastewater pipes from your toilet, sink, shower, or washing machine to the designated inlet ports on the pump. The pump features three 40mm inlets. Ensure all connections are secure and watertight using the provided rubber tubes and snap hoops.
- Cysylltiad Allfa: Connect the pump's outlet to your main sewer line. The outlet pipe size is adaptable (25/32/40/48mm). The pump includes a built-in check valve to prevent backflow. Ensure the outlet pipe has a continuous upward slope to the main sewer line. For specific pipe sizes, especially in regions using imperial measurements, adapters may be required (e.g., for 1-1/2 inch pipes).
- Awyru: Ensure the pump is properly vented according to local plumbing codes.
- Cysylltiad Trydanol: Connect the pump to a dedicated 120V electrical outlet. Ensure the circuit is protected by a Ground Fault Circuit Interrupter (GFCI).
- Profi: After all connections are made, slowly introduce water into the system to check for leaks and proper operation.
Image 4.1: Diagram illustrating applicable pipe sizes for the macerator pump's inlets (40mm) and adaptable outlet (25/32/40/48mm).
Delwedd 4.2: Enghraifftample installation of the Novorik Macerator Pump discreetly placed under a sink cabinet.
5. Cyfarwyddiadau Gweithredu
The Novorik 400W Macerator Pump is designed for automatic operation.
Gweithrediad Awtomatig:
Once properly installed and connected to power, the pump will automatically activate when wastewater enters the unit and reaches a predetermined level. It will then macerate the waste and pump it out to the main sewer line. The pump will automatically shut off once the water level drops.
Draenio â Llaw:
A manual switch is provided on the unit for testing purposes or for initiating drainage manually if needed. Pressing this button will activate the pump regardless of the water level. Ensure the pump is not run dry for extended periods.

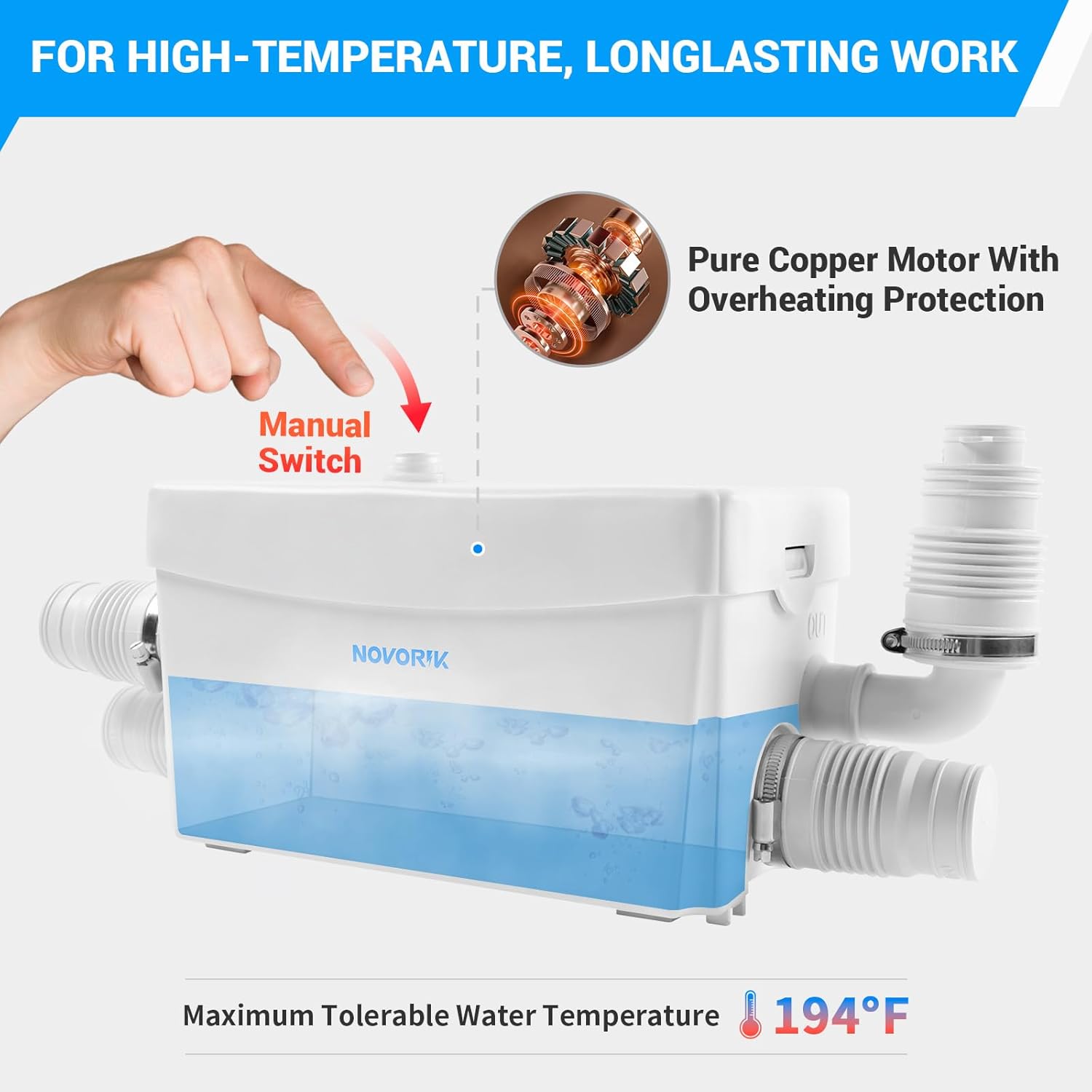

Image 5.1: Novorik Macerator Pump highlighting the manual switch and the pure copper motor with overheating protection, capable of handling water up to 194°F.
6. cynnal
Regular maintenance ensures optimal performance and extends the lifespan of your macerator pump.
- Arolygiad Rheolaidd: Periodically inspect the pump and all connections for any signs of leaks, damage, or unusual wear.
- Blade Functionality: The stainless steel blades are designed to cut through hair and other debris. To maintain efficiency, avoid introducing excessive non-biodegradable materials into the system.
- Rheoli aroglau: The enclosed design helps trap odors. If odors persist, check for proper sealing of all connections and ensure the ventilation system is clear.
- Glanhau: If necessary, disconnect power and carefully clean the exterior of the pump. Do not use harsh chemicals or abrasive cleaners. Avoid direct rinsing with water.
- Gaeafu: If the pump is installed in an unheated area subject to freezing temperatures, ensure the system is drained and winterized according to standard plumbing practices to prevent damage.
7. Datrys Problemau
If you encounter issues with your Novorik Macerator Pump, refer to the following troubleshooting guide:
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Nid yw pwmp yn troi ymlaen | No power supply; tripped GFCI; faulty wiring. | Check power connection; reset GFCI; inspect wiring (by a professional). |
| Pump runs but does not discharge water | Blocked inlet/outlet; stuck check valve; airlock; insufficient water. | Disconnect power and clear blockages; check check valve operation; ensure adequate water supply. |
| Dŵr yn gollwng o gysylltiadau | Loose connections; damaged seals/gaskets. | Tighten all connections; replace damaged seals/gaskets. |
| Gormod o sŵn neu ddirgryniad | Foreign object in pump; improper mounting; worn motor bearings. | Disconnect power and check for foreign objects; ensure pump is securely mounted; contact support if motor issue is suspected. |
| Foaming from vent hole | Excessive use of foaming detergents/soaps. | Reduce the amount of foaming agents used in connected fixtures. |
Os yw'r broblem yn parhau ar ôl rhoi cynnig ar yr atebion hyn, cysylltwch â chymorth cwsmeriaid.
8. manylebau
Detailed technical specifications for the Novorik 400W Macerator Pump:
| Nodwedd | Manyleb |
|---|---|
| Brand | novorik |
| Rhif Model | Macerator Pump123 |
| Arddull | 400W |
| Lliw | Gwyn |
| Deunydd | Copper motor, Plastic |
| Dimensiynau Cynnyrch (L x W x H) | 13" x 7" x 10" (33cm x 17.8cm x 25.4cm) |
| Pwysau Eitem | 12.54 pwys (5.7 cilogram) |
| Ffynhonnell Pwer | Trydan Corded |
| Cyftage | 120 folt |
| Wattage | 400 wat |
| Cyfradd Llif Uchaf | 26.42 Gallons Per Minute (1585 GPH) |
| Uchder Codi Uchaf | 23 Traed |
| Graddfa dal dwr | IPX4 |
| Lefel Sŵn | O dan 45dB |
| Tymheredd Uchaf y Dŵr | 194°F (90°C) |
| Cydrannau wedi'u Cynnwys | Macerator Pump, Check Valve, Rubber Tubes, Snap Hoops |
9. Gwarant a Chefnogaeth
For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. Warranty terms and conditions may vary.
For technical support, replacement parts, or any questions not covered in this manual, please contact Novorik customer service or your authorized dealer. Please have your model number (Macerator Pump123) and purchase date available when contacting support.
