Gronk Fitness Selectorized Dual Leg Extension/Leg Curl Llawlyfr Cyfarwyddiadau

Rhagymadrodd

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Gronk Fitness Selectorized Dual Leg Extension/Leg Curl machine. Designed for effective lower body strength training, this machine allows users to perform both leg extensions and leg curls with a 220 LBS weight stack. Please read this manual thoroughly before assembly and use to ensure safe and optimal performance.

Gwybodaeth Ddiogelwch Bwysig

Before using this equipment, consult with a physician. It is essential to understand all safety warnings and instructions. Failure to do so may result in serious injury or death.

• Always inspect the machine for loose parts, damaged cables, or worn components before each use. Do not use if any damage is present.
• Gwnewch yn siŵr bod yr holl folltau a chnau wedi'u tynhau'n ddiogel cyn ac yn ystod eu defnyddio.
• Cadwch blant ac anifeiliaid anwes i ffwrdd o'r offer yn ystod y llawdriniaeth.
• Use the machine only for its intended purpose as described in this manual.
• Do not exceed the maximum weight capacity of the machine (220 LBS weight stack).
• Perform exercises with controlled movements. Avoid sudden jerking or dropping weights.
• Gwisgwch esgidiau a dillad athletaidd priodol.
• If you experience pain or dizziness, stop exercising immediately.
• Maintain a clear area of at least 2 feet around the machine during use.

Rhestr Cydrannau a Rhannau

Cyn dechrau cydosod, gwiriwch fod yr holl gydrannau yn bresennol ac yn ddi-ddifrod. Cyfeiriwch at y diagram isod i'w hadnabod.

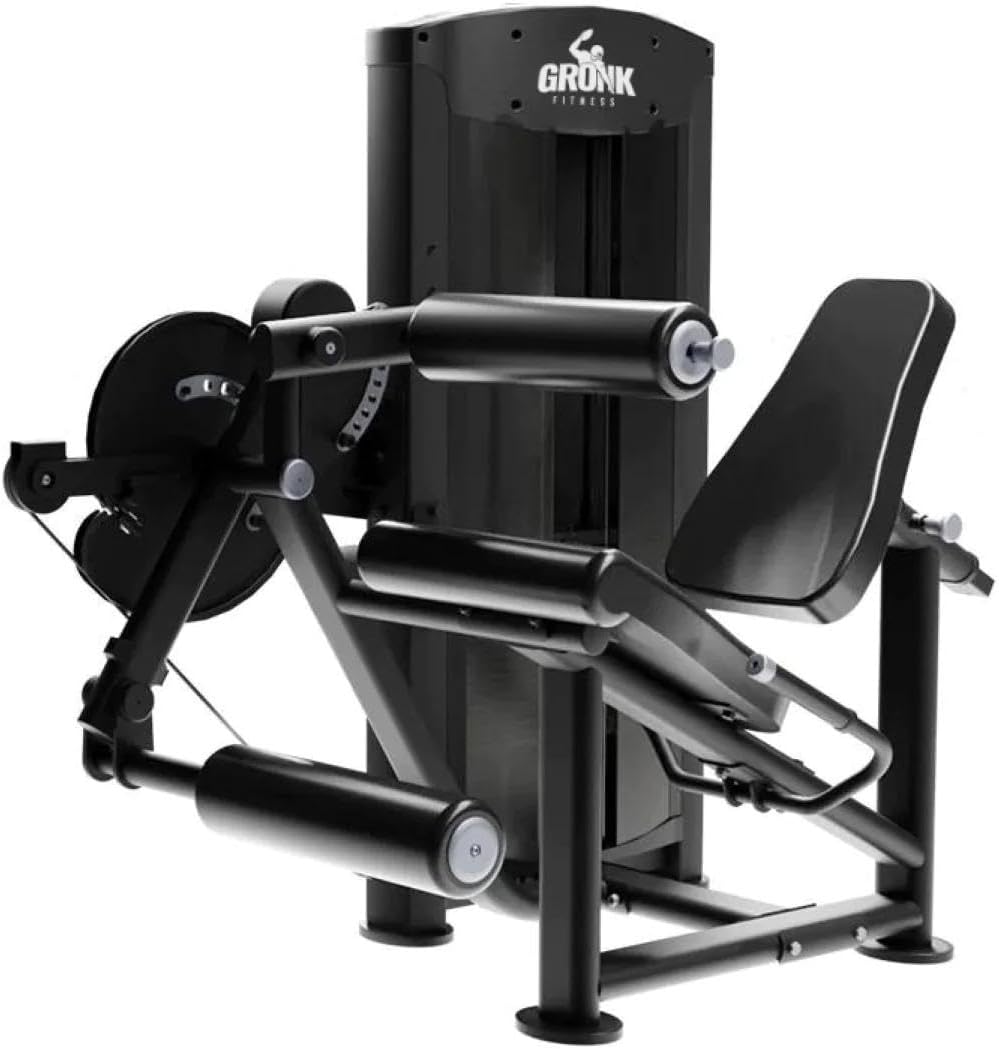

Ffigur 1: Drosoddview of the Gronk Fitness Selectorized Dual Leg Extension/Leg Curl peiriant.

• Cynulliad Prif Ffrâm
• Weight Stack (220 LBS)
• Seat Pad and Backrest
• Estyniad Coes/Curl Arm with Roller Pads
• Adjustment Mechanisms (for seat, backrest, and leg arm)
• Cables and Pulleys
• Weight Stack Pin (Aluminum)
• Pecyn Caledwedd (bolltau, golchwyr, cnau)
• Tools (if included)

Gosod a Chynulliad

Assembly requires two people and basic tools. Follow these steps carefully.

1. Dadbacio a Threfnu: Carefully remove all components from the packaging. Lay them out on a clean, flat surface. Identify all parts using the Components List.
2. Cydosod y Prif Ffrâm: Attach the base stabilizers to the main upright frame using the provided bolts and washers. Ensure all connections are snug but do not fully tighten yet.
3. Install Weight Stack: Carefully slide the weight plates onto the guide rods. Ensure the top plate with the selector pin mechanism is correctly oriented.
4. Atodwch y Sedd a'r Cefn: Secure the seat pad and backrest to their respective mounting points on the frame. Adjust the seat and backrest to a comfortable position, if adjustable.
5. Connect Leg Arm Assembly: Attach the leg extension/curl arm to the main frame, ensuring the pivot points are correctly aligned. Connect the cables to the appropriate pulleys and the leg arm. Refer to the cable routing diagram (if available in physical manual).
6. Tynhau Terfynol: Once all components are assembled, systematically tighten all bolts and nuts. Double-check every connection for security.
7. Ymarferoldeb Prawf: Before full use, perform a few repetitions with light weight to ensure smooth operation of the cables, pulleys, and adjustment mechanisms.

Ffigur 2: Ochr view illustrating the machine's structure and adjustment points.

Cyfarwyddiadau Gweithredu

This machine is designed for both leg extensions and leg curls. Proper form and adjustment are crucial for effective and safe workouts.

1. Leg Extension Exercise

• Adjust Seat and Backrest: Position the seat and backrest so your knees align with the machine's pivot point. Your back should be firmly against the backrest.
• Adjust Leg Arm: Ensure the roller pad rests comfortably on your lower shins, just above your ankles.
• Select Weight: Insert the aluminum weight stack pin into the desired weight plate.
• Cyflawni:
  1. Sit on the machine with your back straight and feet under the roller pad.
  2. Grasp the handles for stability.
  3. Extend your legs fully, contracting your quadriceps at the top of the movement.
  4. Slowly lower the weight back to the starting position, maintaining control.

2. Leg Curl Ymarfer corff

• Adjust Seat and Backrest: For leg curls, you will typically lie prone (face down) or sit upright depending on the machine's configuration. For this dual machine, adjust the backrest to allow for a comfortable seated leg curl position, or if designed for prone, adjust accordingly.
• Adjust Leg Arm: Position the roller pad to rest comfortably on your Achilles tendon or lower calves.
• Select Weight: Insert the aluminum weight stack pin into the desired weight plate.
• Cyflawni:
  1. Sit on the machine with your back straight and the roller pad behind your ankles.
  2. Grasp the handles for stability.
  3. Curl your legs upwards, contracting your hamstrings.
  4. Slowly lower the weight back to the starting position, maintaining control.

Figure 3: Detail of the weight stack and aluminum weight selection pin.

Cynnal a chadw

Regular maintenance ensures the longevity and safe operation of your Gronk Fitness machine.

• Glanhau: Sychwch y peiriant gydag adamp cloth after each use to remove sweat and dirt. Use a mild, non-abrasive cleaner if necessary. Avoid harsh chemicals.
• Inspection (Weekly/Bi-weekly):
  • Check all bolts, nuts, and fasteners for tightness. Tighten as needed.
  • Archwiliwch geblau am rwygo, plygiadau, neu draul. Amnewidiwch geblau sydd wedi'u difrodi ar unwaith.
  • Archwiliwch y pwlïau am gylchdro llyfn ac unrhyw arwyddion o ddifrod.
  • Check upholstery for tears or excessive wear.
• Iro (Misol): Apply a silicone-based lubricant to guide rods and pivot points to ensure smooth movement. Do not use oil-based lubricants on cables.
• Storio: Store the machine in a dry, climate-controlled environment to prevent rust and material degradation.

Datrys problemau

Mae'r adran hon yn mynd i'r afael â phroblemau cyffredin y gallech ddod ar eu traws.

Manylebau

Gwarant a Chefnogaeth

Your Gronk Fitness Selectorized Dual Leg Extension/Leg Curl machine comes with a Gwarant 1 mlynedd covering manufacturing defects. For warranty claims, technical assistance, or to order replacement parts, please contact Gronk Fitness customer support.

For the most up-to-date contact information and support resources, please visit the official Gronk Fitness websafle neu cyfeiriwch at y manylion cyswllt a ddarparwyd gyda'ch dogfennaeth prynu.

Adnoddau Ar-lein: Gronk Fitness Amazon Store
