WAMPAT TV Stand Model W11S4082Q+W04S-3060Q User Manual

1. Gwybodaeth Bwysig am Ddiogelwch

Darllenwch yr holl gyfarwyddiadau yn ofalus cyn eu cydosod a'u defnyddio. Cadwch y llawlyfr hwn i gyfeirio ato yn y dyfodol.

• Cynhwysedd Pwysau: Do not exceed the maximum weight capacity of 200 pounds (90.7 kg) for the TV stand. Overloading can cause instability and potential injury.
• Cynulliad: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all parts are securely fastened before use.
• Sefydlogrwydd: For added safety, consider anchoring the TV stand to a wall, especially if children or pets are present. Wall anchoring hardware may not be included.
• Electrical Safety (LED Lights): Ensure the LED light strip is installed and connected according to instructions. Do not expose electrical components to water or excessive moisture.
• Plant: Cadwch rannau bach a deunyddiau pecynnu i ffwrdd o blant yn ystod y cydosod.

2. Cynnwys Pecyn

Gwiriwch fod yr holl gydrannau yn bresennol cyn dechrau cydosod. Os oes unrhyw rannau ar goll neu wedi'u difrodi, cysylltwch â chymorth cwsmeriaid.

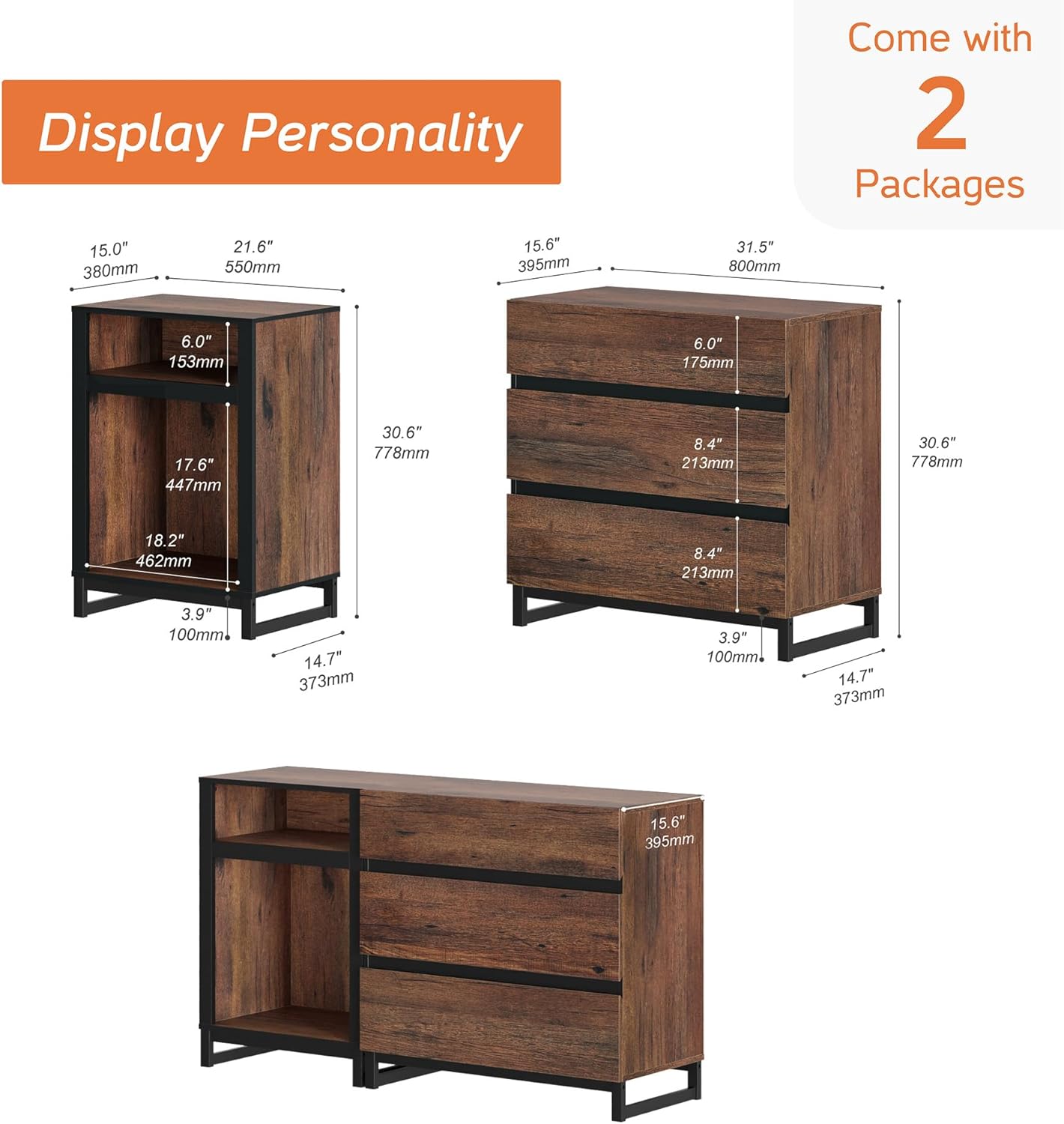

Image: Detailed diagram illustrating the dimensions of the individual components of the TV stand, including the open shelving unit and the three-drawer cabinet. This helps in identifying parts and understanding the overall structure.

2.1 Parts List (Example - refer to actual manual for full list)

• Main Top Panel
• Side Panels (Left, Right)
• Paneli Gwaelod
• Paneli Cefn
• Drawer Fronts, Sides, and Backs
• Gwaelodion Drôr
• Metal Legs/Base
• Llain Golau LED
• Hardware Pack (Screws, Dowels, Cam Locks, Drawer Slides, etc.)

2.2 Hardware List (Example - refer to actual manual for full list)

• Bolltau Cam
• Cloeon Cam
• Hoelbren Pren
• Screws (various types)
• Drawer Slides (Left & Right)
• Allen Wrench
• LED Light Controller and Power Adapter

3. Cyfarwyddiadau Cymanfa

Follow these steps carefully. It is recommended to have two people for assembly.

1. Paratoi'r Ardal: Clear a spacious, clean, and soft area for assembly to prevent damage to the furniture.
2. Adnabod Rhannau: Lay out all panels and hardware. Match them with the diagrams in your included instruction booklet. Each part is typically labeled with a code.
3. Cydosod y Sylfaen: Attach the metal legs to the bottom panels of both the open shelf unit and the drawer unit using the provided screws. Ensure they are securely tightened.


   Image: Close-up details of the TV stand, highlighting the sturdy metal feet, the sleek handleless design of the drawers, and the smooth operation of the metal drawer slides. This image provides visual guidance for assembly steps involving these components.

4. Construct the Open Shelf Unit:
   • Insert wood dowels and cam bolts into the designated holes on the side panels.
   • Attach the top and bottom panels to the side panels using cam locks.
   • Slide the back panel into the grooves.
5. Construct the Drawer Unit:
   • Assemble the drawer boxes by attaching the sides, front, and back panels, then slide in the drawer bottoms.
   • Install the drawer slides onto the inner side panels of the main unit and onto the assembled drawer boxes.
   • Attach the main top and bottom panels to the side panels using cam locks and dowels.
   • Slide the back panel into the grooves.
6. Join the Units: Carefully align and connect the open shelf unit and the drawer unit using the provided connectors or screws, ensuring a flush fit.
7. Gosod Goleuadau LED:
   • Glanhewch yr wyneb lle bydd y stribed LED yn cael ei gymhwyso.
   • Peel off the adhesive backing from the LED strip and carefully press it onto the desired location within the open shelf compartment.
   • Connect the LED strip to the controller and then to the power adapter.
   • Plygiwch yr addasydd pŵer i mewn i allfa wal.
8. Gwiriad Terfynol: Ensure all screws and fasteners are tight. Gently move the unit to its desired location.

4. Cyfarwyddiadau Gweithredu (Goleuadau LED)

Mae'r WAMPAT TV Stand features integrated LED lighting to enhance your living space.

4.1 Pweru Ymlaen/Diffodd

• Once the LED light strip is connected to the power adapter and plugged into an outlet, it should be ready for operation.
• Use the provided remote control or inline switch (if applicable) to turn the lights on or off.

4.2 Changing Colors and Modes

• The LED lights offer 16 changeable colors. Use the color selection buttons on the remote control to choose your desired hue.
• Various modes (e.g., flash, strobe, fade, smooth) may be available. Refer to the specific LED light remote control instructions for detailed mode selection.
• Adjust brightness using the designated buttons on the remote.

Image: The WAMPAT TV Stand displayed in a modern living room, showcasing the blue LED lighting within the open shelf, providing ambient illumination.

Image: The WAMPAT TV Stand positioned in a dining room, featuring the purple LED lighting in the open shelf area, demonstrating its versatility in different home environments.

5. Cynnal a Chadw a Gofal

Bydd gofal priodol yn helpu i gynnal ymddangosiad a hirhoedledd eich stondin deledu.

• Glanhau: Sychwch yr arwynebau gyda lliain sych, meddal. Ar gyfer marciau ystyfnig, defnyddiwch ychydig o lliainamp gellir defnyddio lliain ac yna lliain sych. Osgowch lanhawyr sgraffiniol neu gemegau llym.
• Gollyngiadau: Immediately wipe up any spills to prevent damage to the engineered wood finish.
• Golau'r haul: Osgowch amlygiad hirfaith i olau haul uniongyrchol i atal pylu neu afliwio.
• Gwres a Lleithder: Keep the unit away from direct heat sources and areas of high humidity.
• Caledwedd: Gwiriwch yr holl sgriwiau a chauwyr yn rheolaidd i sicrhau eu bod yn dal yn dynn. Ail-dynhewch os oes angen.

6. Datrys Problemau

Cyfeiriwch at yr adran hon am broblemau cyffredin a'u datrysiadau.

7. Manylebau Cynnyrch

Detailed specifications for the WAMPAT TV Stand.

Image: A visual representation of the TV stand with superimposed outlines of 40-inch, 50-inch, and 60-inch televisions, demonstrating the recommended TV size compatibility.

8. Gwarant a Chymorth i Gwsmeriaid

WAMPAT stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your purchase or visit the official WAMPAT websafle.

If you encounter any issues, require replacement parts, or have questions regarding assembly or operation, please contact WAMPAT customer support:

• Cymorth Ar-lein: Ymwelwch â'r WAMPAT Store on Amazon am Gwestiynau Cyffredin a gwybodaeth gyswllt.
• E-bost: Cyfeiriwch at eich dogfennaeth prynu am gymorth e-bost uniongyrchol.

Please have your model number (W11S4082Q+W04S-3060Q) and purchase date ready when contacting support.
