Villeroy & Boch Oberon 2.0 Duo Bathtub Instruction Manual

1. Cynnyrch Drosview

The Villeroy & Boch Oberon 2.0 Duo is a high-quality rectangular built-in bathtub designed for comfort and durability. Constructed from Quaryl®, a robust and skin-friendly material, this bathtub offers excellent heat retention and a smooth, non-porous surface for easy cleaning.

• Model: Oberon 2.0 Duo (UBQ170OBR2DV)
• Dimensiynau: 1700 mm (hyd) x 750 mm (lled)
• Dyfnder Mewnol: 470 mm
• Deunydd: Quaryl®
• Cynhwysedd: 168 liters (including one person)
• Draen: Central drain
• Wedi'i gynnwys: Matching chrome and alpine white waste and overflow kit (standard). For Black Matt (33) and Stone White (RW) bathtubs, a drain cover in the same color is supplied.

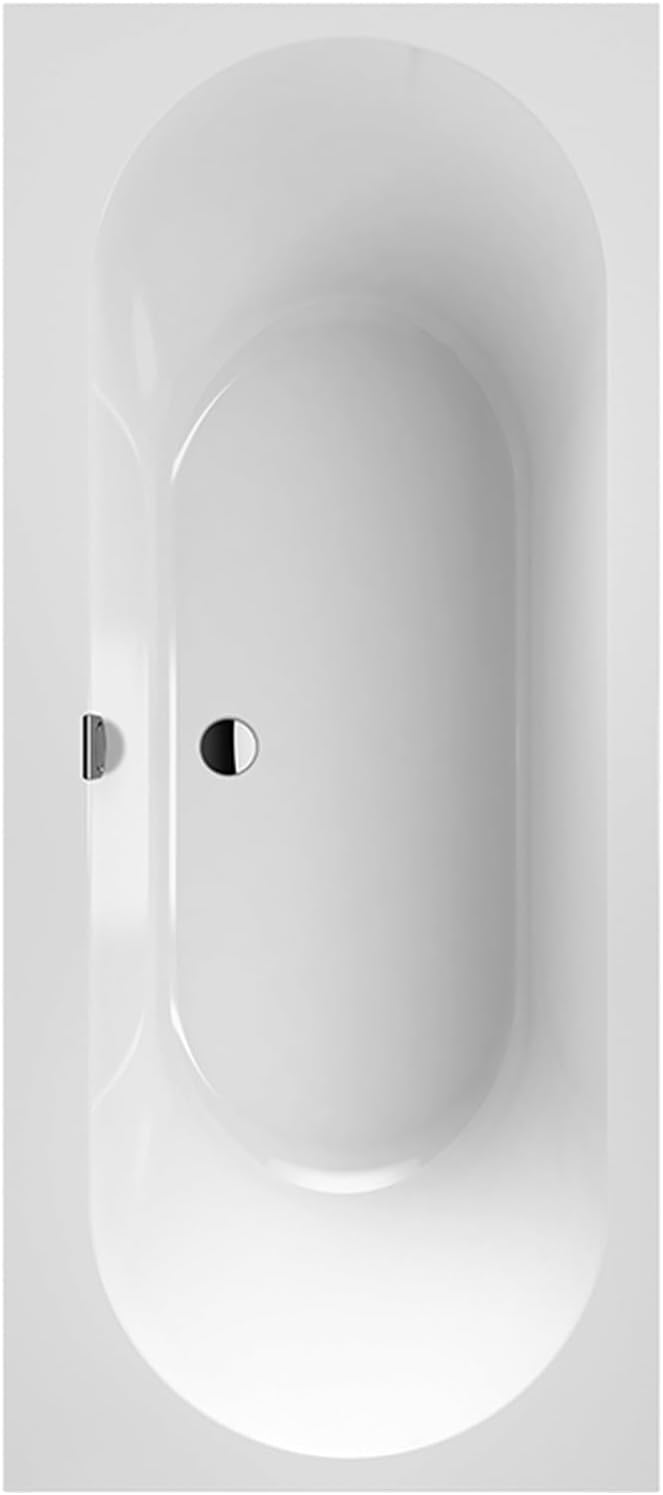

Ffigur 1: O'r brig i lawr view of the Oberon 2.0 Duo bathtub, highlighting the spacious interior and central drain.

2. Gwybodaeth Diogelwch

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in injury or damage to the product.

• Installation should only be performed by qualified professionals in accordance with local building and plumbing codes.
• Ensure the floor structure can support the weight of the filled bathtub and its user(s).
• Do not use abrasive cleaners or harsh chemicals on the bathtub surface.
• Always test water temperature before entering the bathtub to prevent scalding.
• Cadwch blant oruchwyliedig pan fyddant yn agos at neu yn y bath.

3. Gosod

The Villeroy & Boch Oberon 2.0 Duo bathtub is designed for built-in installation. Professional installation is highly recommended to ensure proper fitting, sealing, and connection to plumbing systems.

3.1 Gwiriadau Cyn Gosod

• Gwiriwch fod yr holl gydrannau yn bresennol ac yn ddi-fwlch.
• Ensure the installation area is clean, level, and structurally sound.
• Confirm that water supply and drainage connections are correctly positioned according to the bathtub's specifications.

3.2 Installation Steps (Summary for Professionals)

1. Prepare the sub-structure or frame for the built-in installation, ensuring it matches the bathtub's dimensions (1700 x 750 mm).
2. Install the waste and overflow system according to the manufacturer's instructions, ensuring a watertight seal.
3. Position the bathtub into the prepared recess, ensuring it is level and securely supported.
4. Connect the waste system to the main drainage.
5. Perform a leak test by filling the bathtub with water and checking all connections.
6. Complete the surrounding tiling or paneling, ensuring proper sealing around the bathtub edges to prevent water ingress.

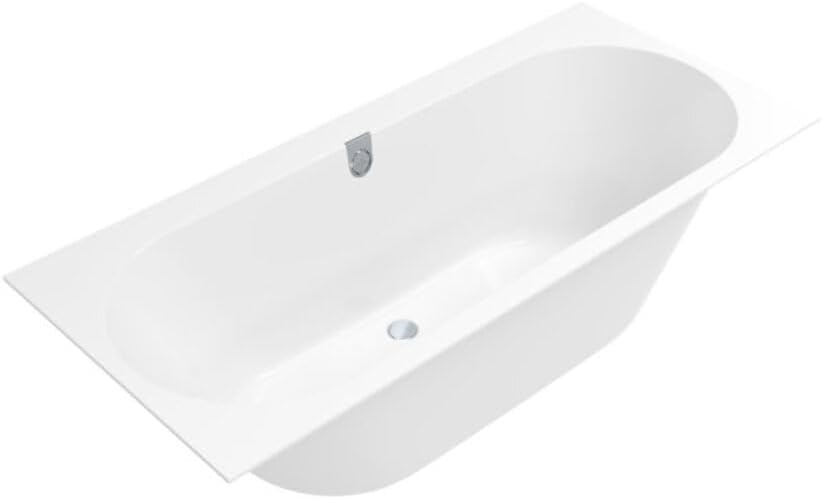

Ffigur 2: Ongl view of the Oberon 2.0 Duo bathtub, illustrating its form for installation planning.

4. Gweithrediad

Using your Villeroy & Boch Oberon 2.0 Duo bathtub is straightforward. Follow these guidelines for optimal use:

4.1 Llenwi'r Bath

• Gwnewch yn siŵr bod y stop draen wedi'i gau'n ddiogel.
• Turn on the water taps to achieve your desired water temperature and flow.
• Fill the bathtub to a comfortable level, ensuring the water does not exceed the overflow opening.

4.2 Draenio'r Bath

• Open the drain stopper to allow water to flow out.
• Ensure the drain is clear of any obstructions to facilitate efficient draining.

5. Cynnal a Chadw a Gofal

To maintain the pristine condition and longevity of your Quaryl® bathtub, follow these care instructions:

5.1 Glanhau Rheolaidd

• Clean the bathtub regularly with a soft cloth or sponge and a mild, non-abrasive liquid cleaner.
• Rinse thoroughly with clean water after cleaning to remove all detergent residues.
• For stubborn stains, use a specialized Quaryl® cleaner or a diluted solution of household vinegar. Always test on an inconspicuous area first.

5.2 Osgoi Difrod

• Do not use abrasive cleaning agents, scouring pads, wire brushes, or strong chemical solvents (e.g., acetone, paint thinner) as these can damage the Quaryl® surface.
• Avoid dropping heavy or sharp objects into the bathtub, which could cause chips or cracks.
• Do not expose the bathtub to extreme heat sources.

6. Datrys Problemau

Mae'r adran hon yn mynd i'r afael â phroblemau cyffredin y gallech ddod ar eu traws gyda'ch bath.

6.1 Slow Drainage

• Gwiriwch am rwystrau: Hair, soap scum, or other debris can accumulate in the drain. Remove the drain cover and clear any visible obstructions.
• Use a Drain Cleaner: For persistent blockages, use a chemical drain cleaner suitable for plumbing systems, following the product instructions carefully.

6.2 Minor Leaks

• Gwirio Cysylltiadau: Inspect the waste and overflow connections for any loose fittings or damaged seals. Tighten connections or replace seals as necessary.
• Uniondeb Seliwr: Examine the sealant around the bathtub edges. If cracked or deteriorated, remove old sealant and reapply a fresh bead of waterproof silicone sealant.

If issues persist, contact a qualified plumber or Villeroy & Boch customer support.

7. manylebau

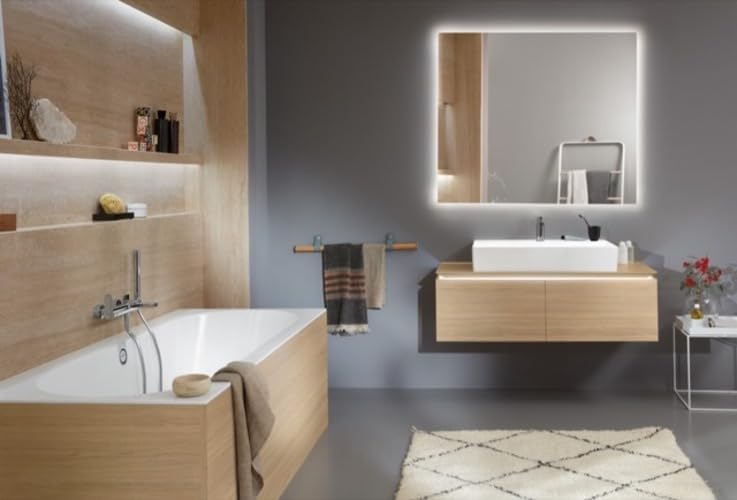

Figure 3: The Oberon 2.0 Duo bathtub integrated into a contemporary bathroom design.

8. Gwarant a Chefnogaeth

For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided with your purchase or visit the official Villeroy & Boch website. For technical support or spare parts inquiries, please contact Villeroy & Boch customer service directly.

Villeroy & Boch Official Websafle: www.villeroy-boch.com
