1. Rhagymadrodd
Thank you for choosing the Amerec 9053-402 Pro 10.5KW Floor Standing Sauna Heater. This manual provides essential information for the safe installation, operation, and maintenance of your sauna heater. Please read this manual thoroughly before installation and use, and keep it for future reference. Proper installation and maintenance will ensure optimal performance and longevity of your heater.
2. Gwybodaeth Bwysig am Ddiogelwch
WARNING: Risk of Electric Shock. All electrical connections must be performed by a qualified electrician in accordance with national and local electrical codes.
WARNING: Risk of Fire. Do not place any combustible materials on or near the sauna heater. Maintain proper clearances as specified in the installation instructions.
- Ensure the sauna room is properly ventilated.
- Never operate the sauna heater without sauna stones properly placed.
- Do not pour excessive water over the hot stones; use a ladle for controlled steam generation.
- Keep children and pets away from the sauna heater.
- Consult a physician before using a sauna if you have any health conditions.
- Always turn off the heater and allow it to cool completely before performing any maintenance.
3. Gosod a Gosod
The Amerec 9053-402 sauna heater is designed for floor standing installation. Due to the electrical requirements and safety considerations, professional installation by a certified electrician is highly recommended.
3.1 Dadbacio ac Archwilio
Carefully unpack the sauna heater and inspect it for any shipping damage. Report any damage to your supplier immediately. Ensure all components listed below are present:
- Amerec 10.5KW Sauna Heater
- (2) 70 lb. boxes of Vulcanite sauna rocks
- Llawlyfr Gosod a Gweithredu (y ddogfen hon)
Note: A control unit (e.g., Elite, Pure 2.0, or SC) is required for operation and is not included with the heater.
3.2 Placing Sauna Rocks
Proper placement of sauna rocks is crucial for efficient heating and steam production. Arrange the rocks loosely in the rock compartment, ensuring good air circulation. Do not pack them too tightly. The rocks should cover the heating elements completely but not obstruct the air vents.

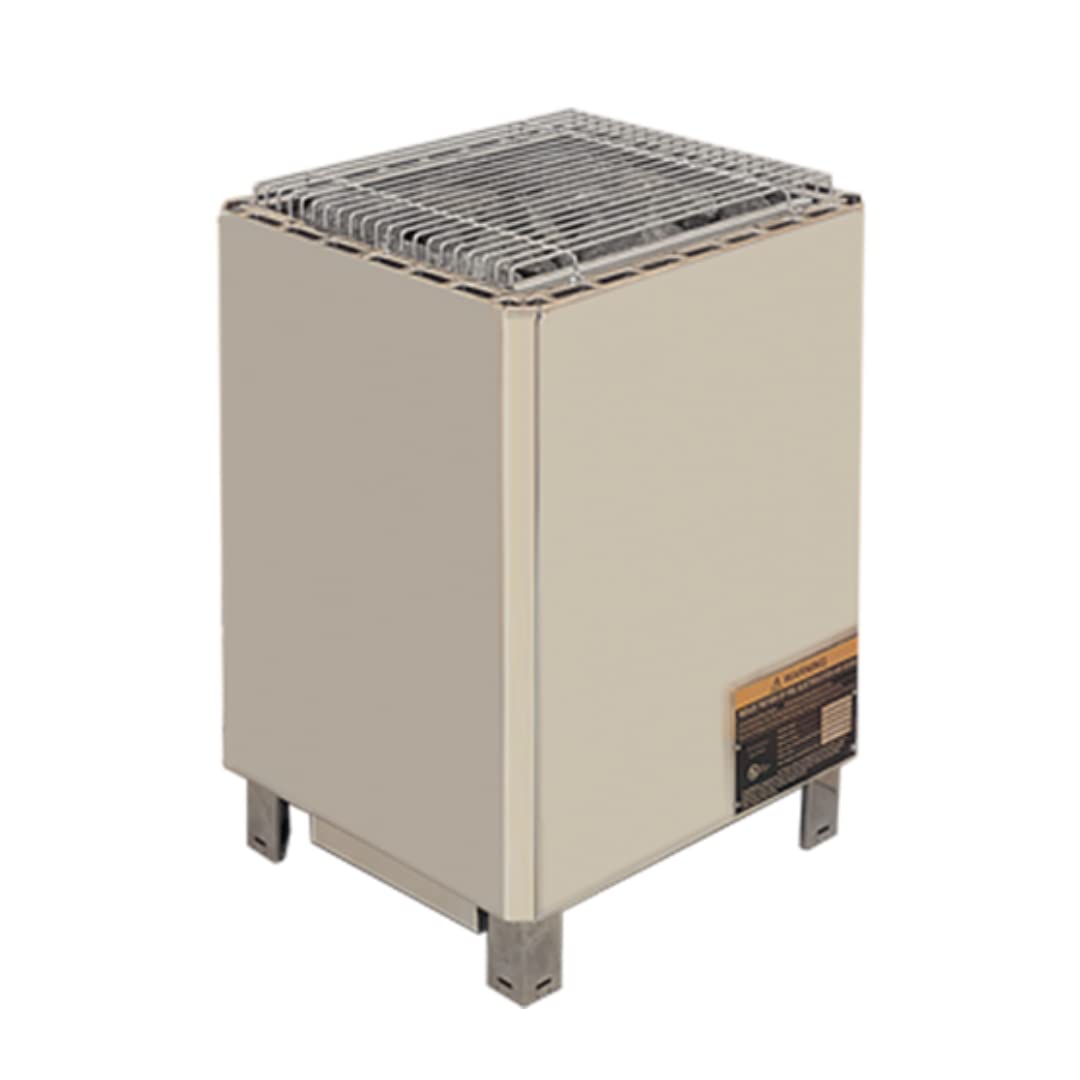

Ffigur 1: Amerec 9053-402 Pro 10.5KW Floor Standing Sauna Heater. This image shows the overall design of the heater, including the rock compartment where the sauna stones are placed.
4. Cyfarwyddiadau Gweithredu
This sauna heater requires an external control unit (Elite, Pure 2.0, or SC) for operation. Refer to the control unit's specific manual for detailed instructions on programming and use.
4.1 Cychwyn Cychwynnol
- Ensure the heater is properly installed and all electrical connections are secure.
- Verify that the sauna rocks are correctly placed in the heater.
- Turn on the power to the sauna heater at the main circuit breaker.
- Using your external control unit, set the desired temperature and operating time.
- Allow the heater to preheat for approximately 30-60 minutes, or until the desired sauna temperature is reached.
4.2 Generating Steam
Once the rocks are hot, you may gently pour small amounts of water over them to create steam. Use a dedicated sauna ladle for this purpose. Do not pour large quantities of water at once, as this can damage the heating elements and create excessive steam.
5. cynnal
Regular maintenance ensures the safe and efficient operation of your Amerec sauna heater.
5.1 Cleaning the Heater
- Always disconnect power to the heater at the circuit breaker before cleaning.
- Allow the heater to cool completely.
- Sychwch yr arwynebau allanol gyda hysbysebamp brethyn. Peidiwch â defnyddio glanhawyr neu doddyddion sgraffiniol.
- Do not spray water directly onto the heating elements or electrical components.
5.2 Sauna Rock Maintenance
Over time, sauna rocks can disintegrate due to repeated heating and cooling cycles, and mineral deposits from water. This can reduce heating efficiency and air circulation.
- Inspect the sauna rocks annually, or more frequently with heavy use.
- Remove any small, broken pieces or dust from the rock compartment.
- Replace rocks that have significantly deteriorated or become too small. Use only genuine Amerec sauna rocks.
6. Datrys Problemau
If your sauna heater is not functioning correctly, refer to the following common issues before contacting service.
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Nid yw'r gwresogydd yn troi ymlaen. | No power supply; circuit breaker tripped; faulty control unit; loose wiring. | Check circuit breaker. Ensure control unit is powered and set correctly. Consult a qualified electrician to check wiring. |
| Heater turns on but does not heat. | Faulty heating elements; incorrect temperature setting on control unit. | Verify temperature setting. If elements are faulty, contact a qualified technician for replacement. |
| Sauna room not reaching desired temperature. | Poor insulation; sauna door not sealing properly; rocks packed too tightly; undersized heater for room volume. | Check sauna room insulation and door seal. Rearrange rocks for better airflow. Ensure heater size matches sauna volume (390-600 Cu. Ft. for this model). |
If the problem persists after attempting these solutions, please contact Amerec customer support or a qualified service technician.
7. Manylebau Cynnyrch
| Nodwedd | Manylyn |
|---|---|
| Rhif Model | 9053-402 |
| Pŵer Gwresogi | 10.5 KW |
| Cyftage / Cyfnod | 208V / 1PH / 43.8 Amp |
| Sauna Size (Cu. Ft.) | 390 - 600 |
| Dimensiynau (WxHxD) | 20 x 29 x 19 modfedd |
| Sauna Rocks Included | (2) 70 lb. boxes of Vulcanite rocks (140 lbs total) |
| Uned Reoli | Elite, Pure 2.0 or SC (heb ei gynnwys) |
| Gwneuthurwr | Amerec |
8. Gwarant a Chefnogaeth
Amerec products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Amerec websafle. Cadwch eich prawf prynu ar gyfer hawliadau gwarant.
For technical support, replacement parts, or service inquiries, please contact your authorized Amerec dealer or Amerec customer service directly. When contacting support, please have your model number (9053-402) and purchase date available.
Amerec is known for providing high-quality sauna heaters, and parts are generally available for repairs, especially given their widespread use in commercial facilities.
