1. Rhagymadrodd
This manual provides instructions for the assembly, operation, and maintenance of your vidaXL Garden Pergola. This garden pergola is designed to support climbing plants and enhance your outdoor space. Constructed from a wrought iron frame, it offers a structure for various climbing flora. Its decorative elements are intended to complement garden aesthetics. When covered with plants, this pergola can provide a shaded area.
Image 1.1: The vidaXL Garden Pergola in an outdoor setting, adorned with climbing plants, providing a shaded area for a small table and chairs.
2. Gwybodaeth Diogelwch
Rhybudd: This product contains sharp edges. Exercise caution during assembly and handling to prevent injury.
- Always wear appropriate personal protective equipment, such as gloves, during assembly.
- Sicrhewch fod yr holl gydrannau wedi'u clymu'n ddiogel yn unol â'r cyfarwyddiadau cydosod.
- The pergola is designed to support a maximum load of 11.6 kg. Do not exceed this weight limit, as it may compromise the structural integrity.
- Securely fix the pergola to the ground or an adjacent structure to prevent movement or collapse, especially in adverse weather conditions such as strong winds or heavy snow.
- Regularly inspect the pergola for any signs of damage, loose connections, or corrosion. Address any issues promptly.
- Cadwch blant ac anifeiliaid anwes i ffwrdd o'r ardal ymgynnull.
3. Gosod a Chynulliad
Assembly is required for this pergola. It is recommended that two adults perform the assembly. Ensure you have sufficient space and all parts are present before beginning.
3.1. Cynnwys Pecyn
Verify that all components listed in your product's packing list are present and undamaged. (Note: A detailed parts list is typically included with the product packaging.)
3.2. Camau'r Cynulliad
- Dadbacio Cydrannau: Carefully unpack all parts and lay them out on a clean, flat surface. Identify each component using the provided diagrams.
- Cydosod Adrannau Ffrâm: Connect the main frame sections of the pergola. Ensure all connections are aligned correctly and secured with the provided hardware. Do not overtighten bolts initially.
- Attach Support Posts: Connect the vertical support posts to the assembled top frame. Ensure the posts are oriented correctly.
- Safle a Diogelwch: Carefully move the assembled pergola to its desired location. For stability, the pergola must be securely anchored to the ground or an adjacent wall. Use appropriate anchors (not always included) for your specific surface (e.g., concrete, soil).
- Tynhau Terfynol: Once the pergola is in its final position and anchored, progressively tighten all bolts and fasteners. Do not overtighten to avoid stripping threads or damaging components.
Image 3.1: Illustration of the freestanding pergola structure, showing the main frame and support posts.
Image 3.2: Illustration of a pergola structure, potentially designed for wall mounting, showing the top frame and two support posts.

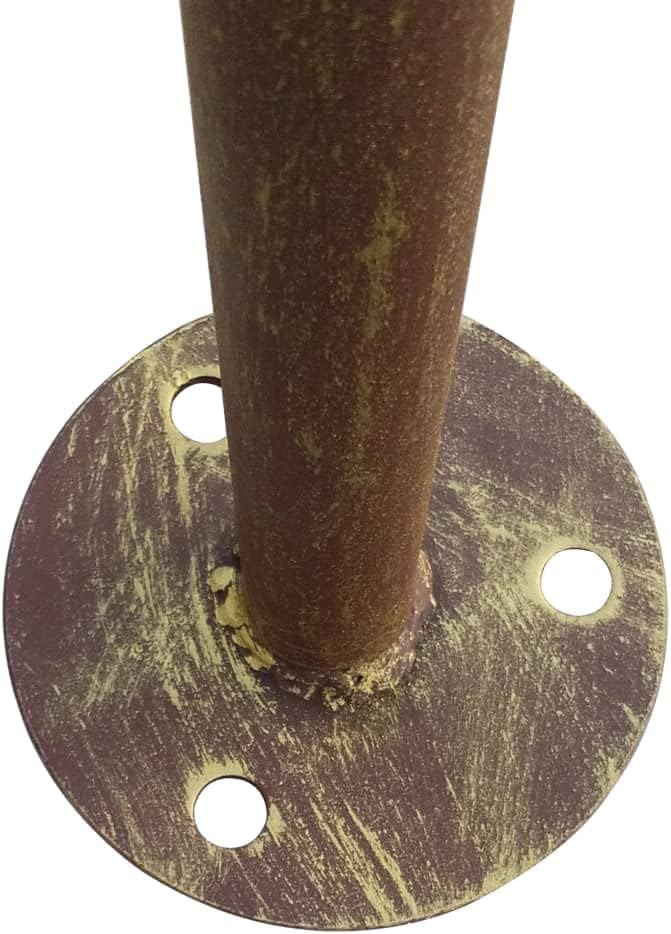

Image 3.3: Detail of a pergola's base plate, showing holes for securing the post to the ground or a solid surface.
4. Cyfarwyddiadau Gweithredu
The vidaXL Garden Pergola is designed as a decorative and functional support structure for climbing plants. Once assembled and securely installed, it provides a framework for plants like roses, ivy, clematis, wisteria, and grapevines to grow upon.
- Dewis Planhigion: Choose climbing plants suitable for your climate and the pergola's load capacity.
- Plant Training: Guide young plant shoots onto the pergola's frame as they grow to encourage desired coverage and shape.
- Shade Provision: As plants mature and cover the pergola, it will naturally create a shaded area below, ideal for relaxation during warmer months.
5. cynnal
Regular maintenance will help prolong the life and appearance of your pergola.
- Glanhau: Clean the iron frame periodically with a soft cloth and mild soap solution. Rinse thoroughly with water and dry to prevent water spots or rust. Avoid abrasive cleaners or harsh chemicals.
- Arolygiad: Annually inspect all bolts, screws, and connections to ensure they remain tight. Retighten any loose fasteners. Check the frame for any signs of rust, corrosion, or structural damage.
- Atal Rwd: If rust spots appear, clean the affected area, sand lightly, and apply a rust-inhibiting primer followed by an appropriate outdoor metal paint to match the antique brown finish.
- Gaeafu: In areas with heavy snow or extreme weather, consider removing delicate climbing plants or providing additional temporary support to the pergola to prevent damage from excessive weight. Ensure the pergola remains securely anchored.
- Plant Management: Trim climbing plants regularly to prevent them from becoming too heavy or obstructing the pergola's structure.
Delwedd 5.1: Llun agos view of the antique brown textured finish on the iron material of the pergola.
6. Datrys Problemau
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Pergola feels unstable or wobbly. |
|
|
| Rust spots appearing on the frame. |
|
|
| Anhawster yn ystod y cydosod. |
|
|
7. manylebau
| Rhif Model | 313997 |
| Brand | vidaXL |
| Lliw | Brown Hen |
| Deunydd | Haearn |
| Dimensiynau (L x W x H) | 3 x 3 x 2.5 m (approximately 118.1 x 118.1 x 98.4 inches) |
| Pwysau Eitem | 11.6 Cilogram |
| Cynhwysedd Llwyth Uchaf | 11.6 kg (for climbing plants) |
| Arddull | Antique, Garden, Elegance |
| Math Gorffen | Gweadog |
| Siâp | hirsgwar |
| Cynulliad Angenrheidiol | Oes |

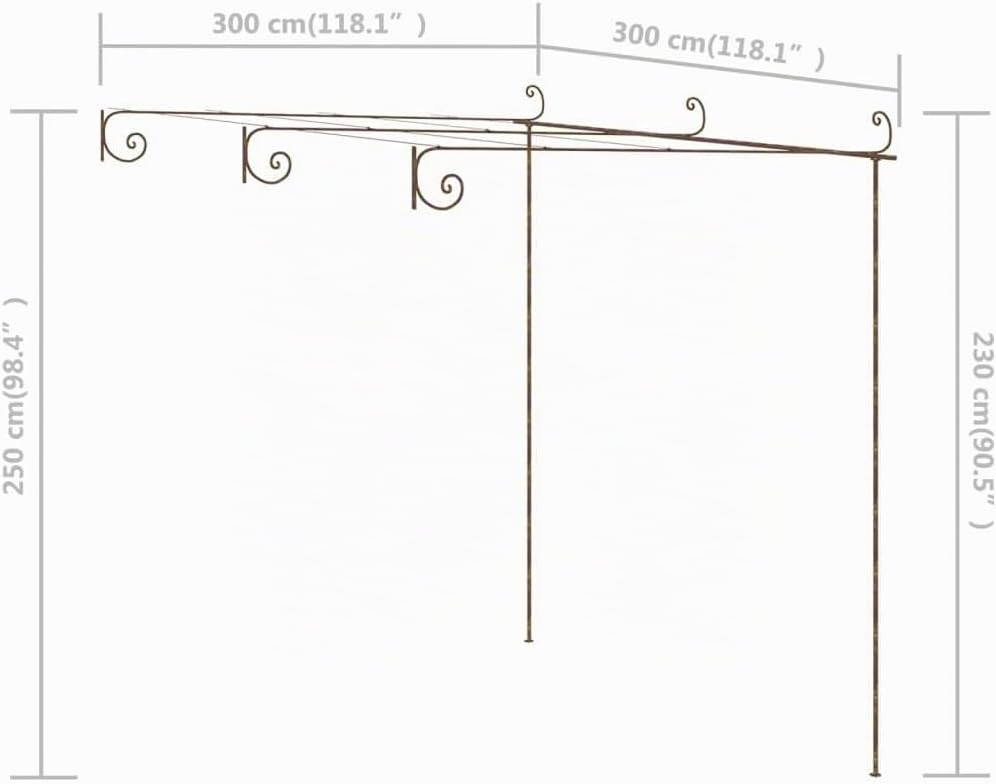

Image 7.1: Dimensional diagram of the pergola, illustrating its length, width, and varying height measurements for front and back posts.
8. Gwarant a Chefnogaeth
For warranty information or technical support, please refer to the documentation included with your purchase or contact vidaXL customer service directly. Contact details can typically be found on the manufacturer's websafle neu'ch derbynneb prynu.
