Cynnyrch Drosview
The SONGMICS Stationary Bike, model USEB617R01, is designed for indoor cycling and exercise. It features a robust steel structure, a 22 lb flywheel, and a belt drive system for smooth and quiet operation. The bike is equipped with adjustable components to accommodate various user heights and preferences, and a monitor to track key workout metrics.
Delwedd: Blaen view of the SONGMICS Stationary Bike, showcasing its black and red design with the SONGMICS logo on the frame.
Gwybodaeth Diogelwch
Please read all safety instructions before using the stationary bike. Failure to follow these instructions may result in injury or damage to the product.
- For your health and safety, individuals with cardiovascular and cerebrovascular diseases should consult a medical professional before using this product for exercise.
- This machine is not suitable for children. Keep children away from the equipment during operation.
- Always perform stretching exercises before beginning your workout on the bike.
- Use the bike only on dry and even floors to ensure stability and prevent tipping.
- Keep the equipment in an upright state for storage to prevent damage.
- Ensure all bolts and connections are tightened before each use.
Gosod a Chynulliad
The SONGMICS Stationary Bike requires assembly upon delivery. An assembly tool kit and instructions are included in the package. Assembly is generally straightforward and can be completed within approximately 30 minutes.
Cynnwys y Pecyn:
- 1 x Exercise Bike (main components)
- 2 x AAA Battery (for monitor)
- 1 x Pecyn Cymorth Ymgynnull
- 1 x Llawlyfr Cyfarwyddiadau
Lleoliad Cychwynnol:
Place the exercise bike on a dry, flat, and stable surface. Ensure there is sufficient space around the bike for safe operation and movement.

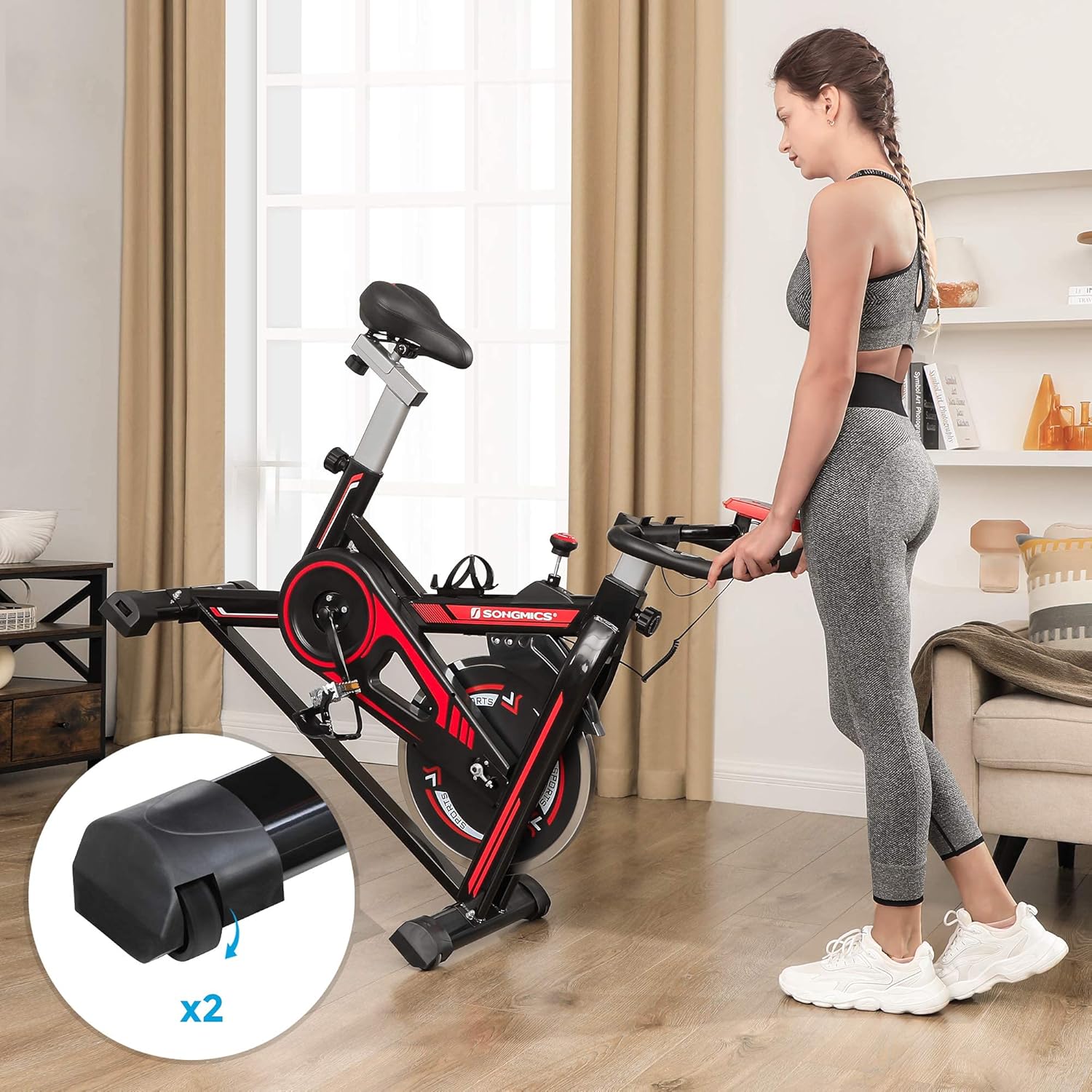

Image: A person demonstrating how to move the stationary bike using its integrated transport wheels. The image highlights the wheels at the front base of the bike.
The bike is equipped with transport wheels at the front for easy relocation. To move the bike, tilt it forward onto the wheels and push it to the desired location.
Cyfarwyddiadau Gweithredu
The SONGMICS Stationary Bike offers various adjustments and features to customize your workout experience.
Addasiadau:
- Uchder y bar llaw: The handlebar can be adjusted to 5 different heights to suit your arm length and riding posture.
- Safle Sedd: The padded seat offers 5 height adjustments and can also be adjusted forward and backward to find your most comfortable pedaling position.
- Gwrthiant: A wide range of resistance levels allows you to increase or decrease the intensity of your workout. Turn the resistance knob clockwise to increase resistance and counter-clockwise to decrease it.
Delwedd: Manwl view of the stationary bike highlighting adjustable components including the seat height and forward/backward position, handlebar height, pedal straps, water bottle holder, and phone holder.
Swyddogaethau Monitro:
The integrated monitor tracks your workout progress. It displays the following metrics:
- Pwls: Your heart rate during exercise.
- Cyflymder: Your current cycling speed.
- Amser: Hyd eich ymarfer corff.
- Pellter: Total distance covered during your workout.
- Odomedr: Total accumulated distance.
- Calorïau: Amcangyfrif o galorïau wedi'u llosgi.
Delwedd: Llun agos view of the digital monitor on the stationary bike's handlebars, showing the display and control buttons for tracking workout metrics.
Image: A person actively cycling on the SONGMICS Stationary Bike in a home setting, demonstrating typical use.
Cynnal a chadw
Regular maintenance ensures the longevity and optimal performance of your SONGMICS Stationary Bike.
- Tynhau: After a few rides, it is normal for some components to loosen slightly. Periodically check and tighten all bolts and connections, especially around the seat and handlebars.
- Glanhau: Sychwch y beic gyda hysbysebamp lliain ar ôl pob defnydd i gael gwared â chwys a llwch. Osgowch ddefnyddio glanhawyr sgraffiniol.
- Storio: When not in use, store the bike in an upright position on a dry, even floor.
Datrys problemau
If you encounter any issues with your stationary bike, refer to the common problems and solutions below:
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Squeaky noise from seat | Loose seat connections or friction. | Tighten all bolts securing the seat. Apply a small amount of silicone lubricant to contact points if noise persists. |
| Scraping noise in pedal hub | Internal component issue or debris. | Inspect the pedal and crank arm area for any visible obstructions. If the issue persists, professional inspection may be required. |
| Monitor not working correctly | Low battery, loose connection, or sensor misalignment. | Check and replace AAA batteries. Ensure all sensor wires are securely connected. Verify sensor alignment with the flywheel. |
| Handlebars feel wobbly | Loose handlebar assembly bolts. | Ensure all bolts securing the handlebar post and the handlebar itself are fully tightened. |
Manylebau
Detailed specifications for the SONGMICS Stationary Bike USEB617R01:
- Enw'r Model: USEB617R01
- Lliw: Du, Coch
- Deunydd: Steel, Plastic, PU Synthetic Leather, Sponge
- Dimensiynau Cynnyrch (L x W x H): 40.2" x 19.3" x 45.3" (102.1 x 49 x 115.1 cm)
- Pwysau olwyn hedfan: 22 pwys (10 kg)
- Exercise Bike Weight: 56.2 pwys (25.5 kg)
- Max. Pwysau Defnyddiwr: 264 pwys (120 kg)
- Uchder Defnyddiwr Uchaf: 68.9" (175 cm)
- System Drive: Gwregys
- Mecanwaith Gwrthsefyll: Magnetig
- Arddangosfa mesurydd: Pulse, Speed, Time, Distance, Odometer, Calories
- Ffynhonnell Pŵer (Monitor): Wedi'i bweru gan fatri (2 x AAA)
- Nodweddion arbennig: Adjustable Seat, Foldable (for transport), Speed Monitor
Image: Diagram illustrating the key dimensions of the SONGMICS Stationary Bike, including length, width, and adjustable height ranges for the seat and handlebars.
Delwedd: Llun agos view of the 22 lb flywheel and belt drive system of the stationary bike, indicating its weight and the smooth operation mechanism.
