WAMPAT Modern Farmhouse TV Stand

Gwybodaeth Ddiogelwch Bwysig

Please read and understand all instructions before beginning assembly and use. Failure to follow these instructions may result in serious injury or property damage. Keep this manual for future reference.

• Cynhwysedd Pwysau: Do not exceed the maximum weight capacity of 220 lbs for the tabletop and 30 lbs for adjustable shelves. Overloading can cause instability and collapse.
• Cynulliad: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all parts are securely fastened before use. Two people are recommended for assembly.
• Sefydlogrwydd: To prevent tipping, especially with children, always place the TV stand on a flat, level surface. Consider using anti-tip hardware (if included or purchased separately) to secure the unit to a wall.
• Diogelwch Trydanol: Route all cables through the designated cable management holes to prevent pinching or damage. Do not overload electrical outlets.
• Cynnal a Chadw: Regularly check all fasteners to ensure they remain tight. Loose fasteners can lead to instability.

Cynnwys Pecyn

Verify that all components listed below are present before starting assembly. If any parts are missing or damaged, please contact customer support.

Cyfarwyddiadau Cymanfa

Follow these steps carefully for proper assembly. An installation video is provided for visual guidance.

1. Cam 1: Paratoi'r Sylfaen

   Attach the bottom rail (Part H) to panels (1, 2) using screws (L, M). Ensure the rail is securely fastened and aligned.
2. Step 2: Assemble Side and Middle Panels

   Screw parts (A) into panels (3, 4). Insert dowels (C) into panel (2) and attach panels (3, 4). Then insert and secure cam lock (B) to lock it.

3. Cam 3: Atodwch y Panel Uchaf

   Insert dowels (C) into panels (3, 4, 5, 6). Attach panel (10) to panels (3, 4, 5, 6) using screws (F). Then secure cam bolts (A) into top panel (10).

4. Cam 4: Gosod Paneli Cefn

   Secure parts (G) to panels (3, 4, 7, 10). Ensure the back panels are flush and the cable management holes are accessible.
5. Step 5: Attach Door Hardware

   Attach part (E, N) to panels (15, 16). Then screw part (K) to panels (15, 16) using part (J). Do not fix the screws too tight at this stage.

6. Step 6: Install Sliding Doors

   After installing the doors (15, 16) in position, adjust door height and leveling. Then fix screws tight and slide doors (15, 16) into the designated area. To prevent the TV cabinet from toppling, install the anti-tip parts (O).

Gosod a Lleoliad

Proper setup ensures stability and optimal use of your WAMPAT TV Stand.

• Lleoliad: Place the TV stand on a flat, stable, and level surface. Avoid placing it in direct sunlight or near heat sources to prevent material damage.
• Lleoliad Teledu: This stand is designed for TVs up to 65 inches. Ensure your TV's base fits within the tabletop dimensions (59" L x 15.4" W). The tabletop can support up to 220 lbs.
• Rheoli Ceblau: Utilize the multiple round cut-outs in the back panels to route all power cords, HDMI cables, and other media device wires. This keeps cables organized and prevents clutter.
• Silffoedd Addasadwy: The middle section features 3-level adjustable and removable shelves. Customize their height to accommodate your media devices, game consoles, or decorative items.

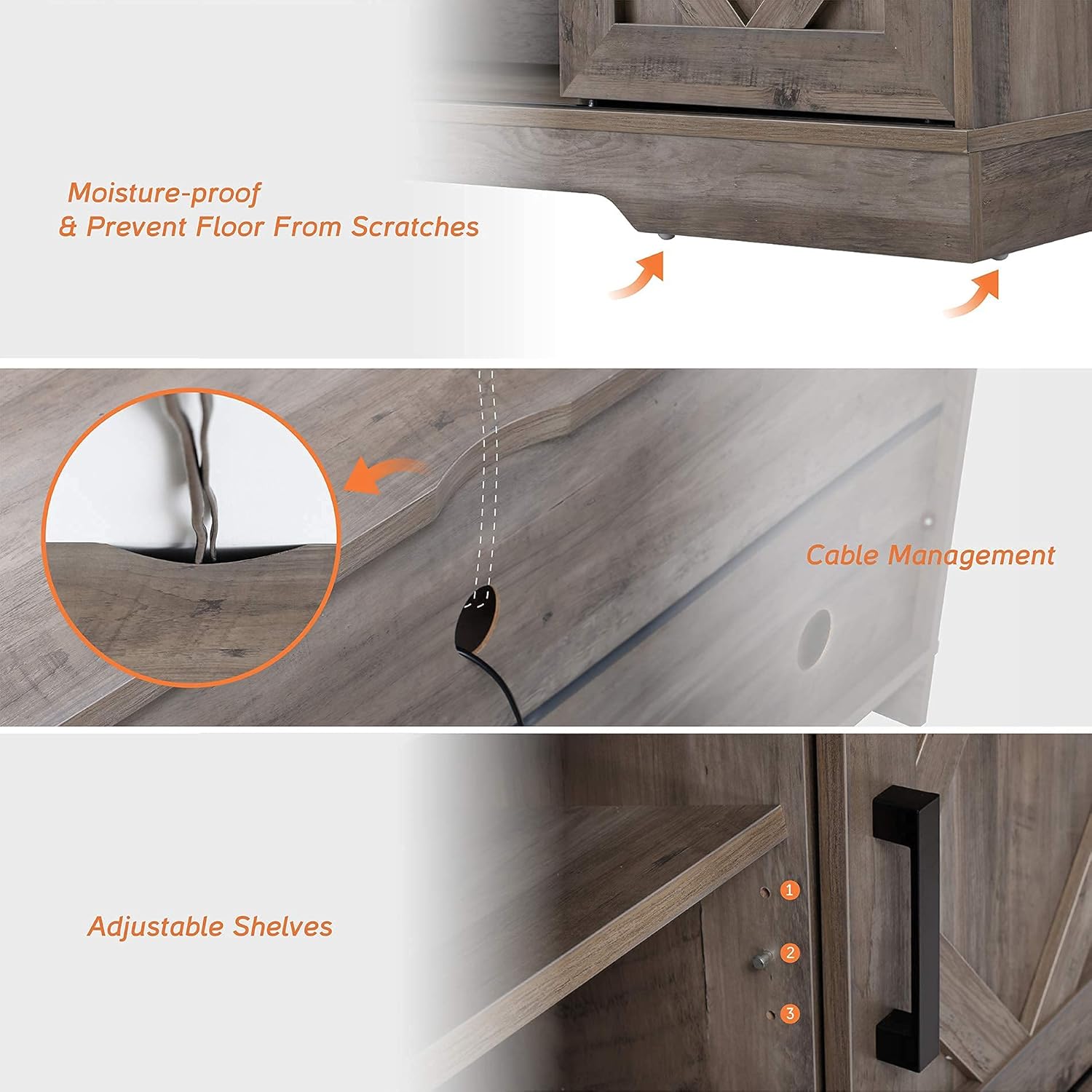

Image: Close-up showing the cable management holes, adjustable shelf positions, and moisture-proof base design.

Operating the Sliding Barn Doors

Mae'r WAMPAT TV Stand features smooth-gliding barn doors for flexible storage and display.

• Agor/Cau: Gently grasp the handle of either barn door and slide it along the top rail. The doors can be positioned to cover the side cabinets or the central open shelves, allowing you to conceal or display items as desired.
• Gweithrediad llyfn: The doors are designed to slide easily. If you experience any resistance, check the top rail for obstructions or ensure the door rollers are clean.

Delwedd: A view of the TV stand highlighting the sliding barn doors, showing how they can conceal storage spaces.

Cynnal a Chadw a Gofal

To keep your WAMPAT TV Stand in excellent condition, follow these simple maintenance guidelines:

• Glanhau: Sychwch yr wyneb gyda hysbysebamp brethyn. Osgowch gemegau llym neu lanhawyr sgraffiniol, gan y gall y rhain niweidio'r gorffeniad pren peirianyddol.
• Gollyngiadau: Glanhewch ollyngiadau ar unwaith i atal staenio neu ddifrod dŵr.
• Caewyr: Periodically check all screws, cam locks, and dowels to ensure they are tight. Re-tighten if necessary to maintain structural integrity.
• Osgoi gorlwytho: Do not place excessively heavy items on the shelves or tabletop beyond the specified weight limits.

Datrys problemau

If you encounter any issues with your TV stand, refer to the following common solutions:

• Stand Sigledig:

  Ensure all cam locks and screws are fully tightened. Check that the stand is on a level surface. If the floor is uneven, use furniture levelers (not included) under the base.

• Sliding Doors Stick:

  Inspect the top rail and bottom groove for any debris or obstructions. Ensure the door rollers are clean and moving freely. Verify that the doors are correctly seated on the rails.

• Rhannau Coll:

  Refer to the "Package Contents" section and the assembly video. If parts are genuinely missing, contact WAMPAT customer support with your product model and part number.
• Damaged During Shipping:

  If any components arrived damaged, do not proceed with assembly. Contact WAMPAT customer support immediately for replacement parts or further assistance.

Manylebau

Gwarant a Chymorth i Gwsmeriaid

WAMPAT is committed to providing high-quality products and excellent customer service.

• Gwybodaeth Gwarant: For specific warranty details, please refer to the documentation included with your product or visit the official WAMPAT websafle.
• Cefnogaeth i Gwsmeriaid: If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact WAMPAT customer support.
• Adnoddau Ar-lein: Ymwelwch â'r WAMPAT Store on Amazon am wybodaeth a chymorth ychwanegol am y cynnyrch.
