vidaXL Bed Frame Instruction Manual

1. Cynnyrch Drosview

This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Grey Metal Twin Bed Frame. Please read this manual thoroughly before assembly and use to ensure proper setup and safe operation.

The vidaXL Grey Metal Twin Bed Frame (Model 286493) is designed to provide a sturdy and classic foundation for your mattress, suitable for a mattress measuring 90 x 200 cm. Its metal construction ensures durability and stability.

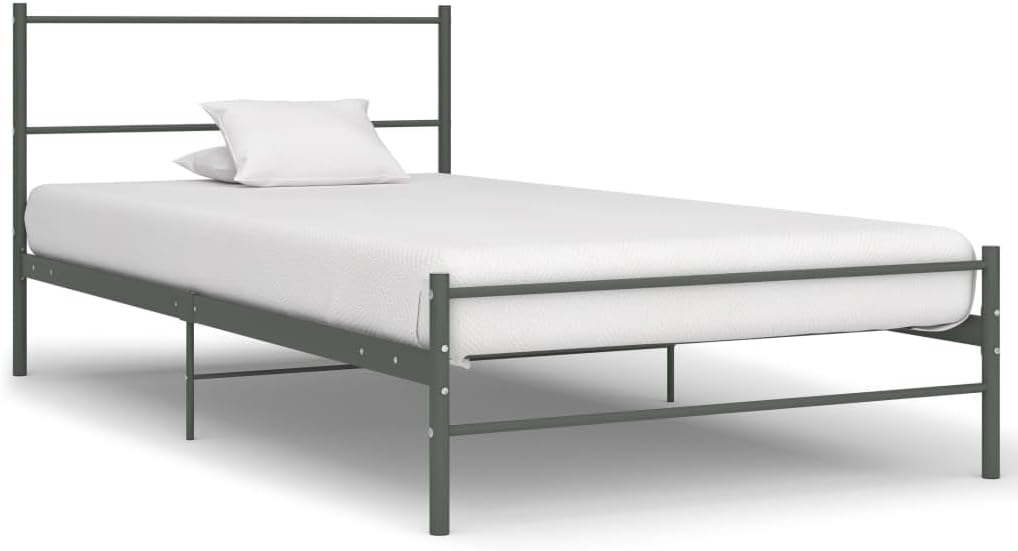

Figure 1.1: Assembled vidaXL Grey Metal Twin Bed Frame with mattress and pillow.

2. Gwybodaeth Diogelwch

RHYBUDD: Assembly may involve pinch points. Exercise caution during assembly to prevent injury.

RHYBUDD: Ensure proper assembly to prevent instability or collapse of the bed frame. Do not exceed the recommended weight limit for this bed frame. Refer to the specifications section for details.

Always ensure all bolts and connections are securely tightened before use. Periodically check all connections for tightness.

3. Rhestr Rhannau

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact vidaXL customer support for assistance.

Note: A detailed diagram with labeled parts is typically included in the physical packaging. This list provides a general overview.

• Cydrannau pen gwely
• Footboard components
• Rheiliau ochr
• Cymorth coesau
• Metal slats (included components)
• Assembly hardware (bolts, nuts, washers, Allen wrench)

Figure 3.1: Main components of the bed frame before assembly.

4. Gosod a Chynulliad

Assembly is required for this bed frame. It is recommended to have two people for assembly to ensure ease and safety. Approximate assembly time is 45 minutes.

4.1 Paratoi

• Clear an open, flat area for assembly.
• Dadbacio'r holl gydrannau a'u gosod allan.
• Identify all parts using the provided parts list and diagrams.
• Ensure you have the necessary tools (usually an Allen wrench is included).

4.2 Camau Cynulliad

1. Cydosod y Penbwrdd a'r Troedbwrdd: Connect the vertical and horizontal bars of the headboard and footboard sections using the provided bolts and nuts. Do not fully tighten bolts until all sections are loosely assembled.
2. Atodwch Rheiliau Ochr: Connect the side rails to the assembled headboard and footboard. Ensure the connections are secure.
3. Gosod Coesau Cymorth Canol: Attach any central support legs to the main frame as indicated in the diagrams. These provide additional stability.
4. Insert Slats: Place the metal slats into the designated slots or attach them to the side rails. The bed frame includes integrated metal slats, eliminating the need for a separate box spring.
5. Tynhau Terfynol: Once all components are in place and aligned, systematically tighten all bolts and screws. Ensure all connections are firm and secure.

Ffigur 4.1: Dimensiynol view of the bed frame, useful during assembly for orientation.

Figure 4.2: Detail of the slat connection, showing how the metal slats integrate with the frame.

5. Cyfarwyddiadau Gweithredu

Once assembled, the bed frame is ready for use. Place a compatible mattress (90 x 200 cm) directly onto the metal slats. No box spring is needed.

Ensure the bed frame is placed on a level surface to prevent wobbling and ensure stability.

6. cynnal

Bydd cynnal a chadw rheolaidd yn helpu i ymestyn oes ac ymddangosiad ffrâm eich gwely.

• Glanhau: Wipe with a dry cloth to remove dust and dirt. For more stubborn marks, a slightly damp cloth can be used, followed immediately by a dry cloth to prevent moisture damage. Avoid abrasive cleaners or harsh chemicals.
• Arolygiadau: Gwiriwch yr holl folltau a chysylltiadau o bryd i'w gilydd i sicrhau eu bod yn parhau'n dynn. Ail-dynhau os oes angen.
• Symudiad: When moving the bed frame, lift it rather than dragging it to prevent damage to the frame or your flooring.

7. Datrys Problemau

8. manylebau

• Model: 286493
• Brand: vidaXL
• Lliw: Llwyd
• Deunydd: Metel
• Dimensiynau Cyffredinol (L x W x H): 205 cm x 97 cm x 83.5 cm (80.71"H x 38.19"L x 32.87"U)
• Compatible Mattress Size (W x L): 90 cm x 200 cm (Twin)
• Bed Height from Floor: 28 cm (Ground To Item Distance)
• Cydrannau wedi'u Cynnwys: Slats (No Box Spring Needed)
• Math Gorffen: lacr
• Cynulliad Angenrheidiol: Oes
• Gofal Cynnyrch: Sychwch â Brethyn Sych
• Pwysau Eitem: 27.3 pwys

9. Gwarant a Chefnogaeth

For information regarding warranty coverage, returns, or technical support, please refer to the purchase documentation or contact vidaXL customer service directly. Contact details are typically available on the vidaXL official websafle neu drwy eich manwerthwr.

Gwneuthurwr: vidaXL

ASIN: B083THDN5B

Dyddiad Ar Gael Cyntaf: Mai 1, 2014
