Rhagymadrodd
Welcome to your new Henn Americana Kitchen Sink Base Cabinet. This manual contains important information for the safe assembly, proper use, and maintenance of your product. Please read it thoroughly before beginning assembly or use.
Safety Warning: Exercise caution during installation and maintenance due to the product's weight.

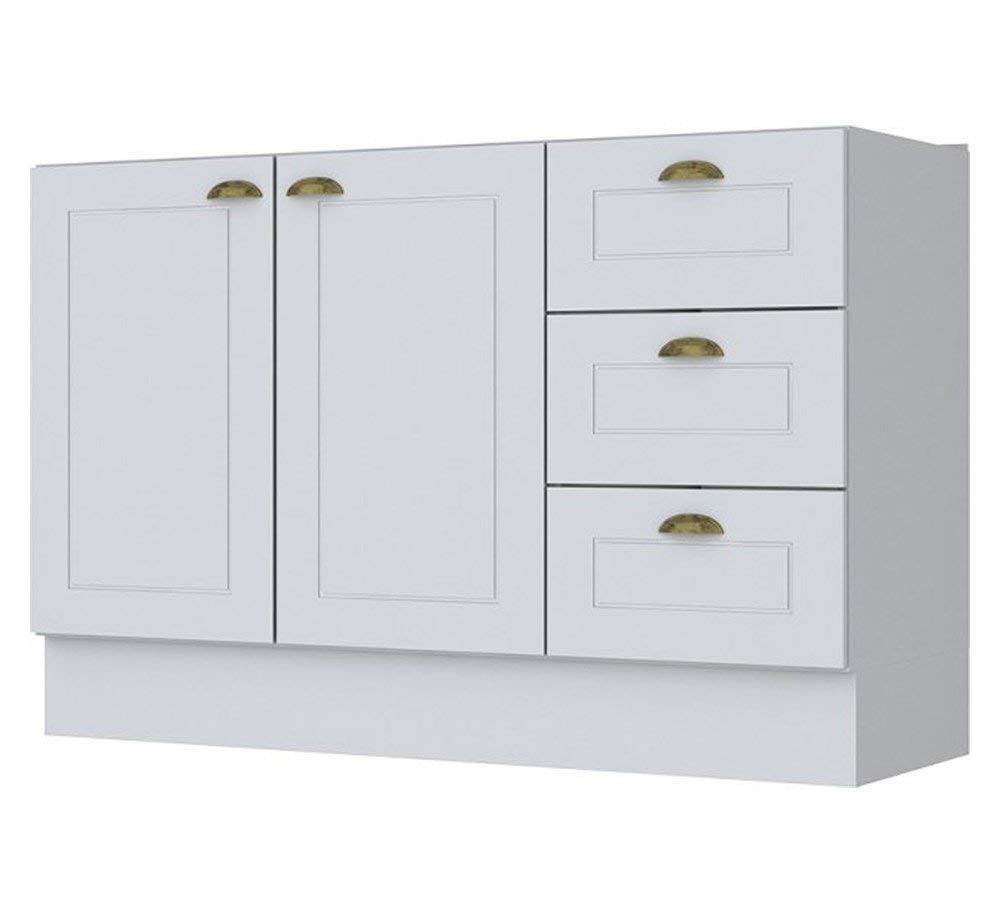

Ffigur 1: Yn gyffredinol view of the Henn Americana Kitchen Sink Base Cabinet.
Gosod a Chynulliad
This product requires assembly. Your package includes the Henn Americana Kitchen Sink Base Cabinet (1200mm, 2 doors, 3 drawers) and a separate, detailed assembly instruction guide. Please refer to the dedicated assembly guide for step-by-step instructions, component identification, and hardware details.
The cabinet is designed for versatile installation and can be set up either with the included baseboards or mounted in a suspended configuration, depending on your kitchen design and requirements.
Figure 2: Internal dimensions and layout of the cabinet, showing shelf and compartment sizes.
Figure 3: Cabinet with doors and drawers open, illustrating storage capacity.
Cyfarwyddiadau Gweithredu
The Henn Americana Kitchen Sink Base Cabinet is designed for practical and functional use in your kitchen. It features:
- Dau Ddrws: Equipped with 35mm soft-close hinges for smooth and quiet operation. These doors conceal ample shelving for storage.
- Three Drawers: The cabinet includes three spacious drawers. One drawer is fitted with a cutlery divider for organized storage of utensils.
- Dolenni: All doors and drawers feature elegant shell-shaped handles with an aged gold zamac finish.
To open a door or drawer, gently pull the handle. To close, push firmly until the soft-close mechanism engages.
Figure 4: Detail of the shell-shaped handle with aged gold finish.
Figure 5: Detail of the 35mm soft-close hinge.
Figure 6: Detail of the drawer slide for smooth operation.
Cynnal a Chadw a Gofal
To ensure the longevity and appearance of your Henn Americana Kitchen Sink Base Cabinet, follow these care instructions:
- Glanhau: Clean the product with a dry cloth only. Avoid abrasive cleaners, harsh chemicals, or excessive moisture, as these can damage the finish and material.
- Gollyngiadau: Wipe up any spills immediately with a dry cloth to prevent staining or damage to the engineered wood.
- Dosbarthiad pwysau: Distribute weight evenly within shelves and drawers to prevent warping or structural stress.
- Amodau Amgylcheddol: Avoid placing the cabinet in direct sunlight or near heat sources, which can cause discoloration or material degradation over time.
Datrys problemau
Os byddwch chi'n dod ar draws unrhyw broblemau gyda'ch cabinet, ystyriwch y canlynol:
- Doors or Drawers Not Closing Properly: Check for any obstructions. Ensure the cabinet is level and that hinges or drawer slides are correctly aligned and tightened according to the assembly instructions.
- Dolenni Rhydd: Tighten the screws on the back of the handles if they become loose.
- Materion Sefydlogrwydd: Verify that all assembly hardware is securely fastened and that the cabinet is placed on a flat, stable surface. If suspended, ensure wall mounts are properly installed.
For persistent issues or concerns not addressed here, please contact customer support.
Manylebau Cynnyrch
| Nodwedd | Manylyn |
|---|---|
| Brand | Henn |
| Rhif Model | C353-05 |
| Enw Model | Americana |
| Lliw | Branco HP (White HP) |
| Deunydd | Engineered Wood (100% MDF) |
| Dimensiynau Cynnyrch (D x W x H) | 51 cm x 120 cm x 82 cm (510mm x 1200mm x 820mm) |
| Pwysau Eitem | 41 Cilogram |
| Nifer y Drysau | 2 |
| Nifer y Droriau | 3 (one with cutlery divider) |
| Nifer y Silffoedd | 3 |
| Nifer yr Adrannau | 6 |
| Math o Ystafell | Cegin |
| Math Mowntio | Floor Mount (with baseboards) or Suspended |
| Trin Deunydd | Zamac with aged gold finish |
| Colfachau | 35mm with soft-close mechanism |
| Math Gorffen | Wedi'i baentio |
| Cynulliad Angenrheidiol | Oes |
Gwybodaeth Gwarant
Our warranty covers manufacturing defects for a period of 3 months, starting from the product delivery date. Our warranty DOES NOT cover defects resulting from improper or abusive use, or lack of care for the product.
Cefnogaeth i Gwsmeriaid
If you require further assistance, have questions about assembly, or need to report a manufacturing defect, please contact your retailer or the manufacturer's customer service department. Please have your product model number (C353-05) and purchase information ready when contacting support.
