Voltex 37" L x 8" H Truck Mounted Arrow Board Light Traffic Control LED Sign Advisor

Cynnyrch Drosview

The Voltex 37" L x 8" H Traffic Amber Sign Arrow LED Bar Lightbar is designed for effective traffic control and advisory signaling on trucks and other vehicles. This manual provides essential information for the proper setup, operation, and maintenance of your new arrow board.

Mae nodweddion allweddol yn cynnwys:

• Durable 37" L x 8" H x 1.5" D aluminum panel construction.
• Equipped with 24 high-visibility amber LED lamps, each 1 watt.
• Operates on 12-volt power access.
• Features multiple flash patterns for various traffic control needs.
• Includes an 8 ft long LED display controller for convenient operation.
• Patented LED Control box supports up to 2 distinct flash patterns for arrow indicators.

Cynnwys Pecyn

Gwiriwch fod yr holl eitemau a restrir isod wedi'u cynnwys yn eich pecyn:

• 1 x Voltex 37" L x 8" H Traffic Amber Sign Arrow LED Bar Lightbar
• 1 x LED Display Controller (8 ft cable)
• 1 x Patented LED Control Box
• Power Cable (approx. 8-10 ft)
• Mounting Screws (2, for backside of post)

Gosod a Gosod

Follow these steps for proper installation of your Voltex Arrow Board:

1. Lleoliad Mowntio: Identify a suitable mounting location on your truck or vehicle. The arrow board is designed to be mounted using two screws on the backside of a post. Note that truck/vehicle mounting brackets are not included and may need to be acquired separately. A custom mounting rack is necessary if not mounting on a flat surface.
2. Mowntio Diogel: Ensure the arrow board is securely fastened to prevent movement during vehicle operation.
3. Cysylltiad Pwer: Connect the arrow board to a 12-volt power source. The provided power cable is approximately 8-10 feet long, sufficient for routing from the roof to the control cabin. Ensure all connections are secure and properly insulated.
4. Cysylltiad Rheolydd: Connect the 8 ft long LED display controller to the arrow board system.

Ffigur 1: Ochr view of the arrow board, illustrating its dimensions and potential mounting orientation.

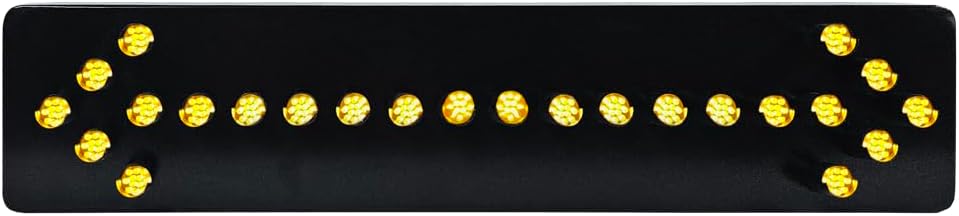

Ffigur 2: Blaen view of the arrow board with LEDs active, demonstrating visibility.

Cyfarwyddiadau Gweithredu

The Voltex Arrow Board is operated via the included LED display controller. This controller allows you to select various flash patterns to suit different traffic control scenarios.

1. Pŵer ymlaen / i ffwrdd: Locate the power button on the controller to turn the unit on or off.
2. Dewis Patrwm: Use the designated buttons on the controller to cycle through the available flash patterns. The system supports up to 4 different patterns, with the patented LED Control box specifically offering up to 2 flash patterns for arrow indicators (e.g., left arrow, right arrow, double arrow, caution bar).
3. Visibility Check: After selecting a pattern, ensure the arrow board is clearly visible and displaying the intended pattern to oncoming traffic.

Figure 3: The LED Display Controller, used to select flash patterns.

Cynnal a chadw

To ensure the longevity and optimal performance of your Voltex Arrow Board, follow these maintenance guidelines:

• Glanhau: Regularly clean the aluminum panel and LED lenses with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the surface or LEDs.
• Cysylltiadau: Periodically check all electrical connections for tightness and signs of corrosion. Ensure the power cable and controller cable are free from damage.
• Gwrthiant Dŵr: Please note that this product is Ddim yn Wrthsefyll Dŵr. Protect the unit from direct exposure to heavy rain or submersion to prevent damage to electronic components.
• Storio: When not in use for extended periods, store the arrow board in a dry, protected environment.

Datrys problemau

If you encounter issues with your Voltex Arrow Board, consider the following common solutions:

• No Power/Lights Not Illuminating:
  • Check the 12-volt power source to ensure it is active and providing sufficient voltage.
  • Verify all power cable connections are secure and free from damage.
  • Ensure the LED display controller is properly connected and powered on.
• Incorrect/No Pattern Display:
  • Confirm the controller cable is securely connected to the arrow board.
  • Cycle through the patterns using the controller buttons to ensure proper selection.
• Goleuadau fflachio:
  • Gwiriwch am gysylltiadau gwifrau rhydd.
  • Gwnewch yn siŵr bod y cyflenwad pŵer yn sefydlog ac nad yw'n amrywio.

If the issue persists after attempting these steps, please refer to the Warranty and Support section for further assistance.

Manylebau

Gwarant a Chefnogaeth

Gwarant Cyfyngedig: This Voltex product comes with a 1-year limited warranty on electronic parts from the date of purchase.

Polisi Dychwelyd: There are no returns or refunds on used items. For defects, customers must notify within 3 days of receipt. To qualify for an exchange, customers must pay for shipping, provide their purchase receipt, ensure the item is in new condition, and ship it back with original packaging.

For any questions, technical assistance, or warranty claims, please feel free to contact Voltex customer support. Contact information can typically be found on the Voltex websafle neu'ch dogfennaeth prynu.
