Llawlyfr Cyfarwyddiadau

1. Gwybodaeth Bwysig am Ddiogelwch

RHYBUDD: I'w ddefnyddio yn yr awyr agored yn unig. Peidiwch â storio na defnyddio gasoline nac anweddau a hylifau fflamadwy eraill yng nghyffiniau'r offer hwn nac unrhyw offer arall.

PERYGL: Os ydych chi'n arogli nwy:

1. Diffoddwch y nwy i'r teclyn.
2. Diffoddwch unrhyw fflam agored.
3. Caead agored.
4. Os bydd arogl yn parhau, cadwch draw oddi wrth y peiriant a ffoniwch eich cyflenwr nwy neu'ch adran dân ar unwaith.

PERYGL CARBON MONOXIDE: Gall y teclyn hwn gynhyrchu carbon monocsid heb unrhyw arogl. Gall ei ddefnyddio mewn man caeedig eich lladd. Peidiwch byth â defnyddio'r teclyn hwn mewn man caeedig fel camper, pabell, car, neu gartref.

Always maintain proper clearances from combustible materials. Keep children and pets away from the grill. Never leave a lit grill unattended.

Gwiriad Gollyngiad Nwy: Before first use and after every cylinder change, perform a leak test. Apply a soapy water solution (50% soap, 50% water) to all gas connections. Bubbles indicate a leak. Tighten connections or replace parts as necessary. Do not use an open flame to check for leaks.

2. Cynnyrch Drosview

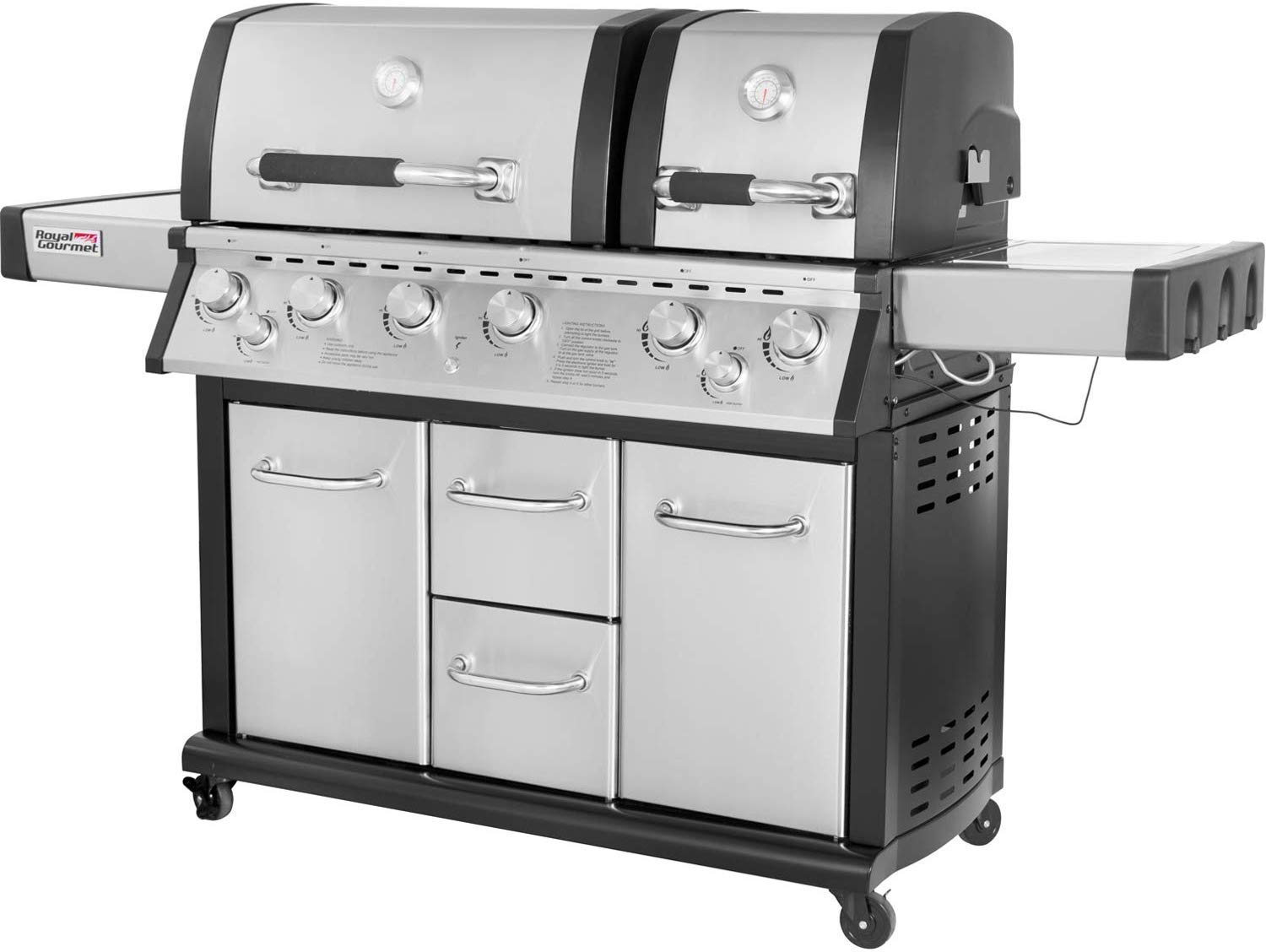

The Royal Gourmet Mirage MG6001-R is a 6-burner liquid propane gas grill designed for outdoor cooking. It features a split lid design, an infrared burner, and a side burner, providing versatile cooking options. The primary cooking area measures 555 sq. inches.

Key components include two stainless steel lids with integrated thermometers and cast aluminum end caps, porcelain cast iron cooking grates with a slope design for efficient grease drainage, a stainless steel side table with integrated tool hooks, and an enclosed steel cabinet with doors for convenient storage of a propane tank and accessories. The grill's functions are controlled via a front-mounted panel with individual burner knobs.

3. Gosod a Chynulliad

This grill requires assembly prior to use. Refer to the detailed assembly instructions provided in the separate assembly guide for step-by-step procedures. Ensure all parts are present and undamaged before beginning assembly.

3.1 Cysylltiad Tanc Propan

1. Gwnewch yn siŵr bod falf y tanc propan wedi'i gau.
2. Rhowch y tanc propan yn ddiogel yn yr adran ddynodedig o fewn cabinet y gril.
3. Connect the regulator hose to the propane tank valve. Hand-tighten firmly. Do not use tools to tighten, as this may damage the connection.
4. Perform a gas leak check as described in Section 1.

3.2 Initial Burn-Off

Before cooking for the first time, perform an initial burn-off to remove any manufacturing residues. Light all main burners to their highest setting and close the lid. Allow the grill to heat for 10-15 minutes. Turn off the burners and let the grill cool completely.

4. Cyfarwyddiadau Gweithredu

4.1 Lighting Main Burners

1. Agorwch gaead y gril.
2. Gwnewch yn siŵr bod pob knob rheoli llosgydd yn y safle 'OFF'.
3. Agorwch falf y tanc propan yn llwyr yn araf.
4. Push and turn one main burner control knob to the 'HIGH' position.
5. Press the electronic igniter button (if equipped) repeatedly until the burner lights.
6. Once lit, release the igniter button. If the burner does not light within 5 seconds, turn the knob to 'OFF', wait 5 minutes, and repeat the process.
7. Ailadroddwch ar gyfer prif losgwyr eraill yn ôl yr angen.

4.2 Lighting Side Burner

1. Agorwch y caead llosgwr ochr.
2. Gwnewch yn siŵr bod bwlyn rheoli'r llosgydd ochr yn y safle 'OFF'.
3. Agorwch falf y tanc propan yn llwyr yn araf.
4. Push and turn the side burner control knob to the 'HIGH' position.
5. Press the electronic igniter button (if equipped) repeatedly until the burner lights.
6. Once lit, release the igniter button. If the burner does not light within 5 seconds, turn the knob to 'OFF', wait 5 minutes, and repeat the process.

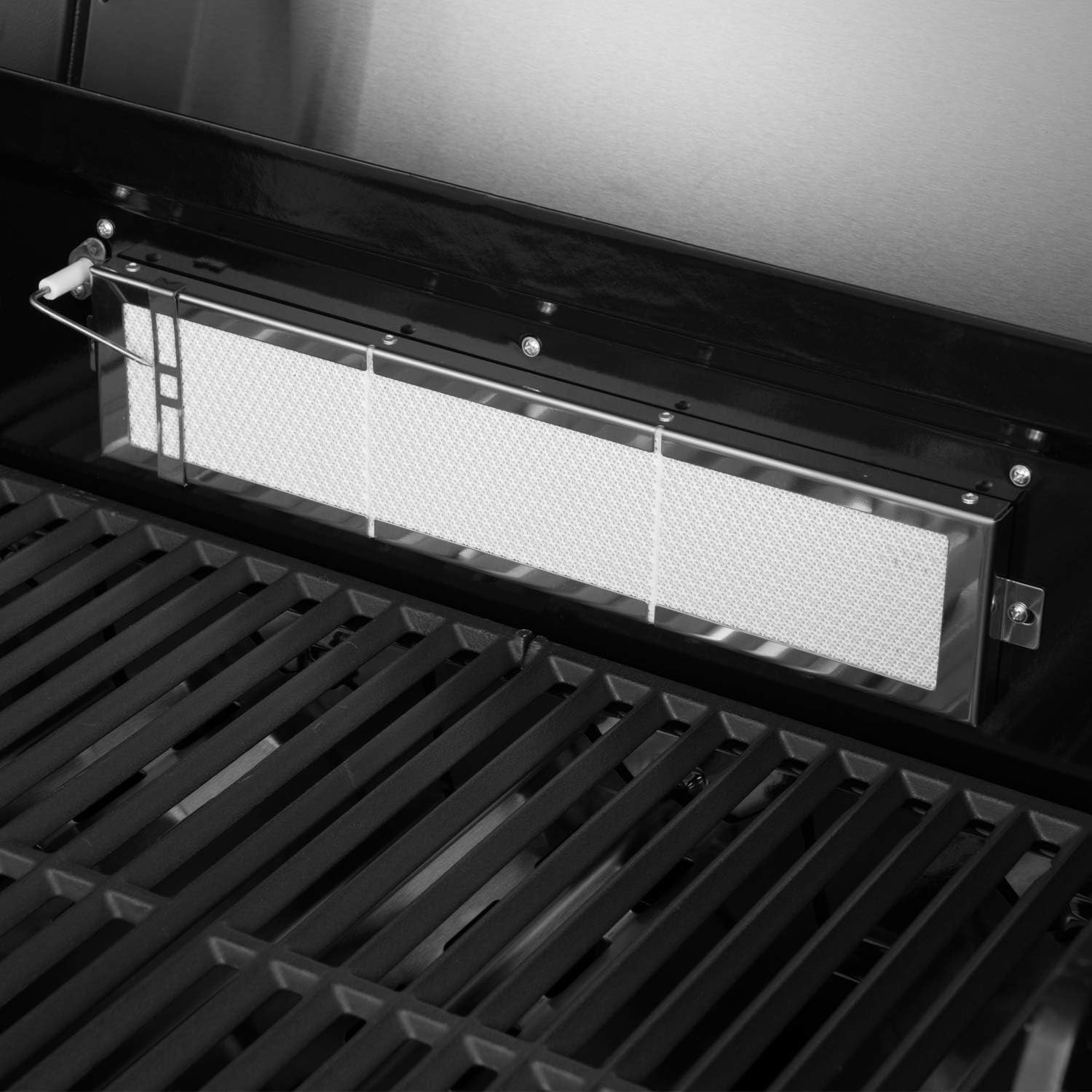

4.3 Using the Infrared Burner

The infrared burner provides intense, even heat for searing. To use:

1. Ensure the infrared burner control knob is in the 'OFF' position.
2. Push and turn the infrared burner control knob to the 'HIGH' position.
3. Press the electronic igniter button until the burner lights.
4. Allow the burner to preheat for a few minutes before placing food directly over it for searing.

4.4 Temperature Control and Warming Rack

Adjust the burner control knobs between 'LOW' and 'HIGH' to achieve desired cooking temperatures. The built-in lid thermometers provide an indication of the internal grill temperature. The warming rack can be used to keep cooked food warm or to gently heat items.

4.5 Using the Side Table

The stainless steel side table provides a convenient surface for food preparation and holding utensils. It includes integrated hooks for hanging grilling tools.

5. Cynnal a Chadw a Gofal

5.1 Glanhau Gratiau Coginio

After each use, while the grates are still warm, use a grill brush to remove food residue. For deeper cleaning, remove grates and wash with warm soapy water, then rinse and dry thoroughly.

5.2 Cleaning Burners

Archwiliwch borthladdoedd y llosgydd yn rheolaidd am rwystrau (e.e., pry cop webs, food debris). Use a wire brush or a stiff wire to clear any obstructions. Ensure gas flow is unobstructed.

5.3 Grease Management

Regularly check and clean the grease tray and grease cup. Excessive grease buildup can lead to flare-ups. Dispose of grease properly.

5.4 Glanhau Allanol

Wipe down stainless steel surfaces with a soft cloth and a stainless steel cleaner. For painted surfaces, use mild soap and water. Avoid abrasive cleaners or pads that can scratch the finish.

5.5 Storio

When not in use, especially during extended periods or inclement weather, cover the grill with a suitable grill cover to protect it from the elements. Store the propane tank outdoors in a well-ventilated area, away from direct sunlight and heat sources.

6. Datrys Problemau

7. manylebau

8. Gwarant a Chefnogaeth

8.1 Gwybodaeth Gwarant

This Royal Gourmet grill is covered by a manufacturer warranty for 1 year from the date of purchase. Please retain your proof of purchase for warranty claims.

8.2 Cefnogaeth i Gwsmeriaid

For technical assistance, replacement parts, or warranty inquiries, please contact Royal Gourmet customer service. Refer to the contact information provided in your product packaging or on the official Royal Gourmet websafle.
