COSTWAY Garden Shed User Manual

1. Cynnyrch Drosview

The COSTWAY Garden Shed is a durable and weather-resistant outdoor storage solution designed to protect your tools and equipment from the elements. Constructed from galvanized steel, it offers ample space and practical features for various outdoor storage needs.

Ffigur 1.1: Blaen view of the COSTWAY Garden Shed, highlighting its dark grey finish and single sliding door design.

Nodweddion Allweddol:

• Adeiladu Gwydn: Made from weather-resistant galvanized and painted steel sheet for robustness and longevity.
• Mewnol Eang: Offers approximately 4.39 m³ of storage space, suitable for various garden tools and equipment.
• Drysau Llithriad: Equipped with two sliding doors for convenient access and efficient use of space.
• Awyru: Features two small windows (vents) to ensure good air circulation within the shed.
• Integrated Base: Includes a base frame that allows for additional flooring to be installed as required, enhancing stability.
• Diogelu Tywydd: Designed to protect contents from various weather conditions, dirt, and dust.

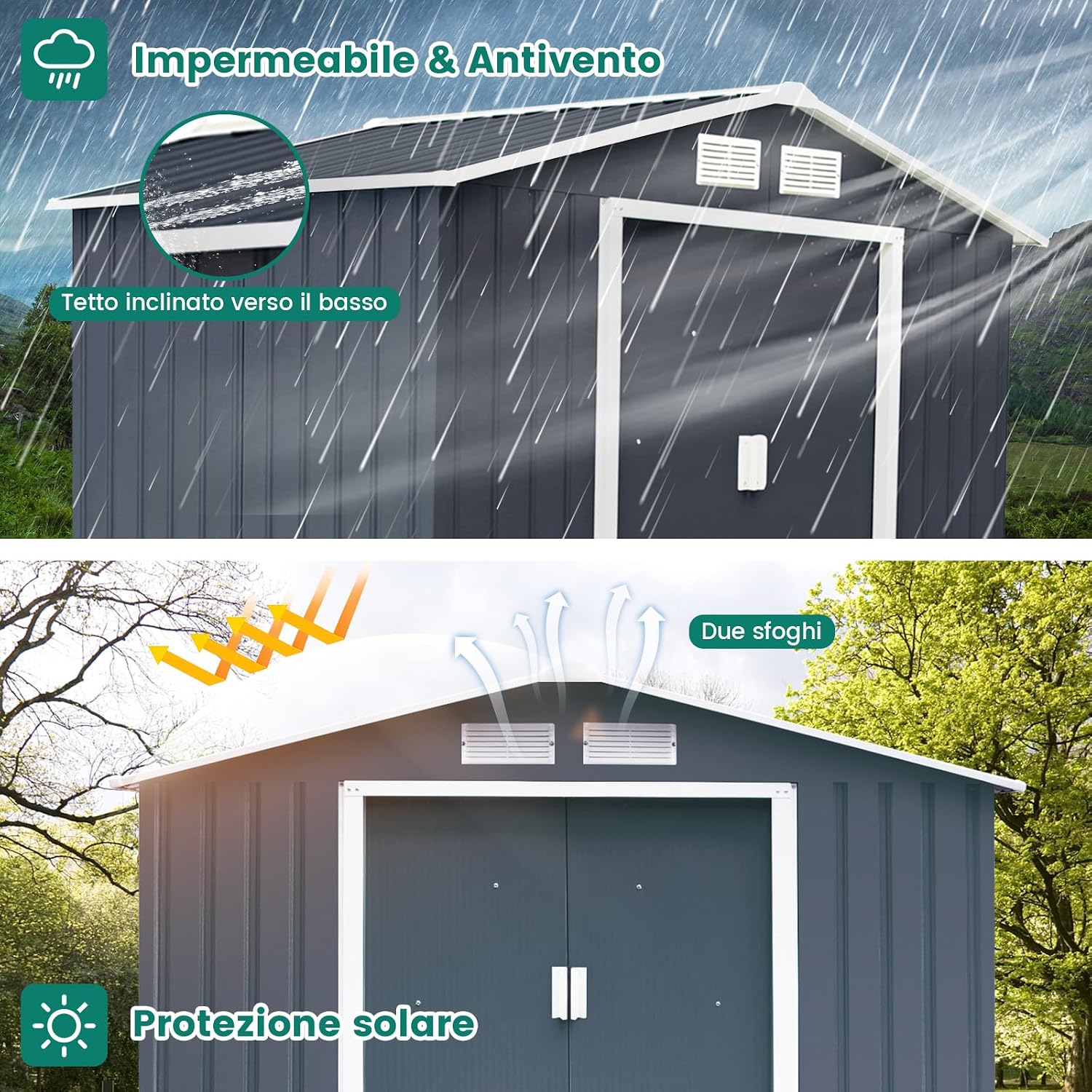

Figure 1.2: Detail showing the inclined roof design for water drainage and the two upper vents for air circulation, contributing to weather resistance and solar protection.

2. Cyfarwyddiadau Diogelwch

Please read and understand all safety instructions before assembly and use of the garden shed. Failure to follow these instructions may result in injury or damage to the product.

• Gwisgwch offer amddiffynnol personol (PPE) priodol bob amser fel menig a sbectol ddiogelwch yn ystod y cydosod.
• Ensure the assembly area is clear of obstructions and well-lit.
• Peidiwch â chydosod mewn gwyntoedd cryfion nac amodau tywydd garw.
• Cadwch blant ac anifeiliaid anwes i ffwrdd o'r ardal ymgynnull.
• Handle all metal components with care to avoid cuts from sharp edges.
• Securely anchor the shed to the ground after assembly to prevent tipping in high winds.
• Do not store flammable liquids or hazardous materials inside the shed without proper ventilation and safety measures.
• Regularly inspect the shed for any signs of damage or wear, especially after severe weather.

3. Cynnwys Pecyn

Cyn dechrau cydosod, gwiriwch fod yr holl rannau a restrir isod yn bresennol ac yn ddi-ddifrod. Os oes unrhyw rannau ar goll neu wedi'u difrodi, cysylltwch â chymorth cwsmeriaid ar unwaith.

Figure 3.1: The shed is shipped in two separate packages. Ensure both boxes are received before starting assembly.

The shed components are typically distributed across two packages. Refer to the included parts list in your physical manual for a detailed inventory of all panels, frame pieces, fasteners, and accessories.

4. Cynulliad a Setup

Assembly of the COSTWAY Garden Shed requires two people and basic tools (not included). Follow the detailed instructions provided in the physical assembly manual for step-by-step guidance. The following provides a general overview and key considerations.

4.1 Paratoi Safle

• Choose a level, firm, and well-drained site for the shed.
• Cliriwch yr ardal o unrhyw falurion, creigiau neu lystyfiant.
• Sicrhewch fod digon o glirio o amgylch y sied ar gyfer ymgynnull a mynediad yn y dyfodol.

4.2 Gosod Sylfaen

The shed includes a base frame. For enhanced stability and longevity, it is highly recommended to install additional flooring (e.g., wood or concrete) within this base.

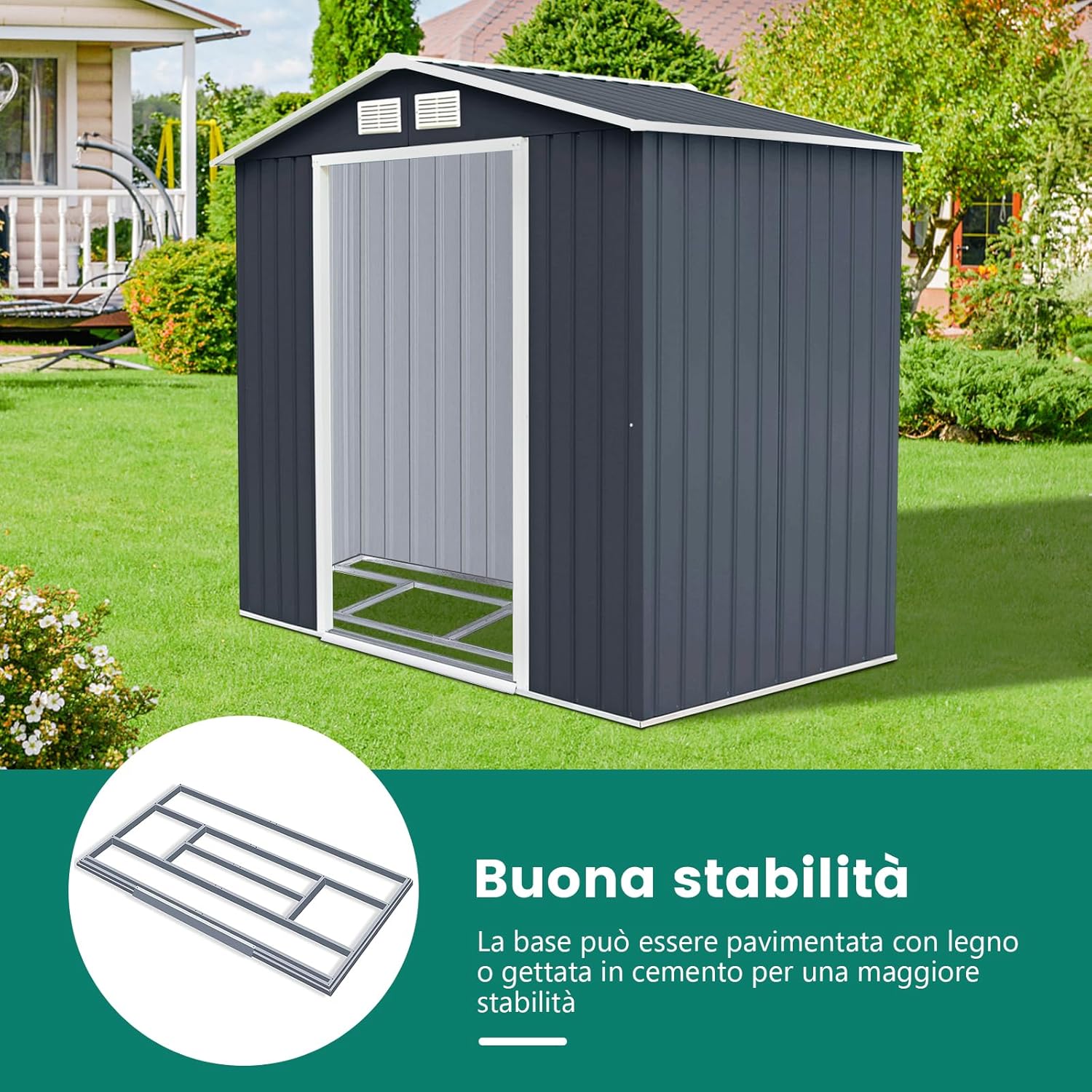

Figure 4.1: The shed's integrated base frame provides a foundation. Consider adding a wooden or concrete floor for improved stability and a solid internal surface.

4.3 Cynulliad Cydrannau

Assemble the frame components, wall panels, roof panels, and doors according to the numbered steps in your assembly manual. Pay close attention to the orientation of each piece.

Figure 4.2: Key components such as handles, corner covers, reinforced beams, and screw sleeves are designed for secure and straightforward assembly.

• Ensure all screws and fasteners are tightened securely, but do not overtighten to avoid damaging the metal.
• Install the sliding doors carefully, ensuring they glide smoothly along their tracks.
• Attach the roof panels, ensuring proper overlap for water resistance.
• Install the vents at the top of the shed for air circulation.

4.4 Anchoring the Shed

Once assembled, it is crucial to anchor the shed to the ground using appropriate anchoring kits (may be sold separately or included depending on model) to prevent it from being lifted or moved by strong winds.

5. Gweithrediad

The COSTWAY Garden Shed is designed for straightforward operation.

5.1 Using the Sliding Doors

• To open the door, grasp the handle and slide the door along its track.
• Ensure the track is clear of debris to allow smooth operation.
• The doors can be secured with a padlock (not included) for added security.

5.2 Awyru

• The integrated vents at the top of the shed provide passive air circulation.
• Keep vents clear of obstructions to maintain airflow and reduce condensation.

Ffigur 5.1: Mae'r sied yn darparu ample space for organizing garden tools and equipment.

Figure 5.2: Shelving can be added to maximize internal storage and organization.

6. cynnal

Bydd cynnal a chadw rheolaidd yn sicrhau hirhoedledd a pherfformiad gorau posibl eich sied ardd.

• Glanhau: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the paint or galvanized coating.
• Traciau Drws: Keep the sliding door tracks clean and free of dirt, leaves, or other debris to ensure smooth operation. Lubricate with a silicone spray if necessary.
• Caewyr: Periodically check all screws and bolts for tightness. Retighten any loose fasteners to maintain structural integrity.
• Draenio: Ensure that water drains away from the shed's base and that the roof is clear of accumulated debris (e.g., leaves, snow) to prevent water pooling.
• Atal Rwd: While galvanized, inspect for any scratches or areas where the coating might be compromised. Touch up with rust-inhibiting paint if needed.

7. Datrys Problemau

This section addresses common issues you might encounter with your garden shed.

8. manylebau

Detailed technical specifications for the COSTWAY Garden Shed (Model: B07LGVCVZ5).

• Brand: COSTWAY
• Model: B07LGVCVZ5
• Lliw: Llwyd Tywyll
• Deunydd: Steel alloy (Galvanized and painted steel sheet)
• Dimensiynau Cyffredinol (L x W x H): Approximately 2.13 m x 1.27 m x 1.85 m (213 cm x 127 cm x 185 cm)
• Internal Storage Volume: Approximately 4.39 m³
• Pwysau Eitem: Tua 47.9 kg
• Math o ddrws: Drysau Llithriad Dwbl
• Awyru: 2 integrated vents
• Sylfaen: Integrated metal base frame included

Figure 8.1: Key dimensions of the assembled shed, including overall length, width, height, and door opening measurements.

9. Gwarant a Chefnogaeth

For warranty information, product support, or to order replacement parts, please refer to the contact details provided in your purchase documentation or visit the official COSTWAY websafle.

• Gwasanaeth Cwsmer: Refer to your purchase receipt or the COSTWAY brand store for contact information.
• Adnoddau Ar-lein: Check the COSTWAY official website for FAQs, additional manuals, and product registration.
