Turnigy Nano-tech 5000mah 6S 65~130C Lipo Pack w/XT-90 User Manual

1. Rhagymadrodd

This manual provides essential information for the safe and effective use of your Turnigy Nano-tech 5000mah 6S 65~130C Lipo Pack with XT-90 connector. This high-performance Lithium Polymer (LiPo) battery is designed for demanding remote-controlled (RC) applications. Please read this manual thoroughly before using the battery to ensure proper handling, charging, and storage, thereby maximizing its lifespan and ensuring user safety.

2. Canllawiau Diogelwch

WARNING: Lithium Polymer batteries are volatile. Failure to follow these instructions can result in fire, personal injury, and property damage.

• Codi tâl: Always use a LiPo-compatible charger with a balance function. Never charge unattended. Charge in a fire-safe area, away from flammable materials. Do not overcharge; stop charging if the battery becomes hot or swells.
• Rhyddhau: Do not over-discharge the battery. Stop use immediately if the battery voltage drops below 3.0V per cell (for 6S, this is 18.0V total). Over-discharging can permanently damage the battery and lead to swelling.
• Storio: Store LiPo batteries at a 'storage voltage' of approximately 3.8V per cell (for 6S, this is 22.8V total) in a cool, dry place, away from direct sunlight and extreme temperatures.
• Difrod Corfforol: Do not puncture, drop, or subject the battery to severe impact. If the battery is damaged, swollen, or leaking, discontinue use immediately and dispose of it safely.
• Tymheredd: Do not expose the battery to temperatures above 60°C (140°F) or below 0°C (32°F). Avoid charging or discharging in extreme temperatures.
• Cylchdaith Fer: Never short circuit the battery terminals. This can cause severe damage, fire, or explosion.
• Gwaredu: Dispose of damaged or end-of-life LiPo batteries responsibly at a designated battery recycling facility. Never dispose of LiPo batteries in regular household waste or by incineration.

3. Gosod

3.1 Arolygiad Cychwynnol

Upon receiving your battery, carefully inspect it for any signs of damage, such as swelling, punctures, or frayed wires. If any damage is observed, do not use the battery and contact your retailer.

3.2 Paratoi ar gyfer Codi Tâl

Before first use, the battery should be fully charged. Ensure you have a compatible LiPo charger capable of charging 6S LiPo batteries and a balance board/cable that matches the battery's balance connector (typically JST-XH).

1. Connect the main XT-90 power connector to the charger's output.
2. Connect the white balance connector to the charger's balance port or balance board.
3. Set your charger to 'LiPo Balance Charge' mode.
4. Set the cell count to 6S.
5. Set the charge current to 1C (e.g., for a 5000mAh battery, set to 5.0A).
6. Begin charging and monitor the battery closely.

3.3 Connecting to Device

Once charged, connect the XT-90 power connector to your RC model's Electronic Speed Controller (ESC) or power distribution board. Ensure the connection is secure and correct polarity is observed (red to positive, black to negative).

4. Gweithredu

4.1 Canllawiau Defnydd

Operate the battery within its specified discharge limits. The continuous discharge rate is 65C, with a burst rate of 130C. Avoid exceeding these limits to prevent damage and ensure longevity. Monitor the battery's temperature during use; if it becomes excessively hot, discontinue use and allow it to cool.

4.2 Monitoring Battery Voltage

It is highly recommended to use a low-voltage alarm or telemetry system in your RC model to monitor the battery voltage during operation. Stop using the battery when any cell reaches 3.5V to 3.7V under load to prevent over-discharge. This will help preserve the battery's health and performance.

5. cynnal

5.1 Storio

For long-term storage (more than a few days), charge or discharge the battery to its storage voltage (approximately 3.8V per cell). Store the battery in a cool, dry place, ideally in a LiPo-safe bag or container, away from direct sunlight and extreme temperatures.

5.2 Glanhau

Keep the battery and its connectors clean and free from dirt, dust, and moisture. Use a soft, dry cloth to wipe down the battery. Do not use solvents or harsh chemicals.

5.3 Arolygiad Rheolaidd

Periodically inspect the battery for any signs of damage, swelling, or connector wear. If any issues are found, follow the safety guidelines for damaged batteries.

6. Datrys Problemau

• Batri Ddim yn Codi Tâl: Ensure all connections are secure, the charger settings are correct (LiPo, 6S, 5.0A), and the charger itself is functioning properly. Check for any visible damage to the battery or connectors.
• Low Performance/Short Run Time: This could indicate an aging battery, over-discharge in previous uses, or incorrect charger settings. Ensure the battery is fully balanced charged before each use.
• Chwyddo Batri: Swelling is a sign of internal damage and indicates the battery is unsafe to use. Immediately discontinue use, discharge the battery to 0V safely (e.g., using a discharge function on a charger or a saltwater bath in a well-ventilated area), and dispose of it at a proper recycling facility.
• Gorboethi yn ystod Defnydd: If the battery becomes excessively hot, it may be over-stressed. Reduce the load on the battery or check your RC model's power system for inefficiencies.

7. manylebau

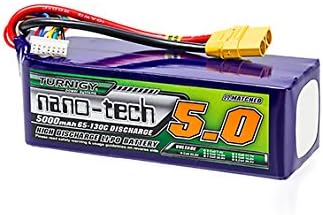

An image showing the Turnigy Nano-tech 5000mAh 6S LiPo battery pack. The battery is purple with green and white branding, featuring the 'nano-tech' logo and '5000mAh 6S 65-130C DISCHARGE' text. It has red and black power leads terminating in a yellow XT-90 connector, and a white balance lead connector.

8. Gwarant a Chefnogaeth

For warranty information and technical support, please refer to the retailer or the official Turnigy website where you purchased this product. Keep your proof of purchase for any warranty claims.
