HOMCOM Portable Folding Massage Table (Model: B079HQVGSH) - Instruction Manual

Cynnyrch Drosview

The HOMCOM Portable Folding Massage Table is designed for professional and personal use, offering comfort and versatility. It features a sturdy wooden frame, adjustable height, and a foldable design for easy transport and storage. The table includes a removable headrest, armrests, and a hand pallet for enhanced user comfort.

Image: The HOMCOM Portable Folding Massage Table set up in a room, showcasing its full form and accessories.

Gwybodaeth Diogelwch

• Do not exceed the weight limit of 550 lbs (250 kg).
• Gwnewch yn siŵr bod yr holl fecanweithiau cloi wedi'u cysylltu'n ddiogel cyn eu defnyddio.
• Rhowch y bwrdd ar arwyneb gwastad, sefydlog bob amser.
• Keep hands and fingers clear of moving parts during setup and adjustment.

Cyfarwyddiadau Gosod

1. Dadblygu'r Tabl: Place the folded massage table on its side on a flat surface. Release the metal latches on the side. Gently open the table, allowing the legs to unfold.
2. Securing the Legs: Once the table is fully open, ensure all leg supports are extended and locked into place. The internal cables will provide tension to stabilize the frame.
3. Addasu Uchder: The table features 9 height adjustment levels. Locate the adjustment knobs on each leg. Unscrew the knobs, adjust the leg to the desired height (between 26.4" and 36.2"), and then securely tighten the knobs. Ensure all legs are adjusted to the same height for stability.

Image: Detail of the massage table leg, illustrating the 9-level height adjustment feature from 26.4" to 36.2" (67-92 cm).

4. Atodi Ategolion:
   • Cynhalydd pen: Insert the headrest support bars into the designated slots at one end of the table. The headrest can be adjusted from 0-90 degrees and locked into position.
   • Arfau: Slide the armrest bars into the slots on the sides of the table, near the headrest.
   • Hand Pallet: Attach the hand pallet to the headrest assembly as shown in the diagram.

Delwedd: Ffrwydrad view highlighting the removable face cradle, breath hole, removable armrests, and the humanized hand pallet for flexible configuration.

Cyfarwyddiadau Gweithredu

Once assembled and adjusted to the desired height, the massage table is ready for use. The padded surface, made with high-density sponge and PU leather, provides optimal comfort.

Delwedd: Manwl view illustrating the high-density sponge padding and durable PU leather covering for enhanced comfort.

Plygu ar gyfer Storio a Chludiant

1. Remove all accessories (headrest, armrests, hand pallet).
2. Adjust the legs to their lowest setting or fully retract them if applicable.
3. Fold the table in half, ensuring the internal components collapse smoothly.
4. Secure the table with the metal latches on the side.
5. Use the integrated handles for easy carrying or place it in the provided carrying bag.

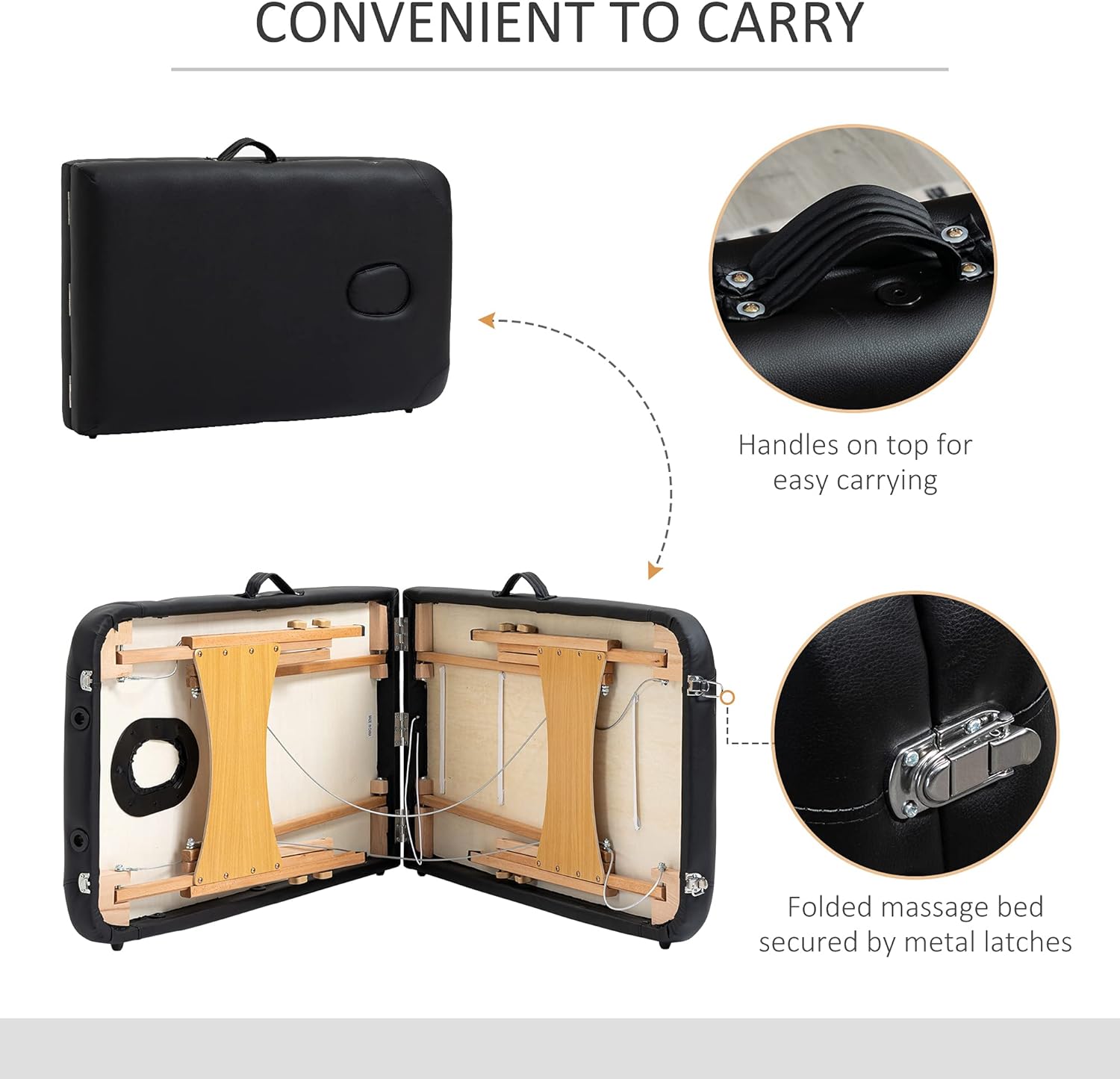

Image: The massage table folded into a compact case, highlighting the handles for easy carrying and the metal latches that secure it.

Cynnal a chadw

To maintain the longevity and appearance of your HOMCOM massage table, follow these simple care instructions:

• Glanhau: Sychwch yr wyneb lledr PU gyda hysbysebamp cloth. For stubborn stains, use a mild soap solution and then wipe clean with a damp cloth, followed by a dry cloth. Avoid harsh chemicals or abrasive cleaners.
• Storio: When not in use, store the table in its folded position in a dry, cool place, away from direct sunlight and extreme temperatures.
• Arolygiad: Periodically check all screws, bolts, and locking mechanisms to ensure they are tight and functioning correctly.

Datrys problemau

• Mae'r tabl yn teimlo'n ansefydlog: Ensure all leg adjustment knobs are securely tightened and that the table is placed on a level surface. Verify that the internal support cables are intact and properly tensioned.
• Anhawster plygu/datblygu: Check for any obstructions or misaligned parts. Ensure all accessories are removed before folding. Do not force the mechanism; gently guide it.
• Accessories not fitting: Ensure the correct accessory is being inserted into the designated slot. Check for any debris or damage in the slots.

Manylebau

Image: A detailed diagram illustrating the overall dimensions of the massage table when set up and when folded for storage.

Fideo Cynnyrch

Gwarant a Chefnogaeth

This HOMCOM massage table comes with a 90-day warranty against manufacturer defects.

For support or warranty claims, please contact the manufacturer:

• Gwneuthurwr: Aosom Canada
• Gwybodaeth Gyswllt: Markham, Ontario, CA Tel. 1-416-792-6088
