Air Innovations High Performance Silent 12” Swirl Cool 2-in-1 Fan

Rhagymadrodd

Thank you for choosing the Air Innovations High Performance Silent 12” Swirl Cool 2-in-1 Fan. This versatile fan is designed to provide efficient and quiet air circulation, suitable for various indoor environments such as homes, offices, or dorms. Its unique 2-in-1 design allows for both pedestal and tabletop use, offering flexibility to meet your cooling needs.

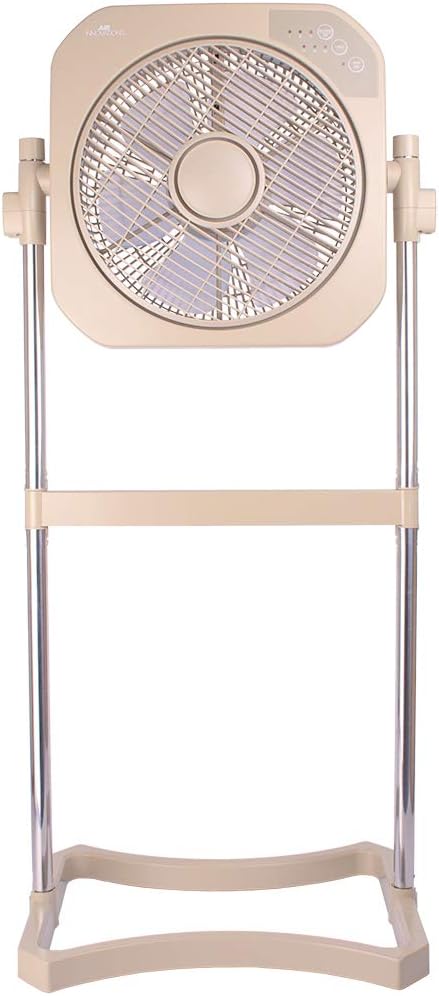

Figure 1: Air Innovations 12-inch Swirl Cool 2-in-1 Fan (Pedestal Mode)

Cyfarwyddiadau Diogelwch Pwysig

Please read all instructions carefully before using this fan and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Datgysylltwch y ffan o'r soced pŵer bob amser cyn ei lanhau, ei chynnal a'i chadw neu ei symud.
• Peidiwch â gweithredu'r ffan gyda llinyn neu blwg wedi'i ddifrodi. Os yw'r llinyn neu'r plwg wedi'i ddifrodi, cysylltwch â phersonél gwasanaeth cymwys i'w atgyweirio neu ei ddisodli.
• Keep fingers, hair, and loose clothing away from the fan blades and openings during operation to prevent injury.
• Peidiwch â defnyddio'r gwyntyll yn wlyb neu damp locations, such as bathrooms or laundry areas, or near water.
• Gwnewch yn siŵr bod y ffan wedi'i gosod ar arwyneb sefydlog, gwastad i'w atal rhag troi drosodd.
• Do not block air openings or operate the fan near curtains or other materials that could be drawn into the fan.
• Mae gan y teclyn hwn plwg polariaidd (mae un llafn yn lletach na'r llall). Er mwyn lleihau'r risg o sioc drydanol, bwriedir i'r plwg hwn ffitio mewn allfa polariaidd un ffordd yn unig. Os nad yw'r plwg yn ffitio'n llawn yn yr allfa, gwrthdroi'r plwg. Os nad yw'n ffitio o hyd, cysylltwch â thrydanwr cymwys. Peidiwch â cheisio trechu'r nodwedd ddiogelwch hon.

Cynnwys Pecyn

Gwiriwch fod yr holl gydrannau yn bresennol yn y pecyn:

• Fan Unit (with 12-inch Swirl Cool grill)
• Pedestal Stand (includes long chrome rods and support bar)
• Tabletop Support Bracket
• Llawlyfr Cyfarwyddiadau

Figure 2: Fan Components Diagram

Cynulliad

Pedestal Fan Assembly

1. Dadbacio'r holl gydrannau o'r blwch yn ofalus.
2. Assemble the pedestal stand by connecting the long chrome rods to the base and the support bar.
3. Attach the fan unit to the top of the assembled pedestal stand, ensuring it is securely fastened using the adjustment levers.
4. Ensure all connections are tight and stable before plugging in the fan.

Tabletop Fan Assembly

1. If the fan unit is currently attached to the pedestal stand, carefully detach it by loosening the adjustment levers.
2. Locate the tabletop support bracket.
3. Attach the tabletop support bracket to the bottom of the fan unit. This bracket provides stability for tabletop use.
4. Rhowch y gefnogwr ar arwyneb gwastad, sefydlog.

Figure 3: Tabletop Fan Configuration

Cyfarwyddiadau Gweithredu

Familiarize yourself with the control panel and features of your Air Innovations fan.

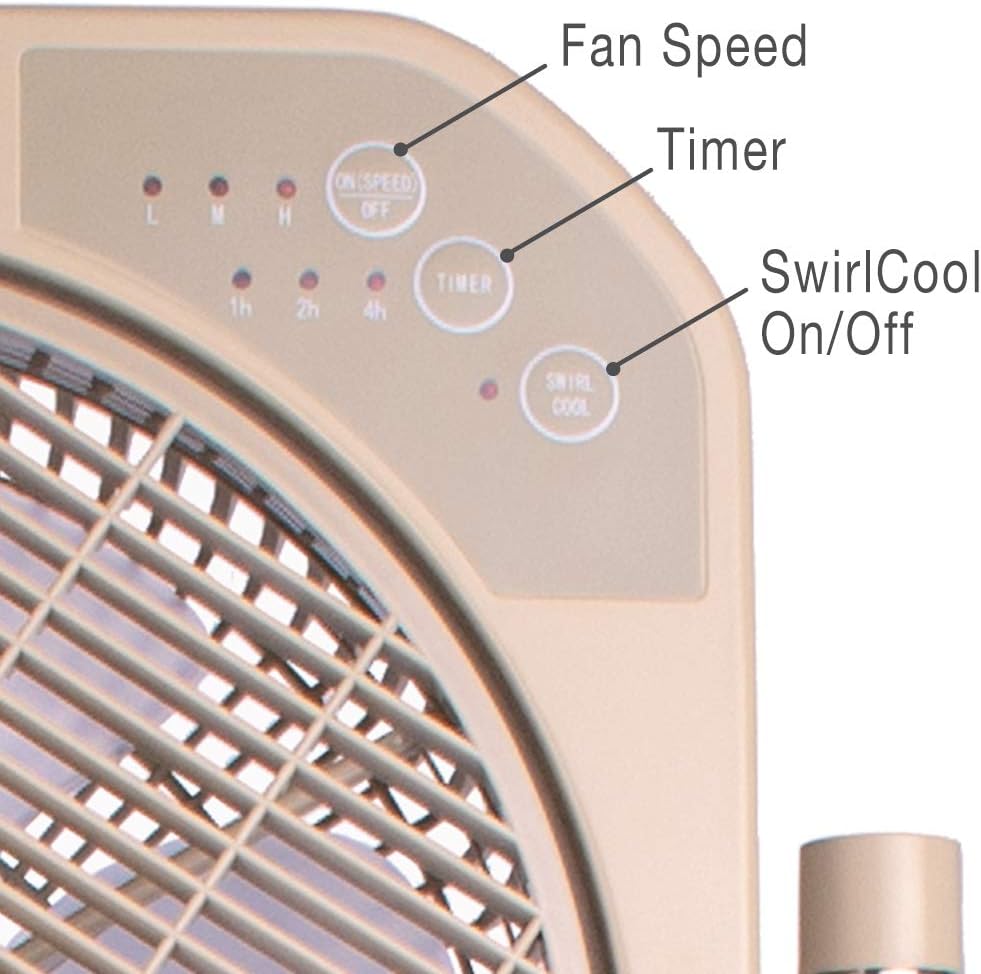

Ffigur 4: Panel Rheoli Drosoddview

• Power On/Off & Speed Control: Press the "ON/SPEED OFF" button repeatedly to cycle through Low (L), Medium (M), High (H) speeds, and to turn the fan off.
• Swirl Cool Feature: Press the "Swirl Cool" button to activate or deactivate the patented 12" rotating front grill. This feature helps circulate air more effectively throughout the room without the entire fan oscillating.
• Swyddogaeth Amserydd: Press the "TIMER" button to set the fan to automatically turn off after a specified duration. Available settings are 1 hour, 2 hours, and 4 hours. The fan will turn off once the selected time has elapsed.
• Adjusting Fan Head Angle: Use the adjustment levers on the sides of the fan head to tilt the fan up or down, directing the airflow to your desired angle. The head tilts up to 45 degrees.

Figure 5: Adjusting Fan Head Angle

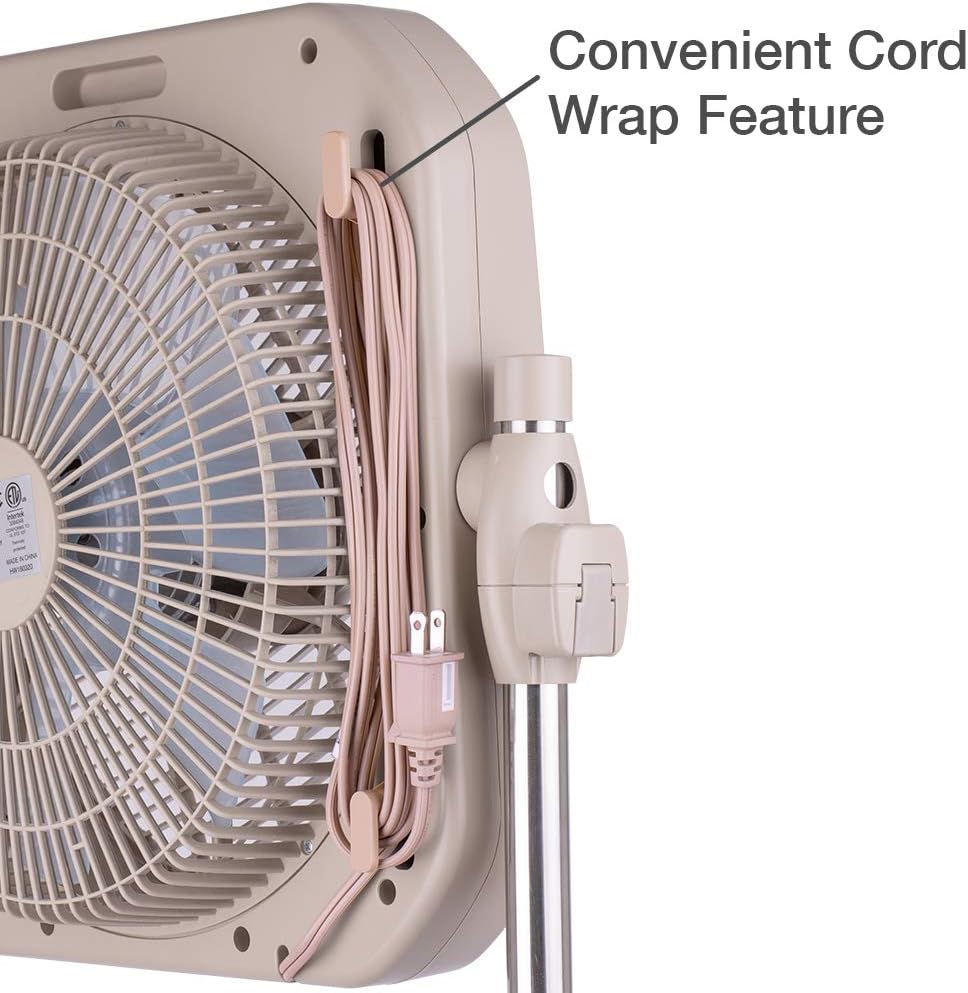

• Cord Wrap Feature: For neat storage and appearance, utilize the integrated cord wrapping feature located on the back of the fan unit.

Figure 6: Convenient Cord Wrap Feature

Fideo Arddangos Cynnyrch

Cynnal a Chadw a Glanhau

Bydd glanhau rheolaidd yn helpu i gynnal perfformiad y gefnogwr ac ymestyn ei oes.

• Tynnwch y plwg bob amser cyn glanhau.
• To clean the exterior, wipe with a soft, damp brethyn. Peidiwch â defnyddio glanhawyr neu doddyddion sgraffiniol.
• The front grill is removable for easier cleaning of the blades. Refer to the assembly diagram for grill removal. Ensure the grill is securely reattached before operating the fan.
• Peidiwch â throchi'r gefnogwr mewn dŵr na chaniatáu i ddŵr ddiferu i'r cwt modur.
• For storage, wrap the cord neatly using the cord wrap feature and store the fan in a cool, dry place.

Datrys problemau

Manylebau

Gwarant a Chefnogaeth

This Air Innovations fan comes with a 1-year Limited Manufacturer's Warranty. Mae'r warant hon yn cwmpasu diffygion mewn deunyddiau a chrefftwaith o dan ddefnydd arferol.

For warranty claims, technical support, or replacement parts, please contact Air Innovations customer service.

• Visit the official Air Innovations websafle ar gyfer gwybodaeth gyswllt a chwestiynau cyffredin.
• Cadwch eich derbynneb prynu fel prawf o brynu at ddibenion gwarant.
