Karcher K1800 Electric Pressure Washer User Manual

1. Rhagymadrodd

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your Karcher K1800 Electric Pressure Washer. Please read these instructions carefully before using the appliance for the first time and observe the safety instructions. Keep this manual for future reference.

Ffigur 1: Karcher K1800 Electric Pressure Washer. This image displays the complete Karcher K1800 unit, highlighting its yellow and black design, integrated handle, wheels, and hose storage.

2. Gwybodaeth Diogelwch

Dilynwch y rhagofalon diogelwch canlynol bob amser i atal anaf neu ddifrod i'r uned:

• Amddiffyn Llygaid: Always wear appropriate eye protection (safety glasses or goggles) when operating the pressure washer.
• Diogelwch Trydanol: Connect the unit only to a grounded outlet. Do not use extension cords unless they are rated for outdoor use and are properly grounded. Never operate the unit with wet hands or while standing in water.
• Perygl Pwysedd Uchel: The high-pressure jet can be dangerous if misused. Do not direct the jet at people, animals, electrical devices, or the unit itself.
• Cysylltiadau Diogel: Ensure all hoses, nozzles, and accessories are securely connected before starting the unit.
• Plant ac Anifeiliaid Anwes: Cadwch blant ac anifeiliaid anwes i ffwrdd o'r ardal weithredu.
• Cyflenwad Dŵr: Ensure the water supply hose is free of kinks and provides adequate flow.

3. Cynnwys Pecyn

Gwiriwch fod yr holl eitemau yn bresennol yn y pecyn:

• Karcher K1800 Pressure Washer Unit
• High-Pressure Spray Wand
• Pibell Pwysedd Uchel Gwrth-Glinciau 25 troedfedd
• Ffroenellau Cysylltu Cyflym:
  • 15-degree All-Purpose Nozzle (Yellow)
  • Turbo Nozzle (Black)
  • Soap Nozzle (Black, 65-degree)
• 0.5 Gallon Removable Detergent Tank
• Removable Storage Bin

4. Cynulliad a Setup

The Karcher K1800 is designed for quick assembly, typically in five minutes or less, without the need for tools.

1. Dadbacio Cydrannau: Tynnwch bob rhan o'r pecyn yn ofalus.
2. Atodwch Olwynion: Secure the oversized no-flat wheels to the unit's base.
3. Gosod Handle: Extend and lock the integrated aluminum handle into the upright position. The handle can be folded down for compact storage after use.

Ffigur 2: Folding Handle. This image illustrates the adjustable handle of the Karcher K1800, showing its ability to fold down for convenient, compact storage.


Ffigur 3: Large Wheels and Metal Frame. A close-up view of the Karcher K1800's durable, oversized wheels and robust metal frame, designed for stability and easy transport.

4. Cysylltu Pibell Pwysedd Uchel: Attach the 25-foot high-pressure hose to the unit's outlet and to the spray wand. Ensure connections are tight.
5. Cysylltu cyflenwad dŵr: Connect a standard garden hose (not included) to the water inlet on the pressure washer. Ensure the water supply is turned on fully.
6. Gwaedu Aer: Before connecting to power, squeeze the trigger on the spray wand to allow water to flow through the system for approximately 30 seconds. This purges air from the pump and hoses.
7. Pwer Cysylltu: Plug the power cord into a grounded electrical outlet. The unit features unique power cord storage for convenience.


Ffigur 4: Power Cord Storage. This image shows the integrated storage solution for the power cord on the Karcher K1800, keeping it tidy and secure when not in use.

8. Install Storage Bin and Detergent Tank: Place the removable storage bin and the 0.5-gallon detergent tank into their designated slots on the unit.

Ffigur 5: Removable Storage Bin. A view of the spacious, removable storage bin on the Karcher K1800, ideal for holding accessories or personal items.


Ffigur 6: Removable Detergent Tank. This image highlights the 0.5-gallon removable detergent tank of the Karcher K1800, designed for easy filling and application of cleaning solutions.

5. Gweithrediad

1. Dechreuwch yr Uned: Press the convenient On/Off foot switch located at the base of the unit to power it on.

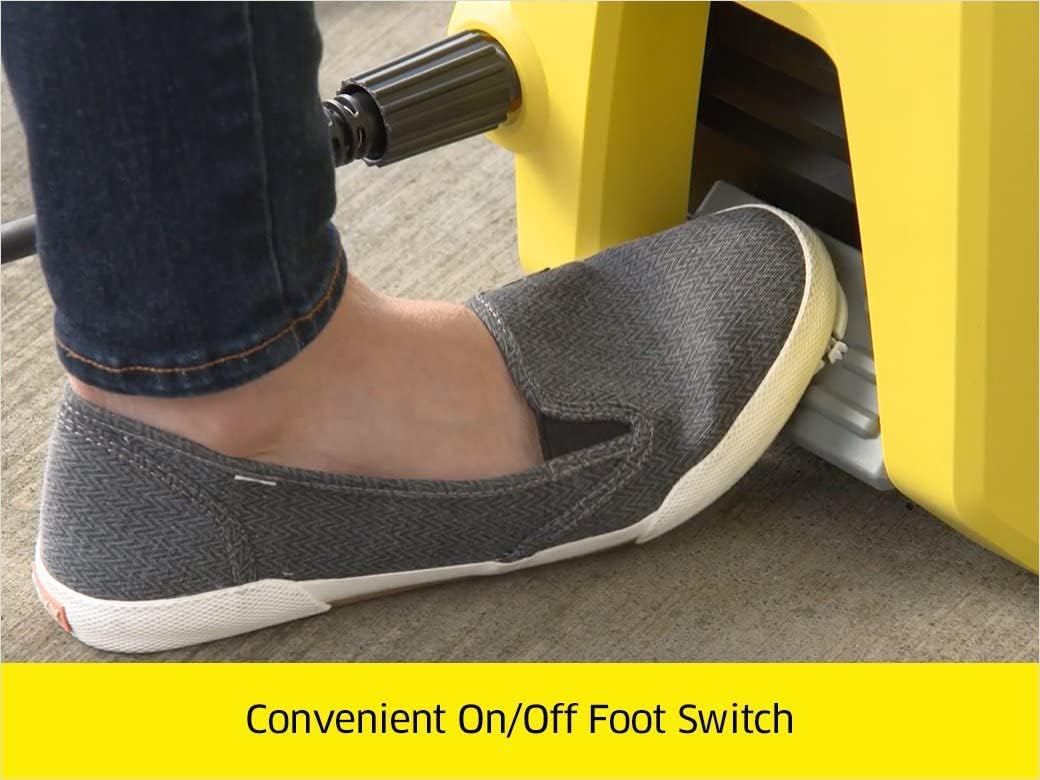

Ffigur 7: On/Off Foot Switch. A close-up of the foot-operated power switch on the Karcher K1800, providing hands-free control for starting and stopping the unit.
2. Dewiswch Nozzle: Dewiswch y ffroenell cysylltu cyflym briodol ar gyfer eich tasg glanhau.
   • 15-degree Nozzle (Yellow): Ideal for general cleaning tasks on various surfaces.
   • Ffroenell Turbo (Du): Provides a concentrated, oscillating jet for intense cleaning of stubborn dirt and grime on hard surfaces like concrete.
   • Soap Nozzle (Black, 65-degree): Designed for applying detergent at low pressure.


Ffigur 8: Pressure Washer Nozzles. This image displays the three quick-connect nozzles included with the Karcher K1800: the turbo nozzle, the 15-degree nozzle, and the soap nozzle.

3. Defnyddiwch lanedydd (Dewisol): Fill the 0.5-gallon removable detergent tank with a pressure washer-safe cleaning solution. Attach the soap nozzle to the spray wand. The unit will automatically draw detergent when operating at low pressure.
4. Dechrau glanhau: Hold the spray wand firmly and squeeze the trigger. Maintain a safe distance from the surface being cleaned, adjusting as needed.

Ffigur 9: Cleaning an Outdoor Table. A person is shown using the Karcher K1800 pressure washer to clean an outdoor metal table, demonstrating its use for patio furniture.


Ffigur 10: Cleaning a Car. This image depicts a person using the Karcher K1800 pressure washer to clean a car, illustrating its application for vehicle washing.

5. Cau i Lawr: Release the trigger, press the On/Off foot switch to turn off the unit, and turn off the water supply. Squeeze the trigger again to release any remaining pressure in the system.

6. cynnal

Mae cynnal a chadw rheolaidd yn sicrhau perfformiad gorau posibl ac yn ymestyn oes eich peiriant golchi pwysedd.

• Storio pibell: After each use, coil the high-pressure hose neatly and store it in the onboard hose bucket.
• Draenio Dŵr: Before storing, especially in freezing temperatures, ensure all water is drained from the pump, hoses, and spray wand to prevent damage. Run the unit for a few seconds with the water supply off and the trigger open until no more water comes out.
• Glanhau ffroenellau: Periodically clean the nozzles to remove any blockages that may affect spray pattern or pressure.
• Glanhau hidlydd: Gwiriwch a glanhewch hidlydd mewnfa'r dŵr yn rheolaidd i atal malurion rhag mynd i mewn i'r pwmp.

7. Datrys Problemau

Os byddwch chi'n dod ar draws problemau, cyfeiriwch at y problemau a'r atebion cyffredin canlynol:

• No Pressure or Low Pressure:
  • Gwnewch yn siŵr bod y cyflenwad dŵr ar agor yn llwyr a nad yw'r bibell ardd wedi'i phlygu.
  • Gwiriwch a yw hidlydd mewnfa'r dŵr wedi'i rwystro.
  • Verify that all hose connections are tight.
  • Bleed air from the system by running water through the wand before starting the motor.
• Nid yw'r Uned yn Cychwyn:
  • Gwiriwch y cysylltiad pŵer a sicrhau bod yr allfa'n ymarferol.
  • Verify the On/Off foot switch is pressed.
  • Ensure the GFCI plug (if applicable) has not tripped.
• Dŵr yn Gollwng:
  • Inspect hose connections for tightness.
  • Check O-rings for wear or damage and replace if necessary.
• Pulsating Spray:
  • This can indicate air in the system; re-bleed the unit.
  • Check for a restricted water supply or clogged nozzle.

8. manylebau

Ffigur 11: Product Dimensions. This image provides a visual representation of the Karcher K1800 pressure washer with its key dimensions labeled: 17.5 inches length, 17.25 inches width, and 33 inches height.

9. Gwarant a Chefnogaeth

The Karcher K1800 Electric Pressure Washer is backed by a gwarant cyfyngedig tair blynedd. For warranty claims, technical support, or service inquiries, please refer to the official Karcher website or contact Karcher customer service directly. Keep your proof of purchase for warranty validation.
