Rhagymadrodd
This manual provides detailed instructions for the proper use, setup, and maintenance of your Swiss Eagle Chronograph Black Dial Men's Watch, model SE-9005-66. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece.
Cynnyrch Drosview

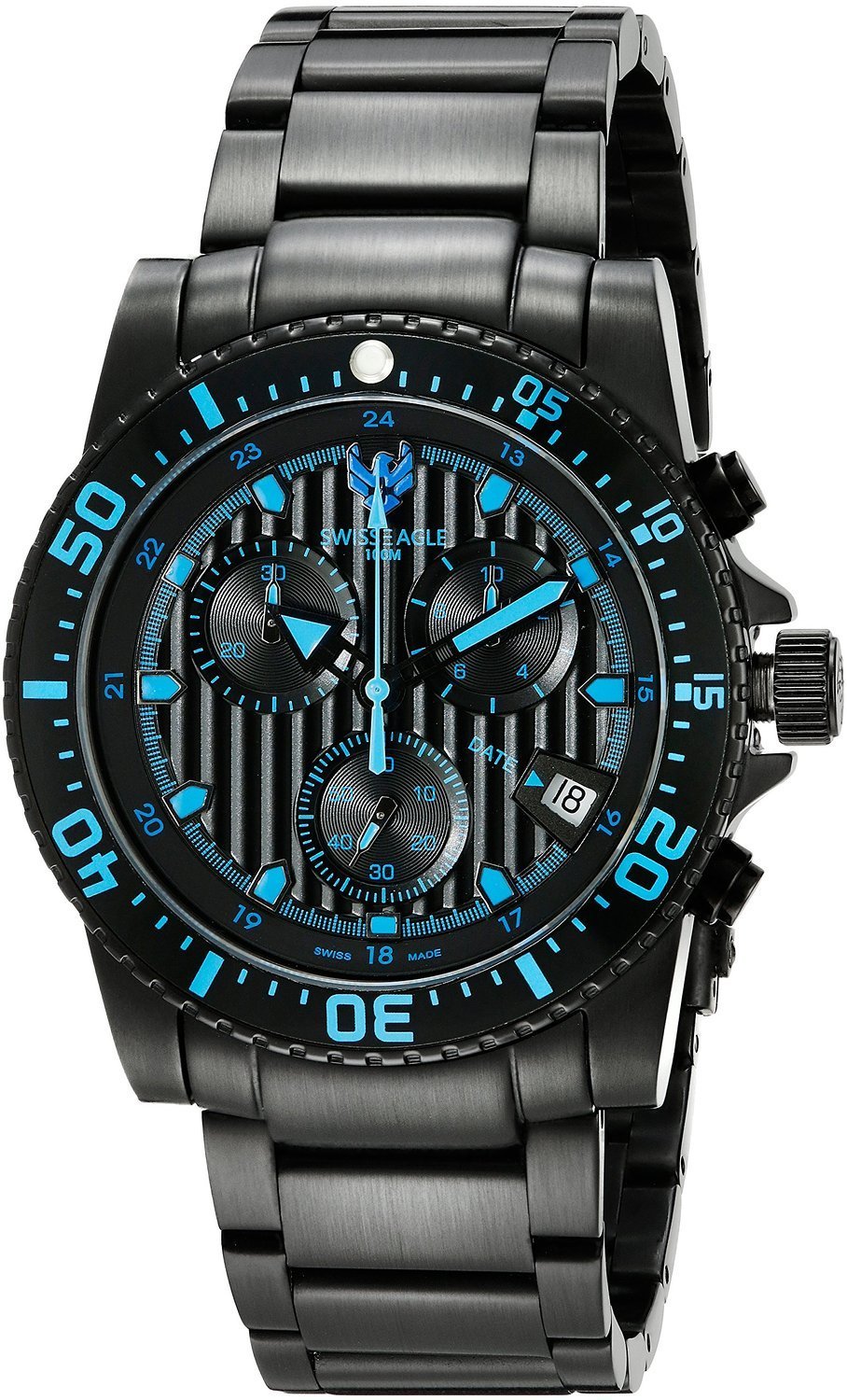

Delwedd: Blaen view of the Swiss Eagle Chronograph Black Dial Men's Watch, model SE-9005-66, showcasing its black dial, three sub-dials, and metal band.
The Swiss Eagle SE-9005-66 is a quartz chronograph watch featuring a black dial and a durable metal band. It is designed for reliable timekeeping and includes chronograph functions for measuring elapsed time.
Gosod
1. Gosod yr Amser
- Tynnwch y goron (B) allan i safle 2.
- Turn the crown (B) clockwise or counter-clockwise to set the hour and minute hands to the desired time.
- Push the crown (B) back into position 1 (normal position) to start the watch.
2. Setting the Date (if applicable)
Note: Not all chronograph models include a date function. Refer to your specific watch dial.
- Tynnwch y goron (B) allan i safle 1.
- Turn the crown (B) counter-clockwise to set the date.
- Push the crown (B) back into position 0 (normal position).
3. Initial Chronograph Reset
Before first use or after a battery change, the chronograph hands may need to be reset to the zero position.
- Tynnwch y goron (B) allan i safle 2.
- Press button A to advance the chronograph seconds hand.
- Press button C to advance the chronograph minute hand.
- Adjust until all chronograph hands point to the 12 o'clock position.
- Push the crown (B) back into position 0.
Gweithredu'r Chronograph
1. Standard Measurement
- I cychwyn the chronograph, press button A. The chronograph seconds hand will begin to move.
- I stopio the chronograph, press button A again. The elapsed time will be indicated by the chronograph hands.
- I ailosod the chronograph, press button C. All chronograph hands will return to the 12 o'clock position.
2. Accumulative Elapsed Time Measurement
- I cychwyn, press button A.
- I stopio and read the first elapsed time, press button A.
- I ailgychwyn the measurement from the stopped point, press button A again.
- Repeat stop/restart as needed.
- I ailosod, press button C after the final stop.
3. Split Time Measurement
- I cychwyn, press button A.
- To measure a amser hollt (intermediate time), press button C. The chronograph hands will stop, allowing you to read the split time, while internal timing continues.
- I release the split time and display the ongoing elapsed time, press button C again. The chronograph hands will jump to catch up with the total elapsed time.
- I stopio the measurement, press button A.
- I ailosod, press button C.
Cynnal a chadw
1. Glanhau
Wipe the watch case and metal band regularly with a soft, dry cloth to remove dust and perspiration. For stubborn dirt, a slightly damp gellir defnyddio lliain, ac yna ei sychu ar unwaith. Osgowch ddefnyddio glanhawyr cemegol neu ddeunyddiau sgraffiniol.
2. Gwrthiant Dŵr
Your watch has a specified water resistance rating. While it can withstand splashes or brief immersion, it is not suitable for diving or prolonged water activities unless explicitly stated otherwise. Always ensure the crown is fully pushed in before any contact with water. Avoid operating buttons or the crown while the watch is wet.
3. Amnewid Batri
The watch is powered by one LR44 battery. When the watch stops or the chronograph functions become erratic, it is likely time for a battery replacement. It is recommended to have the battery replaced by a qualified watch technician to ensure proper sealing and maintain water resistance.
4. Storio
When not wearing your watch, store it in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. Use the original watch box or a soft pouch for protection.
Datrys problemau
| Problem | Achos Posibl | Ateb |
|---|---|---|
| Oriawr ddim yn rhedeg | Batri wedi'i ddisbyddu | Amnewid y batri (argymhellir gwasanaeth proffesiynol). |
| Amser/dyddiad anghywir | Time/date not set correctly or crown not fully pushed in. | Refer to "Setting the Time" and "Setting the Date" sections. Ensure crown is fully pushed in. |
| Nid yw dwylo cronograff yn ailosod i sero | Chronograph hands misalignment. | Perform "Initial Chronograph Reset" procedure. |
| Condensation inside watch | Amlygiad i newidiadau tymheredd eithafol neu wrthwynebiad dŵr amhariad. | Chwiliwch am wasanaeth proffesiynol ar unwaith i atal difrod. |
Manylebau
- Rhif Model: SE-9005-66
- Math o Symudiad: Cwarts
- Math Arddangos: Cronograff
- Lliw deialu: Du
- Dial Shape: Rownd
- Deunydd Band: Metel
- Lliw Band: Du
- Diamedr Achos: 44 mm
- Gwrthiant Dŵr: Yes (specific depth not provided, refer to watch back for details)
- Math o batri: 1 x LR44 (wedi'i gynnwys)
- Pwysau Eitem: 120 g
- Dimensiynau Cynnyrch: 12 x 8 x 9 cm
Gwarant
Your Swiss Eagle Chronograph Black Dial Men's Watch, model SE-9005-66, comes with a Gwarant Gwneuthurwr 2 Flwyddyn. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper handling, accidents, unauthorized repairs, or normal wear and tear. Please retain your proof of purchase for warranty claims.
For warranty service or claims, please contact the authorized Swiss Eagle service center or the retailer from whom the watch was purchased.
Cefnogaeth
For further assistance, technical support, or inquiries regarding your Swiss Eagle watch, please visit the official Swiss Eagle website or contact their customer service department. Always refer to your specific model number (SE-9005-66) when seeking support.
