Crank-n-Charge Marine Outboard Starter Motor User Manual

1. Rhagymadrodd

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new Crank-n-Charge Starter Motor. This premium starter motor is designed for reliable performance on Suzuki outboard engines ranging from 50HP to 85HP, ensuring dependable starting power for your marine adventures.

Darllenwch y llawlyfr hwn yn drylwyr cyn ei osod a'i ddefnyddio er mwyn sicrhau bod y cynnyrch yn gweithredu'n iawn ac yn para'n hir.

2. Gwybodaeth Diogelwch

Always observe the following safety precautions when handling, installing, or maintaining the starter motor:

• Batri datgysylltu: Before beginning any work on the starter motor or electrical system, always disconnect the boat's battery to prevent accidental starting or electrical shock.
• Gwisgwch Offer Amddiffynnol: Defnyddiwch offer amddiffynnol personol priodol, gan gynnwys sbectol ddiogelwch a menig, i atal anaf.
• Gosodiad Proffesiynol a Argymhellir: If you are unsure about any step of the installation process, it is highly recommended to seek assistance from a qualified marine mechanic.
• Offer Priodol: Use only the correct tools for the job. Incorrect tools can damage the starter or other components.
• Gwirio Cysylltiadau: Ensure all electrical connections are clean, tight, and free from corrosion to prevent overheating or poor performance.

3. Cynnwys Pecyn

Gwiriwch fod yr holl eitemau yn bresennol ac yn ddi-ddifrod wrth agor y pecyn:

• Crank-n-Charge Starter Motor (Model: 18316N_DSA-ASIN-B00WRMOUAA)

If any components are missing or damaged, please contact customer support immediately.

4. Gosod (Sefydlu)

This section outlines the general steps for replacing an outboard starter motor. Specific procedures may vary by engine model. Refer to your Suzuki outboard's service manual for detailed instructions.

1. Paratoi:
   • Ensure the boat is securely docked or trailered.
   • Disconnect the negative (-) terminal, then the positive (+) terminal of the boat's battery.
   • Gather necessary tools: wrenches, sockets, wire brush, dielectric grease.
2. Tynnwch yr Hen Gychwynnwr:
   • Locate the existing starter motor on your outboard engine.
   • Carefully disconnect the electrical wires from the starter motor (typically a large battery cable and a smaller solenoid wire). Note their positions for reinstallation.
   • Unbolt the starter motor from its mounting points on the engine block. There are typically two M8-1.25 threaded mounting holes.
   • Remove the old starter.
3. Gosod Cychwynnydd Newydd:
   • Clean the mounting surface on the engine block to ensure a good connection.
   • Position the new Crank-n-Charge starter motor into place, aligning the mounting holes.
   • Secure the starter motor with the appropriate bolts. Ensure they are tightened to the manufacturer's specifications (refer to your engine manual).
   • Reconnect the electrical wires to the new starter motor. Ensure the large battery cable is connected to the main terminal and the smaller solenoid wire to the solenoid terminal. Apply dielectric grease to connections for corrosion protection.
4. Gwiriadau Terfynol:
   • Double-check all connections for tightness and correct routing.
   • Ailgysylltwch derfynell bositif (+) y batri, yna derfynell negatif (-).
   • Perform a test start to ensure proper operation.

Ffigur 4.1: Blaen view of the Crank-n-Charge Starter Motor, showing the drive gear and mounting flange.

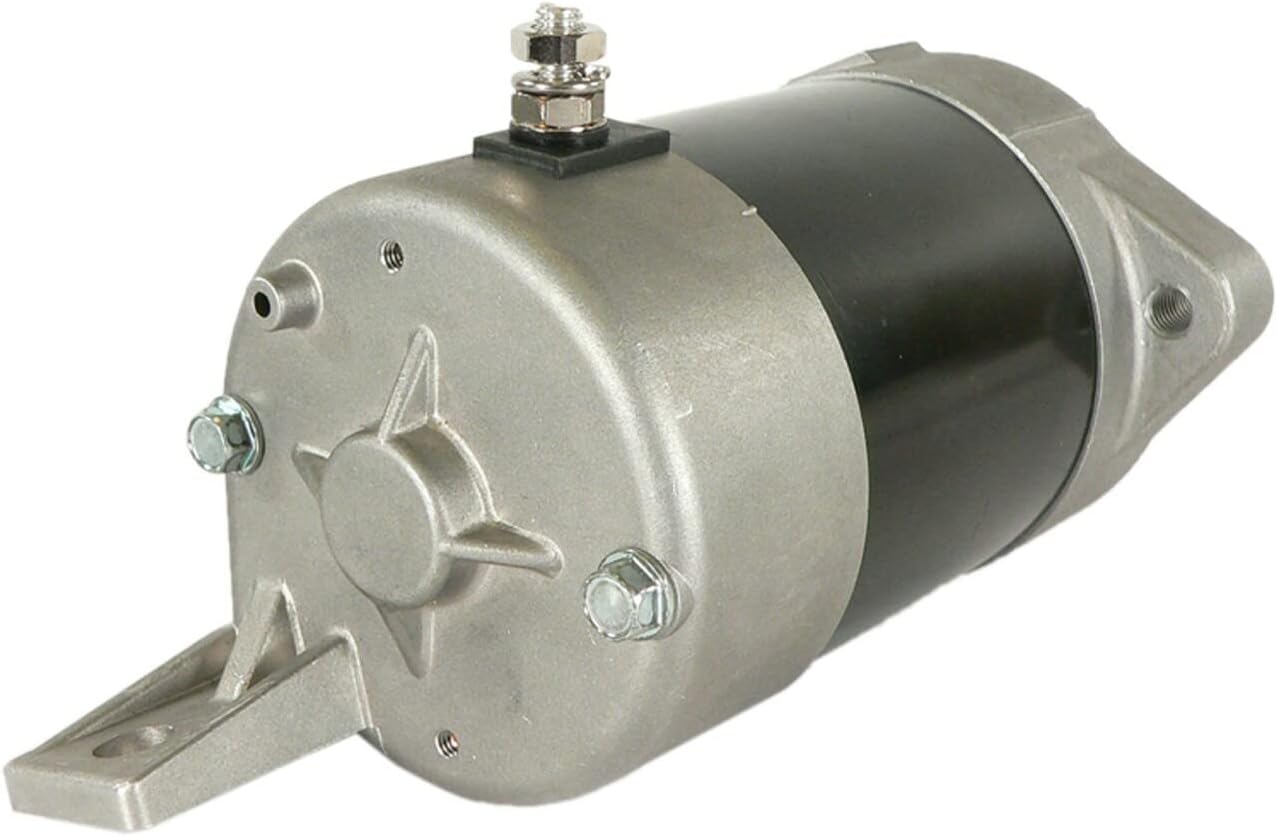

Ffigur 4.2: Cefn view of the Crank-n-Charge Starter Motor, highlighting the electrical connection terminals.

5. Cyfarwyddiadau Gweithredu

The Crank-n-Charge Starter Motor operates in conjunction with your boat's ignition system to start the outboard engine.

1. Ensure Engine Readiness: Before attempting to start, ensure your outboard engine is in neutral, the fuel supply is open, and the kill switch is in the 'run' position.
2. Tanio: Rhowch yr allwedd yn y switsh tanio.
3. Peiriant Cychwyn: Trowch yr allwedd i'r safle 'START'. Bydd y modur cychwyn yn ymgysylltu ag olwyn hedfan yr injan, gan achosi i'r injan droelli.
4. Allwedd Rhyddhau: Once the engine starts, immediately release the key, allowing it to return to the 'ON' position. Do not hold the key in the 'START' position once the engine has fired.

If the engine does not start after a few seconds of cranking, release the key, wait a moment, and then attempt to start again. Avoid prolonged cranking to prevent overheating the starter motor or draining the battery.

6. cynnal

Proper maintenance ensures the longevity and reliable performance of your starter motor.

• Arolygiad Rheolaidd: Periodically inspect the starter motor and its electrical connections for signs of corrosion, loose wires, or physical damage.
• Glendid: Keep the starter motor and surrounding area clean and free of dirt, salt, and debris. Use a soft cloth to wipe down the exterior. Avoid using high-pressure washers directly on the starter.
• Diogelu rhag cyrydiad: Apply a marine-grade anti-corrosion spray or dielectric grease to electrical terminals and connections to protect against the harsh marine environment.
• Iechyd Batri: Ensure your boat's battery is in good condition and fully charged. A weak battery can put excessive strain on the starter motor.
• Archwiliadau Proffesiynol: Consider having your marine mechanic inspect the starter motor as part of your regular engine maintenance schedule.

7. Datrys Problemau

This section provides solutions to common issues you might encounter with your starter motor. For complex problems, consult a qualified marine mechanic.

8. manylebau

Key technical specifications for your Crank-n-Charge Starter Motor:

• Cyftage: 12V
• Pwer: 0.9kW / 1.21HP
• Cylchdro: Counter-clockwise (CCW)
• Math o Ddechreuwr: DD (Direct Drive)
• Nifer y Dannedd: 9
• Gear OD: 1.154 modfedd (29.3 mm)
• Mounting Ears: Two M8-1.25 threaded holes
• Dyluniad: New aftermarket (not rebuilt)
• Rhif Rhan: 18316N_DSA-ASIN-B00WRMOUAA
• Compatible with Suzuki Models:
  • DT50ECL (1984) - 48.7ci 50HP
  • DT60CL (1983-1984) - 48.7ci 60HP
  • DT75TCL (1983-1997) - 73.0ci 75HP
  • DT85EL (1980) - 73.5ci 85HP
  • DT85TCL (1982-2000) - 73.0ci 85HP
  • DT85TEL (1980) - 73.5ci 85HP
  • PU85 (1992-1996) - 73.0ci 85HP
• Yn disodli Rhifau Rhan OEM:
  • Hitachi: S114-407, S114-555
  • Suzuki: 31100-95310, 31100-95312, 31100-95313, 31100-95600, 31100-95601
  • API Marine: MOT5006, MOT5006N
  • Lester: 18316, 18815
  • Sierra Marine: 18-6414, 18-6428
  • Arco Marine: 3440
  • Arrowhead: SHI0089
  • J ac N: 410-44061
  • WAI: 2-2312-HI

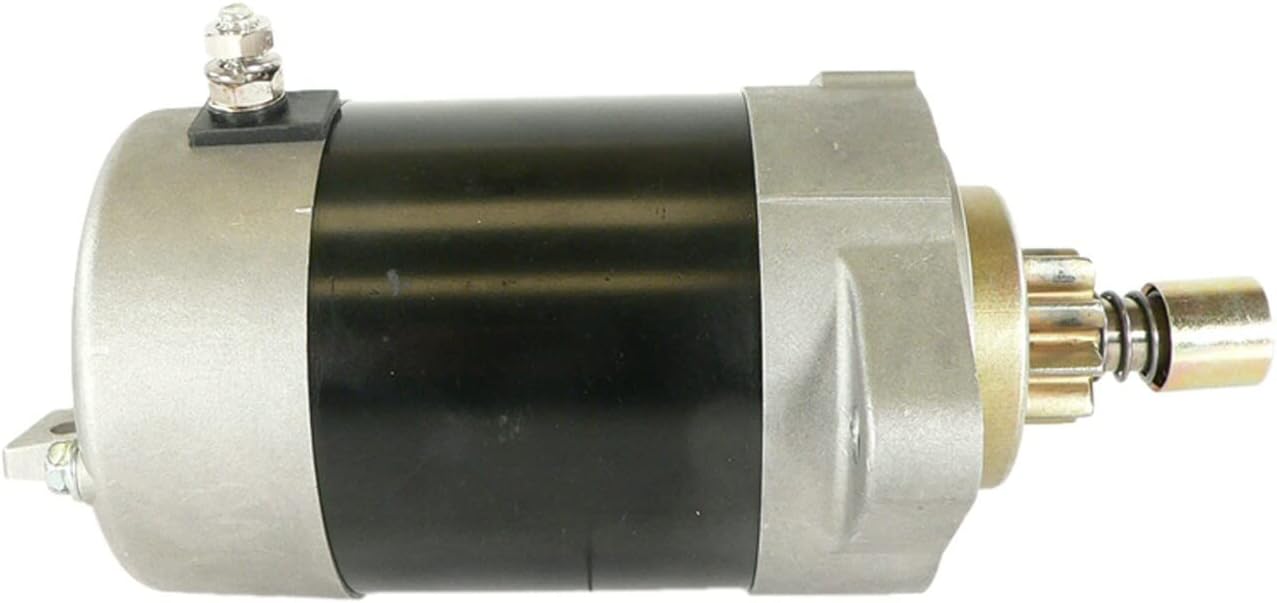

Ffigur 8.1: Ochr view of the Crank-n-Charge Starter Motor.

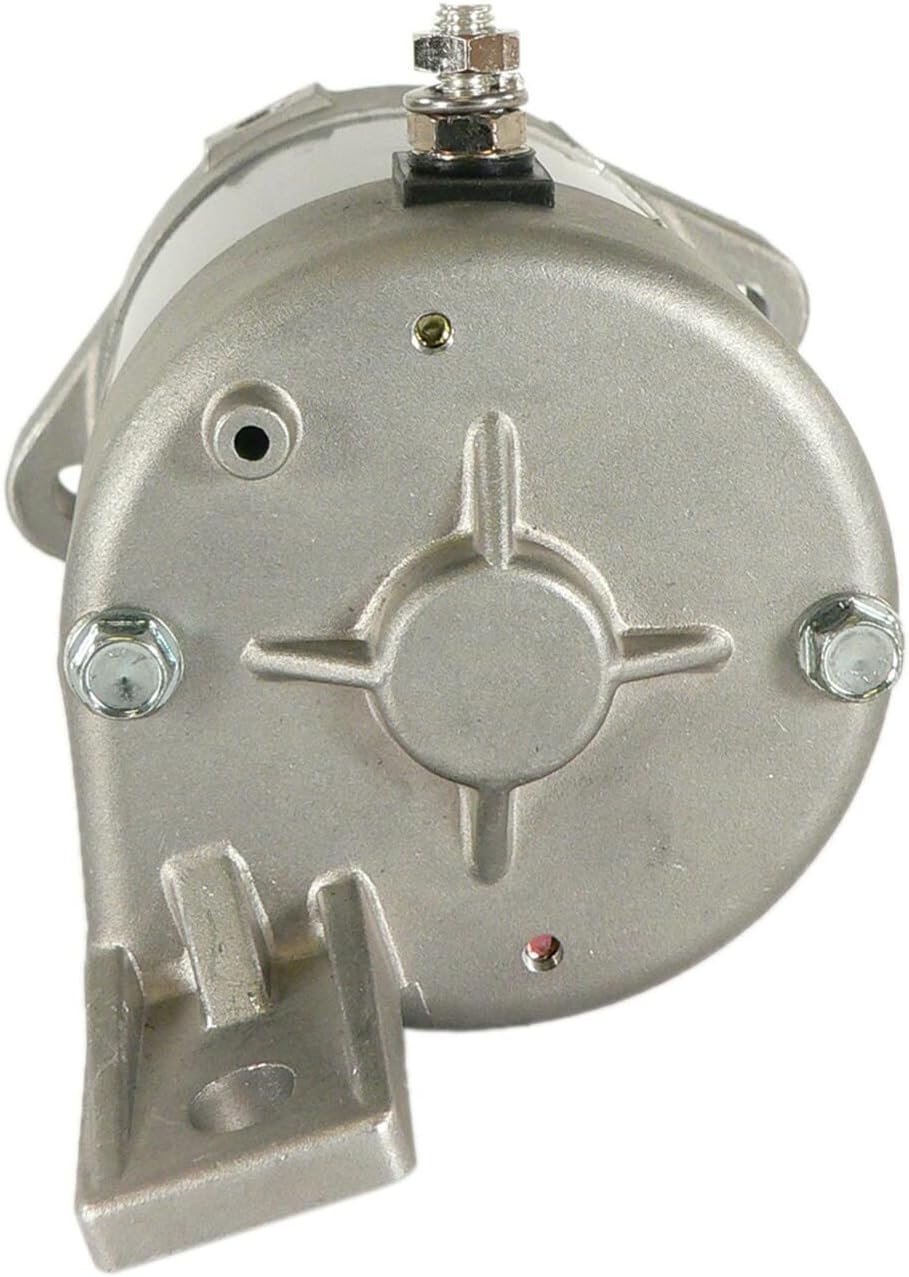

Ffigur 8.2: Ongl view of the Crank-n-Charge Starter Motor, highlighting the mounting points.

9. Gwarant a Chefnogaeth

Gwarant: This Crank-n-Charge Starter Motor is backed by a Gwarant 1 mlynedd from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, neglect, accident, or unauthorized repair.

Cefnogaeth i Gwsmeriaid: If you have any questions regarding the installation, operation, or maintenance of your starter motor, or if you encounter any issues not covered in the troubleshooting section, please contact our customer support team. When contacting support, please have your product model number (18316N_DSA-ASIN-B00WRMOUAA) and purchase information ready.

For assistance, please refer to the contact information provided by your retailer or visit the official Crank-n-Charge websafle.
