Eurodib SFE01860-240 Electric Countertop Fryer User Manual

1. Rhagymadrodd

Thank you for choosing the Eurodib SFE01860-240 Electric Countertop Fryer. This appliance is designed for commercial use, offering efficient and reliable deep frying capabilities. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your fryer. Please read it thoroughly before initial use and retain it for future reference.

2. Cyfarwyddiadau Diogelwch

Dilynwch y rhagofalon diogelwch canlynol bob amser i atal anaf neu ddifrod i'r offer:

• Ensure the fryer is placed on a stable, level, and heat-resistant surface.
• Do not operate the fryer without oil or fat.
• Never overfill the oil well beyond the maximum fill line.
• Use caution when handling hot oil. Always allow oil to cool completely before moving or cleaning the fryer.
• Keep hands and face away from hot steam and oil splashes during operation.
• Ensure the power supply matches the specifications of the fryer (240V/60/1-ph, 13.3 amps).
• Do not immerse the electrical components or control panel in water.
• Unplug the fryer from the power outlet before cleaning or servicing.
• This appliance is for commercial use only and should be operated by trained personnel.

3. Cynnyrch Drosview

The Eurodib SFE01860-240 is a single-well electric countertop fryer constructed from durable stainless steel. It features a 2-gallon (8-liter) capacity, an on/off switch, a safety re-set button, and thermostat control for precise temperature management.

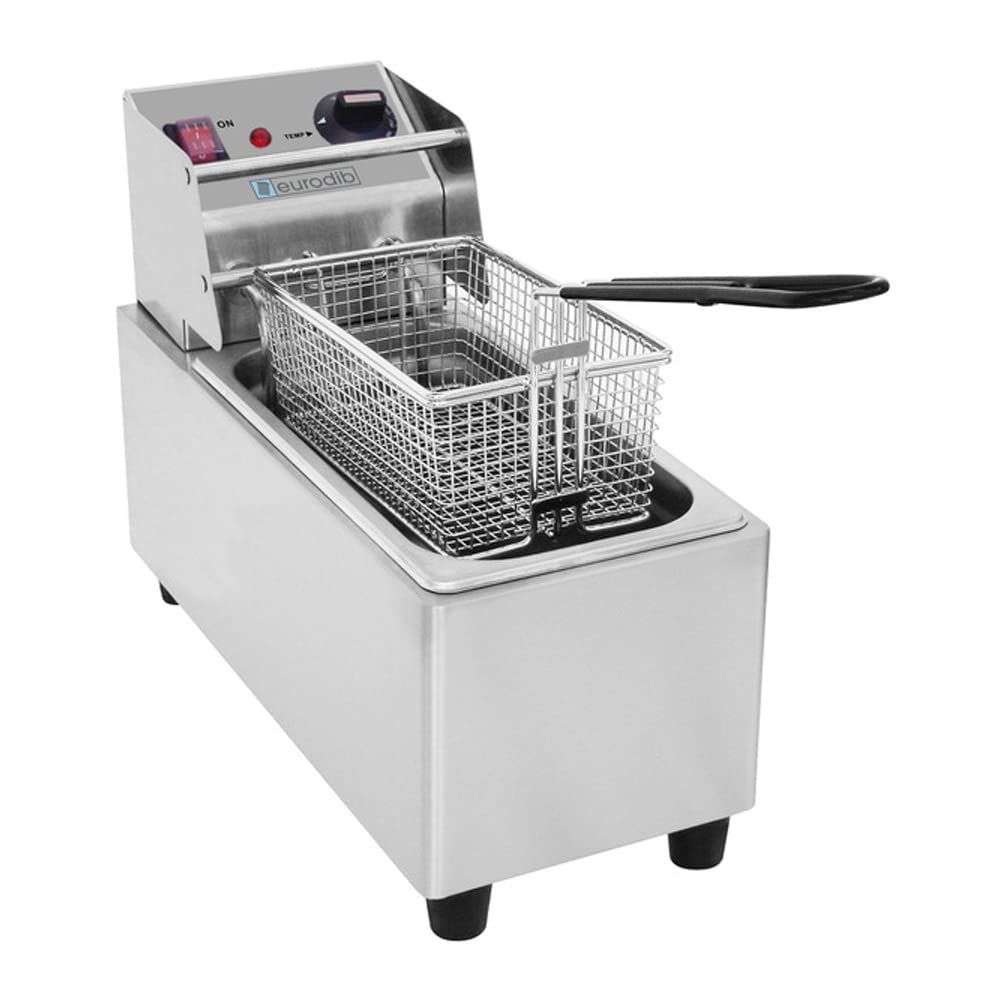

Image: Eurodib SFE01860-240 Electric Countertop Fryer. This image displays the stainless steel countertop fryer with its control panel on the left, featuring an ON/OFF switch and temperature dial. A wire frying basket with a black handle is positioned within the oil well.

4. Gosod

1. Dadbacio: Carefully remove the fryer from its packaging. Inspect for any shipping damage. Retain packaging for future transport if needed.
2. Lleoliad: Position the fryer on a stable, non-combustible, and level surface. Ensure adequate clearance around the unit for ventilation and safe operation.
3. Glanhau Cychwynnol: Before first use, clean the oil well and frying basket with warm, soapy water. Rinse thoroughly and dry completely.
4. Cysylltiad Pwer: Connect the fryer to a dedicated 240V/60Hz/1-ph power outlet with a NEMA 6-20P receptacle. Ensure the electrical circuit can handle the 3.2kW load.

5. Cyfarwyddiadau Gweithredu

1. Llenwch ag Olew: Pour cooking oil or solid shortening into the oil well. Do not exceed the maximum fill line indicated inside the well.
2. Pŵer Ymlaen: Turn the ON/OFF switch to the 'ON' position. The power indicator light will illuminate.
3. Tymheredd Gosod: Rotate the thermostat control dial to the desired frying temperature. The heating indicator light will turn on, indicating that the heating elements are active.
4. Cynhesu: Allow the oil to preheat to the set temperature. The heating indicator light will turn off once the desired temperature is reached. It will cycle on and off during operation to maintain the temperature.
5. Ffrio: Carefully place food into the frying basket. Lower the basket slowly into the hot oil to prevent splashing. Do not overload the basket, as this can lower oil temperature and result in soggy food.
6. Monitro: Fry food until it reaches the desired doneness and color.
7. Tynnu Bwyd: Lift the basket from the oil and allow excess oil to drain back into the well. Transfer fried food to a holding area.
8. Pwer i ffwrdd: After use, turn the thermostat control to the lowest setting, then turn the ON/OFF switch to the 'OFF' position. Unplug the fryer from the power outlet.

6. Cynnal a Chadw a Glanhau

Regular cleaning and maintenance ensure the longevity and optimal performance of your fryer.

• Glanhau dyddiol: After each use, allow the oil to cool completely. Filter the oil if it is to be reused. Remove the frying basket and oil well for cleaning.
• Oil Well Cleaning: Wash the oil well and basket with warm water and a mild detergent. Use a non-abrasive brush or sponge to remove food residue. Rinse thoroughly and dry completely before reassembly.
• Glanhau Allanol: Sychwch yr arwynebau dur di-staen allanol gyda hysbysebamp cloth and mild detergent. Do not use abrasive cleaners or scouring pads, as they can scratch the finish.
• Cydrannau Trydanol: Never spray water directly onto the control panel or electrical components. Wipe with a damp brethyn yn unig.
• Safety Reset: If the fryer overheats, the safety re-set button may trip. Allow the unit to cool, then press the re-set button to resume operation. Investigate the cause of overheating.

7. Datrys Problemau

8. manylebau

• Model: SFE01860-240
• Math: Electric Countertop Fryer
• Cynhwysedd: 2 galwyn / 8 litr
• Deunydd: Dur Di-staen
• Pwer: 240V/60/1-ph
• Ampdileu: 13.3 Amps
• Wattage: 3.2 kW
• Math plwg: NEMA 6-20P
• Dimensiynau (LWH): 20 x 11 x 16 modfedd
• Pwysau: Tua 19.67 pwys
• Tystysgrifau: cULus, NSF

9. Gwarant a Chefnogaeth

For warranty information or technical support, please contact Eurodib customer service. Keep your purchase receipt and model number readily available when contacting support.

Eurodib Contact Information: Please refer to the Eurodib official webgwefan neu'ch dogfennaeth prynu am y manylion cyswllt mwyaf cyfredol.
